StarTech.com PATA2SATA3 Instruction Manual

Instruction Manual

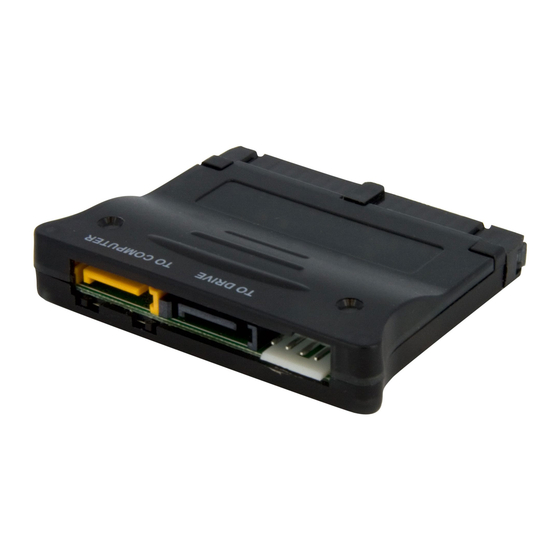

Bi-Directional SATA/IDE Adapter Converter
PATA2SATA3
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x SATA/ IDE converter adapter
• 1 x SATA cable
• 1 x SP4 to dual LP4 power Y-adapter cable
• 1 x Instruction Manual

System Requirements

• 40-pin IDE/EIDE or 7-pin SATA enabled computer system
• 3.5" IDE/EIDE or SATA hard drive
Installation
IDE controller to SATA hard drive
1.

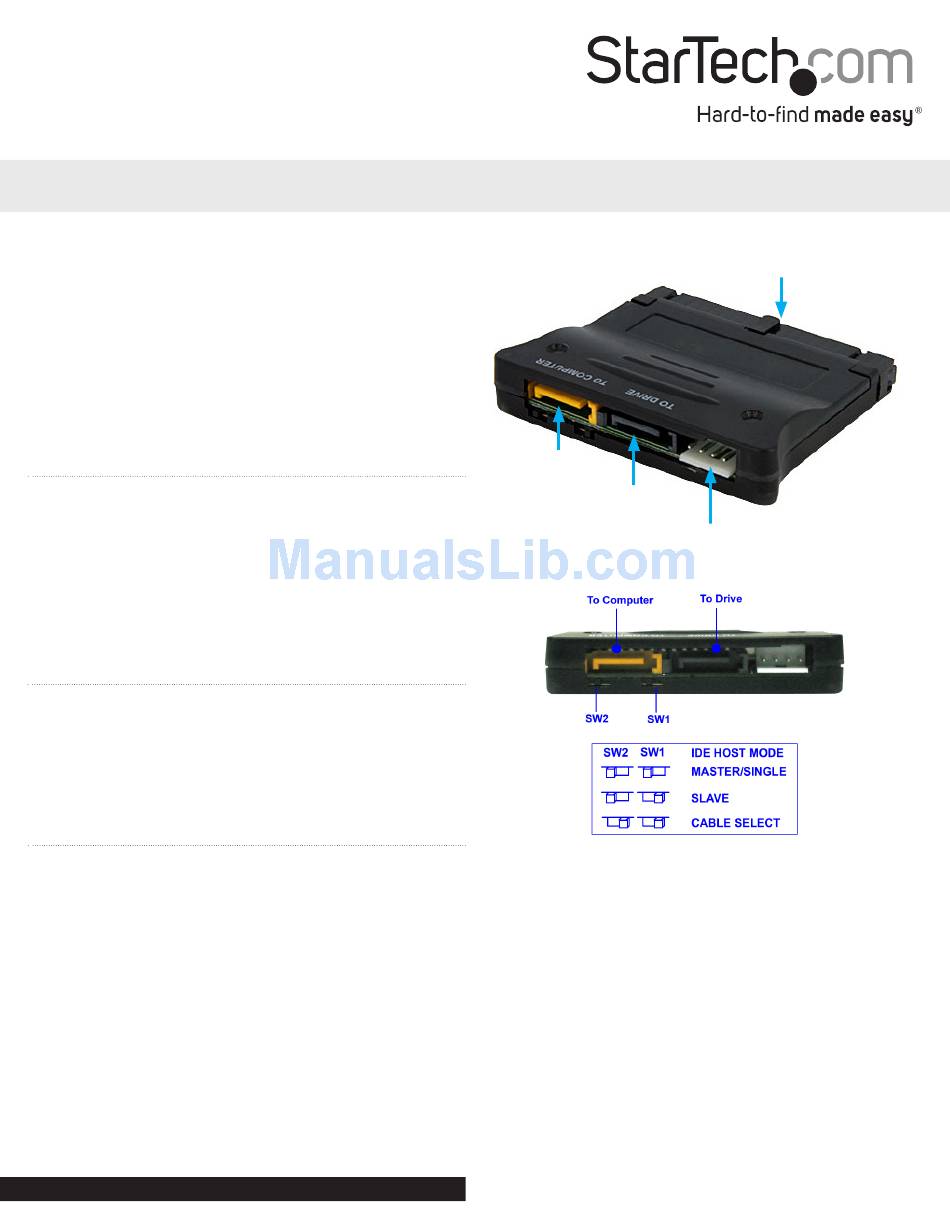

Set the DIP switches on the adapter to either Master or Slave mode (see
DIP Switch Settings diagram).
2.
Plug the 40-pin female IDE connector on the adapter directly into the
male 40-pin IDE connector on your motherboard or IDE/EIDE controller
card.
3.
Connect a 7-pin SATA cable from the black "To Drive" connector to the
connector on the SATA hard drive.
4.
Connect the SATA power from the computer power supply to the SATA
hard drive.
5.
Connect an SP4 floppy power connector from the computer power
supply to the SP4 connector on the adapter. If one is not available use
the included LP4 to SP4 adapter cable to connect one of the LP4 molex
connectors from the power supply.
For the most up-to-date information, please visit: www.startech.com
7-pin SATA
(To Computer)
7-pin SATA
(To Drive)
SATA controller to IDE hard drive
1. The DIP switches do not matter in this mode.
2.
Plug the 40-pin female IDE connector on the adapter, directly into the
40-pin male connector on the IDE/EIDE hard drive.
3.
Connect a 7-pin SATA cable from the orange "To Computer" connector to
the 7-pin SATA connector on the motherboard or SATA controller card.
4.
Connect an LP4 molex power connector from the computer power
supply to the hard drive.
5.
Connect an SP4 floppy power connector from the computer power
supply to the SP4 connector on the adapter. If an SP4 connector is not
available, use the included LP4 to SP4 adapter cable to connect on of the
LP4 molex connectors from the power supply.
40-pin IDE
connector
4-pin SP4 floppy
power connector
*actual product may vary from photos
Manual Revision: 01/27/2012
