StarTech.com PIB2S31 Quick Start Manual

Quick-start guide
USB to SATA Converter for Raspberry Pi and Development Boards
PIB2S31
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
The PIB2S31 enables you to connect any SATA device to a
development board to increase data storage capacity and
performance. The PIB2S31 supports SATA I, SATA II, and SATA III
drives, and any type of SATA device, including DVD, SSD, CD-ROM,
and more.

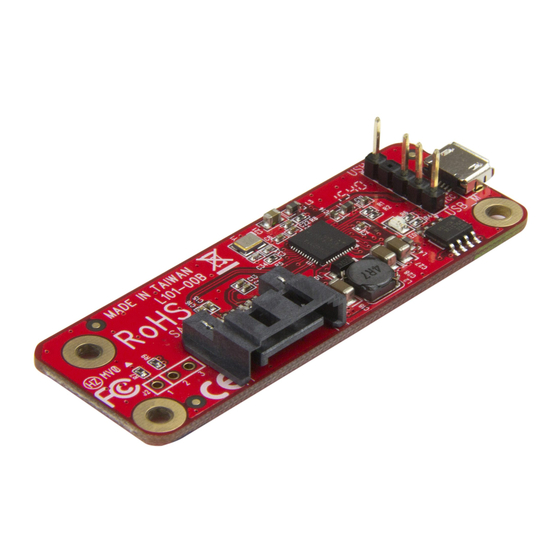

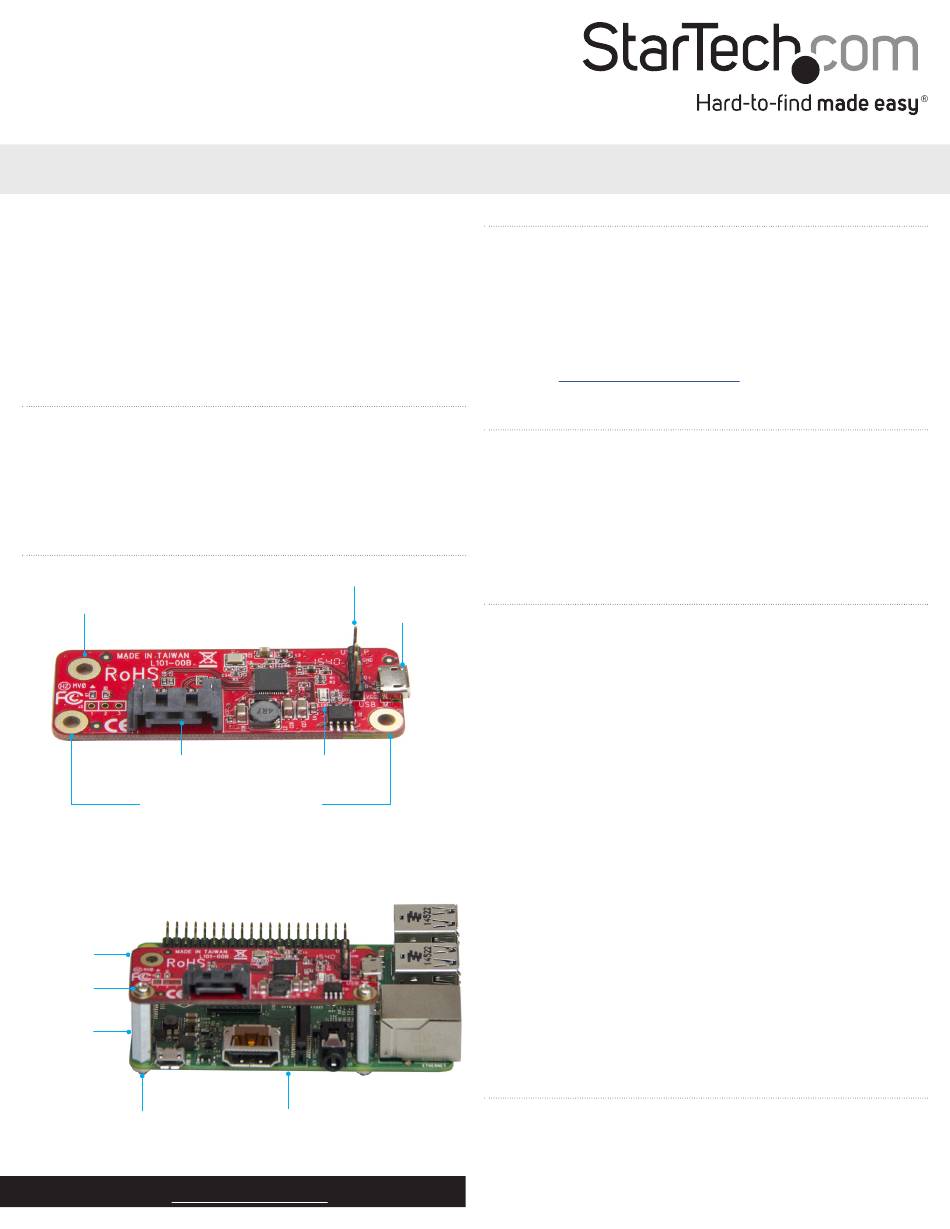

Product diagram
Secondary installation hole
(optional)
SATA port
Primary installation holes
Converter installed on circuit board
Converter
Screw
Standoffs
Nut
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/PIB2S31.
USB 2.0 header
USB 2.0 port
LED
*actual product may vary from photos
Development board
Requirements
• SATA device with cabling and external power source
• Development board (for example, Raspberry Pi)
This converter is OS independent and doesn't require any additional
drivers or software.
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/PIB2S31.
Package contents
• 1 x USB to SATA converter
• 1 x USB-A to Micro-B cable
• 2 x standoffs
• 2 x nuts
• 2 x screws
• 1 x quick-start guide
Install the converter
Warning! Drives and converters should be handled carefully,
especially when they're transported. If you're not careful with your
drives, you may lose data as a result. Always handle storage devices
with caution. Make sure that you're properly grounded by wearing
an anti-static strap when you install any computer component. If an
anti-static strap isn't available, touch a large, grounded metal surface
for several seconds to discharge any built-up static electricity.
1. Place the provided standoffs into the installation holes on your
development board.
2. To affix the standoffs in place, screw the provided nuts onto the
standoff threads on the reverse side of your development board.
3. Line up the Installation holes on the converter with the standoffs
affixed to your development board.
4. Insert the provided screws into the Installation holes on the
converter and into the standoffs, and tighten them in place.
5. Connect the provided USB-A to Micro-B cable to the USB 2.0 port
on the converter and to the USB port on your development board.
6. Use a standard 7-pin SATA cable (sold separately) to connect your
SATA drive to the SATA port on the converter.
Note: SATA only provides a data solution, so you will have to use an
additional source (for example, a power supply or external power
adapter) to power your drive.
About the LED indicator
The PIB2S31 has a green LED indicator that illuminates to indicate
activity.
Manual Revision: 08/03/2016
