StarTech.com PIB2MS1 Quick Start Manual

Quick-start guide
USB to mSATA Converter for Raspberry Pi and Development Boards
PIB2MS1
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Introduction
You can use the PIB2MS1 to connect an mSATA drive to a
development board to increase data storage capacity and
performance. The PIB2MS1 supports SATA I, SATA II, and SATA III
drives, mini mSATA drives, and mSATA SSDs.

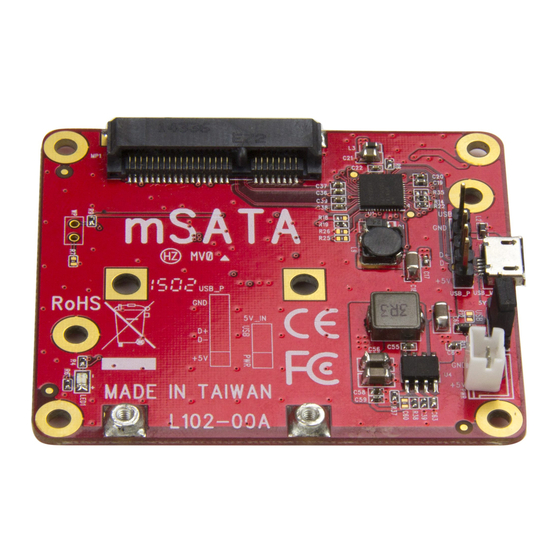

Product diagram

Primary installation hole
(1 of 4)
Secondary
installation hole
mSATA mounting
Primary installation hole
(1 of 4)
mSATA port
LED
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/PIB2MS1.
Primary installation hole
(1 of 4)
Secondary
installation hole
holes
Primary installation hole
(1 of 4)
*actual product may vary from photos
USB 2.0 header
USB 2.0 port
Jumper
Use to control
which interface
power is drawn
from
Converter installed on a development board
mSATA mounting hardware
Development board
(not included)

Package contents

• 1 x USB to mSATA converter
• 1 x USB-A to Micro-B cable
• 4 x standoffs
• 4 x nuts
• 4 x screws
• 2 x mSATA mounting screws
• 1 x quick-start guide
AUX power connector
Jumper position Mode
USB powered
AUX powered
Screw
Standoff
Manual Revision: 09/28/2016
Nut
