Scheppach HS120 Translation From Original Manual page 10

9
Fig. 6
10
Fig. 6.1
9
Fig. 7
11
Fig. 7.1
10

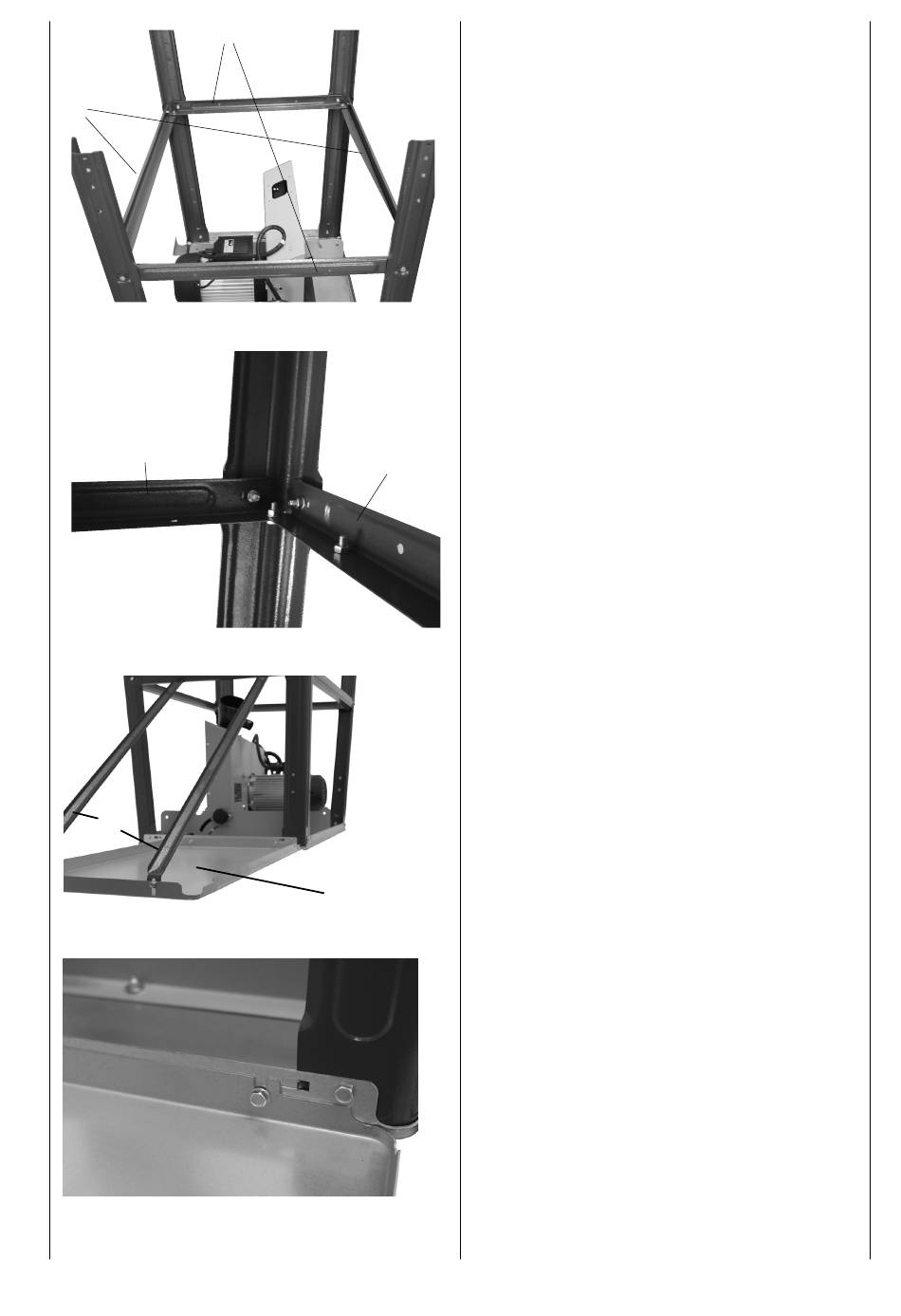

Fig. 6 / 6.1
Fasten 2 longitudinal braces (10) and 2 cross braces (9)
onto the base legs (2, 3,4 and 5) using 12 hexagon bolts
M6 x 16, 12 washers 6, and 12 nuts M6.
10
Fig. 7 / 7.1 / 7.2 / 7.3 / 7.4
The table extension plate (8) has to be mounted parallel
to the table top on the motor side of the machine. Fasten
the table extension plate (8) with 2 braces (11) and cross
brace to the table top using 6 hexagon bolts M6 x 16, 6
washers 6, and 6 nuts M6. The open slots of the table
extension have to be fixed at the table top while braces
(11) have to be fixed at at the enlongated holes of the
table extension.
Tighten the bolts slightly by hand. The table length exten-
sion (8) can also be used as table width extension by fit-
ting it to the side with the shorter extended braces. (Fig.
7.4)
