3 Remove the front panel.
5.2.2

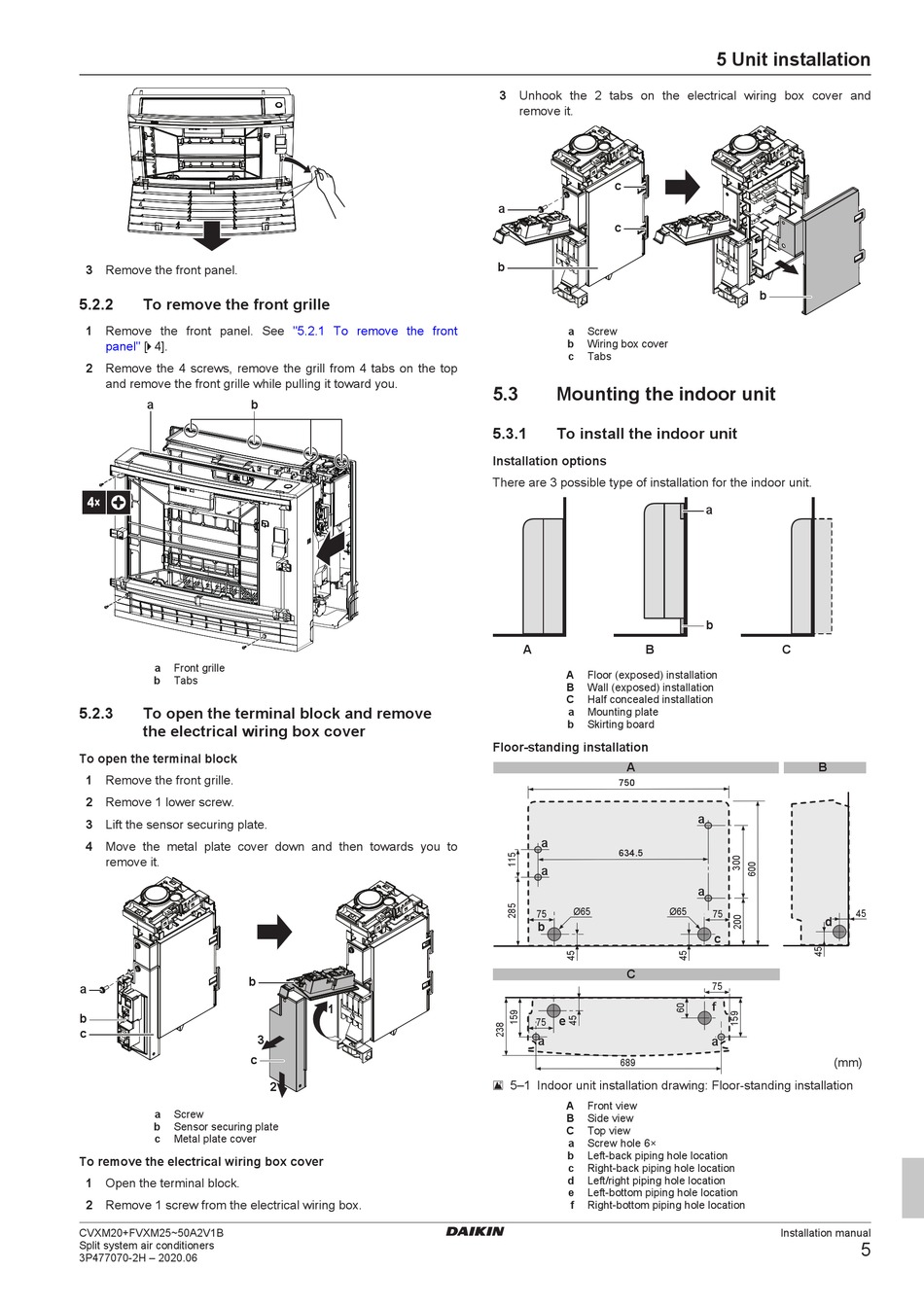

To remove the front grille

1 Remove the front panel. See
panel" [ 4 4].
2 Remove the 4 screws, remove the grill from 4 tabs on the top
and remove the front grille while pulling it toward you.
a b
4×
a Front grille
b Tabs
5.2.3 To open the terminal block and remove
the electrical wiring box cover
To open the terminal block
1 Remove the front grille.
2 Remove 1 lower screw.
3 Lift the sensor securing plate.
4 Move the metal plate cover down and then towards you to
remove it.
b
a
b
c
c
a Screw
b Sensor securing plate
c Metal plate cover
To remove the electrical wiring box cover
1 Open the terminal block.
2 Remove 1 screw from the electrical wiring box.
CVXM20+FVXM25~50A2V1B
Split system air conditioners
3P477070-2H – 2020.06
"5.2.1 To remove the front
1
3
2
3 Unhook the 2 tabs on the electrical wiring box cover and
remove it.
c
a
c
b
a Screw
b Wiring box cover
c Tabs
5.3

Mounting the indoor unit

5.3.1

To install the indoor unit

Installation options
There are 3 possible type of installation for the indoor unit.
A B
A Floor (exposed) installation
B Wall (exposed) installation
C Half concealed installation
a Mounting plate
b Skirting board
Floor-standing installation
A
a
a
b
C
e
a
5‒1 Indoor unit installation drawing: Floor-standing installation
A Front view
B Side view
C Top view
a Screw hole 6×
b Left-back piping hole location
c Right-back piping hole location
d Left/right piping hole location
e Left-bottom piping hole location
f Right-bottom piping hole location
5 Unit installation
b
a
b
C
B
a
a
d
c
f
a
(mm)
