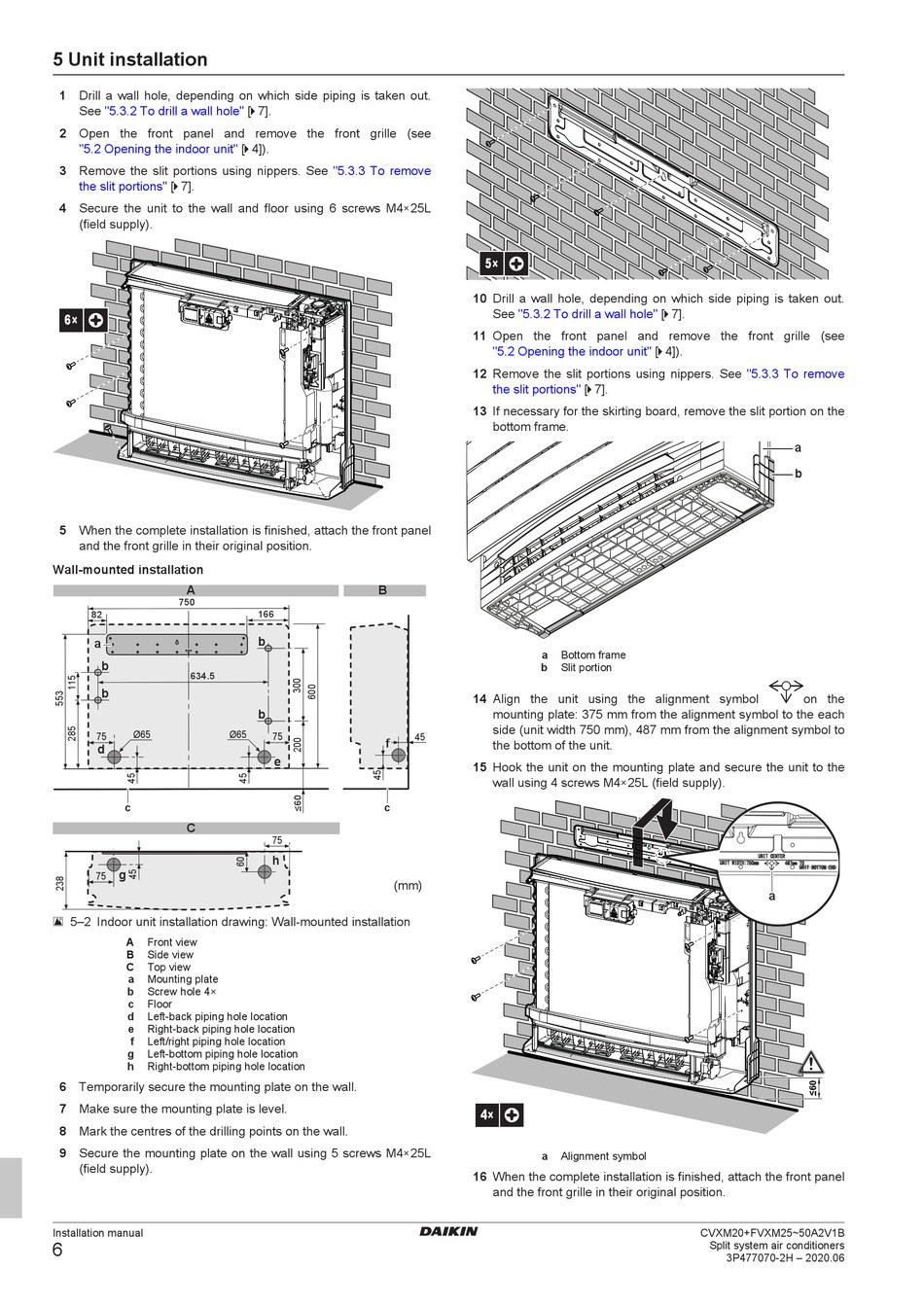

5 Unit installation
1 Drill a wall hole, depending on which side piping is taken out.
hole" [ 4 7].
See "5.3.2 To drill a wall
2 Open the front panel and remove the front grille (see
unit" [ 4 4]).
"5.2 Opening the indoor
3 Remove the slit portions using nippers. See
the slit portions" [ 4 7].
4 Secure the unit to the wall and floor using 6 screws M4×25L
(field supply).
6×
5 When the complete installation is finished, attach the front panel
and the front grille in their original position.
Wall-mounted installation
A
a
b
b
d
c
C
g
5‒2 Indoor unit installation drawing: Wall-mounted installation
A Front view
B Side view
C Top view
a Mounting plate
b Screw hole 4×
c Floor
d Left-back piping hole location
e Right-back piping hole location
f Left/right piping hole location
g Left-bottom piping hole location
h Right-bottom piping hole location
6 Temporarily secure the mounting plate on the wall.
7 Make sure the mounting plate is level.
8 Mark the centres of the drilling points on the wall.
9 Secure the mounting plate on the wall using 5 screws M4×25L
(field supply).
Installation manual
6
"5.3.3 To remove
B
b
b
f
e
c
h
(mm)
5×
10 Drill a wall hole, depending on which side piping is taken out.
hole" [ 4 7].
See "5.3.2 To drill a wall
11 Open the front panel and remove the front grille (see
"5.2 Opening the indoor unit" [ 4 4]).
12 Remove the slit portions using nippers. See
portions" [ 4 7].
the slit
13 If necessary for the skirting board, remove the slit portion on the
bottom frame.
a Bottom frame
b Slit portion
14 Align the unit using the alignment symbol
mounting plate: 375 mm from the alignment symbol to the each
side (unit width 750 mm), 487 mm from the alignment symbol to
the bottom of the unit.
15 Hook the unit on the mounting plate and secure the unit to the
wall using 4 screws M4×25L (field supply).
4×
a Alignment symbol
16 When the complete installation is finished, attach the front panel
and the front grille in their original position.
"5.3.3 To remove
a
b
on the
a
CVXM20+FVXM25~50A2V1B
Split system air conditioners
3P477070-2H – 2020.06
