Crestron DMF-CI-8 Quick Start

DMF-CI-8

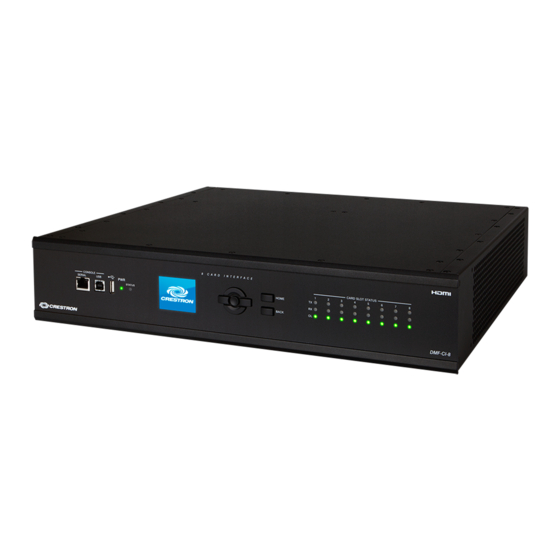

The Crestron® DMF-CI-8 provides a rack-mounted solution for extending
multiple 4K video signals over Gigabit Ethernet and fiber-optic cables.

In the Box

1 DMF-CI-8, DigitalMedia™ Chassis for DM NVX™ Series Cards
Additional Items
2 Bracket, Rack Ear, 2U (2045460)
4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)
1 Power Cord, 6 ft. 7 in. (2 m) (2001134)
4 Screw, 6-32 x 3/8 in., Undercut Head, Phillips (Rear Mounting)
(2007235)

Install the Device

The DMF-CI-8 can be mounted into a rack or placed onto a flat surface.

Mounting into a Rack

To mount the device into a rack:
1. Using a #1 or #2 Phillips screwdriver (not included), remove the two
front mounting screws from the left or right side of the device.
2. Align a rack ear with the front and rear mounting holes on the device.
3. Insert the two front mounting screws removed in step 1 through the
rack ear into the front mounting holes of the device.
4. Secure the rack ear by inserting two included 6-32 x 3/8 in. rear
mounting screws through the rack ear into the rear screw holes of the
device.
5. Repeat steps 1-4 to attach the remaining rack ear to the other side of
the device.
6. Mount the device into the rack using four mounting screws
(not included).
Mounting into a Rack

Placing onto a Flat Surface

When placing the device onto a flat surface or stacking it with other
equipment, attach the four included feet near the corners on the
underside of the device.
Quick Start
1
