UM1705
User manual
Discovery kit for the M24SR series Dynamic NFC/RFID tag
Premium and Standard Editions
Introduction
The M24SR-DISCOVERY is a demonstration kit to evaluate the features and capabilities of
the M24SR series and is based on the M24SR64 device. Two versions of this kit are
available: the Standard Edition and the Premium Edition.
The Premium Edition includes all of the Standard edition features, plus a headset and a
Bluetooth module to demonstrate the convenience to pair it with a smartphone via NFC.
The M24SR64 device is a dynamic NFC/RFID tag IC with a dual interface. It embeds a
64 Kbits EEPROM memory. It can be operated from an I
C interface or by a 13.56 MHz
2
RFID reader or an NFC phone.
The I
C interface uses a two-wire serial interface, consisting of a bidirectional data line and
2
a clock line. It behaves as a slave with respect to the I
C protocol.
2
The RF protocol is compatible with ISO/IEC 14443 Type A and NFC Forum Type 4 Tag.
The board is powered through the USB bus. It also includes a microcontroller STM32F103
to drive the EEPROM via I
C and the LCD screen via SPI bus.
2
The M24SR-DISCOVERY (MB1138) schematics, BOM, gerber files, drivers and firmware
.
can be downloaded from
www.st.com

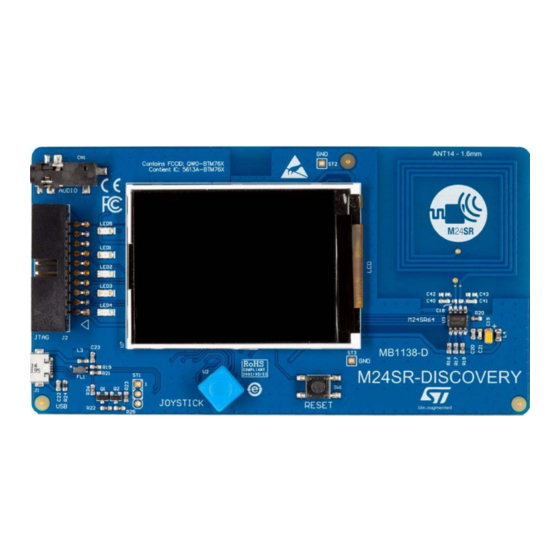

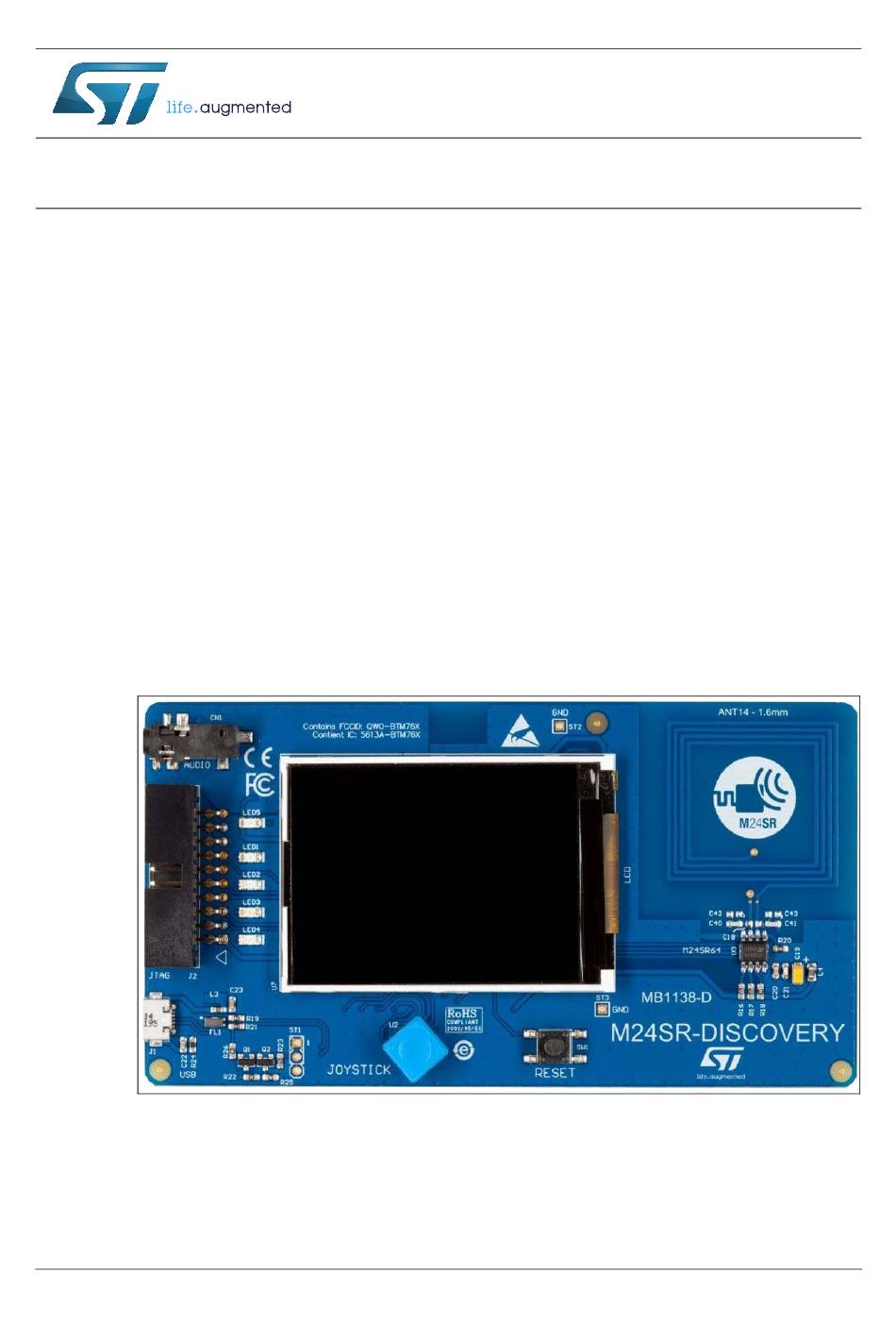

Figure 1. M24SR-Discovery Board
May 2015
DocID025678 Rev 2
1/17
www.st.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST M24SR-DISCOVERY
Summary of Contents for ST M24SR-DISCOVERY
-
Page 1: Figure 1. M24Sr-Discovery Board
Premium and Standard Editions Introduction The M24SR-DISCOVERY is a demonstration kit to evaluate the features and capabilities of the M24SR series and is based on the M24SR64 device. Two versions of this kit are available: the Standard Edition and the Premium Edition. -
Page 2: Table Of Contents
Hardware and layout description ....... 7 M24SR-Discovery board description ......7 M24SR-Discovery board powering and startup . - Page 3 UM1705 List of tables List of tables Table 1. Device Summary ............6 Table 2.
- Page 4 M24SR-Discovery board block diagram ........
-
Page 5: Description
Bluetooth module which demonstrates the ease of pairing a smartphone to the kit over NFC. The Bluetooth module is driven by the STM32F103 microcontroller via UART link. Figure 2 shows the M24SR-Discovery board block diagram. Figure 2. M24SR-Discovery board block diagram *Available only on premium edition. -
Page 6: Features
JTAG connector for microcontroller firmware upgrade and debug • Joystick for menu selection • Bluetooth module with audio outputs connected to Jack 3.5 • Headset Table 1. Device Summary Reference Order Code M24SR-DISCO-STD M24SR-DISCOVERY M24SR-DISCO-PREM a. Available with the Premium edition only: M24SRDISCO-PREM 6/17 DocID025678 Rev 2... -
Page 7: Hardware And Layout Description
Two control pins are also available from the M24SR64-Y chip, allowing flexible management of the NFC interface. M24SR-Discovery board description The following figures show: • M24SR-Discovery board front layout • M24SR-Discovery board back layout DocID025678 Rev 2 7/17... -
Page 8: Figure 3. M24Sr-Discovery Board Front Layout
Hardware and layout description UM1705 Figure 3. M24SR-Discovery board front layout *Available only on premium edition. Figure 4. M24SR-Discovery board back layout *Available only on premium edition. 8/17 DocID025678 Rev 2... -
Page 9: M24Sr-Discovery Board Powering And Startup
Hardware and layout description M24SR-Discovery board powering and startup The M24SR-Discovery board is powered by the USB bus via a Type A / micro B USB cable connected to a PC. When powered up, the microcontroller starts the firmware already downloaded in the Flash memory. -
Page 10: Figure 5. Discovery Kit M24Sr (Mcu & M24Sr)
Figure 5. Discovery Kit M24SR (MCU & M24SR) Signals to/from BT Module USB_Disconnect BT_GPIO1 PA0-WKUP BT_GPIO1 COMMON STM32_TX PB2/BOOT1 STM32_TX BT_RESET JTDO PB3/JTDO /JTRST JOY_SEL PB4/JNTRST STM32_RX Selection JOY_LEFT STM32_RX M24SR_GPO JOY_SEL M24SR_RF disable JOY_DOWN BT_POWER_ON BT_POWER_ON JOY_RIGHT BT_RESET JOY_UP BT_RESET JOY_DOWN DOWN... -
Page 11: Figure 6. Discovery Kit M24Sr(Lcd Screen)
DB17/R5 IM[0..3] = 0110 --> 4-wire 8-bit serial I, SDA:In/Out 4.7μF LEDA 100nF LEDK1 LEDK2 LEDK3 LEDK4 VDD3_P(nc) BC_CTRL(nc) BC(nc) SF-TC240T-9370-T ST Microelectronics Discovery Kit M24SR (LCD Screen) Title: MMY Division Size: Reference: MB1138 Revision: B-01 £ Date: 02/12/2013 Sheet:... -
Page 12: Figure 7. Discovery Kit M24Sr (Bt Module)
STM32_RX UART_TX PCM_CLK Right_N UART_RTS PCM_SYNC AGND 3.9k UART_CTS PCM_OUT 2,2uF PCM_IN USB_DN Right_P AGND USB_DP 3.9k 2,2uF 3.9k AGND AGND ST Microelectronics Discovery Kit M24SR (BT Module) Title: MMY Division Size: Reference: MB1138 Revision: B-01 £ Date: 02/12/2013 Sheet:... -
Page 13: Figure 8. Bom (Bill Of Material)
Figure 8. BOM (Bill Of Material) & ZK,^ /d^ D &> ^, >Y&W ^dD & >Y&W ^dD & & :Kz^d/< Dd & / E& WZKD D ^Z zDE d D ^Z zDE d D ^Z zDE d <& d W <... -
Page 14: Federal Communications Commission (Fcc) And Industry Canada (Ic) Compliance Statements
FCC Compliance Statement 4.1.1 Part 2.1077 STMicroelectronics Part No. M24SR-Discovery This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Ic Compliance Statement
UM1705Federal Communications Commission (FCC) and Industry Canada (IC) Compliance State- IC Compliance Statement 4.2.1 Compliance Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation. -
Page 16: Revision History
04-Feb-2014 Initial Release Added Section 4: Federal Communications Commission (FCC) and Industry Canada (IC) Compliance Statements 07-May-2015 Updated Figure 2: M24SR-Discovery board block diagram, Figure 3: M24SR-Discovery board front layout Figure 4: M24SR-Discovery board back layout 16/17 DocID025678 Rev 2... - Page 17 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
