Assembly Instructions

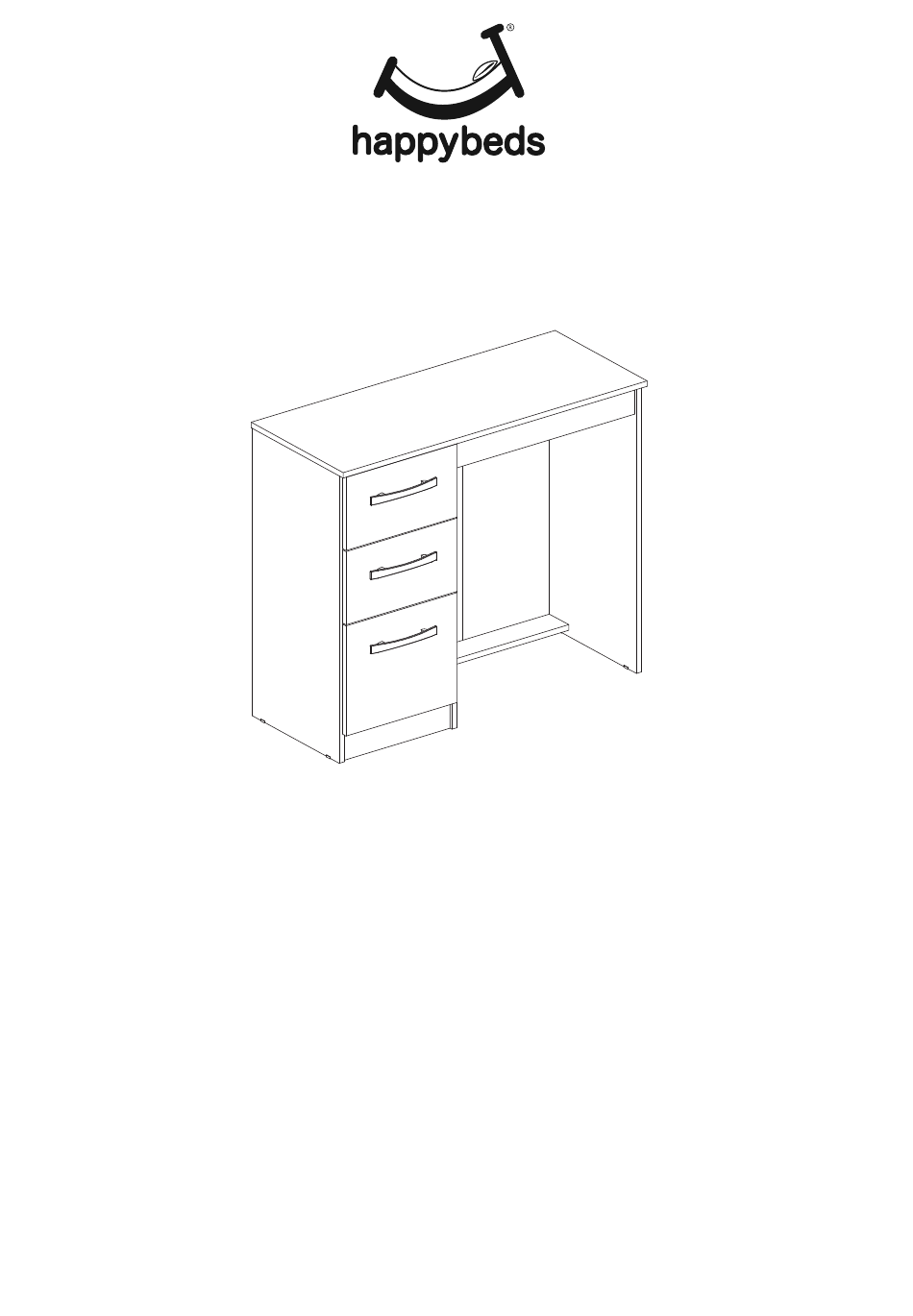

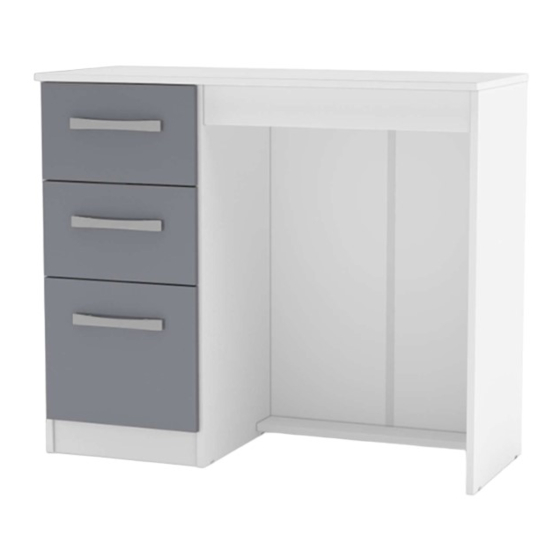

Lynx 3 Drawer Dressing Table
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds Lynx 3 Drawer Dressing Table
Summary of Contents for Happybeds Lynx 3 Drawer Dressing Table
- Page 1 Assembly Instructions Lynx 3 Drawer Dressing Table Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
- Page 3 Vendor: S000139 Parts List Hardware List Part Descripion Qty Part Descripion Top Panel 8 x 30mm Wooden Dowel Left Panel 8 x 50mm Wooden Dowel Centre Panel Simple Minifix Screw Right Panel Double Minifix Screw Plinth Cam Lock Drawer Runners Plastic Cap Supports 3 x 14mm Screw...
- Page 4 Vendor: S000139 Step 1: Attach the drawer runners (6) to the left panel (2) and inside of the centre panel (3) using hardware part H. Insert hardware parts A and D into each panel using a small mallet and screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
- Page 5 Vendor: S000139 Step 3: Attach the plinths (5) to the left panel (2) using harware parts D and F with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: Attach the centre panel (3) to the plinths (5) using hardware parts E and F with a screwdriver (not provided).
- Page 6 Vendor: S000139 Step 6: Attach the top panel (1) using harware part F, then attach hardware part K to the base using hardware part L. You will need to use a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Secure the back panel (17) using hardware part L, then connect the remaining back panels (18) using the spine (19) and secure using hardware parts L and M.
- Page 7 Vendor: S000139 Step 8: Assemble the drawer components using hardware parts F, G, H, I, J and N. You will need to use a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 9: To secure the item to the wall use hardware parts O, P and Q using a screwdriver (not provided).
-
Page 8: General Care And Maintenance
floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
