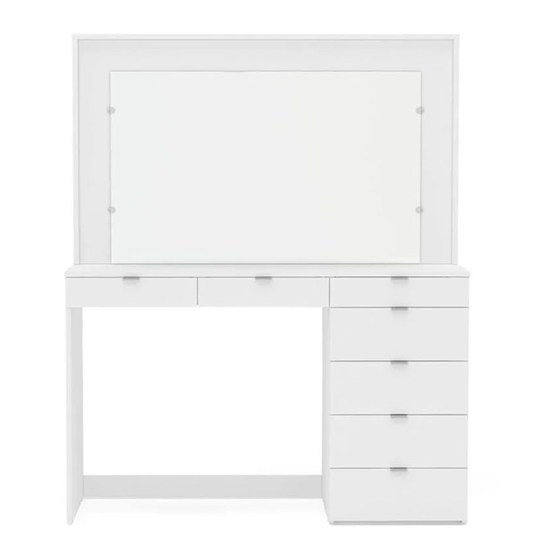

Chloe 7 Drawer Dressing Table
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product, to avoid
scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep these instructions for future reference.
Assembly Instructions
Title of Product
.
.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Chloe 7 Drawer Dressing Table

Summary of Contents for Happybeds Chloe 7 Drawer Dressing Table

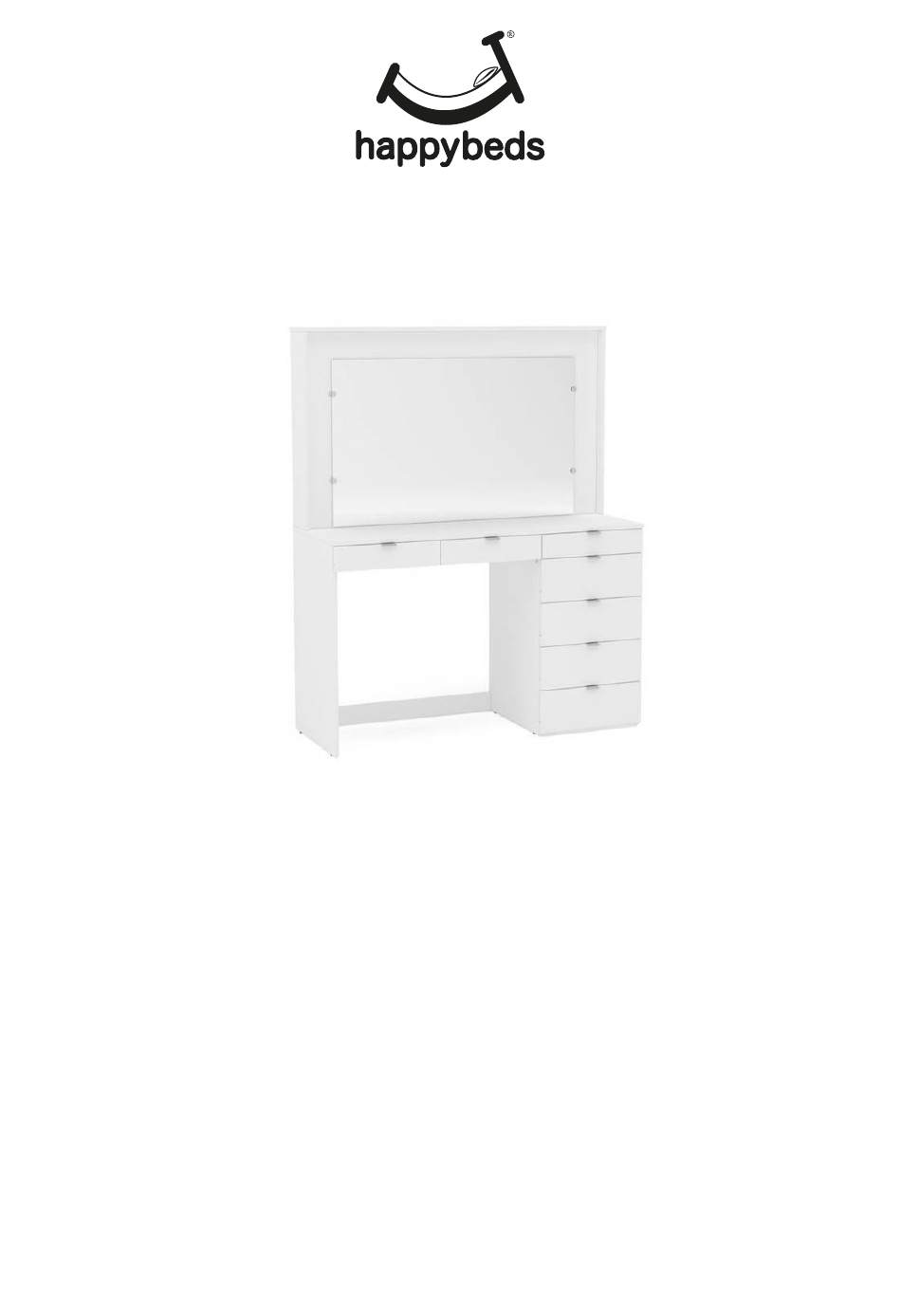

  • Page 1 Assembly Instructions Title of Product Chloe 7 Drawer Dressing Table Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Vendor: S000139 Parts List Part Descripion Top Base Upper Left Side Upper Right Side Lower Left Side Lower Right Side Mirrored Panel Drawers Tray Lower Plinth Lower Tray Front Lower Tray Rear Larger Drawer Front Left Side of Drawer Smaller Right Side of Drawer Smaller Rear of Drawer Smaller Rear of Drawer Larger...
  • Page 4 Vendor: S000139 Hardware List Part Descripion 5,0 x 60 mm Screw Glue Smalll Plastic foot Bushing 4,0 x 40 mm Screw 8 x 30 mm Wooden Dowel Mirror Support Strap 8 x 50 mm Wooden Dowel Structural Screw Allen Key Structural Screw Cover Simple Minifix Screw Cam Lock...
  • Page 5 Vendor: S000139 Step 1: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach the hardware part J to the top (02) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 6 Step 4: Attach hardware part E using a small mallet (not provided) and to the hardware part A1. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Insert hardware part E using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 7 Vendor: S000139 Step 7: Insert hardware parts E and F using small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Insert hardware part E using small mallet (not provided). Then attach the hardware part VB using the hardware part P5 and a screwdriver (not provided).
  • Page 8 Vendor: S000139 Step 9: Attach the hardware part J to the drawers front (17 and 30) using the a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Attach the hardware part E to the smaller division (28) using a small mallet (not provided) and attach the hardware part VB using the hardware part R and a screwdriver (not provided).
  • Page 9 Vendor: S000139 Step 11: Attach the hardware part E to the larger division (25) using a small mallet (not provided) and attach the hardware part VA using the hardware parts R, P5 and a screwdriver (not provided). Then rotate the part (28) and attach the hardware part VB using the hardware part R and a screwdriver (not provided).
  • Page 10 Vendor: S000139 Step 13: Attach the upper left side (05) and the upper right side (06) to the mirrored panel (11) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 14: Join the top base (01) to the assembled section using hardware part G, H and I.
  • Page 11 Vendor: S000139 Step 15: Join the top (02) to the assembled section using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 16: Join the smaller division (28) to the assembled section using hardware part L and a screwdriver (not provided).
  • Page 12 Vendor: S000139 Step 17: Attach the lower left side (07) to the drawers tray (12) and lower plinth (13) using hardware part G, H and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 18: Attach the larger division (25) to the drawers tray (12) and lower plinth (13) using hardware part G, H and I.
  • Page 13 Vendor: S000139 Step 19: Insert the lower tray front (14) and lower tray rear (15) to the larger division (25) using hardware part G, H and I. Then attach the lower right side (10) to the lower tray front (14) and lower tray rear (15) using hardware part G, H and I.
  • Page 14 Vendor: S000139 Step 21: Join the top (02) to the lower left side (07), larger division (25) and lower right side (10) using hardware part L and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 22: Insert hardware part D to the drawers tray (12) using a screwdriver (not provided).
  • Page 15 Vendor: S000139 Step 23: Attach the backboard (29) to the assembled section using hardware part N using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 24: To secure the item to the wall use hardware parts A, B3 and E9 using a drilling machine (not provided) and a screwdriver (not provided).
  • Page 16 Vendor: S000139 Step 25: Attach the left side of drawer larger (78) and right side of drawer larger (79) to the rear of drawer larger (21) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 17 Vendor: S000139 Step 27: Attach the handle S2 to the drawer front (17) using hardware part P5 and a screwdriver (not provided) . DO NOT use any power tools as this may damage the frame and will invalidate any claim. Marking Step 28: Attach the hardware part VC and VD to the left side of drawer larger (78) and right side of drawer...
  • Page 18 Vendor: S000139 Step 29: Attach the left side of drawer smaller (18) and right side of drawer smaller (19) to the rear of drawer smaller (20) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 19 Vendor: S000139 Step 29: Attach the left side of drawer smaller (18) and right side of drawer smaller (19) to the rear of drawer smaller (20) and bottom of drawer (22) using hardware part O and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 20 Vendor: S000139 Step 31: Attach the handle S2 to the drawer front (30) using hardware part P5 and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Marking Step 32: Attach the hardware part VC and VD to the left side of drawer smaller (18) and right side of drawer smaller (19) using the hardware part P5 and a screwdriver (not provided).

  • Page 21: Additional Information

    Vendor: S000139 Step 33: Insert the drawers on the metallic slide as shown bellow. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Additional Information: For complete product information, images and dimension diagrams please visit the website www.birlea.com If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea.

  • Page 22: General Care And Maintenance

    If this is not adhered to, it could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
