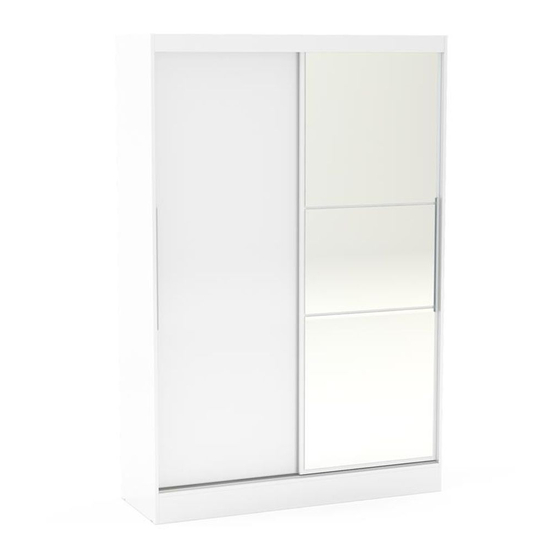

Happybeds Lynx 2 Door Sliding Mirrored Wardrobe Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Happybeds Manuals
  4. Indoor Furnishing
  5. Lynx 2 Door Sliding MirroredWardrobe
  6. Assembly instructions manual

Happybeds Lynx 2 Door Sliding Mirrored Wardrobe Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Instructions
Lynx 2 Door Sliding Mirrored
Wardrobe
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
www.happybeds.co.uk

Advertisement

loading

Related Manuals for Happybeds Lynx 2 Door Sliding Mirrored Wardrobe

Summary of Contents for Happybeds Lynx 2 Door Sliding Mirrored Wardrobe

  • Page 1 DO NOT use this product if any parts are missing, damaged or worn. DO NOT use this product unless all fixings are secured. Please keep small parts out of reach of children. Always use on a level, even surface. Please keep these instructions for future reference. www.happybeds.co.uk...
  • Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
  • Page 3 Vendor: S000139 Identification of Accessories Part Descripion 5 x 60 mm Screw Bushing Metalic Angle Plates Metal Claw 8 x 30mm Wooden Dowel Small Plastic Foot Strap 8 x 50mm Wooden Dowel Parts List Simple Minifix Screw Part Descripion Top Panel Double Minifix Screw Cam Lock Shelf...
  • Page 4 Vendor: S000139 Step 1: Prepare these parts for assembly using hardware parts B5, E, E7, F, J, N, P5, S, V4, V5, W3A, W3B, W3C, W3D, W3E, W4, W5 and Z4. You will need to use a small mallet and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 5 Vendor: S000139 Step 2: Attach the back rails (9) to the back support (7) using hardware parts E, K and L with a small mallet and screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 3: Attach the back support (7) and front support (8) to the base panel (14) using hardware parts F, L and M with a small mallet and a screwdriver (not provided).
  • Page 6 Vendor: S000139 Step 4: Attach the shelf (2) using hardware parts K, L and M with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the self divider (6) and the top panel (1) using hardware parts L and M with a screwdriver (not provided).
  • Page 7 Vendor: S000139 Step 6: Attach the bottom plinths (10) to the right panel (5). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 7: Join the assembled inner frame section of the assembled side frame section using hardware parts L and M with a screwdriver (not provided).
  • Page 8 Vendor: S000139 Step 8: Position the hanging rail R4 then attach the left panel (4) using hardware parts L and M with a screwdriver (not provided) DO NOT use any power tools as this may damage the frame and will invalidate any claim. 1º...
  • Page 9 Vendor: S000139 Step 10: Secure the back panels (13) using hardware parts C1 and N with a small mallet (not provided). Attach the top plinth (3) using harware part S with screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 11: Attach the doors (11) and (12) as shown in the diagram.
  • Page 10 Vendor: S000139 Step 12: To secure the item to the wall use hardware parts A, B3 and E9 using a drilling machine (not provided) and a screwdriver (not provided).Then attach hardware part S to the item with a screwdriver (not provided). Birlea Furniture advise you use the wall straps provided to further enhance the safety of this product.

  • Page 11: General Care And Maintenance

    floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
