Assemble in the room of use
DO NOT: jump on this bed frame.
DO NOT: use this bed frame if any parts are missing, damaged or worn.
DO NOT: use this bed frame unless all fixings are secured.
DO NOT: push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
DO NOT: use any power tools as this may damage the frame and will invalidate any claim.
Recommendation: Periodical re-tightening of fixings.
Warning
If this bed is placed on a non-carpeted floor you must place some protection
Blake Wooden Guest Bed
under all legs to stop the bed frame from moving. If this is not adhered to there is no
guarantee if the bed frame collapses.
This unit is heavy. Please use an assistant when lifting.
Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
It would be sensible to lay a rug or a carpet on the floor where you intend to assemble the product,
to void scratches and damaging the product or the floor.
Assemble the product as close to its intended final location/room as possible.
Do NOT use any power tools as this may damage the frame.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
Please keep these instructions for future reference.
Assembly Instructions

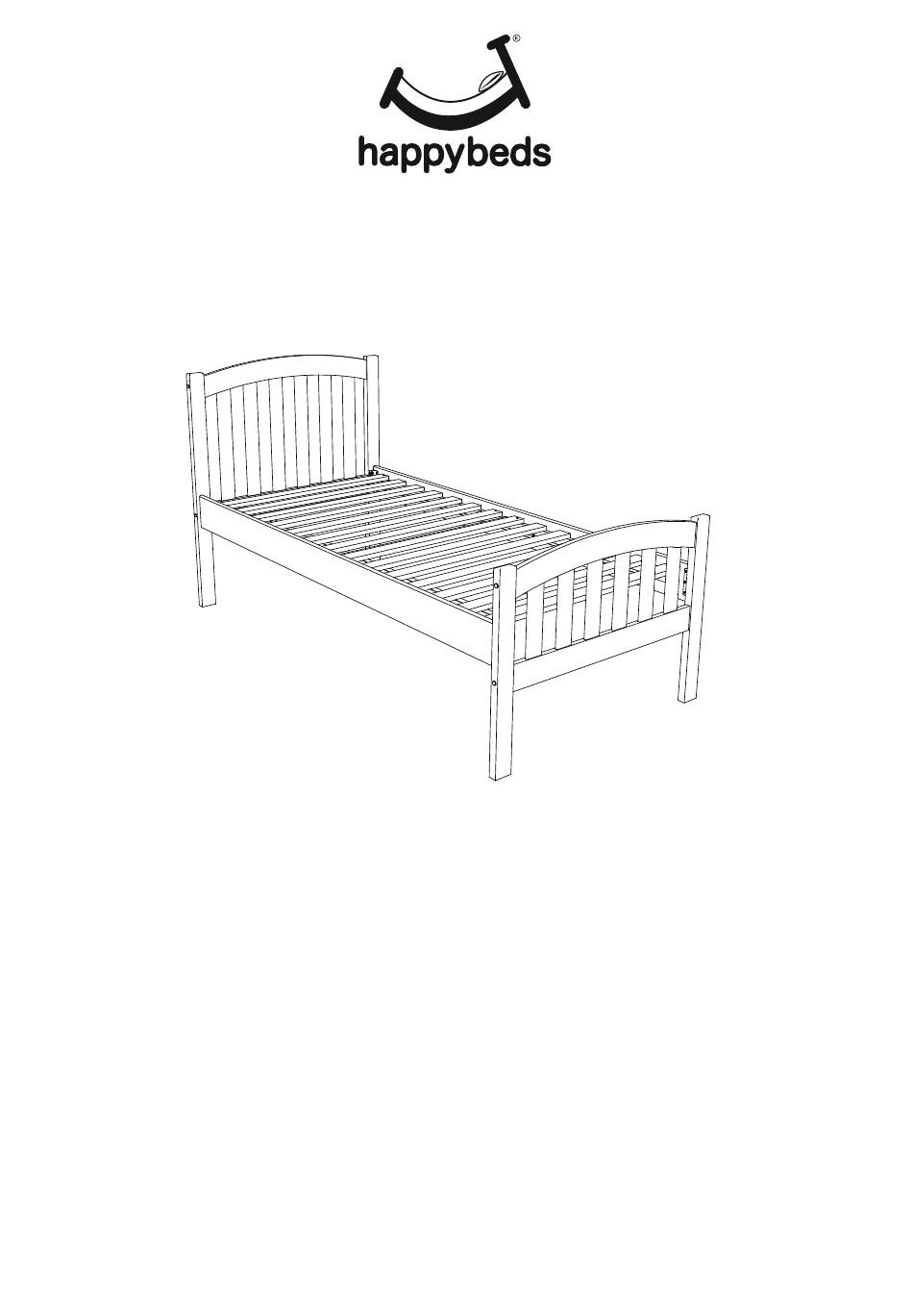

LYON Wooden Bed
Page 1 of 5
www.happybeds.co.uk
Advertisement
Related Manuals for Happybeds LYON Wooden Bed
Summary of Contents for Happybeds LYON Wooden Bed
- Page 1 If this is not adhered to there is no guarantee if the bed frame collapses. LYON Wooden Bed This unit is heavy. Please use an assistant when lifting. Important before assembly: Page 1 of 5 Read these instructions carefully before assembling or using the product.
- Page 2 Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints. Use a carpet or a rug for extra care. If you have problems assembling or have damaged or missing pieces, please contact us by visiting: https://www.happybeds.co.uk/customer-service...
-
Page 3: Part List
PART LIST PART DESCRIPTION Headboard Frame Headboard Left Wooden Post Headboard Right Wooden Post Footboard Frame Footboard Left Wooden Post Footboard Right Wooden Post Side Rail - Left & Right Wood Slat Metal Center Bar HARDWARE LIST (Found in box 2) PART DESCRIPTION M8 x 25mm JCBC Bolt... -
Page 4: Back View
Step 1: Attach the Headboard Frame (1) to the Left (2) and Right (3) Wooden Post. Please secure using hardware B,C,F and D. BACK VIEW Step 2: Attach the Footboard Frame (4) to the Left (5) and Right (6) Wooden Post. Please secure using hardware B,C,F and D. - Page 5 Step 3: Attach the Side Rails (7) to the Headboard (1) and Footboard (4) using Bolt (A) and Allen Key (G) as shown. Step 4: Attach the Wood Slats (8) to the Side Rails (7) using hardware part (E) and fully tighten using a screwdriver (not provided).
- Page 6 floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. For more information on cleaning and product care visit: https://www.happybeds.co.uk/help-and-advice Notes We’ve tried to make this product as easy to assemble as possible. In the unlikely event that...
