STORK TRONIC ST501-JX1TA Manual

Temperature controller for fan drawers

Advertisement

Quick Links

ST501-JX1TA
Temperature controller for fan drawers
Order number 900219.024
Old Id.Nr.: 149674

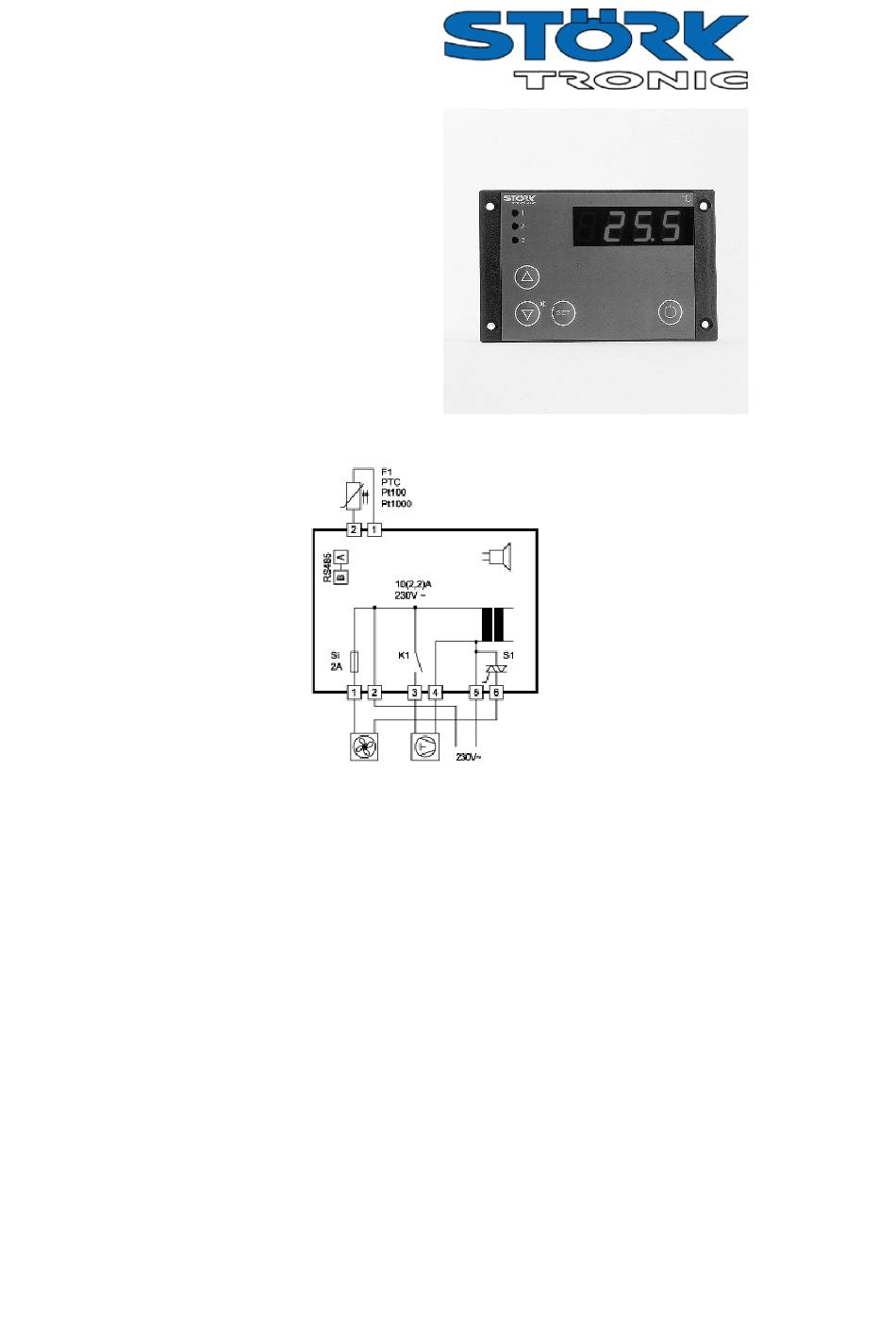

Wiring diagram
Product description
The ST501-JX1TA controller comprises a control unit and a power supply unit board. Both com-
ponents are interconnected via a ribbon cable and form a plug-in unit. All input and output connec-
tions are established in the rear on the power supply unit board. The unit provides the functionality
of a temperature controller for fan drawers.
A triac for fan control and a relay are provided as outputs. The relay is a normally open contact and
can be defined either as control circuit 2 or as an alarm contact using the parameter setting function.
Sensor: PTC, Pt100
Range: dependent on type of sensor
Front dimensions: 106mm x 68mm
Panel cutout: 87.5mm x 56.5mm
Tightness: Front IP65
Connection: screw terminals
Versorgung: 230V AC
