ST710-KPLVR.112S
Controller for cooling applications
Order number 900312.001
As of: 26.11.2015, Software V2.0

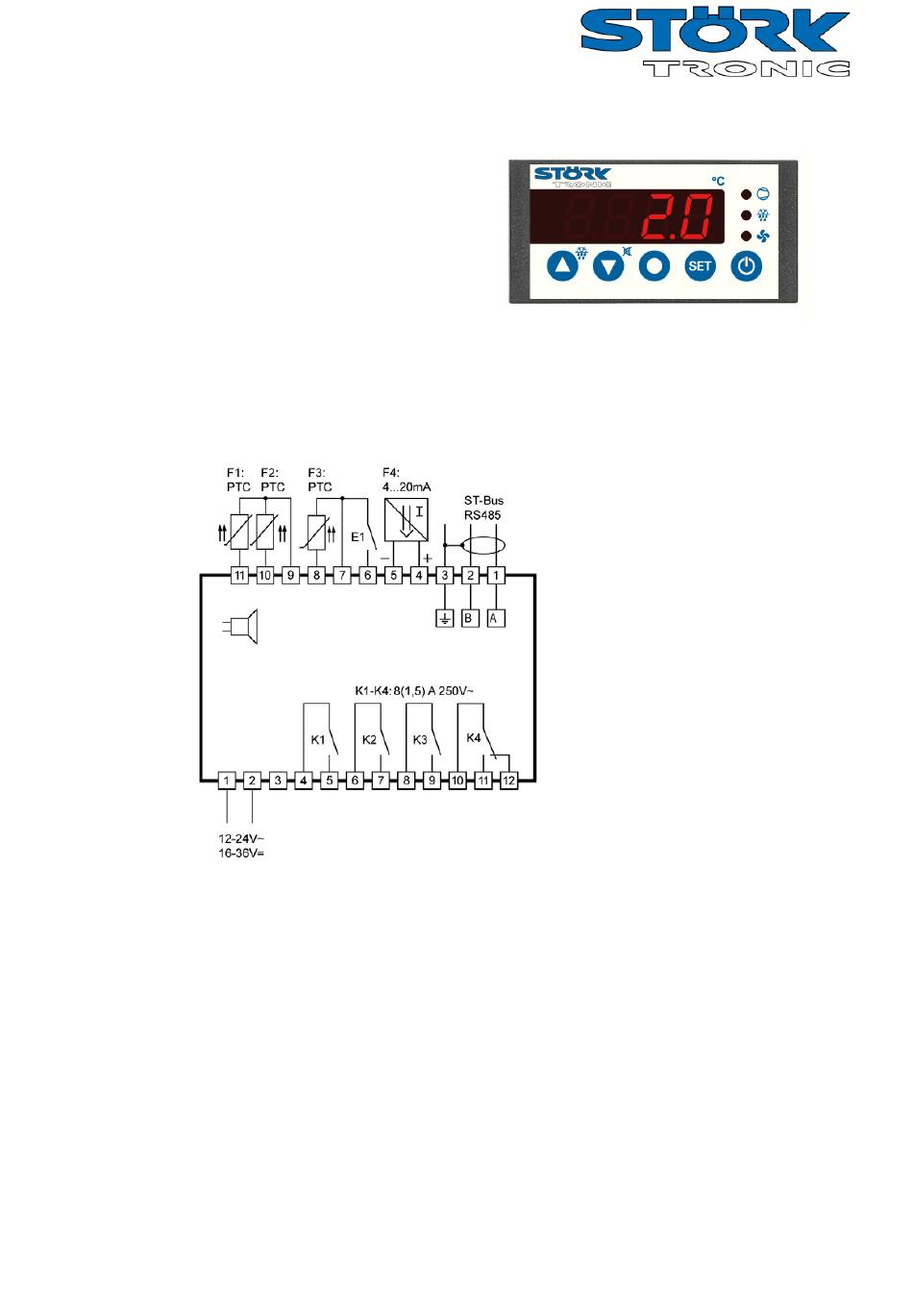

Wiring diagram
Product description
The cooling controller ST710-KPLVR.112S has an interface for ST-Bus/MOD-Bus.
Besides PTC, the three sensor entrances are applicable also for Pt1000 resistance, which clearly
increases the measuring range. The functions of the switching input and the four relay exits can be
freely selected, whereas various applications with only one controller are possible. The controller,
for example, can operate with two coolers if the evaporator sensor is parametered as sensor for a
second refrigerating chamber.
Sensor: PTC
Range: -50...150 °C
Front size: 84mm x 42mm
Panel cut-out: 67.5mm x 31.5mm
Tightness: front IP65
Connector: plug and socket
Special software: ST-Bus / MOD-Bus switchable (see parameter L10)
Order no.: 900312.001
V2.0
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST710-KPLVR.112S and is the answer not in the manual?

Questions and answers

Related Manuals for STORK TRONIC ST710-KPLVR.112S

Summary of Contents for STORK TRONIC ST710-KPLVR.112S

  • Page 1 Wiring diagram Product description The cooling controller ST710-KPLVR.112S has an interface for ST-Bus/MOD-Bus. Besides PTC, the three sensor entrances are applicable also for Pt1000 resistance, which clearly increases the measuring range. The functions of the switching input and the four relay exits can be freely selected, whereas various applications with only one controller are possible.
  • Page 2 Order no.: 900312.001 V2.0 Page 2...
  • Page 3 SOFTWARE COOLING CONTROLLER ST710-xxx.112 Order no.: 900312.001 V2.0 Page 3...
  • Page 4 GENERAL INFORMATION The ST……112 controllers are designed for Key T2: DOWN ( down-arrow ) general use in refrigerating plants. By pressing this key the parameter or parameter value is decreased. A further Depending on the existing hardware, up to four ...
  • Page 5  In addition to setting the temperature value, the NETWORK ADDRESS buttons DOWN perform other functions, too. Pressing the for 3 seconds will trigger a  Under code word you can set a non-standard defrosting operation of the network address. This is required for refrigerating plant.

  • Page 6: Control Circuits

     Alarms  Buttons and switching inputs  Control circuits 1  Defrosting control circuits 1  Fan control circuits 1  Temperature sensors  Pre-defined sets of parameters  Networking and display  Relay contacts and lamps  Control circuit 2 These levels by default are protected by a password.
  • Page 7  Alarms Para- Description of function Setting range Values meter default  Assignment of alarm sensors, detailed 0: none  description of sensors in parameters 1: Sensor F1  through 2: Sensor F2 3: Sensor F3 4: Sensor F4 5: weighted mean value from F1 and F2 ...
  • Page 8  Buttons and switching inputs (password-protected) Para- Description of function Setting range Values meter default  Function button T1 0: without function 1: controller on/standby 2: defrosting request 3: acknowledge alarm 4: relay function light 1, not active in standby 5: relay function light 1, regardless of standby 6: relay function light 2, not active in standby 7: relay function light 2, regardless of standby...
  • Page 9 Para- Description of function Setting range Values meter default  Function of external switching 0: without function input E1 1: controller on/standby  2: high-pressure alarm (see  3: low-pressure alarm (see  4: door contact (light on, fan off, see 5: relay function A (light 1), not active in standby 6: relay function A (light 1), regardless of standby 7: relay function B (light 2), not active in standby...

  • Page 10: Control Circuit

     Control circuit 1 Para- Description of function Setting range Values meter default  Assignment of cold store sensors, detailed 0: none  description of sensors in parameters 1: Sensor F1  through 2: Sensor F2 3: Sensor F3 4: Sensor F4 5: weighted mean value from F1 and F2 ...

  • Page 11: Fan Control Circuit

     Defrosting control circuit 1 Para- Description of function Setting range Values meter default  Assignment of evaporation sensors 0: none (defrosting sensors) 1: Sensor F1 detailed description of sensors in parameters 2: Sensor F2   through 3: Sensor F3 4: Sensor F4 5: weighted mean value from F1 and F2...
  • Page 12 Para- Description of function Setting range Values meter default  Evaporator fan 0: off Fan mode normal operation 1: continuous operation  Remark: Control setpoint if >4 2: like 1, with drip interruption   3: with compressor on 4: temperature-controlled evaporator sensor only 5: temperature-controlled difference between cold store and...

  • Page 13: Temperature Sensors

     Temperature sensors (password-protected) Para- Description of function Setting range Values meter default  Mains frequency 0: 50Hz 1: 60Hz  Act. value sensor F1 Measured value, not adjustable  Calibration sensor F1 (act. value correction) -20...+20.0°C  Weighting factor sensor F1 0.50...1.50 1.00 ...
  • Page 14 Para- Description of function Setting range Values meter default  Display of weighted mean value of F1+F2      + (100- )/100   Weighting of sensor F1 for 0 ... 100%   Password of parameter level -99 ...
  • Page 15 Para- Description of function Setting range Values meter default  Parity for MOD-Bus 0: none 1: odd 2: even  ST bus release mask for functions 0 ... 255  ST bus release mask for functions 0 ... 255  ...
  • Page 16 Para- Description of function Setting range Values meter default  Function LED1 0: no function (off) 1: compressor/magnetic valve 2: defrosting control circuit 1 3: evaporator fan 4: condenser fan 5: alarm 6: control circuit 2 7: defrosting circuit 2 8: Light 1 9: Light 2 10: window heating...
  • Page 17  Control circuit 2 (password-protected) Para Description of function Setting range Values meter default   Assignment of sensors to control circuit 2 0: none detailed description of sensors in parameters 1: Sensor F1   through 2: Sensor F2 3: Sensor F3 4: Sensor F4 5: weighted mean value from...
  • Page 18 N-level (counters) Parameters are only accessible via ST-Bus. Para- Description of function Setting range Values meter default Switching cycles of K1 (lower 16bit) Switching cycles of K1 (upper 16bit) Switching cycles of K2(lower 16bit) Switching cycles of K2 (upper 16bit) Switching cycles of K3 (lower 16bit) Switching cycles of K3 (upper 16bit) Switching cycles of K4 (lower 16bit)

  • Page 19: Master Password

    Operating time relay “defrosting 2” (upper 16bit) Operating time relay “drip tray heating” (lower 16bit) Operating time relay “drip tray heating (upper 16bit) Operating time relay - (lower 16bit) Operating time relay - (upper 16bit) Reset operating times 0: --- 1: Reset Password for T-level -99 …...
  • Page 20 STATUS DISPLAYS AND ERROR MESSAGES Message Cause Remedy Overtemperature, temperature above  alarm limit of parameter A1/A31 Undertemperature, temperature below  alarm limit of parameter A2/A33  Error on sensor F1, short-circuit check sensor F1  Error on sensor F1, wire broken check sensor F1 ...
  • Page 21   Alarm suppression time, door open Alarms With this parameter you can define after which time an alarm is to be triggered when the door is opened. If the door is closed again within the  Alarm sensor assignment specified time, no alarm will be triggered.
  • Page 22   High-pressure function: Releases until Buttons and alarm switching inputs (password- In the case of a high-pressure signal via a protected) parameterised switching input, the compressor will be switched off immediately and a message will be   … Function buttons 1 …...
  • Page 23 on if the actual temperature is lower than the set fault. In emergency operation, the compressor is   temperature. In the case of the refrigerating operated in a cycle of . The on-time in is a function, the output is on if the temperature is percentage of the cycle time, with 100% meaning higher than the setpoint.
  • Page 24  starts again. A defrosting operation can also be Temperature difference for triggered by pressing the UP button ("manual defro- refrigeration before defrosting  sting“) for at least 3 seconds or another parameter- maximum refrigerating time for ised button. Via the internal week timer, defrosting refrigeration before defrosting can also be started in real time.
  • Page 25 Here, you can set the lowest voltage value at which temperature variation will be greater while the a connected fan will still be running. atmospheric moisture is lower. This parameter is to enable a combination of both advantages. The fan ...
  • Page 26      0: no function, i.e. condenser fan is off + (100 - ) / 100 1: condenser fan on at all times     2: condenser fan on if compressor is on Calibration of sensor 3: condenser fan controlled via setpoint in F1…F4 actual value correction parameter F51.
  • Page 27 is calculated as follows: operation. You will have to leave the parameter      + (100 - ) / 100 level in order to see the set value. Possible values which can be set via this  ...
  • Page 28   Relay contacts and Mask on enabled functions (Bit 0...7)  lamps (password-protected) Mask on enabled functions (Bit8...15) Here, you can specify the functions enabled via the bus using a binary mask. The bits have the   following meaning: Function relay K1...K8 Assignment of internal output signals to the Para Bit Valency Function...
  • Page 29  Control circuit 2: hysteresis In this parameter, you can specify the control hysteresis. A small hysteresis enables exact control, but will result in frequent switching of the relay.  Control circuit 2: Hysteresis mode With this parameter you can define if the hysteresis will be active at the corresponding switching point symmetrically or on one side only.

  • Page 30: Modbus Rtu

    MODBUS RTU Remote Terminal Unit The ST190 is Slave (Server). The Slave Address is set as Parameter L0 and can only be modified by use of the push buttons. Physics Baud rate 4800, 9600, 19200, 57600, 115200 bps Format 11 Bit (1 start bit, 8 data bits with LSB first, 1 parity bit, 1 stop bit) Parity even...
  • Page 31 Write Single Register Request: Write Single Register for a new Set Point1 = +21.0°C) Slave Function Register Adress Register Value Adress Code (0x0000…0xFFFF) (MSB first) (CRC 16, MSB first) 0x01 0x06 0x04 0xAF 0x00 0xD2 Response: Write Single Register 4 Slave Function Register value...
  • Page 32 Register table The base address for the registers are 1000 ( = 0x03E8). Till register number 19 the values have a precision of one decimal place, means, you have to devide the transmitted value by 10 to get the real value. Reg.
  • Page 33 0x0400 Switching cycles relay K3 *1000 0 … 999 (*1000) unsigned 0x0401 Switching cycles relay K4 *1 0 … 999 unsigned 0x0402 Switching cycles relay K4 *1000 0 … 999 (*1000) unsigned 0x0403 Switching cycles relay K5 *1 0 … 999 unsigned 0x0404 Switching cycles relay K5 *1000...
  • Page 34 Status Register table The base address of the Status registers are 1100 ( = 0x044C). Reg. Register Address R/W Name Function Range unit 0x044B R/W -S0 Status 0 (Bit 0..15) 0x0000…0xFFFF unsigned 0x044C Status 1 (Bit 16..31) 0x0000…0xFFFF unsigned 0x044E Status 2 (Bit 32..47) 0x0000…0xFFFF unsigned 0x044F...
  • Page 35 Details Status 1 Status 1 Value=0 Value=1 Reset MAX memory Reset MIN memory Nachtschaltung aktiv Set 2 active Writing to Bits that are READ ONLY will be ignored; Bits not used are reading always Zero. Details Status 2 Status 2 Value=0 Value=1 Nominal: drip tray heating...
  • Page 36 Details Status 3 Status 3 Value=0 Value=1 Relay K8 inactive active Relay K7 inactive active Relay K6 inactive active Relay K5 inactive active Relay K4 inactive active Relay K3 inactive active Relay K2 inactive active Relay K1 inactive active Input E4 inactive active Input E3...
  • Page 37 Details Intern 0 Intern 0 Value=0 Value=1 Actual: Relay function „F“ Actual: Relay function „E“ Actual: Relay function „D“ Actual: Relay function „C“ Actual: Relay function „B“ (Light 2) Actual: Relay function „A“ (Light 1) Actual: defrosting circuit 2 Actual: day / night change-over Night Actual: Set1 / Set2 Set1...
  • Page 38 Details Intern 2 Intern 2 Value=0 Value=1 Relay function „F“ available Relay function „E“ available Relay function „D“ available Relay function „C“ available Relay function „B“ (Light 2) available Relay function „A“ (Light 1) available Function available: request defrosting control circuit 2 Function available: day / night change-over Function available: Set1 / Set2 change-over Function available: "Humidity on/off...
  • Page 39 Technical data of ST710-KPLVR.112 Inputs external contact, potential-free, see parameter b11 Measuring input Temperature sensor PTC or NTC Temperature sensor PTC or NTC Temperature sensor PTC or NTC Measuring range: PTC (KTY81-121): -50°C...+150°C NTC (103AT-11): -40°C...+110°C Measuring accuracy at 25°C: +/- 0,5% of scale range Linear current input 4 ...
