Real-Time Switch & Accessories
Installation and Maintenance Manual
This manual applies to the following products:
EB-GT-8ES-#
EB-CP-RJ45-F#
EB-CC-CAT5-M#
EB-CC-PS-F#
EB-CC-CAP-L#

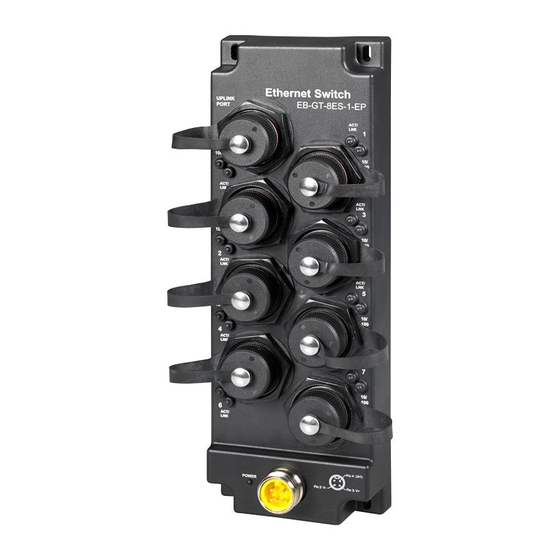

8-port IP67 Ethernet
January 2014
(IP67 Industrial Ethernet Switch)
(IP67 RJ45 to RJ45 Passthru Bulkhead Connector)
(IP67 Field Installable RJ45 Connector)
(IP67 Field Installable Power Connector)
(IP67 Protective Cap with Tether)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-GT-8ES Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for red lion EB-GT-8ES Series

Summary of Contents for red lion EB-GT-8ES Series

  • Page 1 8-port IP67 Ethernet Real-Time Switch & Accessories Installation and Maintenance Manual January 2014 This manual applies to the following products: EB-GT-8ES-# (IP67 Industrial Ethernet Switch) EB-CP-RJ45-F# (IP67 RJ45 to RJ45 Passthru Bulkhead Connector) EB-CC-CAT5-M# (IP67 Field Installable RJ45 Connector) EB-CC-PS-F# (IP67 Field Installable Power Connector) EB-CC-CAP-L# (IP67 Protective Cap with Tether)
  • Page 2 IP67 Switch Manual CHANGE HISTORY Version Date Description © 2014. Red Lion Controls. All Rights Reserved.

  • Page 3: Table Of Contents

    Field Installable RJ45 Connector ........................... 12 Bulkhead Connector .............................. 13 Switching Features ............................14 Switching Features ..............................14 Technical Specifications ............................. 16 Service Information ............................18 Service Information ............................... 18 Product Support ..............................18 © 2014. Red Lion Controls. All Rights Reserved.
  • Page 4 This limited warranty is in lieu of all other warranties whether oral or written, expressed or implied. Red Lion's liability shall not exceed the price of the individual units, which are the basis of the claim. In no event shall Red Lion be liable for any loss of profits, loss of use of facilities or equipment, or other indirect, incidental or consequential damages.

  • Page 5: Installation And Hazardous Area Warnings

    (ou tout autre dispositif à l'état solide) devraient jamais être conçus pour être responsable de l'entretien de l'équipement consécutifs ou la sécurité du personnel. En particulier, Red Lion décline toute responsabilité pour les dommages, directs ou indirects, résultant de l'utilisation de cet équipement dans n'importe quelle application.

  • Page 6: General Information

    Install the IP67 Industrial Ethernet Switch in accordance with local and national electrical codes. Lightning Danger: Do not work on equipment during periods of lightning activity. Do not connect a telephone line into one of the Ethernet RJ45 connectors. © 2014. Red Lion Controls. All Rights Reserved.

  • Page 7: Led Indicators

    LEDs because its speed is fixed at 100 Mbps.) – A 10 Mbps (10BaseT) connection is detected. – A 100 Mbps (100BaseTx) connection is detected. (Mbps = Megabits per Second) © 2014. Red Lion Controls. All Rights Reserved.

  • Page 8: Dimensions And Installation

    (53 mm) (95 mm) 2.95" 0.50" Ø0.20" (75 mm) (13 mm) (5 mm) 0.45" (11 mm) 10.15" (258 mm) 10.75" (273 mm) EB-GT-8ES-# (IP67 Industrial Ethernet Switch) EB-CC-PS-F# (Field Installable IP67 Power Connector) © 2014. Red Lion Controls. All Rights Reserved.
  • Page 9 IP67 Switch Manual EB-CP-RJ45-F# (RJ45 to RJ45 IP67 Bulkhead Passthru Connector) (Required hole size = 1.063” (27mm) EB-CC-CAT5-M# (Field Installable IP67 RJ45 Connector) © 2014. Red Lion Controls. All Rights Reserved.

  • Page 10: Power Wiring

    Note: The strain relief / seal section should be screwed in 2 turns (after initial thread engagement) on 6.8 mm diameter wire. Red Lion suggests 3 turns if 6 mm wire is used and no more than 2 turns if 8 mm wire is used to ensure a proper waterproof seal.

  • Page 11: Ethernet Wiring

    Pin 1 Pin 1 Pin 1 Pin 3 Pin 2 Pin 2 Pin 2 Pin 6 Pin 3 Pin 3 Pin 3 Pin 1 Pin 6 Pin 6 Pin 6 Pin 2 © 2014. Red Lion Controls. All Rights Reserved.

  • Page 12: Ethernet Connector

    3 components loose. Do not tighten them yet. Third, using your crimping tool, attach the supplied RJ45 connector to your Ethernet cable. Follow the instructions that come with your crimping tool. Fourth, push the attached © 2014. Red Lion Controls. All Rights Reserved.

  • Page 13: Bulkhead Connector

    (punch out) from the outside. Then firmly screw on the ¾” conduit nut from the inside. Recommended tightening torque is 6 in-lbs (.07 kg-m). You now have a watertight IP67 RJ45 to RJ45 passthru connector. © 2014. Red Lion Controls. All Rights Reserved.

  • Page 14: Switching Features

    SRAM is used for buffering the messages. There are 1024 (128 bytes each) buffers available. Each port is allocated 113 buffers. Unmanaged operation The IP67 Industrial Ethernet Switch requires no supervisory processor to operate properly. © 2014. Red Lion Controls. All Rights Reserved.
  • Page 15 The IP67 Industrial Ethernet Switch will work with all popular Ethernet protocols and networks such as TCP/IP, the Internet (IP), UDP, NetBEUI, and many more. It is compatible with all protocols that run over standard Ethernet (IEEE 802.3). In fact, it will support packets of different protocols simultaneously. © 2014. Red Lion Controls. All Rights Reserved.

  • Page 16: Technical Specifications

    Surge withstand IEEE-472 Vibration IEC68-2-6 Hazardous locations ANSI / ISA12.12.01, CSA C22.2/213 (Class 1, Div. 2), ATEX IEC60079- 0, -15 (Zone 2) Environmental Rating IEC IP67 and NEMA 6 Weight 2.5 lbs. © 2014. Red Lion Controls. All Rights Reserved.
  • Page 17 (for use with IP67 switch; not for use with bulkhead) Tether/Gasket Material Nitrile Rubber Coupling Nut Material Acrylonitrile-Butadiene-Styrene (ABS) Thread Size UNC 1" - 14 Operating Temperature -40º to 85º C Environmental Rating IEC IP67 and NEMA 6 © 2014. Red Lion Controls. All Rights Reserved.

  • Page 18: Service Information

    Service Information We sincerely hope that you never experience a problem with any Red Lion product. If you do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will help you to quickly determine the source of the problem.
