- Page 1 N-Tron Series ® NT100 Unmanaged Ethernet Switches Hardware Guide | May 2024 LP1230 | Revision A...
-
Page 2: Contact Information
COPYRIGHT © 2024 Red Lion Controls, Inc. All Rights Reserved. The terms Red Lion, the Red Lion logo and N-Tron are registered trademarks of Red Lion Controls. All other marks are the property of their respective owners. Corporate Headquarters Red Lion Controls, Inc. - Page 3 Drawing No. LP1230 Table of Contents Revision A Table of Contents Preface Disclaimer Safety Summary...
- Page 4 Table of Contents Drawing No. LP1230 Revision A NT100 Unmanaged Ethernet Switches...
-
Page 5: Safety Summary
While every effort has been made to ensure that this document is complete and accurate at the time of release, the information that it contains is subject to change. Red Lion Controls, Inc. is not responsible for any additions to or alterations of the original document. -
Page 6: Warnings And Cautions
CAUTION: Risk of Danger Read complete instructions prior to installation and operation of the unit. CAUTION: If equipment is used in a manner not specified by Red Lion, the protection provided by the equipment may be impaired. CAUTION: Do not perform any services on the unit unless qualified to do so. Do not substitute unauthorized parts or make unauthorized modifications to the unit. -
Page 7: Avertissements Et Mises En Garde
ATTENTION: Risque de danger Lire les instructions complètes avant l’installation et l’utilisation de l’appareil. ATTENTION: Si équipement est utilisé d’une manière non spécifiée par Red Lion, la protection fournie par l’équipement peut être compromise. ATTENTION: Ne pas effectuer de services sur l’appareil s’il n’est pas qualifié pour le faire. Ne pas substituer pièces non autorisées ou de modifications non autorisées de l’appareil. -
Page 8: Regulatory Information
Preface Drawing No. LP1230 Regulatory Information Revision A Regulatory Information Product Safety UL 61010 and C22.2 No. 61010 Ordinary Locations UL 121201 and CSA C22.2 No. 213 Class I, Division 2 Hazardous Locations ATEX/IECEx Ex ec nC IIC T4 Gc IECEx UL 23.0092X UL 23 ATEX 3128X EMI/EMC... -
Page 9: Trademark Acknowledgments
The latest online version of this document can be accessed through the Red Lion website at www.redlion.net/support/documentation. Additional Product Information Additional product information can be obtained by contacting the local sales representative or Red Lion through the contact numbers and/or support website address listed on the inside of the front cover. NT100 Unmanaged... - Page 10 Preface Drawing No. LP1230 Trademark Acknowledgments Revision A NT100 Unmanaged Ethernet Switches...
-
Page 11: Chapter 1 Introduction

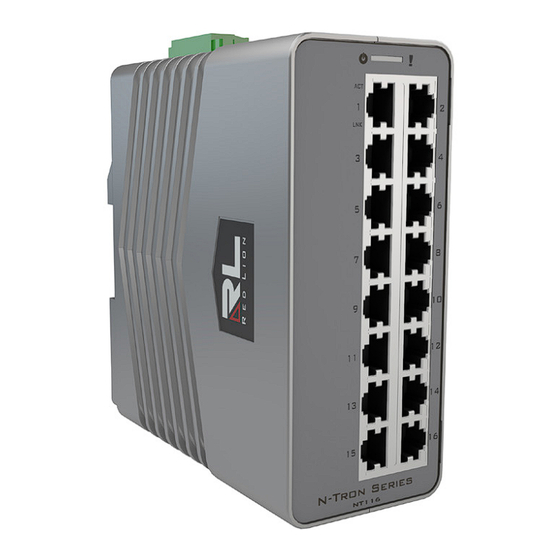

Drawing No. LP1230 Chapter 1 Introduction Revision A Chapter 1 Introduction The compact N-Tron NT116 unmanaged Industrial Ethernet switch is ideal for industrial applications that demand ® dependable performance under harsh conditions. The compact 16-port device offers exceptional reliability and performance for a range of mission-critical applications including data acquisition, Ethernet I/O, and process control. -
Page 12: Features And Benefits
Chapter 1 Introduction Drawing No. LP1230 Features and Benefits Revision A Features and Benefits REGULATORY CERTIFICATIONS • Product Safety: UL 61010 and C22.2 No. 61010 OrdLoc, UL HARDWARE FEATURES 121201 and CSA C22.2 No. 213 Class I, Division 2 HazLoc, • Compact, space saving, hardened industrial design ATEX, IECEx Ex ec IIC T4 Gc, IECEx UL 23.0092X and UL 23 ATEX 3128X • Wide operating temperature... - Page 13 Drawing No. LP1230 Chapter 1 Introduction Revision A NT116 Specifications NT116 Specifications MECHANICAL MTBF Ingress Height Width Depth Weight Installation Options Protection 1.2M Hours IP20 5.36" (136.1 2.25" (57.1 mm) 5.11" (129.8 mm) 1.8 lbs. (0.82 kg) DIN rail or optional panel mount POWER INPUT Input...
- Page 14 Chapter 1 Introduction Drawing No. LP1230 NT116 DIMENSIONS In inches [mm] Revision A NT116 DIMENSIONS In inches [mm] DIN rail 2.25 4.83 [122.6] [57.1] 0.99 0.38 [9.7] [25.2] 5.70 5.36 [144.9] 5.11 [136.1] [129.8] 0.2 [5.7] Optional panel mount 0.53 5.11 [129.8] 2.25 [13.4]...
- Page 15 Drawing No. LP1230 Chapter 1 Introduction Revision A LEDs LEDs Data ports have two LEDs labeled LNK and ACT. The LNK LED indicates link and the ACT LED indicates port activity status. The table below describes the operating modes: COLOR DESCRIPTION Green Power is On...
- Page 16 Chapter 1 Introduction Drawing No. LP1230 LEDs Revision A NT100 Unmanaged Ethernet Switches...
-
Page 17: Chapter 2 Installation
Contents of Package Chapter 2 Installation Contents of Package Carefully remove the switch and accessories from the shipping container and inspect them for damage. Contact Red Lion immediately if any damage is discovered. Please verify that the box contains the following items:... - Page 18 Chapter 2 Installation Drawing No. LP1230 Mounting the NT116 Unit Revision A DIN Rail Removal Instructions Remove the switch from standard 35mm DIN rail as shown in the diagram above. 1. Ensure power from the power source is off. 2. Disconnect power and ground wires. 3.
-
Page 19: Power Source
PWR2 inputs must be connected to separate DC voltage sources. This unit will draw power from the supply with higher voltage. Recommended 24 VDC power supply, similar to Red Lion’s P/N NTPS-24-1-3. Verify that the proper input voltage is connected to the NT116 before powering on the unit. Applying AC power to a DC NT116 unit will damage the unit. -
Page 20: Ordering Information
Cat5e straight through or crossover cable with a minimum length of one meter and a maximum length of 100 meters. Red Lion recommends the use of pre-manufactured Cat5e cables to ensure the best performance. If this is not an option and users must terminate their own ends on the Cat5e cables, one of the two color coded standards shown to the right should be utilized. -
Page 21: Service And Support Information
Service Information We sincerely hope that you never experience a problem with any of our products. If you do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist will help you determine the source of the problem. Many problems are easily resolved with a single phone call. -
Page 22: Limited Warranty
LIMITED WARRANTY (a) Red Lion Controls Inc. (the “Company”) warrants that all Products shall be free from defects in material and workmanship under normal use for the period of time provided in “Statement of Warranty Periods” (available at www.redlion.net) current at the time of shipment of the Products (the “Warranty Period”).
