MVI69E-GSC ♦ CompactLogix™ or MicroLogix™ Platform

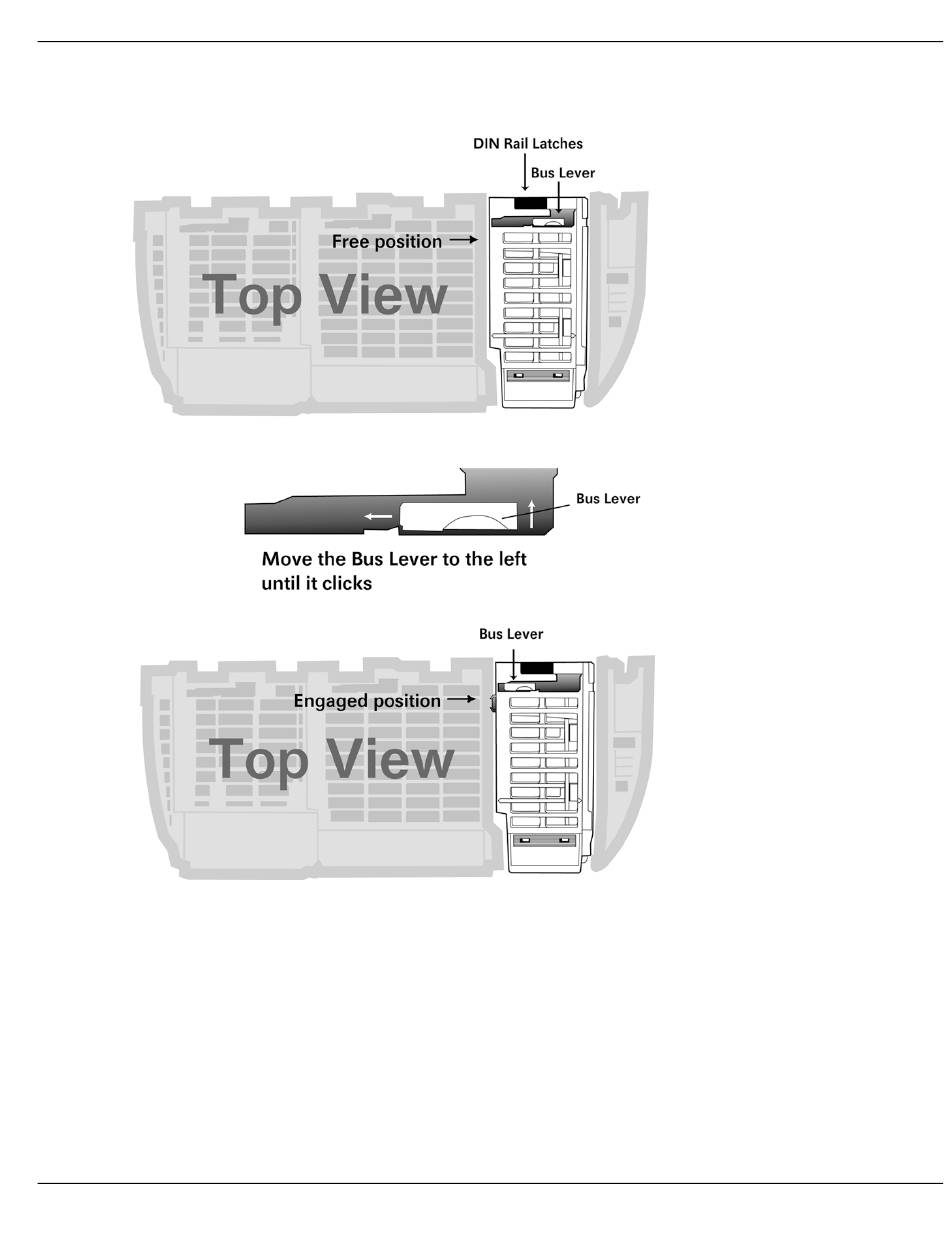

Push the module's bus lever back slightly to clear the positioning tab and move it firmly
3
to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
Page 10 of 87
User Manual
ProSoft Technology, Inc.
