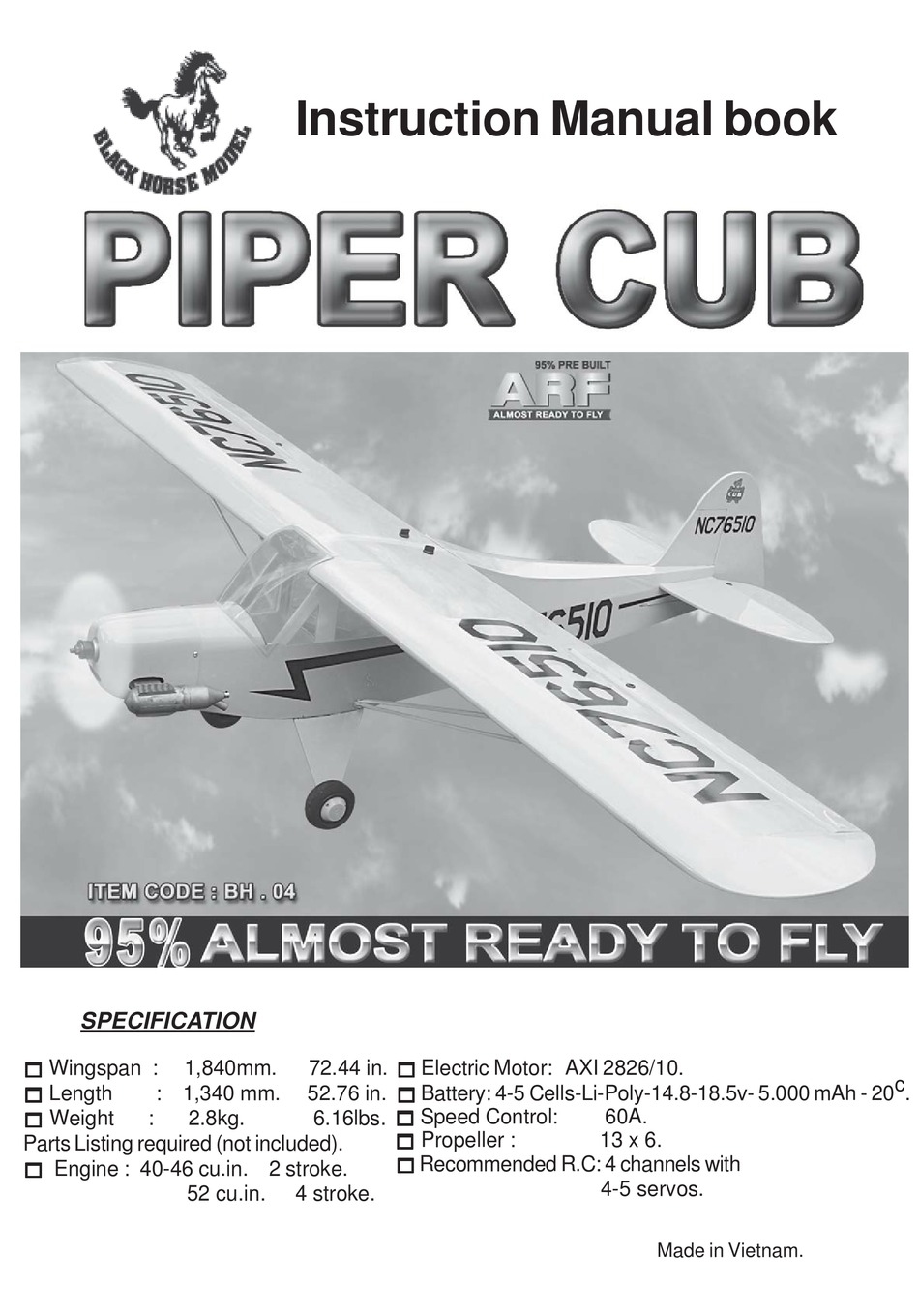

SPECIFICATION
     Wingspan :
1,840mm.
     Length
: 1,340 mm.
     Weight
:
2.8kg.
Parts Listing required (not included).
     Engine : 40-46 cu.in. 2 stroke.
52 cu.in.
Instruction Manual book
     Electric Motor: AXI 2826/10.
72.44 in.
     Battery: 4-5 Cells-Li-Poly-14.8-18.5v- 5.000 mAh - 20 c .
52.76 in.
     Speed Control:
6.16lbs.
     Propeller :
     Recommended R.C: 4 channels with
4 stroke.
60A.
13 x 6.
4-5 servos.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIPER CUB NC 76510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model PIPER CUB NC 76510

Summary of Contents for Black Horse Model PIPER CUB NC 76510

  • Page 1 Instruction Manual book SPECIFICATION      Wingspan :      Electric Motor: AXI 2826/10. 1,840mm. 72.44 in.      Battery: 4-5 Cells-Li-Poly-14.8-18.5v- 5.000 mAh - 20 c .      Length : 1,340 mm.
  • Page 2 PIPER CUB. INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your PIPER CUB. Use the parts listing below to identify all parts. WARNING. Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    PIPER CUB. INSTRUCTION MANUAL SAFETY PRECAUTION. Bottom + This is not a toy + Be sure that no other flyers are using your radio frequency. + Do not smoke near fuel + Store fuel in a cool, dry place, away from children and pets.
  • Page 4 PIPER CUB. INSTRUCTION MANUAL  4. Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, remove the masking tape and the servo lead from the thread.
  • Page 5 PIPER CUB. INSTRUCTION MANUAL  6. Using a modeling knife, remove the covering wing. Remove covering.   2. Drill through 6mm (diameter) the ai- leron using the control horn as a guide and screw the control horn in place. Repeat the procedure for the other wing half.
  • Page 6 PIPER CUB. INSTRUCTION MANUAL aileron  3. Install control horn as same as Bottom. picture below. C/A glue. C/A glue.  4. Install control horn as same as picture below. Top. C/A glue.

  • Page 7: Installing The Aileron Linkages

    PIPER CUB. INSTRUCTION MANUAL  5. Using pliers, carefully make a 90 de- gree bend down at the mark made. Cut off the excess wire, leaving about 4mm beyond the bend. M2 clevis. Snap keeper. M2 lock nut. Control horn. Repeat the procedure for the other wing half.

  • Page 8: Joining The Wing Halves

    PIPER CUB. INSTRUCTION MANUAL C/A glue. Wing strut. Repeat the procedure for the other wing half. JOINING THE WING HALVES.  1. Locate the aluminium wing dihedral brace. Masking tape. Apply masking tape.  2. Test fit the dihedral brace into each wing half.

  • Page 9: Installing The Engine Mount

    PIPER CUB. INSTRUCTION MANUAL  3. Carefully bend the second nylon tube up INSTALLING THE ENGINE MOUNT. at a 45 degree angle (using a cigarette lighter). This tube will be the vent tube to the muffler. THERE ARE TWO OPTIONS: 1.ENGINE MOUNT.
  • Page 10 PIPER CUB. INSTRUCTION MANUAL Do not secure the tank into place perma- nently until after balancing the airplane. You may need to remove the tank to mount the battery in the fuel tank compartment.  5. Test fit the stopper assembly into the tank.
  • Page 11 PIPER CUB. INSTRUCTION MANUAL INSTALLING THE ENGINE-THROTTLE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z” bend should be inserted into the throttle arm of the engine when the engine is fitted onto the engine mount.
  • Page 12 PIPER CUB. INSTRUCTION MANUAL      2. While keeping the back edge of the INSTALLING THE COWLING-SPINNER. cowl flush with the marks, align the front of      the cowl with the crankshaft of the engine. The 1.
  • Page 13 PIPER CUB. INSTRUCTION MANUAL Epoxy glue. OPTION 2: ELECTRIC MOTOR Secure INSTALLING ELECTRIC MOTOR. 3 X 15mm. 3 X 15mm. Secure C/A glue...

  • Page 14: Elevator Installation

    PIPER CUB. INSTRUCTION MANUAL Motor Rotor sharft Tie wrap. ELEVATOR INSTALLATION. SERVO INSTALLATION.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio sys- tem.
  • Page 15 PIPER CUB. INSTRUCTION MANUAL C/A glue Elevator servo. ELEVATOR INSTALLATION.  1. Using a modeling knife, cut away the  covering from the fuselage for the stabilizer 2. Draw a center line onto the horizontal and remove it. stabilizer. Then slide the horizontal into the fuselage.

  • Page 16: Elevator Control Horn Installa- Tion

    PIPER CUB. INSTRUCTION MANUAL Remove covering. C/A glue. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pictures below. Nilon M3 lock nut control clasp.  5. When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute epoxy.

  • Page 17: Elevator Pushrod Installation

    PIPER CUB. INSTRUCTION MANUAL Elevator control horn. Elevator control horn. Seccure ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. Elevator Elevator pushrod. pushrod. Secure...

  • Page 18: Vertical Installation

    PIPER CUB. INSTRUCTION MANUAL VERTICAL INSTALLATION. Rudder servo C/A glue Hinge.  1) Using a modeling knife, remove the Control clasp. covering from the top of the fuselage and the covering from over the precut hinge slot cut Hinge. into the lower rear portion of the fuselage This slot accepts the lower vertical.

  • Page 19: Rudder Control Horn Installa- Tion

    PIPER CUB. INSTRUCTION MANUAL  6) When you are sure that everything is a aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the slot in the mounting platform and to the vertical Pen.

  • Page 20: Installing The Throttle Pushrod

    PIPER CUB. INSTRUCTION MANUAL Elevator Elevator pushrod. pushrod. Rudder pushrod INSTALLING THE THROTTLE PUSHROD.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 21: Installing The Switch

    PIPER CUB. INSTRUCTION MANUAL switch Throttle pushrod INSTALLING THE RECEIVER AND BATTERY. INSTALLING THE SWITCH.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug       1.

  • Page 22: Installing Landing Gear

    PIPER CUB. INSTRUCTION MANUAL Repeat the process for the other wheel. INSTALLING LANDING GEAR. PARTS REQUIRED INSTALLING THE MAIN LANDING GEAR. 3x12mm. Remove covering. 1mm drill bit.

  • Page 23: Installing The Main Gear Wheels

    PIPER CUB. INSTRUCTION MANUAL Drill 2mm holes through the ply wood for each of six mounting screws. Secure INSTALLING THE MAIN GEAR WHEELS. 2 x 8mm Nilon strap  Mark the shape of the plywood on the left and right side using a felt-tip pen. Mark point...

  • Page 24: Mounting The Tail Wheel Bracket

    PIPER CUB. INSTRUCTION MANUAL MOUNTING THE TAIL WHEEL BRACKET. 3 x 12 mm. WING JOINING.           1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- 3 x 10 mm.
  • Page 25 PIPER CUB. INSTRUCTION MANUAL Wing attach to fuselage. 3 x15 mm.
  • Page 26 PIPER CUB. INSTRUCTION MANUAL BALANCING.       1) It is critical that your airplane be balanced C/A glue. correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 75mm BACK FROM THE LEADING EDGE OF THE WING.

  • Page 27: Pre-Flight Check

    PIPER CUB. INSTRUCTION MANUAL PRE-FLIGHT CHECK.       1. Completely charge your transmitter and receiver batteries before your first day of flying. 75 MM       2. Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
