Remote controller

The Chasing M2 remote controller had integrated communication and control. It connects directly to
the drone via the included tether and connects wirelessly to your mobile phone/tablet via Wi-Fi. It
allows the drone to display a live video feed on your phone/tablet, which enables users to control the
drone in real-time. The base station's HDMI output can also be used to display a live video feed to a
larger screen.

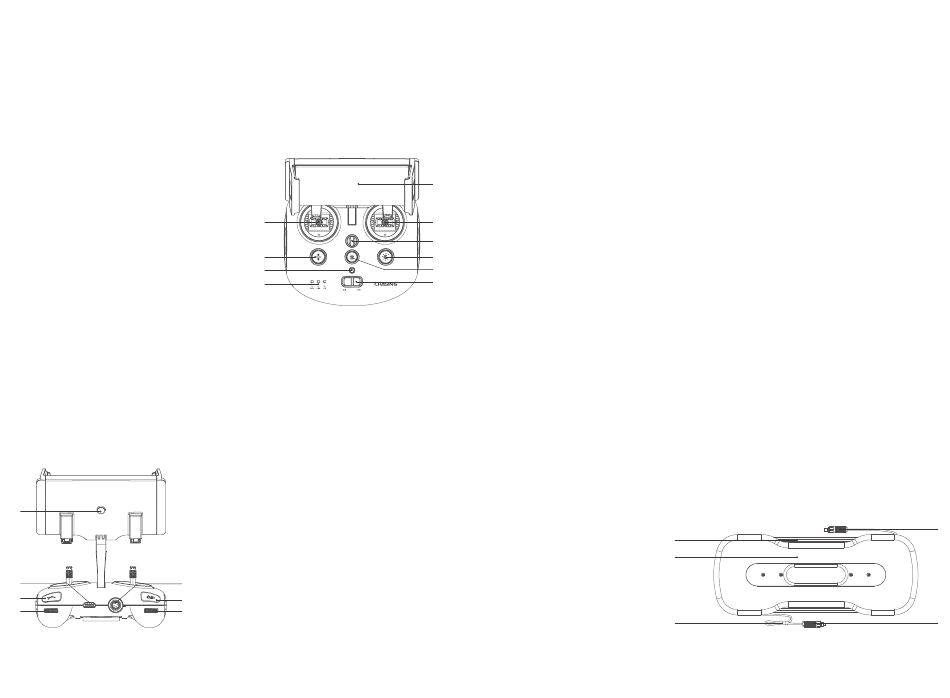

1. Power switch: Turns controller on/off
2. Power Indicator:
Green (High power)
Blue (Medium power)
Red (Low power）
3. Signal Indicator：
2.4G： 2.4Ghz Wi-Fi indicator， always on when working
5G： 5Ghz Wi-Fi indicator， always on when working
ROV(drone)：Indicates the communication status
between the controller and the drone (Steady light
indicates successful connection; Blinking light indi-
cates disconnection.)
4. Unlock： Unlock/Lock， current state of the Thruster will show on the APP
5. One-key reset： Short press to reposition the ROV return to a horizontal state/ Long press
to switch control mode
6. Led Control： On / off led light (third gear)
7. Safety Buckle： Can be used with a safety rope to prevent the remote control from falling
8. Control Sticks： Used to control the navigation of the ROV
9. Phone/Tablet Clamp： Used to attach phone/tablet mount to mounting bracket
10
15 16
11
12
13
14
* Note: Do not put the controller in the water to avoid damaging the device, damages caused by water ing-
ress are not covered by the warranty.
8
5
2
3
10. Clamp Button： Pull apart the two ends and put in
the phone/tablet, then press this button to tighten
11. Robotic Arm Control： Short press to close and stop,
long press for one second to open
12. Photo/Video： Short press to take photos, long press
to start / end recording video
13. Left Angel Adjustment： Adjust the pitch angle
14. Right Angel Adjustment： Adjust the rollover angle
15. HDMI Socket： 1080P HD image real-time output
16. Tether Connection Socket/Charging socket
Handle indicators introduction
Battery：
Red： 10%↓ Red light flashes quickly； 10-19% Red light flashes slowly； 20-29% Red light always on.
Yellow： 30-69% Yellow light always on；
Green： 70-100% Green light always on;
Signal Indicator:
2.4G： 2.4Ghz Wi-Fi indicator， always on when working.
5G： 5Ghz Wi-Fi indicator， always on when working.
ROV： Indicates the communication status between the controller and the ROV (Steady light indicates
successful connection, Blinking light indicates disconnection.)
9
Gesture back Button：
The blue light is always on when the ROV is in a non-horizontal position
8
7 Unlock Button：
Locking: No lights
6
4
Unlocking: Blue light on
1
Led Control Button：
Bright light： Blue light always on;
Low light: Blue light flash;
No light: Blue light off.
100/200 meters Tether & Winder
The tether is used to connect the drone and the remote controller
The winder is used to store the tether.
1. Tether connectors
2. Tether
3. Winder
4. Fastener
* Warning： ·Do not put exposed (unconnected) tether into the water or plashing liquid to the tether.
·Check whether the O-ring on the tether connector pre-dive, make a replacement when it is
missed or damaged.
3
2
4
1
