CHASING E-Reel Manual

E-Reel

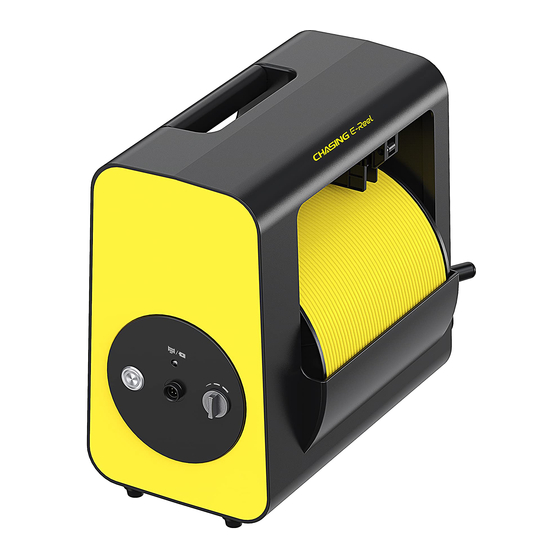

The E-Reel has 14 specialized stainless steel bearings, which adopts high precision aluminum

alloy synchronous belt to drive and high quality stainless steel reciprocating lead-screw line anti-

blast technology. Up to 200 meters of tether. E-Reel offers 4800mAh large capacity battery, which

is up to 30 retracting cycles. E-Reel also supports manual rocker retracting to discharge line, and

allows single person operation and quick-deployment. Let you get rid of the trouble of manual

winding and enjoy the underwater exploration.

Power switch

2. Tether / charging socket

3. Speed knob：stop/slow/fast

4. Power indicator：Green 100%-60%；Yellow 59%-20%；Red 19%-0%；The indicator flashes

when the motor is running

5. Handle interface

6. Handle

7. Lifting handle

8. 3 meters tether：Used for connecting the remote controller and the E-Reel

Page 1 Up to 200 meters of tether. E-Reel offers 4800mAh large capacity battery, which is up to 30 retracting cycles. E-Reel also supports manual rocker retracting to discharge line, and allows single person operation and quick-deployment. Let you get rid of the trouble of manual winding and enjoy the underwater exploration.
Page 2: Specifications
Connect the 3 meters tether to the E-Reel and Remote Controller. Connect the tether of the E-Reel to the ROV tether socket and tighten the nut. Reserve a suitable length and hang the tether sleeve on the tail safety buckle and tighten it.
Page 3 2) Insert the tether plug into the groove interface of the E-Reel and tighten the nut 3) Install the tether into the straightener and close the lid 4) Hold the E-Reel, turn on the switch, rotate the speed switch to slow/fast speed and start winding...
Page 4 1） Press the button on the right side of the straightener to open the lid. 2） Install the tether into the straightener, as shown in the picture. 3） Close the lid of the straightener. 4） Hold the E-Reel, turn on the switch, rotate the speed switch to slow/fast speed and start winding 5） Finishing...
Page 5 5. Please pay attention to hold the E-Reel in the process of wire winding up or down. 6. E-Reel supports IP65 class waterproofing. Do not put the E-Reel in the water or splash liquid...
