User Manual
V1.0
DISCLAIMER
Thank you for purchasing the CHASING M2 underwater drone. Please read this entire document carefully
before using the drone. By using this product, you hereby signify that you have read this disclaimer and all
instructions carefully and that you understand and agree to abide by the terms and conditions herein.
Chasing accepts no liability for damage, injury, or any legal responsibility incurred directly or indirectly from the use of the
CHASING M2 in the following conditions:
01. Damage(s) or injuries incurred when users are drunk, taking drugs, drug anesthesia, dizziness, fatigue, nausea and any other
conditions no matter physically or mentally that could impair your ability.
02. Damage(s) or injuries caused by subjective intentional operations.
03. Any mental overcompensation caused by accident.
04. Failure to follow the guidance of the manual to assemble or operate.
05. Malfunctions caused by refit or replacement with non-Chasing accessories and parts, or unauthorized modification, disassembly,
or shell opening not in accordance with official instructions.
06. Damage(s) or injuries caused by using third-party products or fake Chasing products.
07. Damage(s) or injuries caused by misoperation or subjective misjudgment.
08. Damage(s) or injuries caused by mechanical failures due to erosion, aging.
09. Damage(s) or injuries caused by operating the unit with a low battery alert.
10. Damage(s) or injuries caused by operating the drone out of maximum safe range and depth.
11. Damage(s) or injuries caused by knowingly operating the product in abnormal conditions (such as the assembly is not completed,
or the main components have obvious faults, obvious defect or missing accessories).
12. Damage(s) or injuries caused by operating the drone in a sensitive zone such as a military area or private waters without official
permission.
13. Damage or injury caused by using in bad water conditions (such as high winds, or turbid zone).
14. Damage or injury caused by uncontrollable external factors, including severe collision, tidal wave. swallowed by animal.
15. Damage(s) or injuries caused by infringement such as any data, photo or video material recorded by the use of the CHASING M2.
16. Other losses that are not covered by the scope of Chasing's liability.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chasing M2

Summary of Contents for Chasing M2

  • Page 1 14. Damage or injury caused by uncontrollable external factors, including severe collision, tidal wave. swallowed by animal. 15. Damage(s) or injuries caused by infringement such as any data, photo or video material recorded by the use of the CHASING M2.

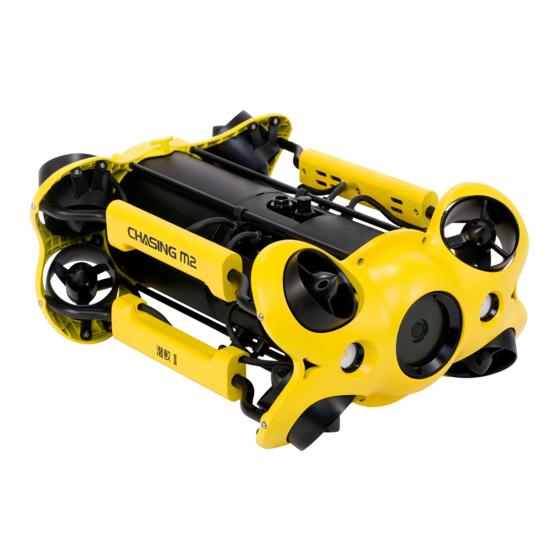

  • Page 2 FT) and the maximum horizontal radius is 200 meters (660FT). Compatible with sophisticated attachments such as Robot Claw, GoPro camera, external LED lights and laser scaler etc. CHASING M2 offers a built in 4K/ 1080p and 12-megapixel EIS image stabilization camera, 4000 lumen LED lights, removable battery and removable SD memory card. The aluminum alloy compact body (weighs less than 4.5KG / 10lbs) allows single person operation and Quick-Deployment in 3 minutes.

  • Page 3: Remote Controller

    Remote controller The Chasing M2 remote controller had integrated communication and control. It connects directly to the drone via the included tether and connects wirelessly to your mobile phone/tablet via Wi-Fi. It allows the drone to display a live video feed on your phone/tablet, which enables users to control the drone in real-time. The base station's HDMI output can also be used to display a live video feed to a larger screen.
  • Page 4 8. Control Sticks：Used to control the navigation of the ROV. 9. Phone/Tablet Clamp：Used to attach phone/tablet mount to mounting bracket. 10. Clamp Button：Pull apart the two ends and put in the phone/tablet, then press this button to tighten. 11. Robotic Arm Control：Short press to close and stop, long press for one second to open 12.

  • Page 5: Installation And Connection

    Installation & Connection 1. Download CHASING GO1 App CHASING GO1 App ：Scan the following QR code or visit the IOS APP Store/Google Play/Chasing website for downloading. (For IOS 9.0 or later/Android version 4.4 or later） 2. Connect ROV with Remote Controller a.

  • Page 6: App Interface Introduction

    5Ghz in the Settings-ROV, the drone's Wi-Fi will automatically restart, and you may need to re-connect to the Gladius Wi-Fi). ②You could check more guidance videos on the website page https://www.chasing.com/,or you could contact the global support team with any questions ：support@chasing-innovation.com 6.
  • Page 7 3） Input M2 Wi-Fi Password ：12345678 Download to Phone/Tablet 1）Open CHASING GO1 App, click the Media button in the lower right corner. 2）Find the video/photo that you want to download. Click the download button and the image will be saved directly to the phone/tablet's photo album (Download folder).
  • Page 8 Warning： switch remote controller power button to 1）Before removing or installing the Micro SD card, please off, and wipe off the water on the ROV； 2） Check the O-ring on the tether connector, please be sure the O-ring cannot be squeezed out when tightening the cover. If it is missed or damaged, please replace it in time.
  • Page 10 Navigation M2 has 8 Vectored Thrusters layout which allows OMNI movement (up, down, left and right, back and forth, pitch, roll, and pan) in all directions. Navigation attitude and remote control are as follows:： I.Marching posture Forward/backward Pan left and right...
  • Page 11 Turn left / right ii. Attitude adjustment Pitch: Turn the dial to adjust the pitch attitude , release to fix status.
  • Page 12 Roll: Turn the dial to adjust the roll attitude, release to fix status Charging Guidance ROV & Remote Controller Adapter（25.2V 2.9A) : It is a 3 in 1 charger that could charge the ROV, Remote Controller, Battery Cabin & E-reel， Red light indicates Charging, green light indicates fully charged.

  • Page 13: Specifications

    Specifications Size 15*10.5*6.5 inch Weight 4.5KG Battery 97.68Wh Maximum Depth 328 ft Maximum Speed 1.5 m/s (3 Knots)） ≤ 4h (Depend working Battery Life condition) Battery Cycle >300times Operating Temperature 14℉~113℉ Camera CMOS 1/2.3 Aperture F1.8 Focal Length ISO Range 100-6400 Field of View 152°...

  • Page 14: Maintenance And Precautions

    Tether & Winder 328ft Version (100M) 1.8KG 656ft Version(200M) 2.5KG Adapter Adapter 2.9A/25.2V ROV Charging time 2.5h Remote controller charging time Dimmable LED Lights Brightness 2 x 2000LM Color Temperature 5000K~5500K Dimming Three adjustable Sensor Three-axis gyroscope/acceleration/compass ＜±0.25m Depth Sensor ＜±2℃...
  • Page 15 3. Charging Protection ·Only use the Chasing standard adapter. ·Red light means charging. ·Green light means fully charged. Thruster/ Propeller a. Do not touch the propellers of the Thruster b. Do not unlock the Thruster for more than 30 seconds in the air to avoid overheating c After using the ROV in the salt water, please put it in fresh water for about 1 hour and turn it on, let the drone run for10 minutes to discharge the salt, and try out the water after cleaning with a towel.
  • Page 16 1.Any questions about our products please contact by support@chasing-innovation.comor leave a message on the Chasing Website https://www.chasing.com ) chatting window. 2.You can also join the official Gladius Mini Group on Facebook for latest news, app update and other shared stories with Chasing Products worldwide https://www.chasing.com...
