- Page 1 CHASING M2 Pro Max Training C H A S I N G I N N O V A T I O N T E C H C O . , L T D w w w . c h a s i n g . c o m...
- Page 2 01 / Product Structure 02 / How to Use 03 / Other Aspects CONTENTS 04 / Maintenance & Caution 05 / Hands-on Activity...
- Page 3 Product Structure...

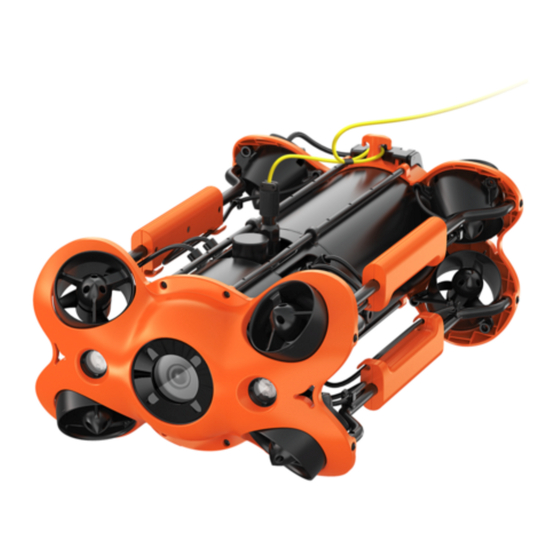

- Page 4 01 Product Structure ROV Structure 1. Camera 2. Thruster/Propeller 3. 2*4000LM LED Lights 4. Micro SD Slot 5. Main Cabin 6. Battery Cabin 7. Buckle Bracket 8. LED Light Adjustment Knob 9. Hand Grip(Up&Down) 10.Peripheral Interface （Ethernet port：1, 2）...
- Page 5 01 Product Structure ROV Structure 11. Peripheral Interface （Serial Port: UART1, 2, 3） 12. Battery Twist lock Knob 13. Depth&Temperature Sensor 14. Battery Pull Ring（For battery disassembling） 15. Tether Socket/Charging Socket（The pins are prohibited to exposure in seawater/salt water） 16. Battery Fastener NOTE：...
- Page 6 01 Product Structure Remote Controller 1-3. Signal Indicator: ROV/2.4G/5G ⚫ ROV: Indicates the communication status between the controller and the drone (Steady light indicates successful connection; Blinking light indicates disconnection.) ⚫ 2.4G: Wi-Fi indicator, always on when working ⚫ 5G: Wi-Fi indicator, always on when working 4.
- Page 7 01 Product Structure Remote Controller 7. Unlock: Unlock/Lock, current state of the Thruster will show on the App 8. Led Control: On/Off led light (0%, 1-99%, 100%) 9. Safety Buckle: Can be used with a safety rope to prevent dropping 10.
- Page 8 01 Product Structure Remote Controller 14. Robotic Arm Control: long press to enable/disable the grabber claw function; short press to switch the floodlight brightness level 15. Right Wheel: Adjust the roll angle or control the opening and closing of the grabber claw 16.
- Page 9 01 Product Structure E-reel 1. Power switch 2. 3 Meters Tether/ Charging socket 危险废弃物 3. Speed knob: stop/slow/fast 4. Power indicator: Green 100%-60%； Blue 59%-20%；Red 19%-0% The indicator flashes when the motor is running 5. Handle interface 6. Handle: Used for manual winding 7.
- Page 10 01 Product Structure E-reel ● Support IP65 waterproof and dustproof level. ● Support up to 200 meters of tether cable. ● Built-in 4800mAh high-capacity battery. The frequency of power discharge is up to 30 times in a full power state. It can be manually retracted via the rocker if no power.
- Page 11 How to Use...
- Page 12 ( For iOS 9.0/Android 4.4 and above ） ⚫ Android devices: Use your mobile browser to scan the QR code on the right to download or download from Google Play/CHASING official website. ⚫ iOS devices: Search CHASING GO1 in the App Store...
- Page 13 02 How to Use 2.Unfold the Floodlights ① Turn the knob 闪点 counterclockwise to unfold the floodlights. ② Turn the knob clockwise to tighten the floodlights for use. Fold up to storage Unfold to use...
- Page 14 02 How to Use 2. Unfold the Floodlights ③ Application: The floodlights can be disassembled and installed on both sides under the ROV, which can adapt to various complex applications underwater. 闪点...
- Page 15 02 How to Use 3. Installation & Connection 2. Hook up the tether cable buckle to position ② 闪点 3. Connect the tether 1. Connect the E-reel to connector to the ROV Controller with the 3 position ③ and tighten meters tether cable and the nut tighten the nut ①...
- Page 16 02 How to Use 3. Installation & Connection 闪点 That’s all set!
- Page 17 02 How to Use 4. Power on Turn on the remote controller power button. 闪点 A few seconds later, the remote controller’s indicator lights up, and the 5G or 2.4G light will be always on. Also, the ROV makes two self-test sounds.
- Page 18 02 How to Use 5. Connect the controller with the APP ● WIFI Connection 1. Please find the SN on the bottom of the 闪点 remote controller; 2. Go to the Wi-Fi setting on your phone/tablet; 3. Wait for 5-10 seconds and the Chasing_xxxx (SN last 6 numbers)network will appear on the WiFi connection list;...
- Page 19 02 How to Use 5. Connect the controller with the APP ● USB Direct Cable Connection 闪点 Connect the controller to the mobile phone/tablet with the included adapter cable (You may select the corresponding adapter cable according to the mobile device's interface.) PS: connect the end with the printed phone pattern to the phone/tablet.
- Page 20 02 How to Use APP Interface Introduction ⚫ Open the APP and enter the 闪点 camera, you could see the real-time scene transmission view of camera.
- Page 21 02 How to Use 6. Use Underwater ➢ Grasp the grips on both sides of the ROV 闪点 and gently throw the ROV into the water. Unlock the thruster(motors) to dive. ➢ For a better experience, it is recommended to use it where the water depth exceeds 1 meter.
- Page 22 Other Aspects...
- Page 23 03 Other Aspects 1. E-reel Usage ① Wind Down...
- Page 24 03 Other Aspects 1. E-reel Usage ② Wind Up...
- Page 25 03 Other Aspects 2. Video and Photo Download ①Method 1: Download to Phone/Tablet 1. Open CHASING GO1 App, click the Media button in the lower right corner.
- Page 26 03 Other Aspects 2.Video and Photo Download 2. Find the video/photo that you want to download. Click the download button and the image will be saved directly to the phone/tablet's photo album. Android: save to the download folder iPhone: save to the album...
- Page 27 03 Other Aspects 2.Video and Photo Download ②Method 2: Micro SD card copy 1. Turn off the Remote Controller and 危险废弃物 dry the ROV, especially the SD card socket. 2. Unscrew the Micro SD card socket cover counterclockwise and remove the Micro SD card.
- Page 28 03 Other Aspects 2.Video and Photo Download ③Method 3: Download to Computer 危险废弃物 1. PC connects to the remote controller’s WiFi. 2. Open the web browser and type IP address:192.168.1.88 3. Find the video/photo that you want to download. Click the download icon and save, then the images will generally save in the Download folder.
- Page 29 03 Other Aspects 3. Disassemble and Install the Battery Cabin Disassemble ① 危险废弃物 1. Unlock the knobs on both sides of the fuselage and rotate them to 90°to the shallow slot ①; 2. Pull the switch ② on the slider and toggle the lock assembly upwards while holding the chute ③...
- Page 30 03 Other Aspects 3. Disassemble and Install the Battery Cabin ② Install 1. Rotate the knobs on the both sides of the fuselage 90 ° to the deep slot; 危险废弃物 2. Slowly install the battery cabin along the chute under the fuselage. Press down hard until you hear a "click"...
- Page 31 03 Other Aspects 4. Thruster Shield Installation ① Install the thruster shield 危险废弃物 ◆ The three snap structures on the thruster shield should correspond to the thruster conduit bracket structure one by one, then press down the shield with slight force, and when the sound of clatter is heard, the shield is assembled in place.
- Page 32 03 Other Aspects 4.Thruster Shield Installation ② Disassemble the thruster shield 危险废弃物 ◆ Use the screwdriver(or other tools) to gently pry the shield along the edge of the shield clasp position, so that the shield clasp one by one from the conduit bracket, and finally remove the thruster shield...
- Page 33 03 Other Aspects 5. Charging ① ROV & Remote Controller Charger Spec: 25.2V 8A 危险废弃物 · Red light indicates Charging, green light indicates fully charged. · After fully charged, please disconnect the charger in time. ➢ ROV charging time: 2.5H ➢...
- Page 34 03 Other Aspects 5. Charging ② E-reel Charger Spec: 25.2V 8A/12.6V 3A 危险废弃物 · Red light indicates Charging, green light indicates fully charged. · After fully charged, please disconnect the charger in time. · Charging time: 2H (12.6V) 4H (25.2V)
- Page 35 Maintenance & Caution...
- Page 36 04 Maintenance & Caution 1. Navigation Safety ➢ Recommended to navigate in open sea. ➢ Recommended to use in relatively clear water without dense algae. 危险废弃物 ➢ For the first time, it is recommended that users practice in the open sea to familiar with the basic operation of the machine.
- Page 37 ROV discharged till completely dead and leave it alone for 1 hour. After that, keep it charged for at least 12 hours. That is, let the battery do a deep charge/discharge learning. 5. Use the Chasing standard adapter only.
