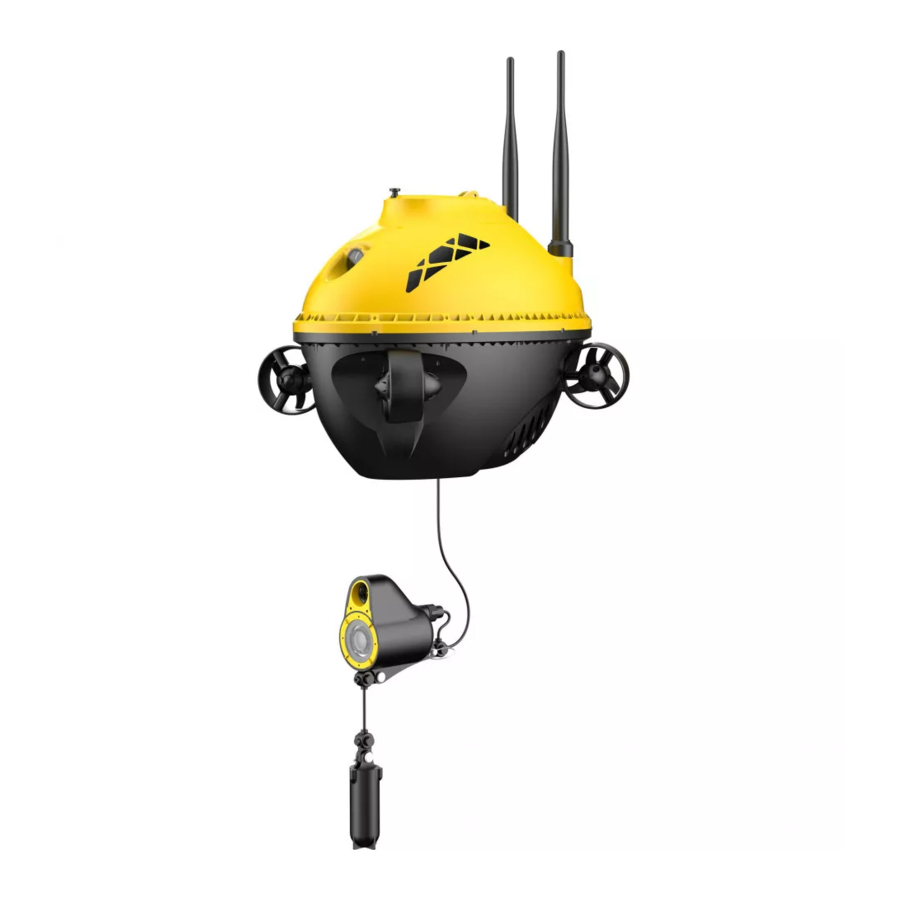

CHASING F1 PROTOTYPE INSTRUCTIONS
1. Packing list
Name
Watercraft
Small camera probe
Antenna
Battery
Charger
Sonar stand
Packing Box
Bait Boat
2. Use method and precautions
Use method
(一)
Unpack and check that the items listed in the bill of materials in the
package are complete;
1, preparation
Check the prototype appearance and structural status to confirm that
there is no damage;
Remove the battery and charge fully ;
qty
1
standard
1
standard, include bolt and lead pendant
2
standard
1
standard
1
standard
1
standard
1
standard
1
Non standard
Mark
Advertisement
Related Manuals for Chasing F1
Summary of Contents for Chasing F1
- Page 1 CHASING F1 PROTOTYPE INSTRUCTIONS 1. Packing list Name Mark Watercraft standard Small camera probe standard, include bolt and lead pendant Antenna standard Battery standard Charger standard Sonar stand standard Packing Box standard Bait Boat Non standard 2. Use method and precautions Use method (一)
- Page 2 2, download Please contact CHASING install CHASIN G GO2. Install the battery filled to the bottom of the water boat corresponding position, when installing attention to the battery orientation, load the battery, press hard, when heard the sound of crisp, the battery has been installed in place, check to confirm that the red ring of the fast buckle is correctly buckled in.
- Page 3 Connect the probe and the watercraft a） Check that the cable of the lamp at the probe is connected to the probe interface and is fastened in place ( shown in 1); ) b ) Connect the connector of the watercraft to the probe cable socket (shown in 2) and tighten the nut.
- Page 4 Press the switch (at the red circle in the figure), the power light on the switch lights up and the direction light will flash. Connect your phone's Wi-Fi to the machine and open the APP to operate it. Connect the sonar bracket to the watercraft. Clip the sonar bracket connector to the watercraft and move it slightly to make sure it wont detach.
- Page 5 Connect the bait boat to the watercraft with the equipped cable Bait Boat (二) Precautions （1） Don't confuse mis-insertion with the probe rear infrared lamp mount and data cable plug.
- Page 6 （2） Battery compartment disassembly method: when installing the battery, pay attention to the orientation of the battery, and ensure that the installation is in place, when removing the battery, press the limit snap on the battery in the direction of the arrow in the figure to pull the battery out.
-
Page 7: App Instructions
3. App Instructions 1) APP download and connection Contact CHASING to download and install the App. Find the SSID code for Wi-Fi under the watercraft, which is the last 6 digits of the SSID, such as ABC123, and the Wi-Fi name is Chasing_xxxxxxABC123. Turn on the device, mobile phone connected device Wi-Fi,password 12345678,after successful connection, open the App, click the "Enter the camera"... -
Page 8: Detailed Operation
2) App interface Introduction Click here to hide and Number of GPS star Depth Temper current mode Battery Device connection status Settings Course light Video recording Probe Picture Probe position rewinding Attracting Pic 2 Probe releasing Probe retracting lock/unlock 4. Detailed operation 1）... - Page 9 to indicate that the light is on, click again, the icon darkens and the light is off. 2） Picture and video Photos can be taken while recording 3） Wind-up and Wind-down Manual The speed of the probe releasing and retracting can be controlled by adjusting the slider, more closer to the end of sides, more faster.
- Page 10 5） Return point setting：Click "Unlock" button, and a pop-up appears on the interface, as shown in Picture 3. At this time, click "Confirm Settings" as shown in Picture 3, and then set the position of the machine at this time as the turn-back point. If you click "Ignore", you can set the return point when the machine moves to the position where you want to return.
- Page 11 Pic 4 7） Add fishing point Click the "Fishing point Function" button, and the interface as shown in Figure 5 will appear. Click the "fishing point Add" button, and the interface as shown in Figure 6 will appear. You can name the fishing point and add notes according to your personal needs.
-
Page 12: Machine Control
Pic 6 Go the fishing points：Click “Go Here” in the list of fishing points and the machine will go to the corresponding fishing point. 5. Machine control After connecting the mobile phone to the machine, put the machine into the water, unlock the propeller, and touch the left and right margins of the mobile phone display with your finger. -
Page 13: Picture Download
（1） forward/backward 。 （2） left/right （3） Pan left/right 6. Picture Download （1） Loosen the top screw on the machine, remove the cover plate, then pull out the TF card, and then connect it to the computer... - Page 14 2.remove the cover and pull out the TF card Pic 8 （2） Open CHASING GO2 App, enter the Media from the main interface. Find the video/photo that you want to download. Click the download button and the image will be saved directly to the phone/tablet's photo album (Download folder).
- Page 15 Share Picture editor Download Download Delete Delete Pic 9 Pic 10 Product Parameters Product CHASING F1 Name Size(mm) 278x154x215 Weight 2KG Fish Max Depth 28M Detector Wire Length 28.5M Working Time 4‐6 Hours ...
- Page 16 Battery Cycle Times >300 Times Working Temperature ‐10℃~45℃ CMOS 1/2.8 Light Ring F2.0 Focal Distance 0.5m ISO Range 100‐3200 Viewing Angle 164.6° Camera Photo Maximum Two‐mega‐pixel（1920*1080） Resolution Photo Form JPEG 1080P@30Fps Video Resolution 720P@30Fps Video Maximum Bitstream 4M Video Form MP4 ...
- Page 17 FCC/ISEDC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
