Remote controller

The Chasing M2 PRO remote controller had integrated communication and control. It connects
directly to the drone via the included tether and connects wirelessly to your mobile phone/tablet via
Wi-Fi. And your mobile phone/tablet also can be directly connected to the remote control through
the Type-C cable. It allows the drone to display a live video feed on your phone/tablet, which
enables users to control the drone in real-time. The remote controller 's HDMI output can also be
used to display a live video feed to a larger screen.

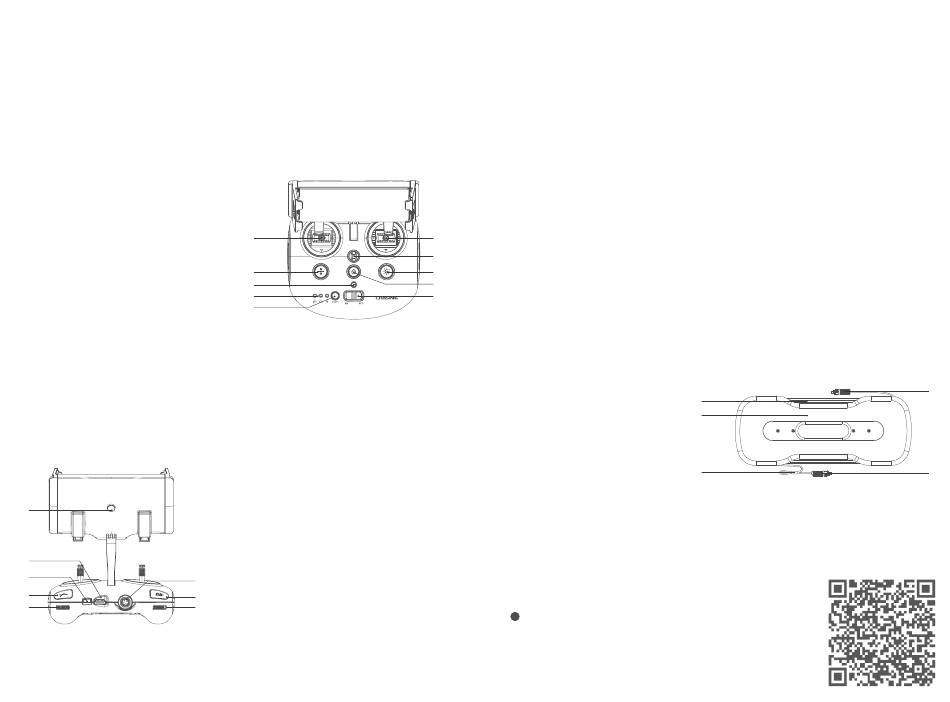

1. Power switch: Turns controller on/off
2. Power Indicator:
Green (High power)
Blue (Medium power)
Red (Low power)
3. Wi-Fi switch button: Short press to switch 5Ghz/2.4
Ghz Wi-Fi
4. Signal Indicator:
2.4G: 2.4Ghz Wi-Fi indicator, always on when working
5G: 5Ghz Wi-Fi indicator, always on when working.
ROV(drone): Indicates the communication status
between the controller and the drone (Steady light
indicates successful connection; Blinking light indicates disconnection.)
5. One-key reset: Short press to reposition the ROV return to a horizontal state/ Long press to switch control mode
6. Unlock: Unlock/Lock, current state of the Thruster will show on the App
7. Led Control: On / off led light (0%50%100%)
8. Safety Buckle: Can be used with a safety rope to prevent the remote control from falling
9. Control Sticks: Used to control the navigation of the ROV
10. Robotic Arm Control: Short press to close and stop, long press for one second to open Underwater LED
Video Light control: press short to switch the light gear(0%50%100%)
17
15
14
10
12
* Note: Do not put the controller in the water to avoid damaging the device, damages caused by water
ingress are not covered by the warranty.
9
5
2
4
3
11. Photo / Video: Short press to take photos, long
press to start / end recording video
12. Right Angel Adjustment: Adjust the rollover angle
13. Left Angel Adjustment: Adjust the pitch angle
14. Type-c Port: Direct connection with mobile phone/
tablet device
15. HDMI Socket: 1080P HD image real-time output
16. Tether Connection Socket/Charging socket
16
17. Phone/Tablet Clamp: Used to attach phone/tablet
mount to mounting bracket
11
13
18. Clamp Button: Pull apart the two ends and put in
the phone/tablet, then press this button to tighten
Handle indicators introduction
Battery:
Red: 10%↓ Red light flashes quickly; 10-29% Red light always on.
Blue: 30-69% Blue light always on.
Green: 70-100% Green light always on.
Signal Indicator:
2.4G: 2.4Ghz Wi-Fi indicator, always on when working.
5G: 5Ghz Wi-Fi indicator, always on when working.
ROV: Indicates the communication status between the controller and the ROV
(Steady light indicates successful connection, Blinking light indicates disconnection.)
Gesture back Button:
The blue light is always on when the ROV is in a non-horizontal position.
Unlock Button:
9
Locking: No lights ; Unlocking: Blue light on.
8
Led Control Button:
7
Bright light: Blue light always on; Low light: Blue light flash; No light: Blue light off.
6
1
200 meters Tether & Winder
The tether is used to connect the drone and the remote controller.
The winder is used to store the tether.
1. Tether connectors
2. Winder
3. Tether
4. Fastener
* Warning: ·Do not put exposed (unconnected) tether into the water or plashing liquid to the tether.
·Check whether the O-ring on the tether connector pre-dive, make a replacement when it is
missed or damaged.
Installation & Connection
Download CHASING GO1 App
1
CHASING GO1 App :
Scan the following QR code or visit the IOS App Store/
Google Play/Chasing website for downloading.
(For IOS 9.0 or later/Android version 4.4 or later)
3
2
4
1
1
