Classic Terrazzo ® Corner Washfountain with Touch Time™ Control
WF2613
Installation Instructions
Step 1: Installing the Drain
1. Rough-in supply and drain piping as required for your installation (see pages 4-5 for rough-ins).

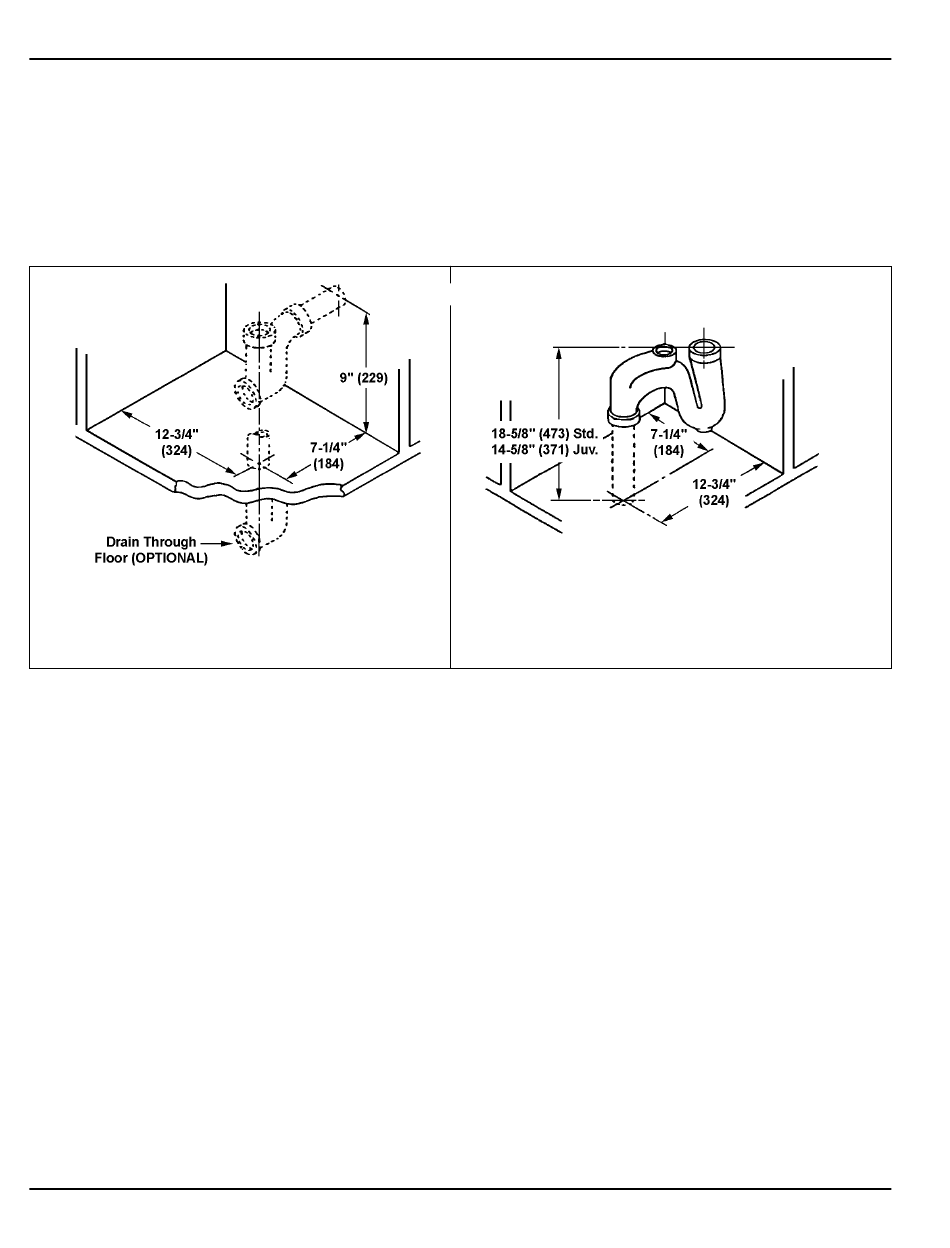

2. Assemble the drain to the dimension shown in Figure 1 or Figure 2.
NOTE: All piping shown in dotted lines to be supplied by the installer.
Types A and O
Figure 1
6 4/6/2007
(mm)
Figure 2
Bradley Corporation • 215-1520 Rev. D; EN 06-915B
Installation Instructions
Vented Trap
(111-024)
Types B and H
