Rough-In Specifications - Bradley WF2613 Installation Instructions Manual

Classic Terrazzo ® Corner Washfountain with Infrared Control
WF2613

Rough-In Specifications

Rough-In Notes:
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1"; for three washfountains 1-1/4"; for more than three washfountains, pipe sizes
should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
5. Dimensions shown in parentheses are millimeters.

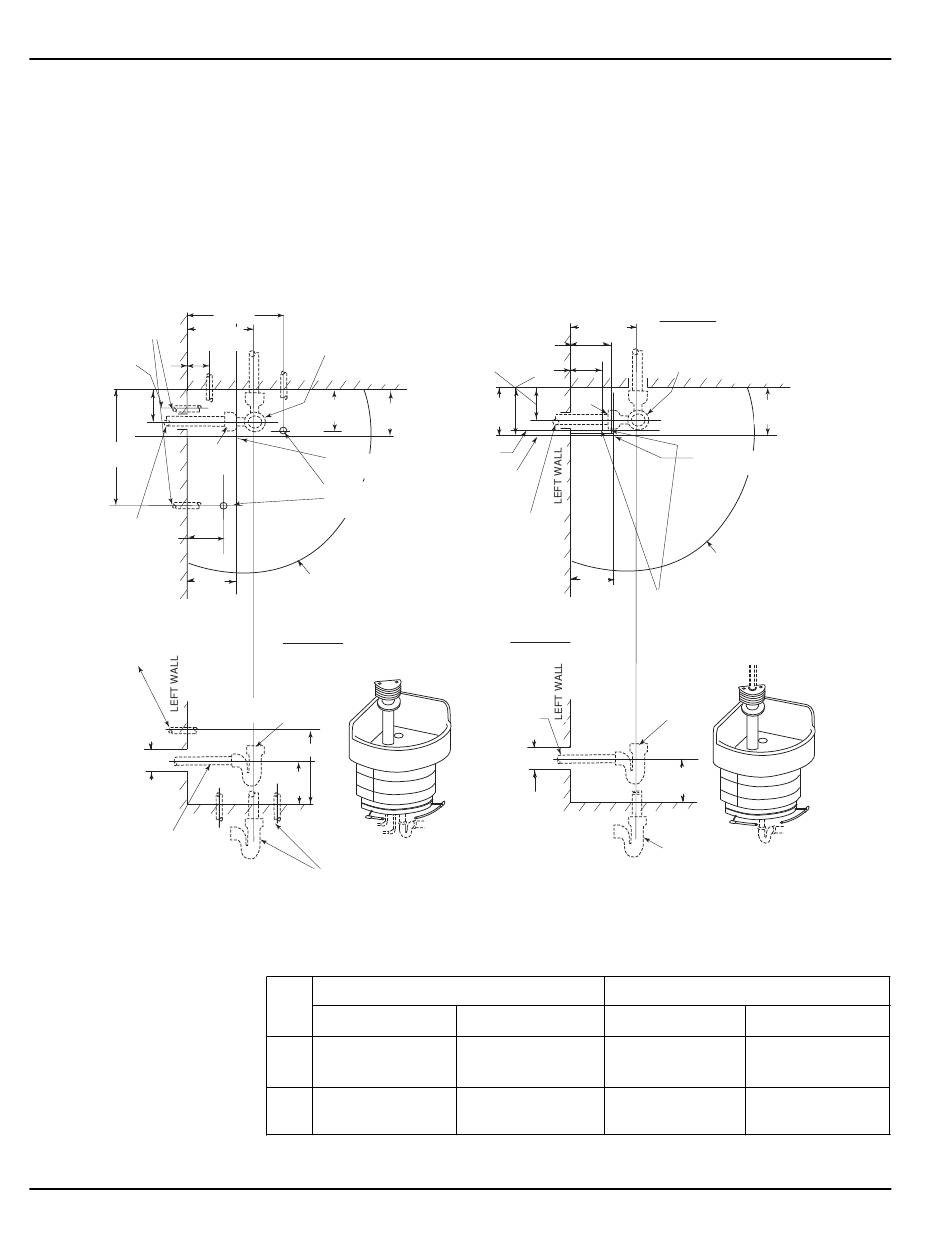

Type A
Off-line vent with supplies from below.
1" NPT
SUPPLIES
THRU WALL
(OPTIONAL)
12-3/4"
(324)
4-1/2"
(114)
7-1/4"
(184)
18-1/2"
TRAP
(470)
HOT
2" NPT
DRAIN
8-3/8"
THRU WALL
(213)
(STUB OUT
TO
SUIT TRAP
10"
DIMENSION)
(254)
(OPTIONAL)
SUPPLIES
THRU
WALL
4"
(102)
CLEARANCE HOLE
DRAIN
TRHU WALL
Use this range of heights
when hook-up is made with
a coupling and nipple (2"
drain through wall must not
interfere with diagonal
frame member on pedestal).
4
18-1/2"
TOP VIEW
(470)
2" NPT DRAIN THRU FLOOR
(OPTIONAL) STUB UP 3" (76)
ABOVE FLOOR
RIGHT WALL
8-3/8"
10"
(213)
(254)
COLD
CENTER OF
WASHFOUNTAIN
1" NPT SUPPLIES THRU
FLOOR (STUB UP 2-1/2" (64)
ABOVE FLOOR)
54" (1372)
WASHFOUNTAIN
SIDE VIEW
TRAP FOR WALL
OUTLET ONLY
B
A
FLOOR
SUPPLIES AND DRAIN THRU FLOOR,
TRAP LOCATED BELOW FLOOR.
DIM.
Std. Ht.
11-1/4" to 13-1/4"
A
286mm to 337mm
12"
B
305mm
4/6/2007
Type O
Off-line vent with supplies from above.
12-3/4"
9-3/4" (324)
(248)
8-1/2"
7-1/4"
(216)
(184)
TRAP
9-3/4"
(248)
COLD
HOT
2" NPT DRAIN
THRU WALL
(STUB OUT TO
SUIT TRAP
DIMENSION)
(OPTIONAL)
10"
(254)
SIDE VIEW
DRAIN
THRU WALL
CLEARANCE HOLE
4"
(102)
NOTE: UPC AND IPC RESTRICT THE VERTICAL
DISTANCE FROM THE FIXTURE OUTLET TO THE TRAP
WEIR TO NOT MORE THAN 24". CHECK STATE AND
LOCAL CODES FOR VARIANCES.
RIGHT WALL
Juv. Ht.
9-1/4" to 10-1/4"
235mm to 260mm
8-1/4"
210mm
Bradley Corporation • 215-1451 Rev. D; EN 06-915B
Installation Instructions
TOP VIEW
2" NPT DRAIN THRU FLOOR
(OPTIONAL) STUB UP 3" (76)
ABOVE FLOOR
RIGHT WALL
10"
(254)
CENTER OF
WASHFOUNTAIN
54" (1372)
WASHFOUNTAIN
BOWL
1" NPT SUPPLIES FROM ABOVE
MUST REDUCE TO 1/2" NOM.
COPPER TUB ON THESE
CENTERS TO PASS THRU WASH
FOUNTAIN
TRAP FOR
WALL
OUTLET ONLY
A
FLOOR
DRAIN THRU
FLOOR
TRAP LOCATED
BELOW FLOOR
LEFT WALL
Std. Ht. Juv. Ht.
6" to 11" 6" to 8-1/2"
152mm to 279mm 152mm to 216mm
12"
305mm 210mm
8-1/4"
