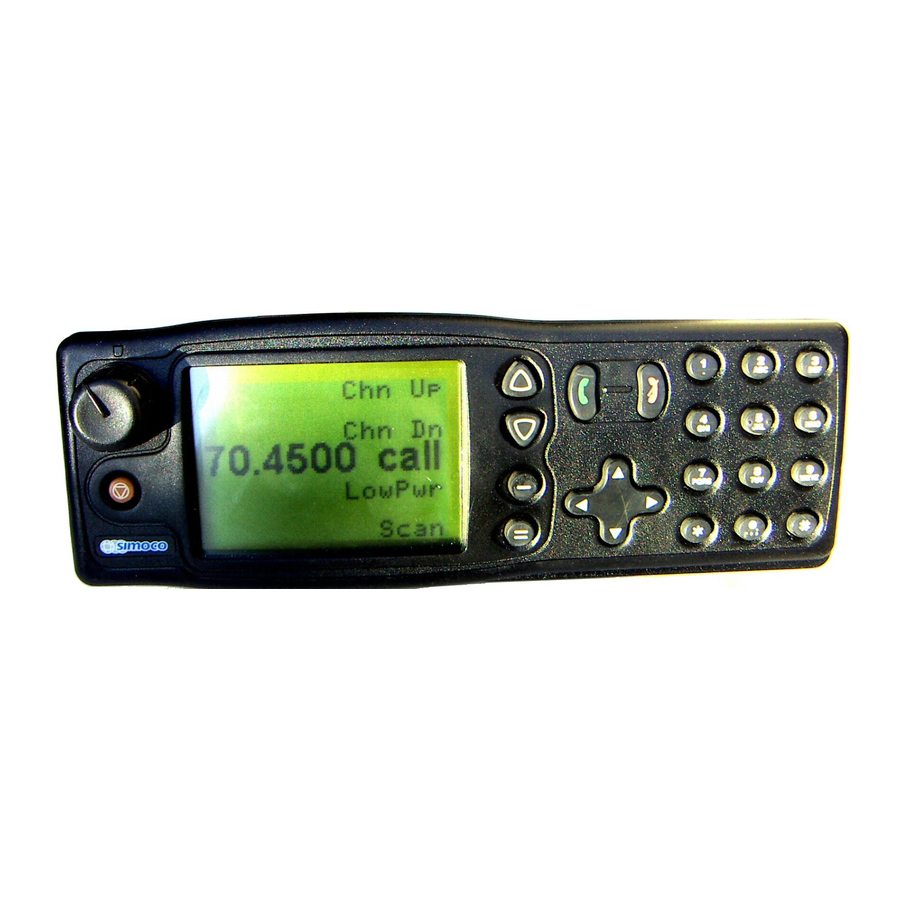

Simoco SRM9030 UHF 70cms Mobile Radio
TK Band Transceiver range is 400-450MHz @ 25 Watts

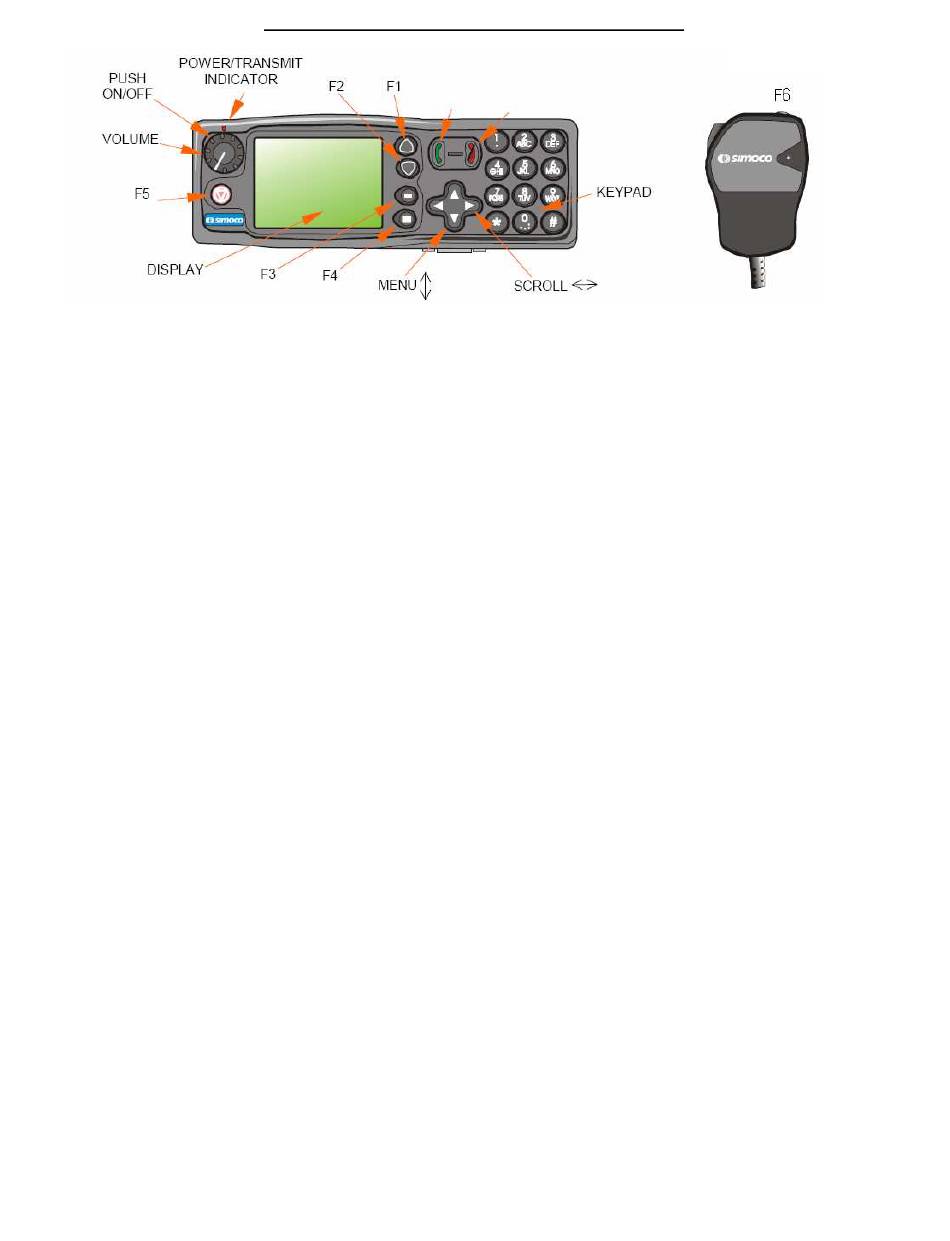

Volume Control is also PUSH for Power On / Off (if pin 3 of 15 way d-plug is connected to the ignition line
the radio will automatic power up .. can be set to instant power down or after xx minutes .. programmable)
(65 Channels pre-programmed with CTCSS tones into radio + Scan Channel)
F1 ▲ Chn Up ... Channel Up
F2 ▼ Chn Dn ... Channel Down
F3 ─ High Power 25W or Low Power 5W
F4 ■ Reverse Repeater On/Off ... Listen on input function
F5 ∆ Keyboard Lock / Unlock
F6 (which is the top button on the fist microphone) transmits 1750Hz tone burst for 0.6 Seconds when
pressed (silently)
Pressing any digit on the keypad *0123456789# transmits DTMF to air
Green and Red Handset Icons not programmed
Pressing SCROLL (◄ ► ) left / right on cursor selects:-
Channels Up and Down
Pressing MENU ( ▲▼ ) up / down on cursor selects:-
1.User CTCSS
Either the Channel Default or Select
If using the radio away from the Thames Valley area and you require a different CTCSS tone from the
default pre-programmed setting this menu allows to choose an alternative CTCSS tone.
2.RSSI
Received Signal Strength Indicator. Display is in dBm (decibels relative to 1mW)
3.SETUP
Once active use the SCROLL (◄ ► ) left / right cursor keys to select options
USER OPTIONS –
Key Beeps On/Off
Backlight On/Off
Dual Watch (Background Scan) not programmed
DTMF On/Off .. if switched on pressing keypad *0123456789# transmits DTMF to air
CONTRAST – Range 0 to 10 Default is 4
MUTE ADJUST – Range 0 to 15 Default is 4 Adjust Squelch Level
ALERT VOLUME – Range -31 to +31 Default is 4 Adjust Beep Levels of Alert Tones
INFO – Shows software version (v5.72) and radio serial number alternatively
