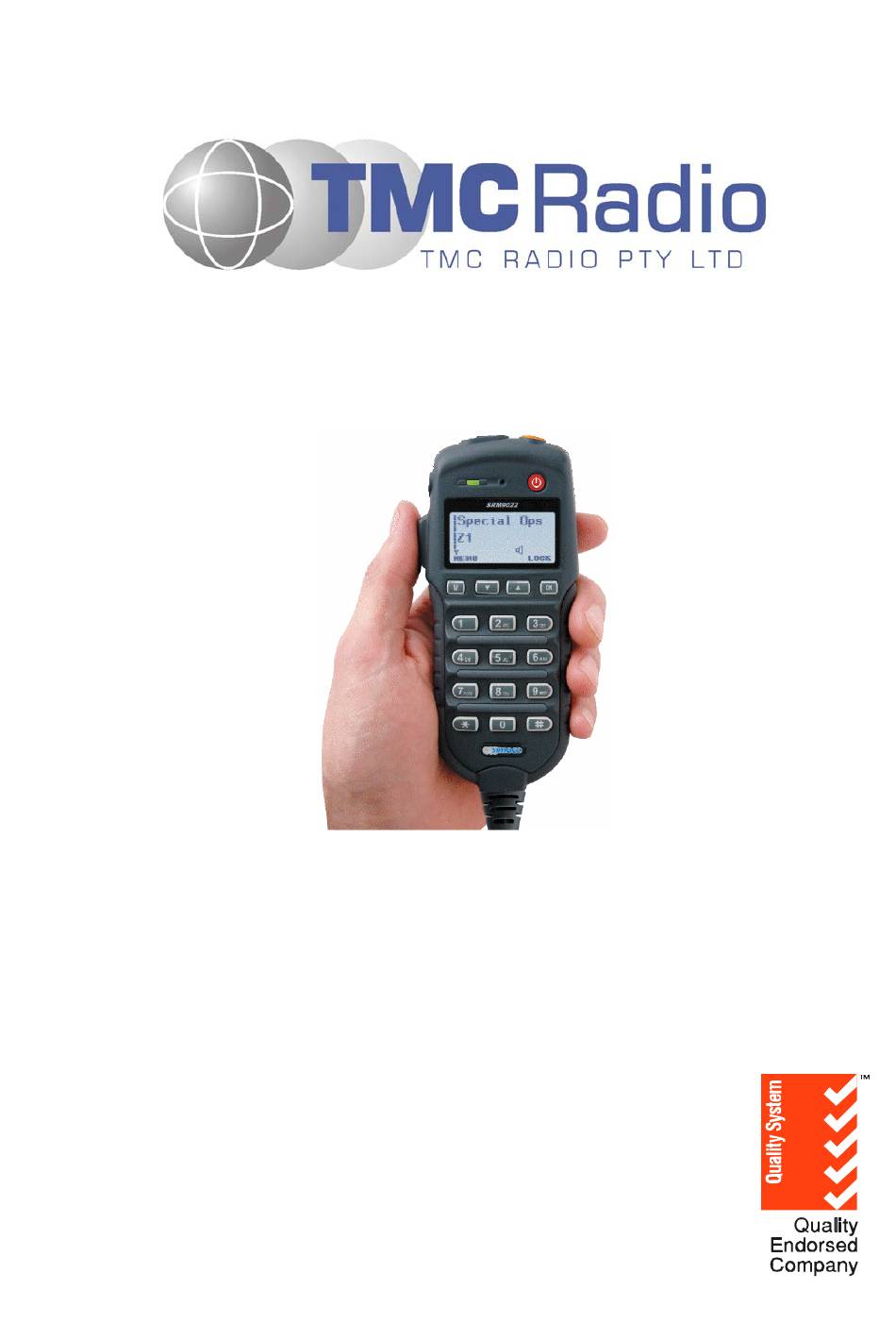

- Page 1 SRM9022 Mobile Radio Conventional – PMR Operating Instructions TNM-U-E-0063 Issue 1 November 2005 TMC Radio Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria, 3179 ISO9001 Lic.QEC20848 Australia SAI Global...
- Page 2 SRM9022 ~ PMR MOBILE RADIO USER GUIDE ASSOCIATED DOCUMENTATION The following documentation is available for use with the SRM9000 series of products: TNM-I-E-0005 SRM9000 Series Installation Instructions TNM-M-E-0001 SRM9000 Service Manual TNM-U-E-0012 SRM9020 Trunked Operating Instructions TNM-U-E-0013 SRM9020 PMR Operating Instructions...
- Page 3 SRM9022 ~ PMR MOBILE RADIO USER GUIDE SAFETY 1. Do NOT operate your radio, without a handsfree kit, whilst driving a vehicle. 2. Do NOT operate your radio in an explosive atmosphere. Obey the 'Turn Off Two-way Radios' signs where these are posted, e.g.
-
Page 4: Table Of Contents
SRM9022 ~ PMR MOBILE RADIO USER GUIDE CONTENTS INTRODUCTION ....................6 Overview...................... 6 Installation....................6 Conventions ....................6 FRONT PANEL CONTROLS ................7 MENU SYSTEM....................8 Menu Navigation ..................8 MAIN MENU SCREENS..................10 Channels Screen..................10 Phonebook Screen ................... 11 Status Screen.................... - Page 5 SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.5 Radio Information..................24 6.1.6 Phone Book Menu................... 24 6.1.7 Phone Book Edit Menu ................25 6.1.8 Mode Selection ..................27 SPECIAL FUNCTION BUTTONS..............28 Monitor....................... 28 Squelch Defeat..................28 Reset ......................28 Scan ......................
-
Page 6: Introduction
SRM9022. NSTALLATION As the installation of your SRM9022 Radio is a technical and possibly hazardous operation, we recommend that it is installed and set up for use by your dealer or an authorised installer. However, if you need information regarding the correct procedures for installation, please refer to the SRM9000 Series Installation Instructions supplied with the radio. -
Page 7: Front Panel Controls

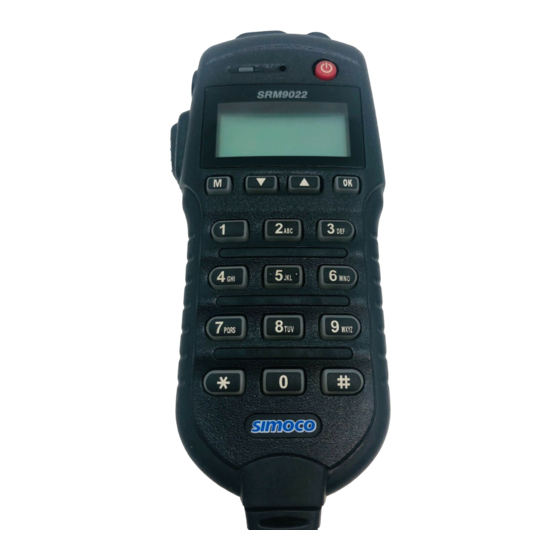

SRM9022 ~ PMR MOBILE RADIO USER GUIDE 2. FRONT PANEL CONTROLS Microphone Volume Up/Down Function #5 (F5) Function #6 (F6) Power On/Off RX /TX LED Push To Talk Mt Oberon Down or Up & M E N U SCA N... -
Page 8: Menu System
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 3. MENU SYSTEM The SRM9022 radio software uses a programmed Menu structure to enable the operator to access the radio options. The structure of the menu can be programmed to meet the specific needs of individual customers. - Page 9 SRM9022 ~ PMR MOBILE RADIO USER GUIDE OK Key Note: Example Menus only shown. Other Menus may be configured with the FPP M Key Up Key Down Key SubMenu #1 Phone Book Menu #4 Edit Phone Book Setup Screen Edit...
-
Page 10: Main Menu Screens
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 4. MAIN MENU SCREENS HANNELS CREEN The Channels Screen shows the current channel and allows it to be changed. The RSSI Bars indicate the Channel Number The Name Field shows the signal strength of the current selected entry from the current channel. -
Page 11: Phonebook Screen
SRM9022 ~ PMR MOBILE RADIO USER GUIDE HONEBOOK CREEN The Phonebook lists the Radio Users and their selcall codes. Selcall Identity information is stored for various users and calls can be sent from this Screen. buttons scroll through the Phonebook entries. -
Page 12: Send Message Screen
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 2. The Saved-Status-Value can also be set from the Channel or Phonebook Screens by entering the number (from the Keypad) and pressing the * button. The value is saved but not sent. ESSAGE... -
Page 13: Stored Calls Screen (Selcall)
SRM9022 ~ PMR MOBILE RADIO USER GUIDE TORED ALLS CREEN ELCALL This Screen allows the ten most recent missed Selcalls (ones not answered before the alert-tone stops) and received Status Selcalls to be reviewed. icon will show in the Main Channel Screen when there is an entry in this Screen. -
Page 14: Stored Calls Screen (Data Messages)
SRM9022 ~ PMR MOBILE RADIO USER GUIDE TORED ALLS CREEN ESSAGES Received data messages are stored in the Stored Calls screen. Data messages may be up to 237 characters in length. icon will show in the Main Channel Screen when there is an entry in this Screen. A "Bip" tone is emitted every few seconds when a new call is stored here. -
Page 15: Setup Screen
SRM9022 ~ PMR MOBILE RADIO USER GUIDE ETUP CREEN Use this Screen to access the other Setup submenus. Press the OK button to show the first of the submenus, and then the buttons to scroll through these screens. Refer to section 6 for details on Setup sub-menus. -
Page 16: Common Functions And Facilities
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 5. COMMON FUNCTIONS AND FACILITIES WITCH WITCH Momentarily press the red On/Off button to switch the radio ON. The display will illuminate and show a ‘Welcome Message’ and the Selcall Identity of the radio. -
Page 17: Transmitting
SRM9022 ~ PMR MOBILE RADIO USER GUIDE Changing channels may be achieved by any of the following: Pressing the buttons. Entering the desired channel number from the Keypad and pressing # (e.g. 12#). Pressing a Go-to-Channel Function Button. (refer to Section 7.11) -
Page 18: Selcall Functions
Status Screen (page 11) for methods of sending a Selcall. 5.4.3 Other Selcall Functions The SRM9022 has several other functions that affect how the radio operates with received signals or selcalls. These are described later in this booklet under the headings: (refer to Section 7.1) -
Page 19: Scan Functions
SRM9022 ~ PMR MOBILE RADIO USER GUIDE UNCTIONS Scanning consists of sequentially searching up to 15 channels for a valid signal (RF, CTCSS or DCS tone). When found the radio will stop on that channel until the signal disappears again. -
Page 20: Scan-Edit Screen
SRM9022 ~ PMR MOBILE RADIO USER GUIDE While listening on the channel, the User can PTT on that channel. After the signal disappears (or Microphone is placed back in Cradle) the radio will remain listening on the channel for a short time before resuming scanning. -
Page 21: Dtmf Operation
SRM9022 ~ PMR MOBILE RADIO USER GUIDE Alternatively, if the buttons were used to select PRIORITY……. ….then this Screen would appear. Press OK to confirm Priority selection and to return to the previous screen. When adding Channels (or changing Priority Channel), press buttons to scroll through all available channels, and press OK to make a selection. -
Page 22: Setup
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6. SETUP The Setup sub-menus allow the operator to edit/modify the operation of some of the general functions of the radio. The programmer can restructure or restrict access to any or all of these menus and may restructure them according to specific requirements. -
Page 23: Mute Adjust
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.2 Mute Adjust Select the Mute Adjust Screen to change current Mute setting. Use the buttons to change the Mute level. Press the OK or Back button to save new Mute setting. Note : When a Voting channel is selected the Voting-Mute level is shown, but may not be changed. -
Page 24: Radio Information
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.5 Radio Information This Screen displays information that identifies the… • Programmer File description • Software Version • Selcall ID, and … • Radio Serial Number and ESN. Press OK to return to the Idle Screen. -
Page 25: Phone Book Edit Menu
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.7 Phone Book Edit Menu The Phone book Edit Screen allows you to Add, Delete or Edit phone book entries. 6.1.7.1 ADD A NEW ENTRY From the main Phone Book Edit Screen (at any Phonebook Entry), just press OK. - Page 26 SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.7.2 EDIT AN EXISTING ENTRY Use the buttons to select the Use the buttons to select “Edit” required Phonebook Entry, then Press and then press OK.. Next, edit the number using the F6 key Edit text using the ABC keypad (see and keypad and press OK.
-
Page 27: Mode Selection
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 6.1.8 Mode Selection The Mode Screen allows you to switch operation SRM9022 between; MODE • Trunk Network 1 • Trunk Network 2 BACK • PMR mode, or … • P25 mode. Use the buttons to make your selection, and press OK to accept. -
Page 28: Special Function Buttons
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 7. SPECIAL FUNCTION BUTTONS This section lists Functions that may be programmed to the F1, F2, F3, F4, F5 or F6 buttons. Consult your TMC Radio Dealer for which functions have been programmed in to your radio. -
Page 29: Low Power
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 7.15 OWER Forces the radio to low power. Pressing again puts the radio back to the power level defined for the current channel. This is not affected by Channel changes. 7.16 DTMF M This function places the numeric keypad into DTMF mode. -
Page 30: Options
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 8. OPTIONS The following options are available, contact your dealer for further information. (MA-QRCRADLE) UICK ELEASE RANSCEIVER This kit provides a mounting cradle to allow the Transceiver to be quickly removed without having to undo unnecessary screws. -
Page 31: Troubleshooting
SRM9022 ~ PMR MOBILE RADIO USER GUIDE 9. TROUBLESHOOTING If, after reading this guide, you are unable to switch the radio on, check the following: • A fuse has not blown. Your installer should advise you of the location of the two main fuses, •... - Page 32 SRM9022 ~ PMR MOBILE RADIO USER GUIDE APPENDIX A - ALERT TONES AND MESSAGES 0.05 Key Beep 440 Hz 880 Hz 0.05 Error Tone 1480 Hz Duration Indicated in seconds 0.10 Beep Alert 0.10 Bip Alert 0.10 2 x Bip Alert...
- Page 33 SRM9022 ~ PMR MOBILE RADIO USER GUIDE APPENDIX B - GLOSSARY A summary of common radio terms and some other terms used in this document, and their meanings, are given below. Alert tones The transceiver emits these tones to indicate an invalid operator or error.
