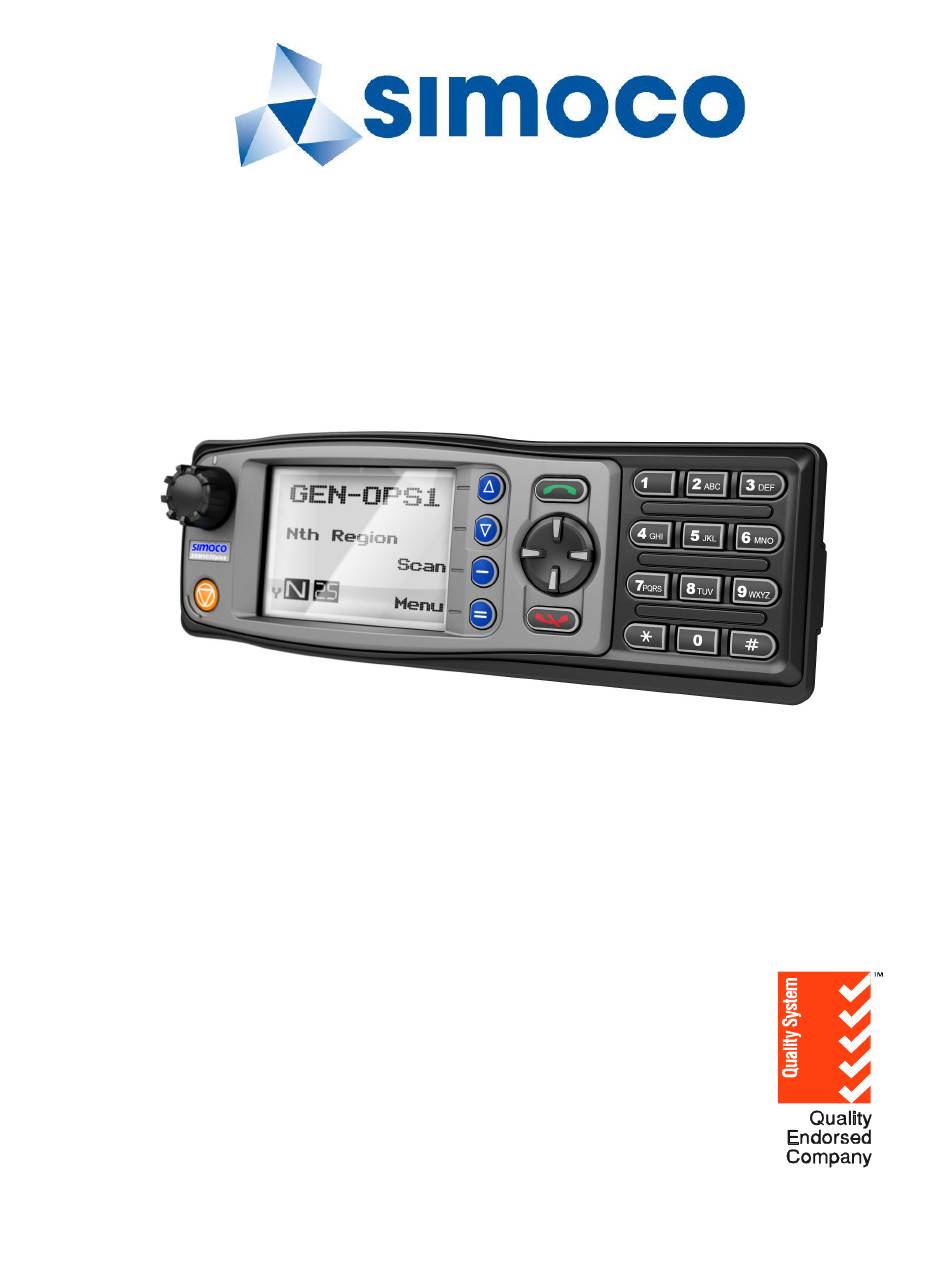

- Page 1 P25 SRM9030 / SRM9030plus Mobile Radio P25 – Conventional / Trunked Operating Instructions TNM-U-E-0094 Issue 1.2a ComGroup Australia Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria, 3179 ISO9001 Lic.QEC20848 Australia SAI Global...
- Page 2 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS ASSOCIATED DOCUMENTATION The following documentation is available for use with the SRM9000 series of products: TNM-U-E-0079 P25 SRM9030 Mobile Radio Brief User Guide TNM-P-E-0006 P25 SRM9030 Product Manual TNM-I-E-0005 SRM9000 Installation Sheet TNM-M-E-0002 SRM9000 R9 Service Manual To order copies of any of the above publications, or any other ComGroup Australia product, contact ComGroup Australia on +61 3-9730-3800 or send a Fax on +61 3-9730-3968.
- Page 3 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS SAFETY 1. Do NOT operate your radio, without a hands free kit, whilst driving a vehicle. 2. Do NOT operate your radio in an explosive atmosphere. Obey the 'Turn Off Two-way Radios' signs where these are posted, e.g. on a petrol station forecourt.
-
Page 4: Table Of Contents
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS CONTENTS INTRODUCTION....................6 Overview ......................6 Configuration ....................6 Modes of P25-SRM9030 Operation ............6 CONTROLS ......................7 MENU SYSTEM....................10 Menu Navigation ..................12 MENU SCREENS ....................14 Channel Screen ..................14 Menus......................18 4.2.1 Zone Menu ....................18 4.2.2 Squelch ....................19 4.2.3 Mute Adjust .....................21 4.2.4 Phonebook Menu ..................22 4.2.5... - Page 5 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS Scan/vote Functions .................51 5.7.1 Scan/Vote Screen..................52 Keypad Lock....................53 Encryption ....................53 5.10 Emergency Alarm ..................53 5.10.1 Receiving Emergency Calls..............53 5.10.2 Making an Emergency Call..............53 SPECIAL FUNCTION KEYS ................55 Alarm......................55 Channel Up and Down ................55 Crypto ......................55 Low Power ....................55 Menu......................55 Mode......................55...
-
Page 6: Introduction
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 1. INTRODUCTION VERVIEW The Simoco SRM9000 Series Radios are a family of versatile Digital Signal Processor (DSP) controlled, software controlled two-way mobile radios. These Operating Instructions describe the operation of the APCO P25 Standard compliant Mobile Radio, consisting of an SRM9000 Transceiver, a MA-MAB-2 Option Board, and SRM9030 / SRM9030plus Control Head. -
Page 7: Controls

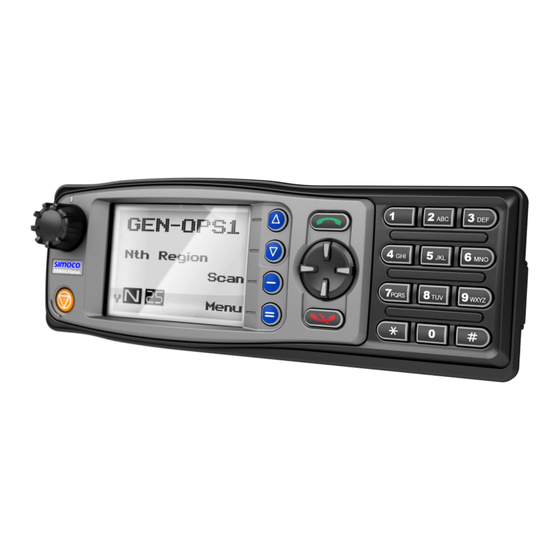

SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 2. CONTROLS Indicator On/Off Down Call Reset Volume (F2) (F3) (F7) (F8) SPECIAL OPS ZONE 1 MENU Menu Alarm (F5) (F4) (F1) Figure 1 – SRM9030 Control Head Figure 2 -SRM9030 plus Control Head The SRM9030 Control Head has the following features: •... - Page 8 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS SRM9030 Key Label Function 9030/9030plus To turn the radio on, press and hold the volume knob Power On/Off for about 1 second. To turn the radio off, press and hold the volume knob until the long tone sounds. Push-to-Talk.
- Page 9 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS SRM9030 Key Label Function 9030/9030plus Function Key Programmable Function key. 1 2 3 Keypad can be used to select a Channel or Special 4 5 6 Keypad Function. 7 8 9 E.g. 12# will select channel 12. * 0 # Indicator LED Function...
-
Page 10: Menu System
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS MENU SYSTEM This section details the operation of the menu system for the SRM9030-P25. The SRM9030 has a menu system that is configurable by the FPP. The FPP has a pool of menu entries that can be applied as required in the order required. In simple configurations, no menu can be programmed, if required. - Page 11 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS The User Options menu group is also a menu subgroup. This subgroup usually contains on/off functions, such as Key Beeps or Backlight The order and presence of the Setup subgroup selections is determined by the FPP. For instance Info , RSSI and Contrast could be placed under Setup .
-
Page 12: Menu Navigation
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS AVIGATION Pressing the “ M ” key selects Menu mode from the main Channel Screen. Once in menu mode, the ▼ and ▲ keys cycle through the menus. To exit Menu mode, press the “ M ” key again or the Menu timeout will exit automatically. Generally, pressing “... - Page 13 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS Note: Example Menus only shown. Back Back Squelch Submenu Other Menus may be configured with the FPP Back Back Mute Submenu OK Key Adjust Back Back Key Up Key Back Back RSSI Submenu Down Key P25 Conventional Menu rev1d Back Back...
-
Page 14: Menu Screens
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4. MENU SCREENS HANNEL CREEN SPECIAL OPS Zone 5 MENU The Channel Screen shows the current channel and allows channel selection. The Channel Name (top line) shows the text associated with the currently selected radio channel. - Page 15 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS SPECIAL OPS Zone 5 MENU Figure 4 Icon Locations As there are six positions for icons and displayed icons exceed this, some icons will share the same location. Position Icon (Message) (Talk Around) (TX) (Other Signal) (Signal) (Scanning) (Monitor)
- Page 16 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS ICONS INDICATION A filled speaker indicates that a signal is present and the audio can be heard from the speaker. The outline speaker icon indicates that a signal is present and the radio is muted. This could be another user group, for instance. Scan Indicator.
- Page 17 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS Connecting icon. Shown when a text message is being sent and the connection is in progress. Connection Fail icon. Shown when a text message transmission has failed. Radio has stopped on a scan channel. © ComGroup Australia 2010 page 17 TNM-U-E-0094 Issue 1.2...
-
Page 18: Menus
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS ENUS The menu structure on the SRM9000 is configurable using the Field Programmer. A system administrator usually tailors the order and presence of the menu options to specific customer requirements. This section will describe all the possible menus. Normally the menus are divided into two menu lists. -
Page 19: Squelch
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.2 Squelch This menu allows the channel’s default squelch mode to be modified. If the selected channel is changed or the radio is switched off, the channel’s default squelch setting will be restored. Press the “ OK ” key for the “ Squelch ” Menu. P25 Squelch Screen For a P25 digital channel, pressing the ▼... - Page 20 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS Analogue Channel Monitor Mode: The radio will receive any Analogue voice or P25 digital signals. Digital NAC or Analogue CTCSS is not checked. An “ M ” icon indicates monitor. Analogue Channel Normal Mode: When normal mute is selected, the radio will receive correctly addressed Analogue radio transmissions and all decryptable or clear digital transmissions.
-
Page 21: Mute Adjust
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.3 Mute Adjust From the menu list, step through the menu options with the ▼ and ▲ keys until the “ Mute Adjust ” menu is displayed. Press the “ OK ” key for the Mute adjustment screen. Analogue Mute Screen The mute adjustment will be applied to all the radio’s analogue channels. -
Page 22: Phonebook Menu
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.4 Phonebook Menu When “ Phone Book ” is selected from the menu screen, the Phone Book Screen is shown. From this screen, it is possible to view the of all phone entries in the phone book. The second line shows the name of the selected phone book entry. -
Page 23: Phonebook Edit Menu
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.5 Phonebook Edit Menu The Phone Book can be modified so that new entries can be added and existing entries can be modified or removed from the phone book. Phone book entries may be Individual Addresses, Telephone numbers or Talk Groups. Changes to the phone book are permanent. - Page 24 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS A “ Reset” function key press (if configured) takes the radio back to the default screen display. If “ Delete ” is selected, pressing “ OK ” removes the selected phone entry from the phone book and takes the radio back to the default screen display.
- Page 25 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS The System ID entry can then be changed using the numeric digits and ▼ key as a destructive backspace. Once the New System ID is entered, press “ OK ” key to move on to the next sub-menu screen to edit the WACN ID, if required.
- Page 26 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS The IP address can then be changed using the numeric digits and ▼ and ▲ key to move the cursor with ▼ function key as a destructive backspace. The “ # ” key is used to enter a “.”. If there is no change for the IP address, press “...
-
Page 27: User Options
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.6 User Options The “ User Options ” menu provides access to a list of Functions that may be toggled on or off. Up to 10 functions may be defined in this menu by the FPP programmer. Press the “... -
Page 28: Contrast
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.7 Contrast This menu allows the screen’s contrast setting to be changed. Press the “ OK ” key for the “ Contrast ” adjustment screen When the “ Contrast ” menu is selected, the contrast can be adjusted with the ▼ and ▲ keys. The numeric value of the Contrast is displayed. -
Page 29: Alert Volume
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.8 Alert Volume This Screen allows you to set the level of the relative Alert Volume level in relation to the current Volume setting. The level can be set in 62 steps over the range -31 to +31, with 0 being about the same as the voice level. -
Page 30: Radio Information
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.9 Radio Information These screens display information that identifies the Field Programmer File description, Radio ID, Serial Number, Software Version and IP Address. From the Settings Sub Menu, step through the menu options with the ▼ and ▲ keys until the Radio Info menu is displayed. - Page 31 SRM9030-P25 RADIO – OPERATING INSTRUCTIONS Encryption Status Feature Authorisation Enables Encryption Summary External Application Memory Status The “ Radio Info “ screens are read-only screens. Press “ OK ” to return to the Channel Screen. © ComGroup Australia 2010 page 31 TNM-U-E-0094 Issue 1.2...
-
Page 32: Mode Menu
SRM9030-P25 RADIO – OPERATING INSTRUCTIONS 4.2.10 Mode Menu The mode menu is used for changing from one radio to another, such as PMR/LMR mode to P25 or MPT1327 trunking. From the Channel Screen, select menu mode with the “ Menu ” key and step through the menus with the ▼...
