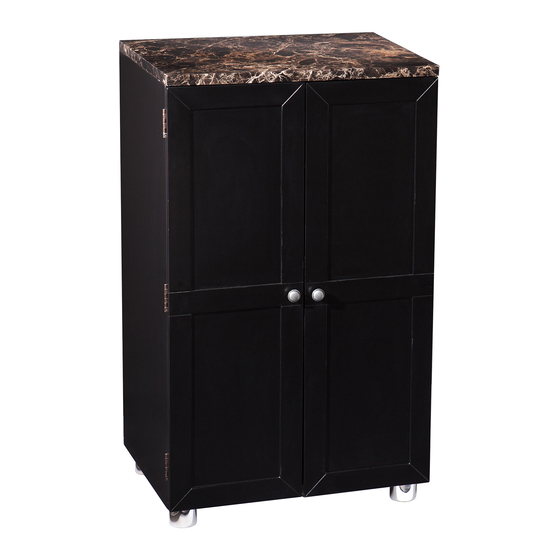

Black contemporary bar cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
HZ104100TX
Black Contemporary Bar
For assistance with assembly contact:
Cabinet
Southern Enterprises, Inc.
Assembly Instructions
customer service 1-800-633-5096
service@seidal.com
www.seidal.com
PO#：
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HZ104100TX and is the answer not in the manual?

Questions and answers

Related Manuals for SEI HZ104100TX

Summary of Contents for SEI HZ104100TX

  • Page 1 HZ104100TX Black Contemporary Bar For assistance with assembly contact: Cabinet Southern Enterprises, Inc. Assembly Instructions customer service 1-800-633-5096 service@seidal.com www.seidal.com PO#： Page 1...

  • Page 2: Parts List

    Black Contemporary Bar Cabinet Parts list Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
  • Page 3 Quantity Quantity Quantity of 1 of 4 of 2 drawer bottom middle glass rack side glass rack Quantity Quantity Quantity of 4 of 4 of 32 wood dowel metal rack Dia 5/16” x 1-3/16”L legs Quantity Quantity Quantity of 32 of 32 of 6 cam bolt...
  • Page 4 Quantity Quantity Quantity of 4 of 18 of 4 L bracket long screw: Dia 1/8” x 1-1/4”L medium screw: Dia 1/8” x 1”L Quantity Quantity Quantity of 4 of 2 of 2 wall bracket screw: Dia 1/8” x 5/8”L wall bracket plastic strap Quantity Quantity...
  • Page 5 Black Contemporary Bar Cabinet Assembly Instructions Wood may scratch easily, be careful when assembling. Attach left female slide (10) to left side panel (C) with short screws (5). Tighten short screws (5) with a phillips screwdriver. Tip: Make sure to attach short screws (5) in the same hole on left female slide (10) as shown on inset.
  • Page 6 Insert cam locks (3) into holes on fixed shelf panels (E) Screw cam bolts (2) into holes on left side panel (C). Attach left side panel (C) to fixed shelf panels (E) by inserting wood dowels (1) and cam bolts (2) into corresponding holes until left side panel (C) and fixed shelf panels (E) meet.
  • Page 7 Attach legs (S) to pre-assembled unit by hand. Attach middle glass racks (Q) and side glass rack (R) to pre-assembled unit with wood dowel (1) and long screws (15). Tighten long screws (5) with a phillips screwdriver. Figure 6 Attach wine rack vertical panel (H) and wine rack shelf panel (G) together as shown.
  • Page 8 Attach back panel (F) to the backside of pre-assembled unit with round head screw (6). Tighten screws with a phillips screwdriver. Tip: Make sure the arrow on back panel (F) is pointing up. Figure 9 Attach metal rack (T) to left door (I) and right door (J) with short screws (5).
  • Page 9 Attach L brackets (14) to pre-assembled doors with screws (5). Tighten screws with a phillips screwdriver. Figure 12 Attach hinges (4) to the sides of the pre-assembled unit with short screws (5). Tighten screws with a phillips screwdriver. Figure 13 Page 9...
  • Page 10 Attach the left drawer side (M) and right drawer side (N) to drawer back panel (O). Make sure to line up the grooves on panels (O, N, and M). Secure panels (O, N, and M) with medium screws (16).Insert drawer bottom panel (P) into the corresponding grooves of drawer back panel (O) and left drawer side (M) and right drawer side (N).
  • Page 11 Insert drawer box into the unit. Please check to make sure the drawer box male slides are inserted into side panel’s female slides. Figure 16 Attach wall bracket (18) to the back panel using wall bracket screw w all (17). Tighten wall bracket screw (17) using a phillips screwdriver.
  • Page 12 Move this item close to the wall and tie both wall brackets (18) with plastic strap (17) as shown in diagram. Anti-tipping hardware must be used for this product to avoid tipping and injury. Figure 18 Your black contemporary bar cabinet is ready for use.

  • Page 13: Parts Replacement Form

    Parts Replacement Form Page 11 Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
