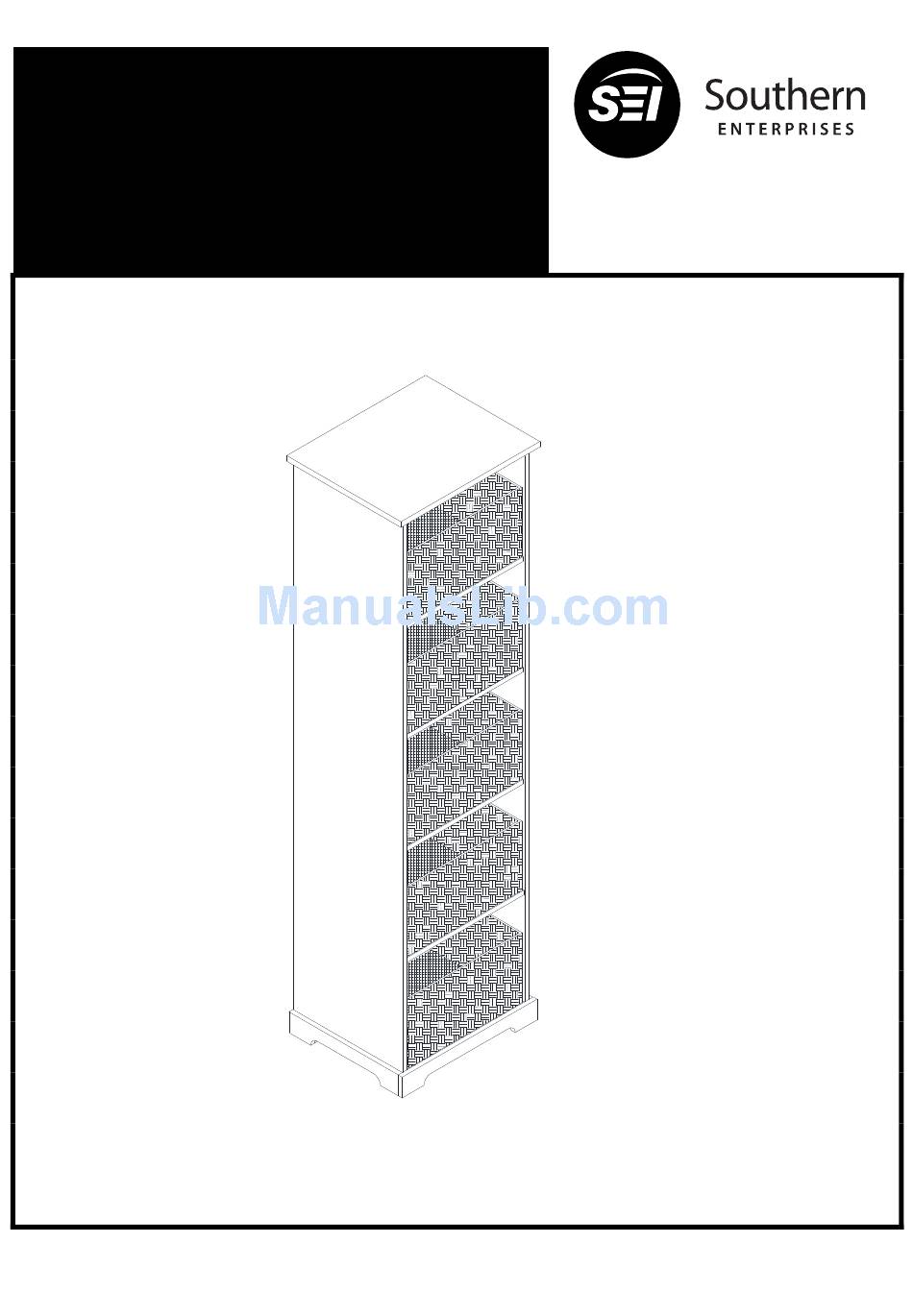

- Page 1 HZ401800TX Loring Entryway Storage Cubby For assistance with assembly contact: Southern Enterprises, Inc. Customer Service 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com PO#:...
- Page 2 Loring Entryway Storage Cubby Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 Quantity of 5 Wicker Bottom Quantity Quantity Quantity of 26 of 26 of 8 Wood Dowel Ø5/16”x1-1/2”L Cam Lock Cam Bolt Quantity Quantity Quantity of 6 of 26 of 8 Shelf Holder Screw Ø1/8”x1/2”L Screw Ø5/32”x1”L Quantity Quantity of 2 of 4 Anti-Tipping Hardware Adhesive Pad...
- Page 4 Loring Entryway Storage Cubby Assembly Instructions ( 1 ) ( 2 ) Attach left side apron (D) to left side panel (B) by using screws (4) as shown. Attach right side apron (E) to right side “Please do not over tighten cam bolts, panel (C) by using screws (4) as shown.
- Page 5 Insert cam locks (2) into holes on bottom panel (H), rear cross panel (I), and fixed shelf panel (F). Screw cam bolts (1) into holes on side panels (B) and (C). Attach bottom panel (H), rear cross panel (I) and fixed shelf panel (F) to side panels (B) and (C) by inserting cam bolts (1) and wood dowels (3) into corresponding holes until all panels meet.
- Page 6 Insert cam locks (2) into holes on side panels (B), (C) and rear cross panel (I). Screw cam bolts (1) into holes on top panel (A). Attach top panel (A) to side panel (B), (C), and rear cross panel (I) by inserting wood dowels (3) and cam bolts (1) into corresponding holes until all panels meet.
- Page 7 Insert shelf holders (6) into holes on side panels then place adjustable shelves (G) onto shelf holders (6) as shown. Figure 7 Attach the wicker bottoms (M) to wicker frames (L). Figure 8...
- Page 8 Place wicker baskets into the assembled unit. Figure 9 Attach anti-tipping hardware (7) to back panel as shown. Tighten screws with Phillips screwdriver. Mark two desired locations on wall and drill two 3/16" holes. Insert plastic anchors into the two drilled holes on wall as shown.
- Page 9 Now your Loring entryway storage cubby is ready to use. Figure 11...
-
Page 10: Parts Replacement Form
Parts Replacement Form Page11 Page 4 Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
