Summary of Contents for SEI HZ1216741

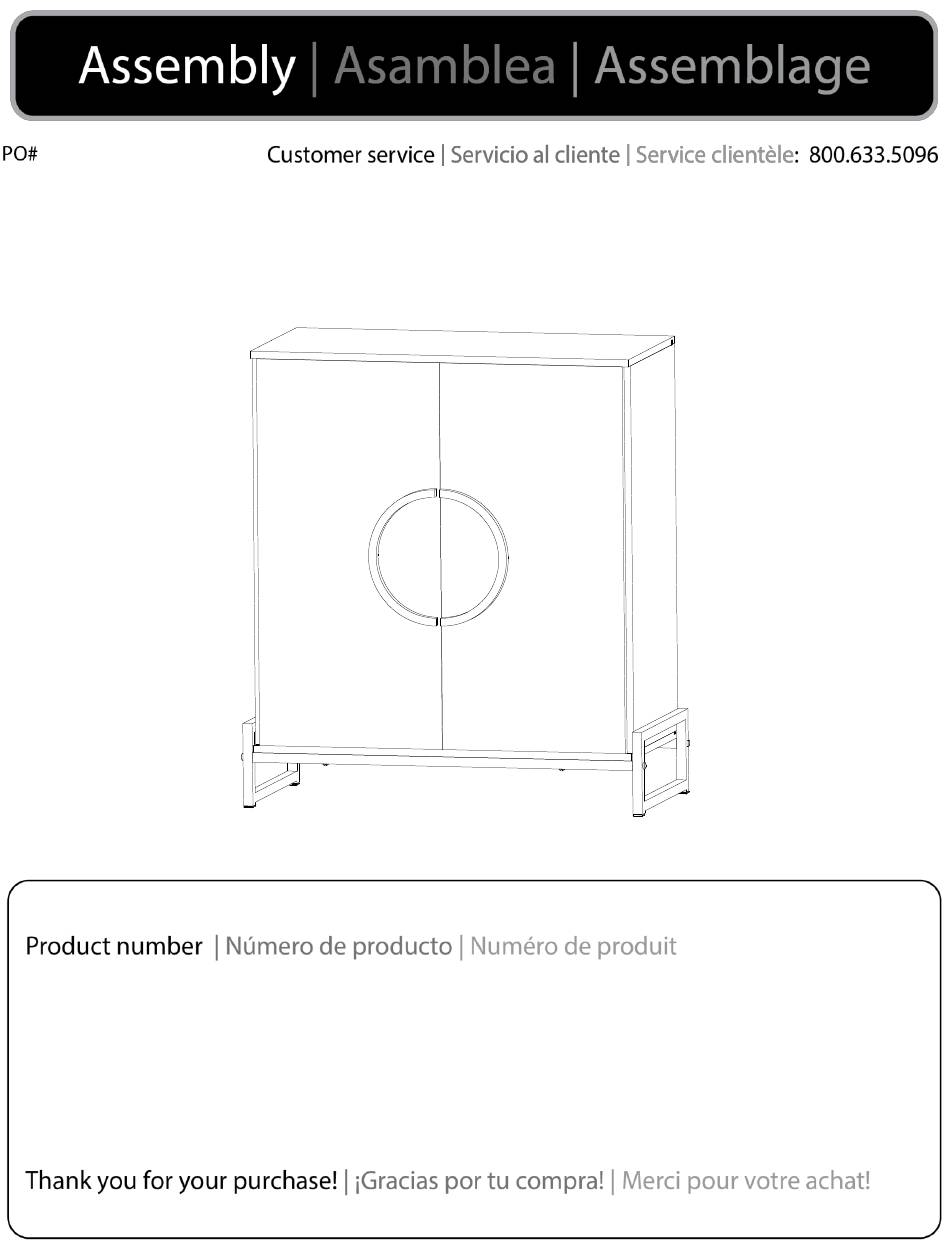

  • Page 1 HZ1216741...
  • Page 4 Wood left panel Panel izquierdo de Wood top panel Wood bottom panel madera Wood middle panel Panel superior de madera Panel inferior de madera Panneau de gauche en Panel central de madera Panneau supérieur en bois Panneau inférieur en bois bois Panneau central en bois Wine glass rack...
  • Page 5 Cam lock Wood Dowel Cam Bolt Bloqueo de leva Screw Screw Clavija de madera Perno de leva Verrouillage de la Tornillo Tornillo Cheville en bois Boulon à cames came 8x30mm 6x38mm 15mm 8x5/8” 8x1-1/4” Screw Bolt Corner bracket Tornillo Hinge Shelf peg Cerrojo Soporte de esquina...
  • Page 6 Wood Dowel Clavija de madera Cheville en bois (8x30mm) Cam Bolt Perno de leva Boulon à cames (6X38mm) Cam Lock Bloqueo de leva Verrouillage de la came (15mm) 2.1 Attach wood left panel (#3), wood middle panel (#4) and wood right panel (#5) to wood top panel (#1) using wood dowel(#A), cam bolt(B) and cam lock(#C).
  • Page 7 Screw Tornillo (8x5/8”) 3.1 Attach wine glass rack (#8) to wood top panel (#1) using screws (#D). 3.2 Attach wood back panel (#6) to wood top panel (#1). 3.1 Conecte el estante de vidrio de vino (# 8) al panel superior de madera (# 1) usando tornillos (#D).
  • Page 8 Corner Bracket Soporte de esquina Support d’angle Screw Tornillo (2.8X18mm) 5.1 Screw the corner bracket (#F) to the wood back panel using screw (#G). 5.1 Atornille el soporte de la esquina (#F) al panel posterior de madera con el tornillo (#G). 5.1 Vissez le support d’angle (#F) sur le panneau arrière en bois à...
  • Page 9 7.1 Attach handle (#9) to wood door (#7) using screw (#J) and Allen wrench (#Q) Bolt 7.1 Conecte la manija (#9) a la puerta de madera (#7) usando Cerrojo tornillo (#J) y llave Allen (#Q) Boulon 7.1 Attachez la poignée (no 9) à la porte en bois (no 7) à l’aide (1/4”x 1”) d’une vis (#J) et d’une clé...
  • Page 10 8.1 Attach wine rack stretchers (#10) to wine rack side Bolt panels (#11) using bolts(#J) and allen wrench(#Q). 8.2 Attach wine rack end cap (#L) and black bolt cover Cerrojo (#R) as shown. Boulon 8.1 Conecte las camillas del estante para vinos (# 10) a (1/4”x 1”) los paneles laterales del estante para vinos (# 11) usando pernos (#J) y llave allen (#Q).
  • Page 11 Screw Tornillo (8X1-1/4”) Bolt Cerrojo Boulon (1/4”x1-1/2”) Chrome bolt cover Cubierta de perno cromada Couvercle de boulon chromé Allen Wrench Llave Allen Clé Allen 9.1 Attach stretchers (#13) to wood bottom panel (#1) using bolts (#E). 9.2 Attach leg (#12) to stretchers (#13) using bolts (#M) and allen wrench (#Q).
  • Page 12 Screw Tornillo (8X1-1/4”) Wall Anchor Anclaje de pared Ancre murale L Bracket Soporte L Support L 11.1 Position against wall and drill the holes. 11.2 Screw the wall anchors(#N), L brackets(#O) to the holes using screws(#E). 11.1 Colocar contra la pared y perforar los agujeros. 11.2 Atornille los anclajes de pared (#N), los soportes L (#O) a los orificios con tornillos (#E).
  • Page 13 Screw Tornillo (8X5/8”) L Bracket Soporte L Support L Plastic Strap Correa de plástico Sangle en plastique 12.1 Attach the L brackets(#O) to the back of cabinet using screws(#D). 12.2 Tight the bar cabinet to L brackets(#O) on wall using plastic strap(#P) as shown.

  • Page 14: One Year Limited Warranty

    Requests for missing or damaged parts must be requested within one year of purchase. Damages or missing parts reported outside of one year will not be honored. SEI Furniture is under no obligation to provide parts or replacement merchandise. Replacement part requests will not be honored for fully assembled or modified items.

  • Page 15: Garantía Limitada De Un Año

    Debe examinar su mercancía inmediatamente después de recibirla. Si tiene inquietudes sobre el producto, comuníquese con el servicio al cliente de SEI Furniture al 800-633-5096 de lunes a viernes de 8:30 am a 5 pm CST. Tenga a mano la información de su compra cuando llame.

  • Page 16: Garantie Limitée D'un An

    Vous devez examiner votre marchandise dès sa réception. Pour toute question concernant les produits, veuillez contacter le service client de SEI Furniture au 800-633-5096 du lundi au vendredi de 8h30 à 17h00 CST. Veuillez avoir vos informations d'achat prêtes lorsque vous appelez.
