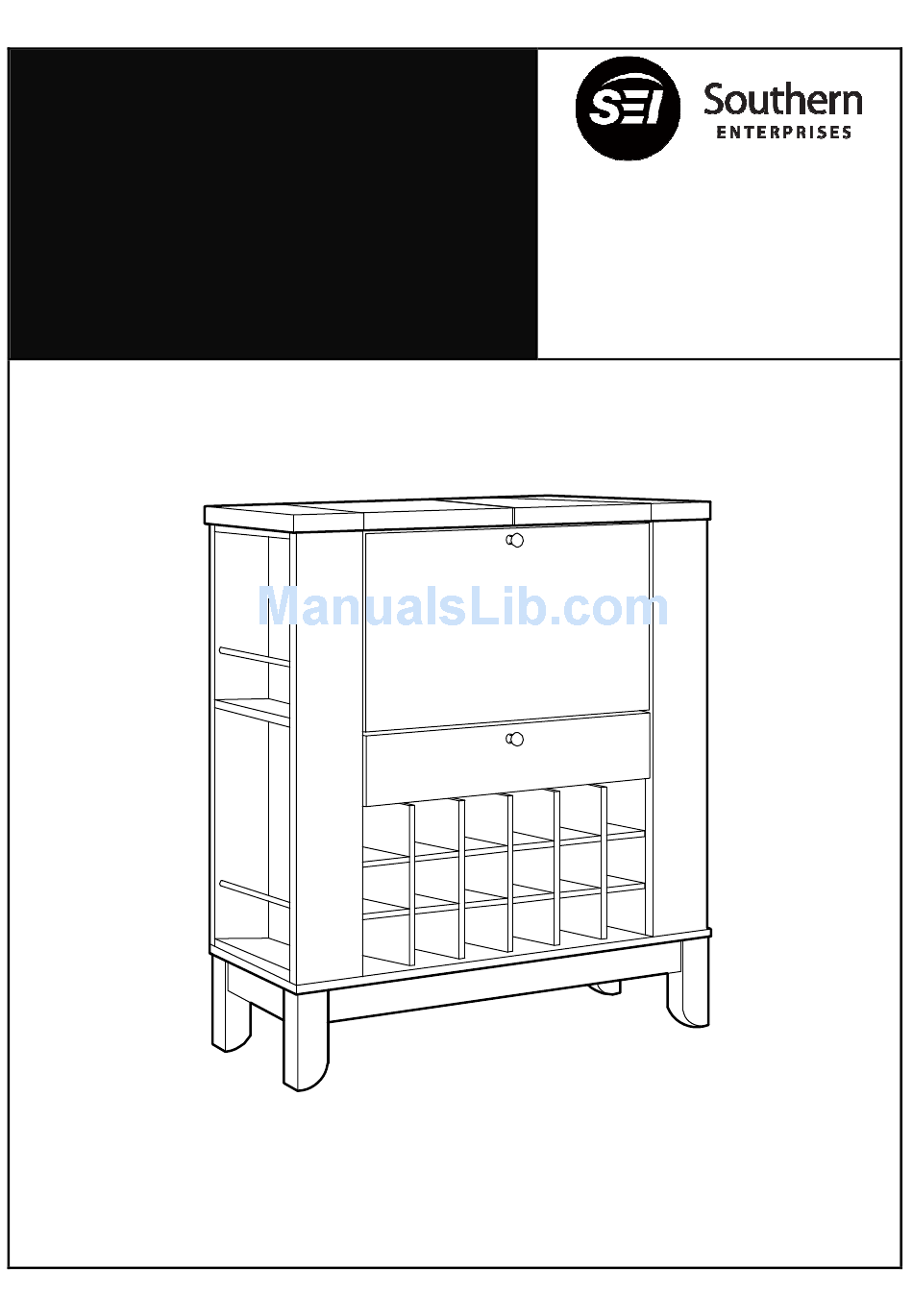

- Page 1 HZ104800TX For assistance with assembly, contact: Wine/ Bar Cabinet Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instruction service@seidal.com www.seidal.com PO# 13412 Page | 1...
- Page 2 HZ104800TX Wine/ Bar Cabinet Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 HZ104800TX Wine/ Bar Cabinet Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 4 HZ104800TX Wine/ Bar Cabinet Assembly Instructions Step 1: Insert Wood Dowels (1) and screw Cam Bolts (2) into Left Back Panel (M) and Right Back Panel (N). Attach Upper Side Shelves (O) and Lower Side Shelves (P) with Back Panels (M) & (N) using Cam Locks (3).
- Page 5 Step 3: Insert File Rods (Z) into corresponding holes. Attach Left Front Panel (K) and Right Front Panel (L) using Wood Dowels (1), Cam Bolts (2) and Cam Locks (3). Note: Make sure to attach the File Rods (Z) onto both units.
- Page 6 Step 5: Attach assembled unit from Step 3 that has Right Side Panel (I) to assembled unit from Step 4 using Wood Dowels (1), Barrel Nuts (7), Spring Washers (5), Flat Washers (6) and Bolts (4). Tighten with Allen Wrench (17).
- Page 7 Step 7: Attach Support Bar (C) using Wood Dowel (1), Cam Bolt (2) and Cam Lock (3). Slide Back Panel (E) into grooves of Support Bar (C) and Shelf (Y). Step 8: Attach Right Side Panel (J) to Shelf (Y) and Support Bar (C) using Wood Dowels (1), Cam Bolts (2), Cam Locks (3), Barrel Nuts (7), Spring...
- Page 8 Step 9: Attach Bottom Shelf (G) using Spring Washers (5), Flat Washers (6), Barrel Nuts (7) and Bolts (4). Tighten Bolts with Allen Wrench. Step 10: Attach Legs (H) using Spring Washers (5), Flat Washers (6) and Bolts (4). Page | 8...
- Page 9 Step 11: Attach Door Hinges (16) using Screws (12). Attach Knob (11) using Bolt (10). Step 12: Insert Wood Dowels (1) into corresponding holes. Place Left Top Panel (A) and Right Top Panel (B) on to top as shown. Secure using Spring Washers (5), Flat Washers (6) and Bolts (8).
- Page 10 Step 13: Assemble Left Side Panel (S) and Right Side Panel (T) with Drawer Front Panel (Q) using Screws (9). Tighten screws with Phillips screwdriver. Step 14: Slide Drawer Bottom (U). Attach Drawer Support (V) with Drawer Front Panel (Q) and Drawer Back Panel (R) using Cam Bolt (2) and Cam Lock (3).
- Page 11 Step 16: Insert assembled drawer into its corresponding place and assure it glides smoothly. Attach Knob (11) using Bolt (10). Insert Horizontal Panel (W) into Vertical Panel (X) as shown. Once assembled, insert bottle holder assembly into bottom space of cabinet. Step 17: Fix Wine/ Bar cabinet to wall using Screws (19), (20), Flat...
- Page 12 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Numbers Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
