H3C SecPath M9000 NSQM1CGQ20 Manual

Manual version: 6PW104-20190808
H3C SecPath M9000 NSQM1CGQ20 interface module
1 Identifier
The module identifier NSQM1CGQ20 is in the upper right corner of the front panel.
2 About the module
The NSQM1CGQ20 interface module is developed for H3C SecPath M9000 and M9000-S gateways.
It provides two 100GBASE-R fiber ports. By using the interface module with M9000 and M9000-S
high-performance service modules, the M9000 and M9000-S gateways are capable of providing
security for 100G networks.
3 Specifications

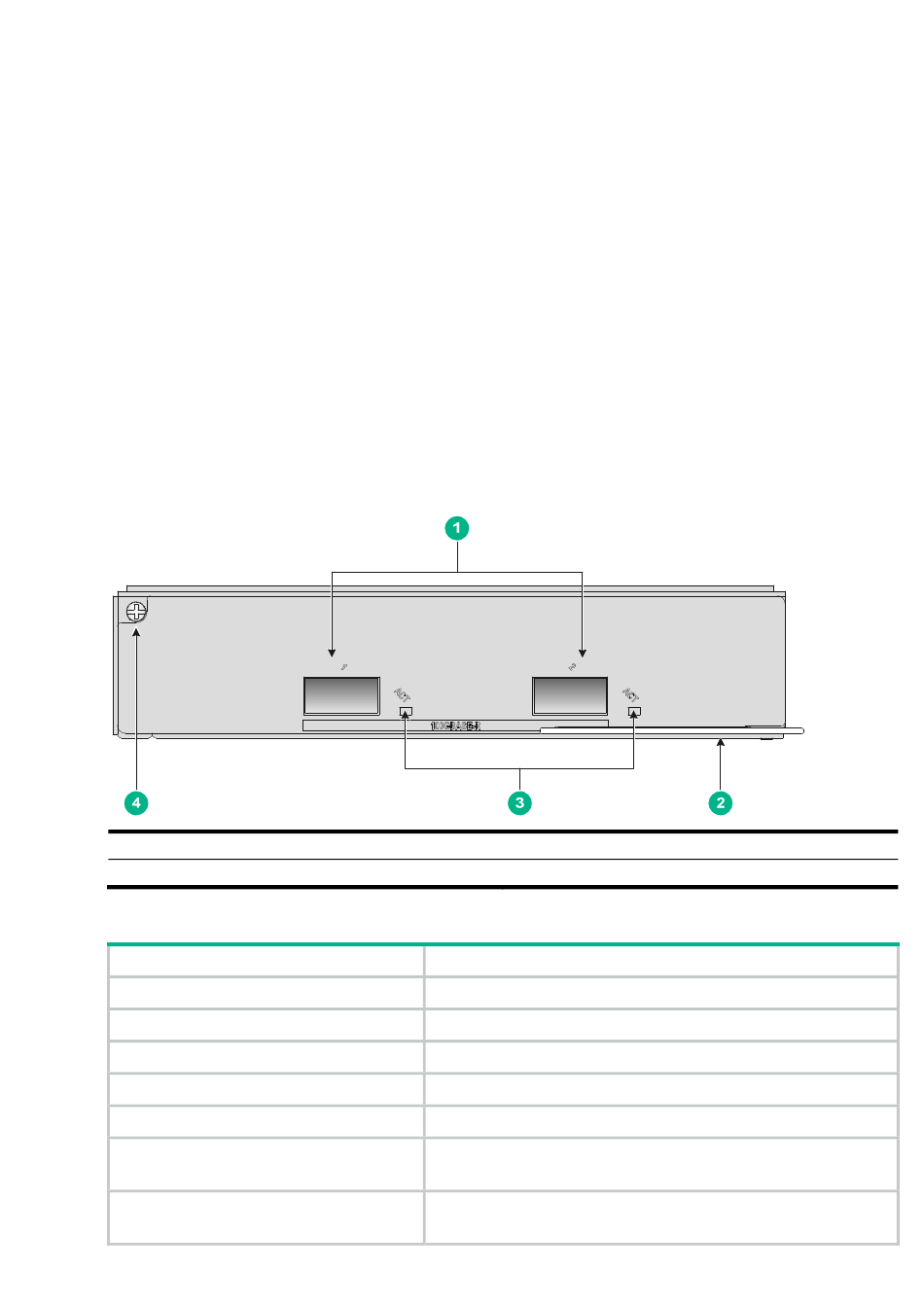

Figure 1 Front panel
(1) 100GBASE-R fiber ports
(3) 100GBASE-R fiber port LEDs
Table 1 Module specifications
Item
Dimensions (H × W × D)
Power consumption
Net weight
Hot swapping
Ports
Ambient temperature
Ambient humidity
(2) Ejector lever
(4) Captive screw
Specifications
37 × 174 × 194 mm (1.46 × 6.85 × 7.64 in)
15 W to 16 W
0.66 Kg (1.45 lb)
Not supported
2 × 100GBASE fiber port
•
Operating: 0°C to 45°C (32°F to 113°F)
•
Storage: –40°C to +70°C (–40°F to +158°F)
•
Operating: 10% RH to 95% RH, noncondensing
•
Storage: 5% RH to 95% RH, noncondensing
i
BOM: 3123A1N3
