- Page 1 H3C R6900-FAN Fan Module Manual New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W100-20210414...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Contents 1 About the R6900-FAN fan module ··························································· 1-1 2 Key features ···························································································· 2-1 Automatic speed adjustment ··························································································································· 2-1 Hot swapping ·················································································································································· 2-1 Locked rotor protection ··································································································································· 2-1 Polarity protection ··········································································································································· 2-1 3 Technical specifications ··········································································· 3-1 4 Installing and removing the fan module ···················································· 4-1...

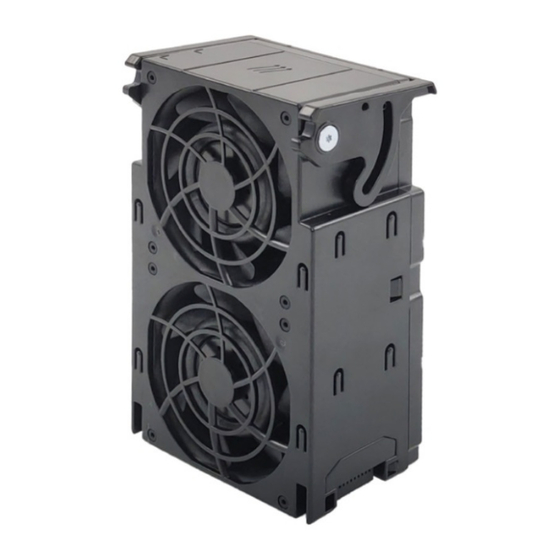

- Page 4 UN-R6900-FAN-S, which has a different prefix and suffix. The R6900-FAN fan module contains two fans. Each fan has a rotor composed of seven vanes at the air inlet and a rotor composed of five vanes at the air outlet. When a fan operates normally, the two rotors are reversed in direction to form counter-rotation for sufficient wind pressure.
- Page 5 Key features Automatic speed adjustment The fan uses pulse width modulation (PWM) to adjust fan speed quickly, accurately, and stably according to system instructions. If the external environment or a system internal component has a high temperature, the fan speed increases to help fast heat dissipation. If the temperature of the external environment drops, the fan speed decreases to save energy.
- Page 6 Technical specifications Table3-1 Technical specifications Item Specifications Number of fans Number of rotors per fan Dimensions (H × W × D) 56 × 80 × 80 mm (2.20 × 3.15 × 3.15 in) From the air inlet: • Rotation direction The rotor at the air inlet rotates counterclockwise.
- Page 7 Installing and removing the fan module For information about installing and removing the fan module, see the user guide for the device.
