Mocka Inca Buffet Assembly Instructions Manual

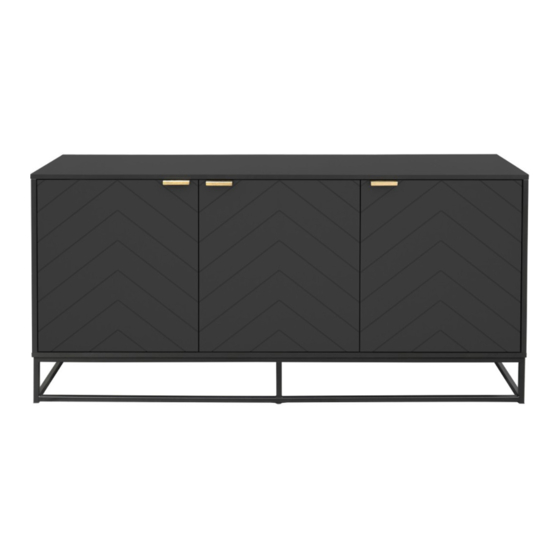

Inca Buffet
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A B C
dowel screw bolt
x16 x8 x8
I J K
small wedge screw
screw
x8
x8
x10
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D E F
locking screw hinge
nut x8 x6
x4
L M N
bolt handle hinge
x8 x3 x2
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G H
Allen shelf plug
Key
x12
x1
O
screw
x36
V W X
safety screw wall
x2
strap x2 anchor
x2
Wall Strap
Y Z
wall washer
screw x4
x2
1
