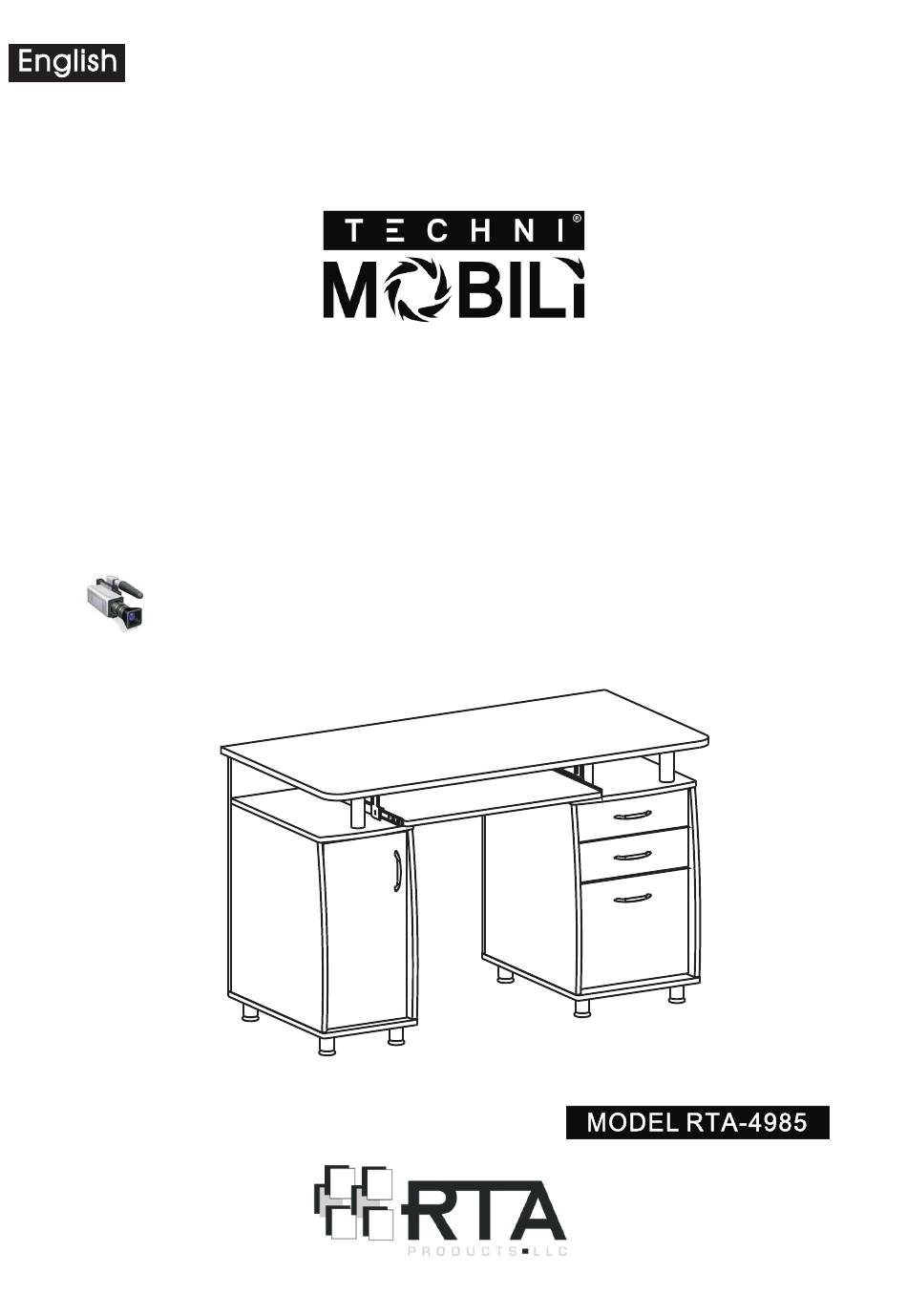

ASSEMBLY INSTRUCTIONS
Thanks for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Please save this manual for future reference.
Complete video assembly demonstration is available at:
www.rtaproducts.com/assembly-videos.htm
MODEL RTA - 4985
Advertisement
Related Manuals for RTA Techni Mobili RTA-4985
Summary of Contents for RTA Techni Mobili RTA-4985
- Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA - 4985 Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference. Complete video assembly demonstration is available at: www.rtaproducts.com/assembly-videos.htm...
-
Page 3: Parts List
RTA-4985 PARTS LIST CPU Right Panel CPU Left Panel Studs CPU Bottom Panel CPU Top Panel CPU Back Panel Base Tubes Hinges Metal Pin File Cabinet Bottom File Cabinet Left File Cabinet Right Panel Auxiliary Panel Panel Panel... - Page 4 RTA-4985 X3 SET Right Left File Cabinet Back Drawer Sliders File Cabinet Top Central Panel Panel Panel Left Right Supporting Tubes for Main Panel Keyboard Slider Main Panel Keyboard Panel Slider’s Base CPU Door Handles Small Drawer Right Small Drawer Left...
- Page 5 RTA-4985 SCREWS PART QTY. ITEM PART QTY. ITEM 6X35 MM 4X4 MM Φ40 MM 4X35 MM 3X15 MM 6X25 MM 4X20 MM 6X40 MM 4X14 MM 4X16 MM 6X12 MM...
- Page 6 RTA-4985...
-
Page 7: Assembly Steps
RTA-4985 ASSEMBLY STEPS: First screw bolts K to the Front Panel (27), then assemble the Small Drawer Left & Right Panels (25 & 26) as explained in page 5. SCREWS 6X25 MM 4PCS Use screws B to assemble the Small Drawer Back Panel (29) to the Small Drawer Left &... - Page 8 RTA-4985 First screw bolts K to the Bottom Drawer Front Panel (32), then assemble the Bottom Drawer Left & Right Panels (30 & 31) as explained in page 5. SCREWS 6X25 MM Slide in the Drawer Bottom Panel (28). 4PCS Use screws B to assemble the Bottom Drawer Back Panel (33) to the Bottom Drawer Left &...
- Page 9 RTA-4985 Grab the other set of the Drawer Sliders (14) and separate the flat ones from the “L” shaped ones. Place the drawer upside- down as shown and use screws C to assemble the “L” shaped Sliders to the Bottom Drawer Left & Right Panels (30 &31) as shown.
- Page 10 P.10 RTA-4985 (For the 2 back holes) Screw bolts K to the 2 back holes of the CPU Bottom Panel (4), and screw bolts E to the 1st and 4th holes on the side (the 2nd and 3rd holes are for receiving the wooden pins of panels 1 & 2).
- Page 11 P.11 RTA-4985 Insert the Metal Pins (35) into the holes of the CPU Left & Right Panels (1 & 2) at your desired height, then place the Auxiliary Use screws F to assemble the Base Tubes (7) Panel (10) over the pins.
- Page 12 P.12 RTA-4985 First screw bolts K to the File Cabinet Back Panel (15), then assemble this panel to the File Cabinet Left & Right Panels (12 & 13) as explained in page 5. SCREWS 6X25 MM 4PCS (For the 2 back holes)
- Page 13 P.13 RTA-4985 Get the other set of the Flat Sliders (14) and use screws C to assemble them to the bottom of the File Cabinet Left & Right Panels (12 & 13) as shown. Please note: The wheel on the sliders go facing to the FRONT and the screw goes on the hole after the wheel as shown.
- Page 14 P.14 RTA-4985 SCREWS 6X12 MM 4PCS Use screws H to assemble the Sliders Bases (21) to the Main Panel (18). Use screws I to assemble the Keyboard Sliders (20) to the Sliders Bases (21) as shown. Left Right TO MAKE SURE THE SLIDERS ARE ASSEMBLED CORRECTLY: - The flat side of the sliders are positioned touching the bases.
- Page 15 P.15 RTA-4985 Open the sliders and place the Keyboard Panel (22) over the tabs, making the holes on the tabs and the panel coincide. Use screws F to secure the panel to the sliders from underneath as shown. Right Left...
- Page 16 P.16 RTA-4985 Use screws G to assemble the Hinges (8) to the CPU Left Panel (1). SCREWS 4X16 MM 4PCS If the door does not close properly, you can adjust its position by unscrewing loose the corresponding screws on the hinges:...
- Page 17 P.17 RTA-4985 Insert the drawers into the cabinet, starting with the bottom drawer. For the top drawer, you might have to insert it at a downward tilted angle. Tighten any and all screws that are still loose, and ENJOY YOUR NEW UNIT!
- Page 18 CARE AND MAINTENANCE English - DO NOT EXPOSE THE SURFACES TO DIRECT SUNLIGHT OR EXTREME ENVIRONMENTAL CONDITIONS. ANY DAMAGE RESULTING FROM SUCH EXPOSURE IS NOT COVERED BY THE PRODUCT’S WARRANTY. - THE PREFERABLE METHOD TO CLEAN THE SURFACES IS TO WIPE THEM USING A SOFT CLOTH DAMPENED WITH A SOLUTION SOAP AND WATER, THEN DRY WITH A CLEAN TOWEL.
