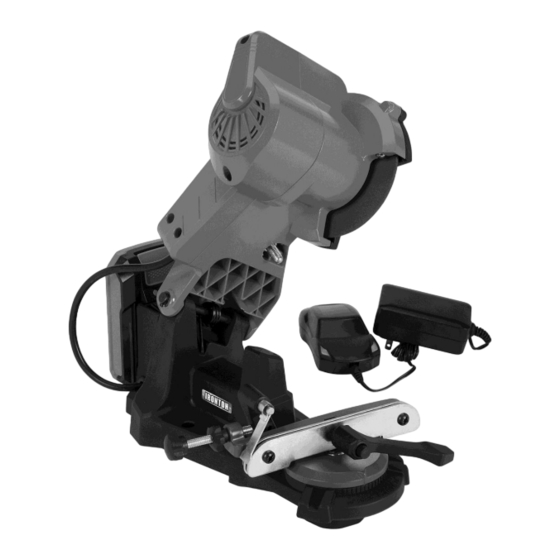

18V Li-Ion Cordless Chainsaw Sharpener
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #57524
READ & SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57524 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironton 57524

Summary of Contents for Ironton 57524

  • Page 1 18V Li-Ion Cordless Chainsaw Sharpener Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #57524 READ & SAVE THESE INSTRUCTIONS...
  • Page 2 Thank you very much for choosing an Ironton™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.

  • Page 3: Table Of Contents

    Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 6 Grounding .............................. 7 Extension Cords ............................ 8 Main Parts of Sharpener ........................8 Assembly Instructions .......................... 9 Before Each Use ............................ 9 Operating Instructions ..........................

  • Page 4: Intended Use

    Intended Use The Ironton 18 Volt Li-Ion Cordless Chainsaw Sharpener is designed for sharpening chainsaws. Technical Specifications Property Specification Motor power supply 18 V DC Idle speed 6500 min-1 Battery charger output voltage: 21 V DC Battery charger output current...
  • Page 5  Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite the flammable liquids, gases, or dust. ...

  • Page 6: Specific Operation Warnings

     Store the sharpener when it is not in use. Store it in a dry, secure place out of the reach of children. Inspect the tool for good working condition prior to storage and before re-use.  Use only accessories that are recommended by the manufacturer for use with your product. Accessories that may be suitable for one product may create a risk of injury when used with another tool.

  • Page 7: Grounding

    Grounding ⚠WARNING  This machine must be grounded while in use to protect the operator from electrical shock. This unit is equipped with an electrical cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

  • Page 8: Extension Cords

    Extension Cords ⚠WARNING  USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause overheating.

  • Page 9: Assembly Instructions

    Assembly Instructions 1. Place the chain clamping mechanism in the chuck (Fig. 3) and screw from underneath using the star screw (Fig. 4). 2. Before starting the chain sharpener, fasten it securely to a suitable surface (e.g., a work-bench) in a suitable place (protected against dust, dry, well-lit) using M8 screws and washers (Fig.
  • Page 10 FOR SHARPENER  Wear ANSI Z87.1 compliant safety goggles.  Do not use grinding wheels that have a max RPM less than the marked RPM rating on the tool.  Keep hands clear from grinding wheel during use.  Electric shock hazard. Do not expose to rain or use in damp locations. ...
  • Page 11 a. Slacken the locking screw for setting the grinding angle. b. Set the desired grinding angle using the scale. c. Tighten the locking screw again. 3. Set the chain stopper (Fig. 9/10). a. Fold the chain stopper onto the chain. b.
  • Page 12 6. Grinding the chain links (Fig. 10/11). a. Before sharpening the saw chain, clamp it into the chain bar. This will prevent jamming of the grinding wheel caused by a loose saw chain. b. Slowly guide the grinding wheel to the saw blade. If the grinding wheel approaches the saw chain too quickly or jerkily, it may cause damage to the grinding wheel.

  • Page 13: After Each Use

    Charging the Lithium Battery Pack The battery is protected from exhaustive discharge. An integrated protective circuit automatically switches off the equipment when the battery is flat. 1. Remove the battery pack from the handle, pressing the push lock button downwards to do so. 2.

  • Page 14: Troubleshooting

    Maintain the product by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures. It is recommended that the general condition of any tool be examined before it is used. Keep your tool in good repair. Keep all cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

  • Page 15: Parts Diagram

    Parts Diagram Page 15 of 18...

  • Page 16: Parts List

    Parts List Reference Part Description Quantity Lowering hand piece Sharpening wheel cover Direction of rotation indicator Sharpening wheel Depth of grind knob Depth of grind locking knob Depth of grind pin Guide clamp lever Chain (tooth) stop Guide Depth stop platform Table locking knob Bench mounting holes Sharpener base...

  • Page 17: Limited Warranty

    Northern Tool and Equipment Company, Inc. ("We'' or ''Us'') warrants to the original purchaser only (''You'' or ''Your'') that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of 90 days from date of purchase.
  • Page 18 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China. Page 18 of 18...
