C2SL30
Overall Product Dimensions
Model No.
Height
C2SL30
23"
CJAKTCS30
11"
When using a Coyote insulated jacket, you will want to build your island to the jackets Cutout and Overall Dimensions
listed above. Once the jacket is installed, the grill will rest on/inside the insulated jacket
Model No.
Gas Supply
C2SL30LP
Propane
70,000
C2SL30NG Natural Gas
70,000
requirements and consumer guidelines. Please refer to your Owners' Manual prior to installing or operating your built in grill.

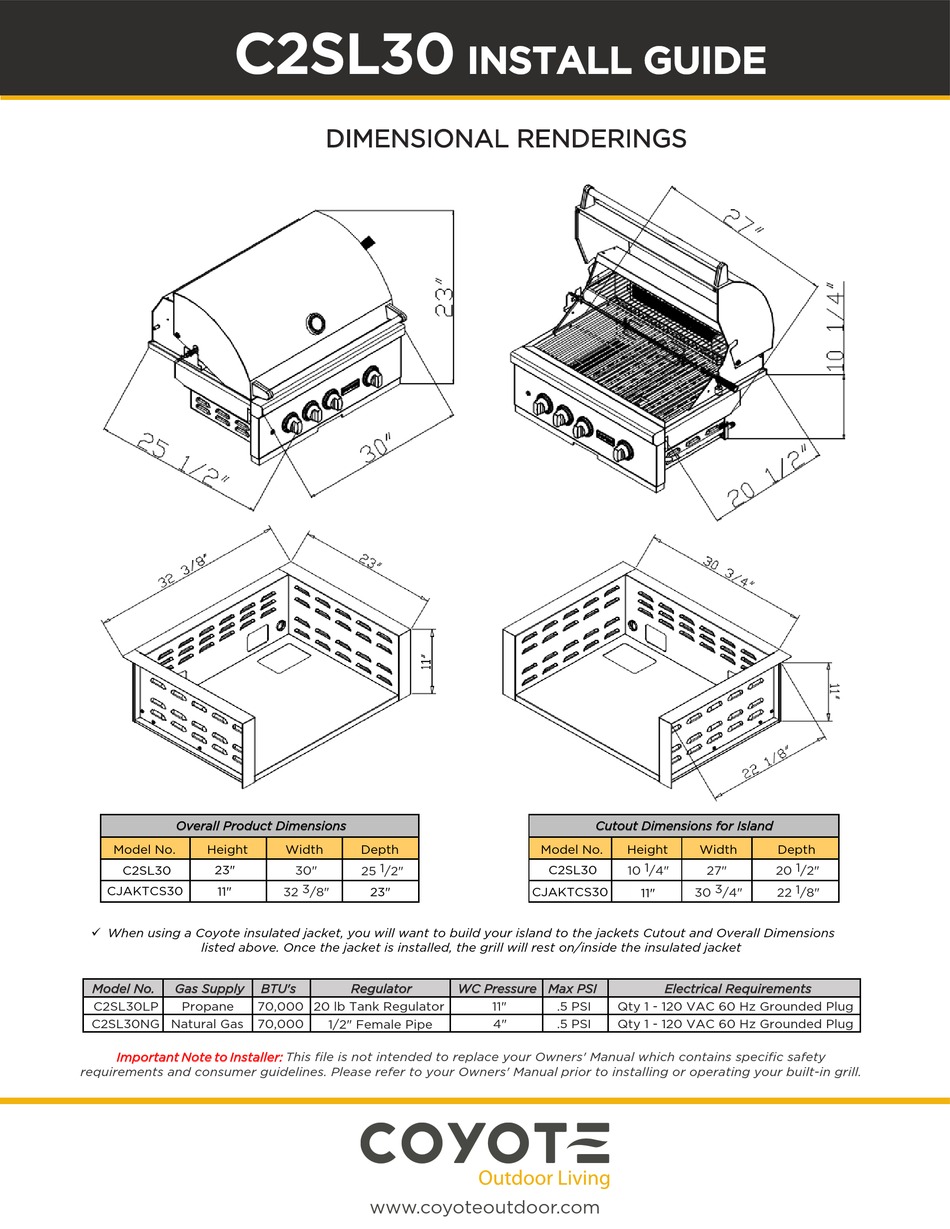

DIMENSIONAL RENDERINGS
Width
Depth
25 1 /2"
30"
32 3 /8"
23"
BTU's
Regulator
20 lb Tank Regulator
1/2" Female Pipe
This file is not intended to replace your Owners' Manual which contains specific safety
www.coyoteoutdoor.com
INSTALL GUIDE
Cutout Dimensions for Island
Model No.
Height
10 1 /4"
C2SL30
CJAKTCS30
WC Pressure Max PSI
11"
.5 PSI
Qty 1 - 120 VAC 60 Hz Grounded Plug
4"
.5 PSI
Qty 1 - 120 VAC 60 Hz Grounded Plug
Width
Depth
20 1 /2"
27"
30 3 /4"
22 1 /8"
11"
Electrical Requirements
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coyote C2SL30 Series
Summary of Contents for Coyote C2SL30 Series
- Page 1 CJAKTCS30 11" When using a Coyote insulated jacket, you will want to build your island to the jackets Cutout and Overall Dimensions listed above. Once the jacket is installed, the grill will rest on/inside the insulated jacket Model No.
- Page 2 If using combustible material within 24" of the grill frame, you MUST use This applies to all directions - horizontal & vertical the corresponding Coyote Insulated Jacket Using a insulated jacket, does not waive any other standard installation ...
