IMPORTANT: Read all instructions and warnings before using this product! Use of this
product, as with any similar outdoor grill, will involve risks from high temperatures and from
exposure to smoke and fumes. Please exercise caution and common sense.
To installer or person assembling grill:
To consumer: Keep this manual for future reference as it contains important Warnings and
Instructions.
COYOTE OUTDOOR LIVING, INC.
Use & Care Manual
Use & Care Manual

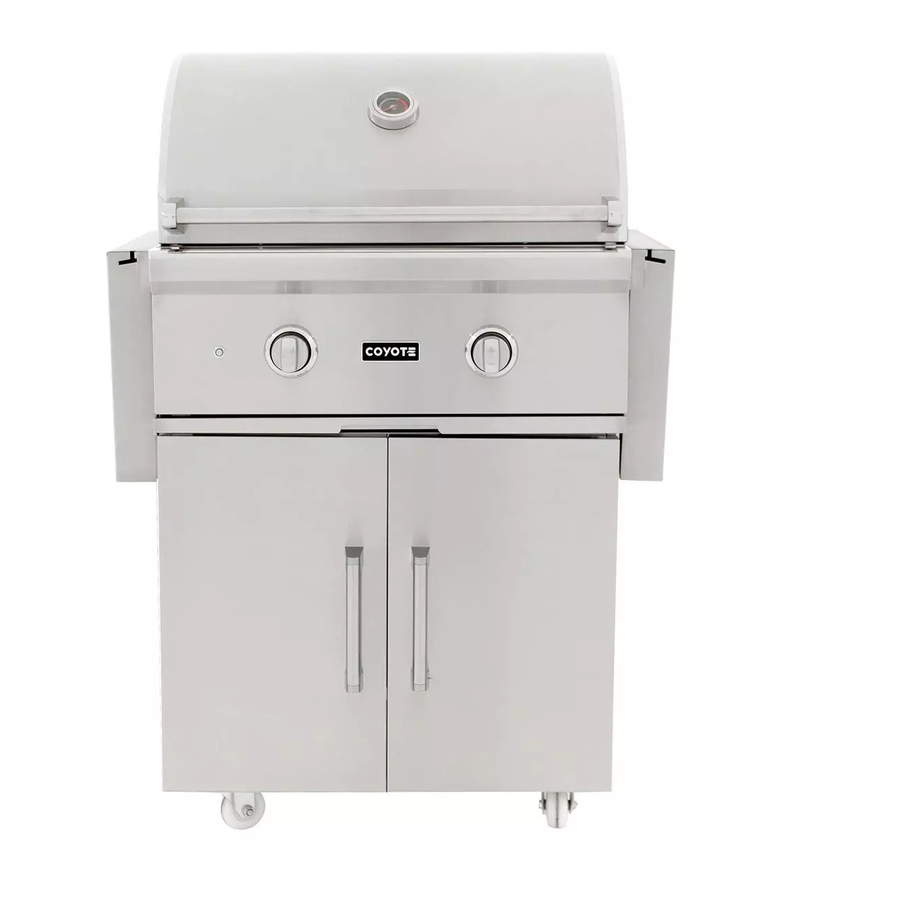

Coyote 28" Grill
Free-Standing & Built-In
PUT SERIES NO. LABEL HERE
Leave this manual with grill for future reference.
C1C28LP / C1C28NG
Built-In
FOR OUTDOOR USE ONLY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coyote C1C28LP-FS
Summary of Contents for Coyote C1C28LP-FS
- Page 1 Coyote Stainless Steel Gas Grill Coyote Stainless Steel Gas Grill Use & Care Manual Use & Care Manual For Liquid Propane and Natural Gas Models For Liquid Propane and Natural Gas Models Coyote 28” Grill Free-Standing & Built-In C1C28LP-FS / C1C28NG-FS...
- Page 2 Welcome & Congratulations Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain your grill for your safety and for optimum performance and longevity.
-
Page 3: Table Of Contents
Table of Contents & Critical Safety Warnings Safety Instructions…......3 DANGER Limited Warranty…………………………….5 Grill Models ........7 IF YOU SMELL GAS: Locating the Grill....... 8 1. Shut off gas to the appliance. Gas Requirements ………………………….12 2. Extinguish any open flame. Liquid Propane Gas Supply………..12 3. -
Page 4: Safety Instructions
General Safety Instructions For Outdoor Use Only. Coyote grills are only intended for residential use and are not intended for commercial use, where anyone other than the original purchaser (homeowner) would be using and maintaining the grill. NEVER use indoors or in any type of enclosed area, such as a garage, shed or breezeway. Keep clear of trees and shrubs. - Page 5 occurs, turn off the fuel supply immediately. After the grill has cooled, determine the cause of the dripping and correct it. After cleaning the valve, hose and regulator, perform a soapy water leak test before continuing use. If a leak is discovered, call a qualified technician for service. 18.
-
Page 6: Limited Warranty
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Coyote Outdoor Living, Inc. issues this limited warranty to the original purchaser at the original site of delivery with proof of purchase and specifically warrants that the Outdoor Gas grill when subject to normal residential use, will be free from defects in workmanship and materials for the periods specified below. - Page 7 Coyote Outdoor may approve your claim and elect to replace such parts without charge. In every instance, the customer is responsible for shipping and handling of replacement parts. Component repair or replacement is the exclusive remedy under this limited warranty and Coyote Outdoor shall not be liable for any incidental or consequential damages.
-
Page 8: Grill Models
Grill Models C1C28LP-FS / C1C28NG-FS C1C28LP / C1C28NG Free-Standing Built-In Product Size BTU/HR Rotisserie Model No. Burner(s) Hood Light (inch/mm) (Main/Back) Motor C1C28LP-FS / C1C28NG-FS 28" (711) 40,000/None 2 Infinity Burners C1C28LP / C1C28NG 28" (711) 40,000/None 2 Infinity Burners... -
Page 9: Locating The Grill
Failure to provide proper ventilation will nullify Coyote’s warranty and will cause a risk of bodily injury or death. If you elect to install your grill into an island, the island itself must be ventilated properly. Any such •... - Page 10 Coyote insulated jacket. The insulated jacket will act as a barrier to protect your grill island from the heat and fire of your Coyote grill. If an insulated jacket is not used in a combustible material island, the warranty on the Coyote grill will be voided immediately and safety cannot be ensured.
- Page 11 High Elevation Installation and Use Coyote Grills are designed to operate most efficiently at 0-2000 feet above sea level. From 2000-4000 feet above sea level you will not notice any substantial decrease in your heat, although more gas is combusting within the burners due to less oxygen.
- Page 12 Cut out Dimensions Figure A Vent Width Depth Vent Height Vent Vent Minimum of 2 vents, but optimally 4 vents, per cabinet that has any sort of gas supply or connection. Each vent must be at least 20 sq in in size and have access to outside/fresh air. Two vents on each side will facilitate and improve airflow and ventilation.
-
Page 13: Gas Requirements
Do not connect a Coyote liquid propane gas grill to a natural gas supply, and do not connect a Coyote natural gas grill to a liquid propane gas supply. - Page 14 in pools and low areas. In its natural state, propane has no odor. For your safety, an odorant typically is added. ALWAYS • purchase or refill your propane tanks from a reputable propane gas supplier. Contact with propane can cause freeze burns to the skin. •...
- Page 15 The system has a flow limiting device which, when activated, will limit the flow of gas to 10 cubic feet per • hour. NEVER use grill without leak testing this connection. • LP (Propane) Gas Supply Connection 1. The tank valve should be in the “OFF” position. If not, turn the knob clockwise until it stops.
-
Page 16: Lp Tank Filling
Coyote Customer Service line at 855-520-1559. 7. If no rushing sound, brush soapy solution onto areas where bubbles are shown in LP tank (see picture). 8. If “growing” bubbles appear, there is a leak. Close LP tank valve immediately and retighten connections. If leaks cannot be stopped, do not try to repair the regulator, or tank valve, by yourself and contact the Coyote Customer Service line at 855-520-1559. -
Page 17: Natural Gas Supply
If your entire house is plumbed for propane gas use, and you have an exterior connection for such use, • then a standard LP grill from Coyote can be connected to such outdoor propane connection, but you must be aware of the following:... - Page 18 Gas Conversions – Natural Gas and Propane Coyote grills are able to be converted (a Coyote liquid propane grill can be converted to a natural gas grill or vice versa), but you must obtain the correct conversion kit and we recommend that any gas appliance conversion should be performed by a Licensed Plumber or a certified Installer.
-
Page 19: Connecting Electrical Transformer
a. You will find these locking pins at the back of the unit. If built in to an island, you can slide the grill forward and reach these pins. If the grill is located in a cart, then you ca simply reach through the opening in the back and remove the pins. -
Page 20: Operation Of Your Grill
Operating the Grill Failure to open the lid prior to igniting the barbecue’s burners, or not waiting 5 minutes to allow the • gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death. -
Page 21: Lighting Your Grill
"Off" position, keep the canopy open, and allow the grill to clear of any built up gas for at least 5 minutes before starting the process again. 5. If at this point the grill will still not ignite, contact Coyote Customer Service for further assistance to troubleshoot your grill. -
Page 22: Using Your Burners & Grilling Safely
Using Your Burners and Grilling Safely Your grill is designed to reach a temperature that you set by adjusting a valve that in turn adjusts the amount of gas that goes through each burner. This valve is located behind your knob and is the key to your heat and fuel consumption. -
Page 23: Preparing Food For The Grill
Be sure to engage in safe food handling and preparation. Coyote is not responsible for any injury or illness resulting from either under-cooking or over-cooking of meats, poultry, or other food. Preparing Food for the Grill Always observe safe food-handling and safe food-preparation practices when using this Grill, to prevent food-borne illnesses. -
Page 24: Care & Maintenance
Care & Maintenance All cleaning and maintenance should be done only when grill is cool & with the fuel supply turned off at the cylinder or source. DRIP TRAY The drip tray located below the grill should be cleaned periodically to prevent buildup of debris. NOTE: Allow the drip tray to cool before attempting to clean. - Page 25 5. If your grill has developed surface discoloration or surface rust, clean the unit as stated above and use a good third-party polish to remove or reduce the spots. Follow instructions provided on any third-party polish products. Coyote does not insure or guarantee the performance of or results from such products. Environmental Factors that can affect your Grill...
- Page 26 Ways to Avoid Rust on your Grill: 1. Purchase a Coyote Grill cover for your unit. This will ensure that your cover is a correct fit and breathable, while providing the protection needed to keep contaminants off of the surface.
-
Page 27: Troubleshooting Your Grill
Reconnect to gas source and observe burner flame for correct operation. IMPORTANT: You should NOT line the bottom of the grill housing with aluminum foil, sand or any other grease absorbent substance. Grease will not be able to drip into the drip tray and a grease fire may occur. MAINTENANCE GUIDELINES 1. - Page 28 If the grill does not function properly, use the chart below to assist in diagnosing the problem. Troubleshooting is for general purposes only. ALWAYS ERR ON THE SIDE OF SAFETY. If the problem still exists, contact our Coyote Customer Service line at 855-520-1559.
- Page 29 an adjustable wrench and replace damaged parts. Perform a leak test on all connections before cooking on grill again. Venturi may be misaligned and needs to be lined up over orifice. • If you cannot find the reason, call Customer Service at •...
-
Page 30: Parts Listings
Parts List Coyote C1C28 Cart... - Page 31 Coyote C1C28 LP/NG...
- Page 32 C1C28 (LP & NG) Parts Listing Cart Grill Picture # Description Part Number Picture # Description Part Number Side Shelf Holder C1C280001 Hood C1C280015 Top Rear Panel C1C280002 Thermometer C1C280016 Side Plate C1C280003 Hood Handle C1C280017 Partition Panel C1C280004 Handle Holder C1C280018 Top Rail C1C280005...
