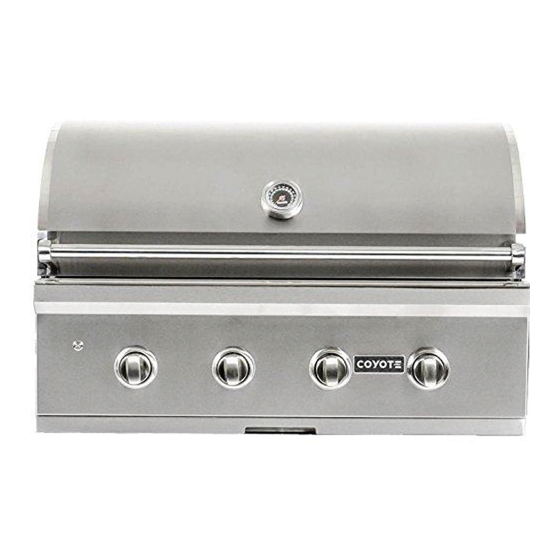

Coyote Stainless Steel Gas Grill
C-Series 34" - C2C34
S-Series 30" - C2SL30
S-Series 30" - C2SL30-FS
4004477
IMPORTANT: Read all instructions and warnings before using this product! Use of this
product, as with any similar outdoor grill, will involve risks from high temperatures and from
exposure to smoke and fumes. Please exercise caution and common sense.
To installer or person assembling grill: Leave this manual with grill for future reference.
To consumer: Keep this manual for future reference as it contains important Warnings and
Instructions.
COYOTE OUTDOOR LIVING, INC.
Use & Care Manual
For Liquid Propane and Natural Gas Models
C-Series 36" - C2C36
S-Series 36" - C2SL36
Conforms to ANSI STD Z21.58-2015
Certified to CSA STD 1.6-2015
Outdoor Cooking Gas Appliance
PUT SERIES NO. LABEL HERE
C-Series 42" - C2C42
S-Series 42" - C2SL42
FOR OUTDOOR USE ONLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the С Series and is the answer not in the manual?

Questions and answers

Related Manuals for Coyote С Series

Summary of Contents for Coyote С Series

  • Page 1 Coyote Stainless Steel Gas Grill Use & Care Manual For Liquid Propane and Natural Gas Models C-Series 34" - C2C34 C-Series 36" - C2C36 C-Series 42" - C2C42 S-Series 30" - C2SL30 S-Series 36" - C2SL36 S-Series 42" - C2SL42 S-Series 30"...
  • Page 2 Welcome & Congratulations Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain your grill for your safety and for optimum performance and longevity.

  • Page 3: Table Of Contents

    Table of Contents & Critical Safety Warnings Safety Instructions…......3 DANGER Limited Warranty…………………………….5 Grill Models ........7 IF YOU SMELL GAS: Locating the Grill....... 8 1. Shut off gas to the appliance. Gas Requirements ………………………….12 2. Extinguish any open flame. Liquid Propane Gas Supply………..12 3.

  • Page 4: Safety Instructions

    General Safety Instructions For Outdoor Use Only. Coyote grills are only intended for residential use and are not intended for commercial use, where anyone other than the original purchaser (homeowner) would be using and maintaining the grill. NEVER use indoors or in any type of enclosed area, such as a garage, shed or breezeway. Keep clear of trees and shrubs.
  • Page 5 occurs, turn off the fuel supply immediately. After the grill has cooled, determine the cause of the dripping and correct it. After cleaning the valve, hose and regulator, perform a soapy water leak test before continuing use. If a leak is discovered, call a qualified technician for service. 18.

  • Page 6: Limited Warranty

    MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Coyote Outdoor Living, Inc. issues this limited warranty to the original purchaser at the original site of delivery with proof of purchase and specifically warrants that the Outdoor Gas grill when subject to normal residential use, will be free from defects in workmanship and materials for the periods specified below.
  • Page 7 Coyote Outdoor may approve your claim and elect to replace such parts without charge. In every instance, the customer is responsible for shipping and handling of replacement parts. Component repair or replacement is the exclusive remedy under this limited warranty and Coyote Outdoor shall not be liable for any incidental or consequential damages.

  • Page 8: Grill Models

    Whether you are in need of a slimmer 3 Burner grill for your patio, or are in need of a larger 42” grill that can entertain and bring style to any size party, Coyote has the grill for you! C-Series 34" - C2C34 C-Series 36"...

  • Page 9: Locating The Grill

    Failure to provide proper ventilation will nullify Coyote’s warranty and will cause a risk of bodily injury or death. If you elect to install your grill into an island, the island itself must be ventilated properly. Any such island must have a minimum of 2 vents (but optimally 4 vents) per cabinet that has any sort of gas supply or connection.
  • Page 10 Coyote insulated jacket. The insulated jacket will act as a barrier to protect your grill island from the heat and fire of your Coyote grill. If an insulated jacket is not used in a combustible material island, the warranty on the Coyote grill will be voided immediately and safety cannot be ensured.
  • Page 11 High Elevation Installation and Use Coyote Grills are designed to operate most efficiently at 0-2000 feet above sea level. From 2000-4000 feet above sea level you will not notice any substantial decrease in your heat, although more gas is combusting within the burners due to less oxygen.
  • Page 12 Cut out Dimensions Figure A Vent Width Depth Vent Height Vent Vent Minimum of 2 vents, but optimally 4 vents, per cabinet that has any sort of gas supply or connection. Each vent must be at least 20 sq in in size and have access to outside/fresh air. Two vents on each side will facilitate and improve airflow and ventilation.

  • Page 13: Gas Requirements

    Do not connect a Coyote liquid propane gas grill to a natural gas supply, and do not connect a Coyote natural gas grill to a liquid propane gas supply.
  • Page 14 in pools and low areas. In its natural state, propane has no odor. For your safety, an odorant typically is added. ALWAYS purchase or refill your propane tanks from a reputable propane gas supplier. Contact with propane can cause freeze burns to the skin. NEVER use a propane cylinder with a damaged body, valve, collar or footing.
  • Page 15 The system has a flow limiting device which, when activated, will limit the flow of gas to 10 cubic feet per hour. NEVER use grill without leak testing this connection. LP (Propane) Gas Supply Connection 1. The tank valve should be in the “OFF” position. If not, turn the knob clockwise until it stops.
  • Page 16 Coyote Customer Service line at 855-520-1559. 7. If no rushing sound, brush soapy solution onto areas where bubbles are shown in LP tank (see picture). 8. If “growing” bubbles appear, there is a leak. Close LP tank valve immediately and retighten connections. If leaks cannot be stopped, do not try to repair the regulator, or tank valve, by yourself and contact the Coyote Customer Service line at 855-520-1559.

  • Page 17: Natural Gas Supply

    If your entire house is plumbed for propane gas use, and you have an exterior connection for such use, then a standard LP grill from Coyote can be connected to such outdoor propane connection, but you must be aware of the following:...
  • Page 18 Gas Conversions – Natural Gas and Propane Coyote grills are able to be converted (a Coyote liquid propane grill can be converted to a natural gas grill or vice versa), but you must obtain the correct conversion kit and we recommend that any gas appliance conversion should be performed by a Licensed Plumber or a certified Installer.

  • Page 19: Connecting Electrical Transformer

    4. Unscrew the 4 bolts holding the faceplate to the body (on the front edge where your cooking grate sits). 5. Unscrew the 2 bolts (on each side) of the manifold and faceplate assembly that holds this entire assembly to the body of the grill. 6.

  • Page 20: Operation Of Your Grill

    Operating the Grill Failure to open the lid prior to igniting the barbecue’s burners, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death.

  • Page 21: Lighting Your Grill

    "Off" position, keep the canopy open, and allow the grill to clear of any built up gas for at least 5 minutes before starting the process again. 5. If at this point the grill will still not ignite, contact Coyote Customer Service for further assistance to troubleshoot your grill.

  • Page 22: Using Your Burners & Grilling Safely

    Using Your Burners and Grilling Safely Your grill is designed to reach a temperature that you set by adjusting a valve that in turn adjusts the amount of gas that goes through each burner. This valve is located behind your knob and is the key to your heat and fuel consumption.
  • Page 23 For Rotisserie Cooking, Coyote grills utilize the same ceramic burner technology in their sear burner, as their rotisserie burner, along with a motor and spit that will hold and rotate up to 20lbs of food. Never stand with your head directly over the Grill when preparing to light the Rotisserie burner, to prevent possible bodily injury.
  • Page 24 The center of your spit rod to the top of the hood, equals the same distance from the spit rod to the top of the heat control grids. NOTE: Close hood carefully and align Motor Bracket and Shaft Mounting Bracket so that Rotisserie Rod is in between the hood openings.

  • Page 25: Care & Maintenance

    Grilling Tips: If you pre-cook meat or poultry, do so immediately before grilling. Refrigerate leftovers within 2 hours of taking food off the grill. Never let the tray boil dry, as that could be hazardous. Grease from fatty foods that have collected in the tray could ignite and possibly cause bodily injury or property damage.
  • Page 26 COOKING GRATES The cooking grates can be cleaned immediately after cooking is completed and after turning off the grill. But, exercise extreme caution because the grates will be very hot if you clean them immediately after cooking. Wear a barbecue mitt and scrub the cooking grates with a damp cloth. If the grill is allowed to cool down, cleaning the grates will be easier if removed from the grill and cleaned with a mild detergent.
  • Page 27 Ways to Avoid Rust on your Grill: 1. Purchase a Coyote Grill cover for your unit. This will ensure that your cover is a correct fit and breathable, while providing the protection needed to keep contaminants off of the surface.
  • Page 28 After you have used the kit, you will want to follow it up with a good stainless polish (as mentioned prior) and then a dry towel for a final wipe down. Follow all directions on any third-party stainless steel scratch kits. Coyote does not insure or guarantee the performance of or results from such products.

  • Page 29: Troubleshooting Your Grill

    If the grill does not function properly, use the chart below to assist in diagnosing the problem. Troubleshooting is for general purposes only. ALWAYS ERR ON THE SIDE OF SAFETY. If the problem still exists, contact our Coyote Customer Service line at 855-520-1559.
  • Page 30 - If you hear a snapping sound, can you see a spark at the electrodes? Note: You will need to remove your cooking grates and heat control grids to see the electrodes. The electrodes should have a 1/8” to ¼” gap between the electrode and contact point. •...

  • Page 31: Parts Listings

    C2C34 Exploded Parts View...
  • Page 32 C2C34 Parts Listing Name Part No. Hood Handle-3B C3B00006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood -3B C3B00005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Lower Hood-3B C3B00007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right C0000025-2...
  • Page 33 C2C36 Exploded Parts View...
  • Page 34 C2C36 Parts Listing Name Part No. Hood Handle-36 C3600006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood -36 C3600005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Lower Hood-C36 C1C36007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right C0000025-2...
  • Page 35 C2C42 Exploded Parts View...
  • Page 36 C2C42Parts Listing Name Part No. Hood Handle-42 C4200006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood -42 C4200005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Lower Hood-C42 C1C42007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right C0000025-2...
  • Page 37 C2SL30 & C2SL30-FS Exploded Parts Diagram...
  • Page 38 C2SL30 Parts Listing Name Part No. Hood Handle-30 C3000006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood –30 C3000005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-S30 C2S30007 Warming Rack Bracket - Left C0000025-1...
  • Page 39 C2SL30 Parts Listing NG Regulator- C1 Models C1000038 LP Regulator C0000030 3-Burner Light Wire C30000011T Motor Bracket C0000016 Rotisserie Kit - 30 CROT0030 Transformer - SL C0000055 Smoker Box C0000020 IR Burner Lighting Electrode C0000950 Thermocouple-30 C3600018 Stainless Steel Corrugated Hose C0000031 Motor C0000015...
  • Page 41 C2SL30-FS Parts Listing Name Part No. Hood Handle-30 C3000006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood–30 C3000005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-S30 C2S30007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right...
  • Page 42 C2SL30-FS Parts Listing NG Regulator- C1 Models C1000038 LP Regulator C0000030 3-Burner Light Wire C30000011T Motor Bracket C0000016 Rotisserie Kit - 30 CROT0030 Transformer - SL C0000055 Smoker Box C0000020 IR Burner Lighting Electrode C0000950 Thermocouple-30 C3600018 Stainless Steel Corrugated Hose C0000031 Motor C0000015...
  • Page 43 C2SL36 Exploded Parts View C2SL36 Parts Listing Name Part No. Hood Handle-36 C3600006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood –36 C3600005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-S36 C1S36007...
  • Page 44 C2SL36 Parts Listing IR Burner-36 C3600011 Heat Control Grid Bracket-36 C2360004 Warming Rack-36 C3600008 Grate (1pc) 19 Bar CSG00019 Grate (1pc) 20 Bar CSG00020 Heat Control Grid-36 C2360009 Sear Burner C1000019 Infinity Burner C1SL0001 Firebox Bottom Cover C2000048 Firebox-36 C2360003 Safety Valve (IR Burner) LP C1S00013 Safety Valve (IR Burner) NG...
  • Page 45 C2SL42 Exploded Parts View C2SL42 Parts Listing Name Part No. Hood Handle-42 C4200006 Right Handle Fixing C1000007 Left Handle Fixing C1000008 Thermometer C1000022 Thermometer Base C1000044 Hood –42 C4200005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-42 C1S42007...
  • Page 46 C2SL42 Parts Listing Heat Control Grid Bracket-42 C2420004 Warming Rack-42 C4200008 Grate (1pc) 15 Bar CSG00015 Heat Control Grid-42 C2420009 Sear Burner C1000019 Infinity Burner C1SL0001 Firebox Bottom Cover C2000048 Firebox-SL42 C2420003 Safety Valve (IR Burner) LP C1S00013 Safety Valve (IR Burner) NG C1S00014 Sear Burner Valve LP C1S00015...

This manual is also suitable for:

S seriesC2c34C2c36C2c42C2sl30C2sl30-fs ... Show all
