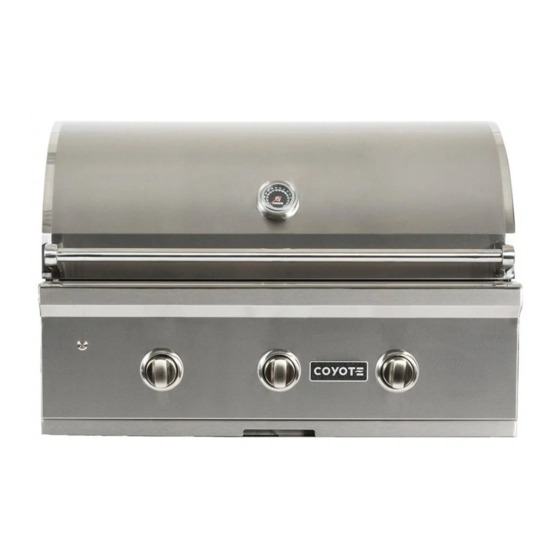

Coyote C1C34 Use & Care Manual
  1. Manuals
  2. Brands
  3. Coyote Manuals
  4. Grill
  5. C1C34
  6. Use & care manual

Coyote C1C34 Use & Care Manual

Stainless steel gas grill
Hide thumbs Also See for C1C34:
Table of Contents

Advertisement

Quick Links

Coyote Stainless Steel Gas Grill
For Liquid Propane and Natural Gas Models
Coyote 34" C1C34
Coyote 36" C1S36/C1SL36
Conforms to ANSI STD Z21.58-2015
Certified to CSA STD 1.6-2015
Outdoor Cooking Gas Appliance
4004477
IMPORTANT: Read the lighting instruction on Page 20 before first time use!
To installer or person assembling grill: Leave this manual with grill for future reference.
To consumer: Keep this manual for future reference.
COYOTE OUTDOOR LIVING, INC.
www.coyoteoutdoor.com
Use & Care Manual
Built-in Models
PUT SERIES NO. LABEL HERE
Coyote 36" C1C36
Coyote 42" C1SL42
For Outdoor Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1C34 and is the answer not in the manual?

Questions and answers

Related Manuals for Coyote C1C34

Summary of Contents for Coyote C1C34

  • Page 1 Coyote Stainless Steel Gas Grill Use & Care Manual For Liquid Propane and Natural Gas Models Built-in Models Coyote 34" C1C34 Coyote 36" C1C36 Coyote 36" C1S36/C1SL36 Coyote 42" C1SL42 For Outdoor Use Only Conforms to ANSI STD Z21.58-2015 Certified to CSA STD 1.6-2015 Outdoor Cooking Gas Appliance PUT SERIES NO.
  • Page 2 Welcome & Congratulations Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain for optimum performance and longevity.

  • Page 3: Table Of Contents

    Table of Contents Safety Instructions…......2 WARNING • Grill Models ........4 Locating the Grill....... 5 IF YOU SMELL GAS: Gas Requirements ......8 1. Shut off gas to the appliance. Using Your Burners & Grilling....14 2. Extinguish any open flame. Lighting Your Grill......…19 3.

  • Page 4: Safety Instructions

    Safety Instructions WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. General Safety Instructions For Household Outdoor Use Only – DO NOT use indoors or in any type of enclosed area such as a garage, shed or breezeway.
  • Page 5 explosion. Drip tray should be pushed all the way to the rack located just under the grill. 22. Grease is extremely flammable. Let hot grease cool down before attempting to handle or dispose of it. The drip tray should be cleaned and free of grease on a regular basis. 23.

  • Page 6: Grill Models

    Whether you are in need of a slimmer 3 Burner grill for your patio, or are in need of a larger 42” grill, that can entertain and bring style to any size party, Coyote has the grill for you! Coyote 34" C1C34 Coyote 36"...

  • Page 7: Locating The Grill

    Ventilation for a gas grill is absolutely mandatory to ensure that your grill performs as intended and to • ensure the safety of you and your family. The vents that are required to honor a Coyote warranty, not only ensure that any heat that is trapped inside your grill from environmental factors (such as wind) escape but they also allow any gas that has leaked from a tank or connection, to escape before a buildup of such gas can occur and possibly ignite.
  • Page 8 Coyote Insulated Jacket. The insulated jacket will act as a barrier to protect your grill island from the heat and fire of your Coyote grill. If an insulated jacket is not used in a combustible material island, the warranty on the Coyote grill will be voided immediately and safety can not be ensured.
  • Page 9 Model Cutout Dimensions Overall Dimensions Total BTU Ratings Needed (110V) Grills Height Width Depth Height Width Depth Rotisserie Lights C1C34 10 1/4" 31" 20 1/2" 23” 34" 25 1/2” 60,000 60,000 Qty 1 C1C36 10 1/4" 32 1/2" 20 1/2"...

  • Page 10: Gas Requirements

    Gas Requirements NOTE: Always have a qualified service technician perform difficult conversions or modifications. WARNING: Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire. IMPORTANT: Before connecting grill to gas source, make sure BBQ Grill control knobs are in the “OFF” position.
  • Page 11 gas flow, until a positive seal has been obtained. The cylinder must be arranged for vapor withdrawal. It must also include a collar to protect the cylinder valve. A safety relief device having direct communication with the vapor space of cylinder must be provided. This will expel high pressure gas if the cylinder is overfilled or overheated which could result in fire or explosion.
  • Page 12 Pre-Operation Leak Testing DANGER Do not insert any tool into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death. If a leak is detected at any time or you cannot stop a gas leak, immediately close pipeline valve and call LP gas supplier or you fire department! Check all gas supply fittings before each use and each time the gas supply cylinder is connected to the regulator.
  • Page 13 LP grill from Coyote will meet your needs, regardless of the size. Any appliance can be installed if installed properly! That is the Coyote way!
  • Page 14 3. All Pipe threads need to have proper, gas rated, outdoor rated thread sealant. Flare ends do not need or utilize pipe sealant. 4. Your NG Coyote grill comes with a ½” regulator You need to seal the regulator to the hose using your pipe sealant.
  • Page 15 Conversion kits are sold for Coyote grills and can be purchased through your dealer, or Coyote’s Customer Service Department. Any other kit or orifices used that are not of Coyote brand, will automatically void any warranty on the unit. Furthermore, it is important to understand that where ever there is a burner, there is an orifice that will need to be changed (do not forget the rotisserie or sear burner).

  • Page 16: Using Your Burners & Grilling

    Using Your Burners and Grilling Safely Your grill is designed to reach a temperature that you set by adjusting a valve that in turns adjusts the amount of gas that goes through each burner. This Valve is located behind your knob and is the key to your heat and fuel consumption.
  • Page 17 Now, if you are looking for an experience that will allow you to have a juicy bird, straight from the rotisserie of your grill, then Rotisserie Cooking is going to be your choice! Coyote grills utilize the same ceramic burner technology in their sear burner, as their rotisserie burner, along with a motor and spit that will hold and rotate up to 20lbs of food.
  • Page 18 For successful rotisserie, the meat should be centered and balanced as evenly as possible on the spit rod to avoid overworking the rotisserie motor. Attach Motor Bracket Assembly to the side of the barbecue frame (can be mounted on either left or the right side of the frame) using two screws and two nuts.
  • Page 19 Electrical Grounding Instructions: The rotisserie motor is equipped with a three-prong grounding plug for your protection against • electric shock. This plug must be inserted directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. The rotisserie motor must be electrically grounded in accordance with local codes or, in the absence •...
  • Page 20 Take Down the Knob Bezel The LED Plastic Bezel Pull Out the Wires Disconnect the Wire and Change New LEDs Do the opposite to assemble the LEDs. WARNING: The transformer should be kept away from the heat of the BBQ.

  • Page 21: Lighting Your Grill

    Lighting the Grill DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting 5 minutes to allow the gas • to clear if the barbecue does not light, may result in an explosive flame-up which can cause serious bodily injury or death.
  • Page 22 5. If at this point the grill will still not ignite, you can try the manual lighting process below with a long stem lighter and you can also contact Coyote Customer Service for further assistance to troubleshoot your grill. 6. To turn the grill "Off," you simply turn each knob clockwise until it can not turn anymore. It is also normal to experience a popping noise when the burners are turned off abruptly.

  • Page 23: Operation And Features

    Operations and Features When you first ignite your grill burn the grill to get rid of any odors or debris that may be left over from manufacturing and transit. This is done by operating your grill at the “HIGH” setting with the hood closed for no more than 5 minutes.

  • Page 24: Care & Maintenance

    Care & Maintenance CAUTION: All cleaning and maintenance should be done only when grill is cool & with the fuel supply turned off at the cylinder. If your grill is set up for use with Natural Gas, turn off gas supply at the system manual shut off valve.
  • Page 25 2. Turn the burner on high and let the temperature do the work 3. Do not leave the grill unattended while doing this as you will want to make sure no excessive flare ups occur 4. Once all excess grease has been burned off, you are ready to go! a.
  • Page 26 Ways to Avoid Rust on your Grill: 1) Always purchase a Coyote Grill cover for your unit. This will ensure that your cover is correct fit and breathable, while providing the protection needed to keep all other contaminants off of the surface.
  • Page 27 ANNUAL CLEANING OF GRILL HOUSING Burn-off the barbecue after every cookout will keep it ready for instant use, however, once a year you should give the entire grill a thorough cleaning to keep it in top operating condition. Shut off gas supply at source and disconnects fuel line. Protect fuel line fitting. Remove and clean the cooking grids, flavorizers and burners.

  • Page 28: Troubleshooting Your Grill

    Troubleshooting Your Grill GENERAL TROUBLE SHOOTING You should inspect the burners at least once a year or immediately if any of the following conditions occur: • The smell of gas. • Flames appearing mostly yellow. (Some yellow at the tips is OK) •...
  • Page 29 • Check your igniter battery and replace if needed. • Check for loose wire connections to the igniter or electrodes. • Check to see if debris is blocking the electrodes. • If the igniter is not working, can you light the grill with a lighter? Flare-ups •...

  • Page 30: Limited Warranty

    Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Coyote under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas supply, use contrary to operating instructions, or alteration by any person other than a factory service center.
  • Page 31 This warranty does not cover the cost of any inconvenience, personal injury, or property damage due to improper use or product failure. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes, tsunamis, tornadoes, terrorism, discoloration due to exposure to chemicals either directly or in the atmosphere, Acts of God/forces of Nature are not covered by this limited warranty.

  • Page 32: Parts Listings

    C1C34 Exploded Parts View...
  • Page 33 C1C34 Parts Listing Name Part No. Hood Handle-3B C3B00006 Handle Fixing C0000007 Thermometer C0000022 Thermometer Base C0000044 Hood -3B C3B00005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Lower Hood-3B C3B00007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right...
  • Page 34 C1C36 Exploded Parts View...
  • Page 35 C1C36 Parts Listing Name Part No. Hood Handle-36 C3600006 Handle Fixing C0000007 Thermometer C0000022 Thermometer Base C0000044 Hood -36 C3600005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Lower Hood-C36 C1C36007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right C0000025-2 Warming Rack-36 C3600008...
  • Page 36 C1S36 Exploded Parts View C1S36 Parts Listing Name Part No. Hood Handle-36 C3600006 Handle Fixing C0000007 Thermometer C0000022 Thermometer Base C0000044 Hood –36 C3600005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-S36 C1S36007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right...
  • Page 37 C1S36 Parts Listing IR Burner Lighting Box C0000054 IR Burner-36 C3600011 Flavorizer Bracket-36 C1360004 Warming Rack-36 C3600008 Grate (1pc) 19 Bar CSG00019 Grate (1pc) 20 Bar CSG00020 Flavorizer-36 C1360009 Sear Burner C0000019 Cast SS Burner C1000001 Firebox Bottom Cover C0000048 Firebox-36 C1360003 Safety Valve (IR Burner) LP...
  • Page 38 C1SL36 Exploded Parts View C1SL36 Parts Listing Name Part No. Hood Handle-36 C3600006 Handle Fixing C0000007 Thermometer C0000022 Thermometer Base C0000044 Hood –36 C3600005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-S36 C1S36007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right...
  • Page 39 C1SL36 Parts Listing IR Burner Lighting Box C0000054 IR Burner-36 C3600011 Flavorizer Bracket-36 C1360004 Warming Rack-36 C3600008 Grate (1pc) 19 Bar CSG00019 Grate (1pc) 20 Bar CSG00020 Flavorizer-36 C1360009 Sear Burner C0000019 Infinity Burner C1SL0001 Firebox Bottom Cover C0000048 Firebox-36 C1360003 Safety Valve (IR Burner) LP C1S00013...
  • Page 40 C1SL42 Exploded Parts View C1SL42 Parts Listing Name Part No. Hood Handle-42 C4200006 Handle Fixing C0000007 Thermometer C0000022 Thermometer Base C0000044 Hood –42 C4200005 Rubber Stopper C0000032 Hood Connector Hardware C0000045 Light C0000014 Rotisserie Rod Bracket C0000018 Lower Hood-42 C4200007 Warming Rack Bracket - Left C0000025-1 Warming Rack Bracket - Right...
  • Page 41 C1SL42 Parts Listing IR Burner Lighting Box C0000054 IR Burner-42 C4200011 Flavorizer Bracket-42 C1420004 Warming Rack-42 C4200008 Grate (1pc) 15 Bar CSG00015 Flavorizer-42 C1420009 Sear Burner C0000019 Infinity Burner C1SL0001 Firebox Bottom Cover C0000048 Firebox-SL42 C1420003 Safety Valve (IR Burner) LP C1S00013 Safety Valve (IR Burner) NG C1S00014...
