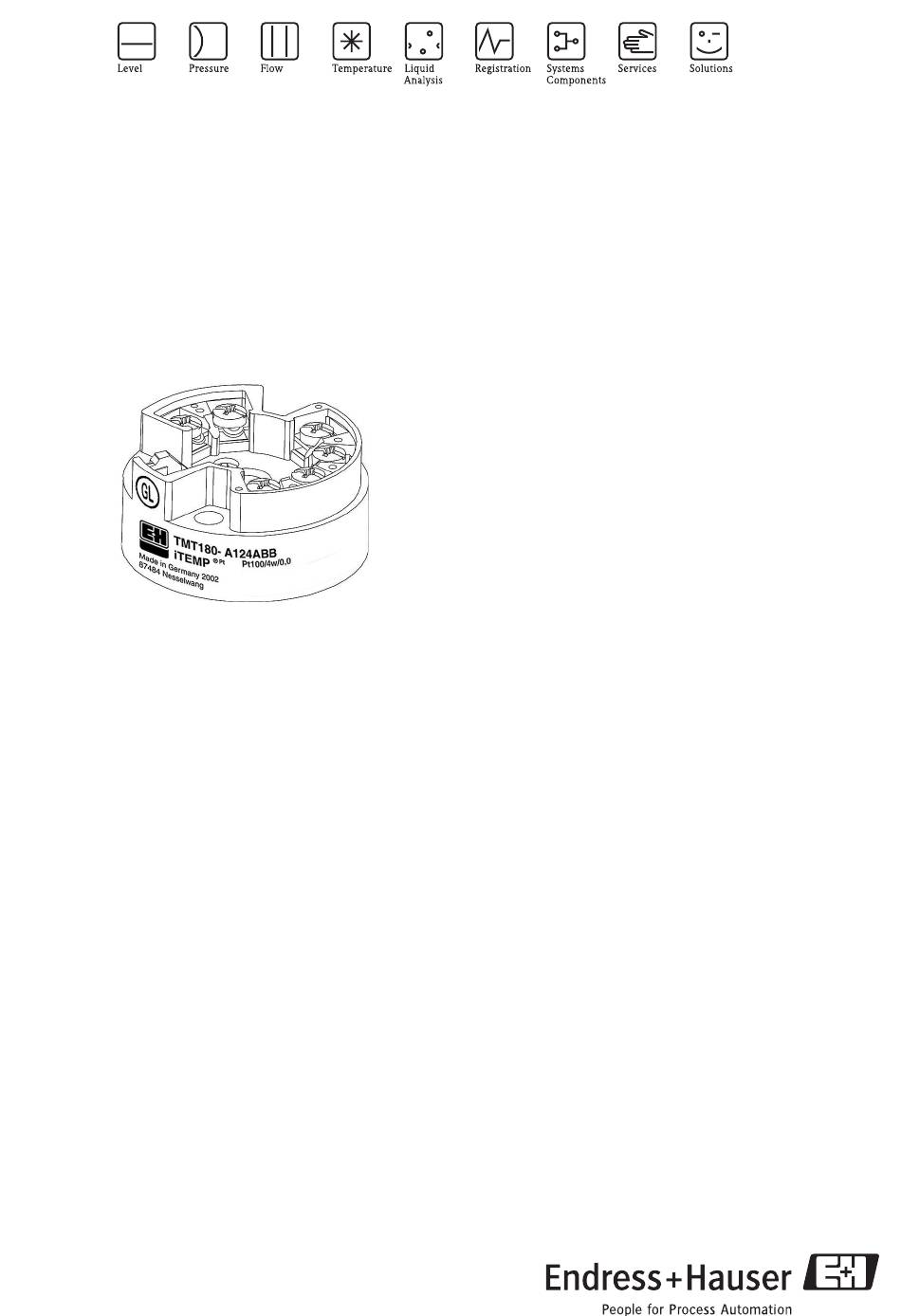

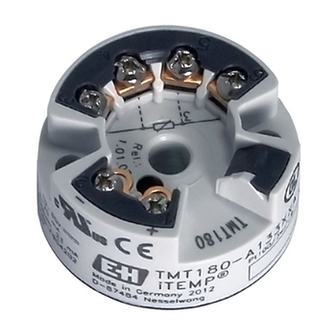

- Page 1 Operating instructions ® iTEMP Pt TMT180 Temperature head transmitter BA163R/24/ae/07.06 51006606...
- Page 2 Preparing the communication with PC configuration software → Page 13 Instrument configuration (including a description of the unit functions) A complete description of all the functions as well as a detailed overview of the functionality can be found in this chapter. Endress+Hauser...
-
Page 3: Table Of Contents
Technical Data ....18 Index ......23 Endress+Hauser... -
Page 4: Safety Notes
185 °F (-40 and 85 °C). Heat from the process is transferred from the thermowell to the transmitter housing. If the expected process temperature is near or beyond specification limits, consider the use of additional thermowell lagging, and extension nipple, or a remote mounting configuration to isolate the transmitter from the process. Endress+Hauser... -
Page 5: Operational Safety
– Devices that are used in hazardous areas or cables for such devices must have the corresponding type of protection. Safe area (non-hazardous areas)! This symbol identifies the non-hazardous area in the diagrams in these Operating Instructions. – Devices in non-hazardous areas must also be certified if connection cables run through a hazardous area. Endress+Hauser... -
Page 6: Identification
CE mark. â UL recognized component to UL 3111-1 CSA GP approved Ó GL German Lloyd marine approval GL Type Approval for temperature measurements in hazardous locations on GL Classed Vessels, Marine and Offshore Installations. Endress+Hauser... -
Page 7: Delivery Contents
® • iTEMP and ReadWin 2000 are registered trademarks of Endress+Hauser Wetzer GmbH + Co. KG, Nesselwang, Germany Installation Installation conditions • When installing and operating the unit, please take note of the allowable ambient temperature (see chapter 10 "Technical Data"). -
Page 8: Installation
• Screw the head transmitter into the field housing using a screwdriver. " Caution! In order to avoid damaging the head transmitter, do not over-tighten the installation screws. Fig. 4: Installation of head transmitter into field housing. Fig. 3: Installation of head transmitter into a Form B sensor connection head. Endress+Hauser... - Page 9 Fig. 5: Installing the head transmitter - Head transmitter assembly Pos. 1: Thermowell Pos. 2: Measuring inset Pos. 3: Extension neck Pos. 4: Transmitter housing Pos. 5: Head transmitter assembly Pos. 6: Installation screws Pos. 7: Head transmitter Endress+Hauser...
-
Page 10: Wiring
1 and 2 according to the wiring diagram (see Fig. 6). • PC configuration (SETUP socket): Open the flap on the SETUP socket (see Fig. 6) and connect the SETUP connection cable. Fig. 7: Connection to PC for configuration Endress+Hauser... -
Page 11: Potential Grounding
The best place to ground the loop is at the negative terminal of the power supply. Do not ground the current signal loop at more than one point. Endress+Hauser... -
Page 12: Operation
When the PC serial interface cable is connected (see chapter ’Accessories’), the technical specifications (e.g. measured error) are not observed. For this reason, during operation disconnect the connection via the serial interface cable between the head transmitter and PC. Endress+Hauser... -
Page 13: Commissioning
• For detailed operating instructions for the PC configuration software please read the online documentation (BA137R/09/ae) contained in the PC operation and readout software (see folder ’Doc’). This software can be downloaded free of charge from the Internet at the following address: www.readwin2000.com Endress+Hauser... - Page 14 Selection of the digital filter 1. order (filter time constant). Input: 0 to 8 s Offset Input of the zero point correction (offset). Input: -10.00 to 10.00 °C (-18.00 to 18.00 °F) 0.00 °C Measuring point Measuring point description ident Input: 8 characters Endress+Hauser...
-
Page 15: Maintenance
IEC 60715 for E+H temperature head transmitters, Field housing TAF 10 suitable for E+H temperature head transmitters. PC SETUP program can be downloaded free of charge from the internet from the following address: www.readwin2000.com Please contact your supplier when ordering (e.g. spare parts)! Endress+Hauser... -
Page 16: Trouble-Shooting
Transmitter setup faulty (scale) Change scale Measured value incorrect/ inaccurate Incorrect RTD setup Change device function ’Sensor type’ Sensor connection (2-wire) Check sensor connection Sensor cable resistance (2-wire) not Compensate cable resistance compensated Offset incorrectly set Check offset Endress+Hauser... -
Page 17: Spare Parts
Software history Software version / date Changes to software Changes to documentation 1.00.xx / 10.2001 Original firmware compatible with: ® • ReadWin 2000 1.2.2 and higher 1.01.xx / 04.2003 Original firmware compatible with: ® • ReadWin 2000 1.12.0.0 and higher Endress+Hauser... -
Page 18: Technical Data
Signal (mA) Under ranging Standard Over ranging Standard 20.5 ≤ 3.6 Sensor break; sensor short circuit low To NAMUR NE 43 ≥ 21.0 Sensor break; sensor short circuit high To NAMUR NE 43 Endress+Hauser... - Page 19 = ±(8.3 ppm/°F * (range end value + 328) + 27.8 ppm/°F * preset meas. range) * Δ ϑ Influence of ambient • Resistance thermometer Pt100: Δ ϑ = Deviation of the ambient temperature according to the reference condition temperature (Temperature drift) (73.4 °F ± 9 °F). Endress+Hauser...
- Page 20 IEC 61000-4-3 80 to 2000 Hz 10 V/m Burst (signal) IEC 61000-4-4 1 kV 2 kV (B) Transient voltage IEC 61000-4-5 1 kV unsym. / 0.5 kV sym. HF coupling IEC 61000-4-6 0.15 to 80 MHz 10 V self recovery Endress+Hauser...
- Page 21 Configurable parameters Sensor type and connection type Pt100, engineering units (°C/°F), measurement range, cable resistance compensation on 2 wire connection, fault conditioning, output signal (4 to 20 mA/20 to 4 mA), offset, measurement point identification (8 characters), output simulation Endress+Hauser...
- Page 22 TMT180 10.0.10 Certificates and approvals CE-Mark The measurement system fulfils the requirements demanded by the EU regulations. Endress+Hauser acknowledges successful unit testing by adding the CE mark. Recognized component to UL 3111-1 Ship building approval (Germanischer Lloyd) CSA GP CSA General Purpose Other standards and •...
-
Page 23: Index
Returns ........17 Safety message ........2 Endress+Hauser... - Page 24 Mexico United States Canada Endress+Hauser Canada Endress+Hauser, Inc. Endress+Hauser (Mexico) S.A. de C.V. 2350 Endress Place 1075 Sutton Drive Av. Gustavo Baz No. 43 Burlington, ON L7L 5Z8 Fracc. Bosques de Echegaray Greenwood, IN 46143 Tel: 905-681-9292 Naucalpan de Juárez, C.P. 53310,...
