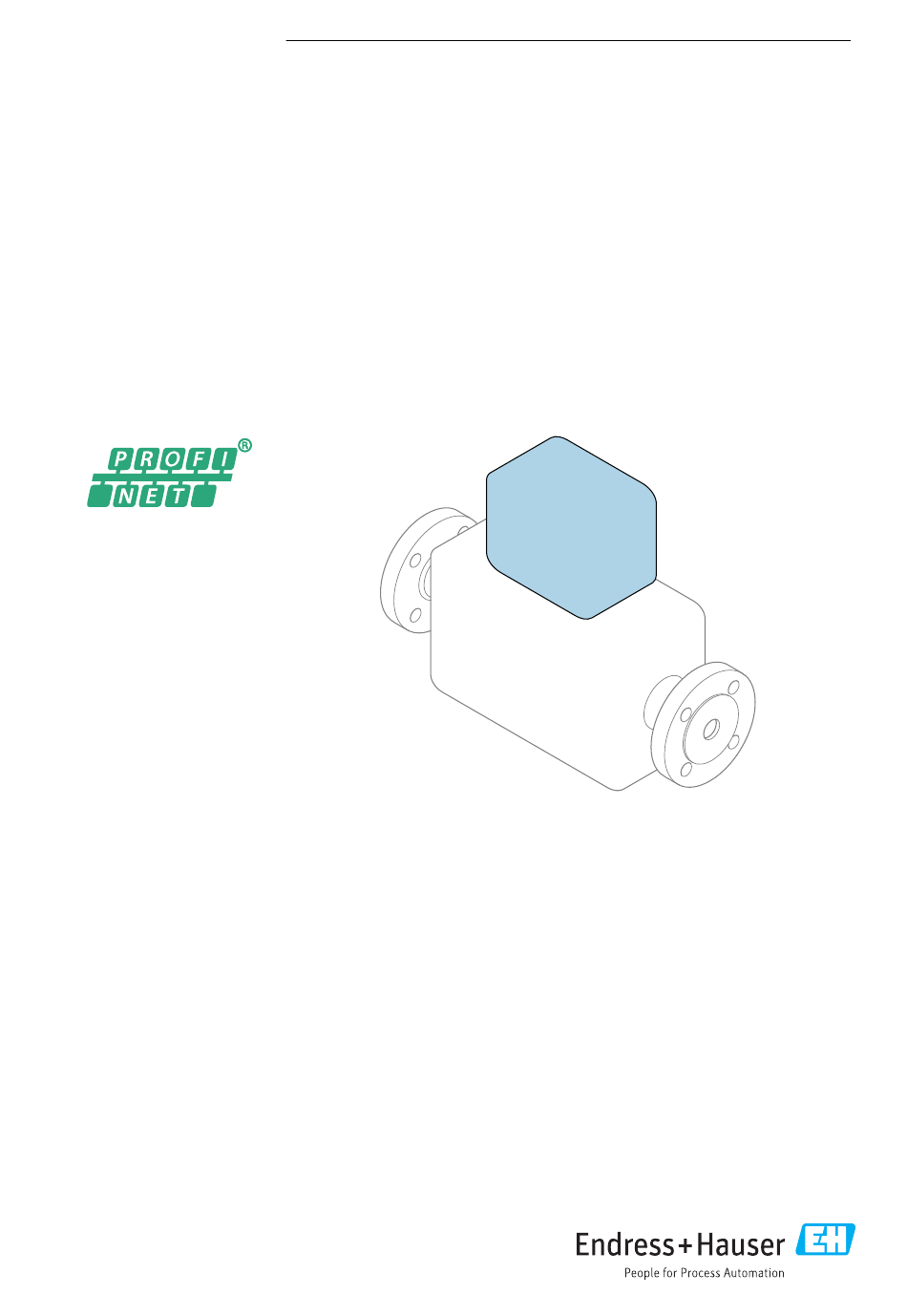

KA01336D/06/EN/02.24-00
71689989
2024-12-20
Products
Brief Operating Instructions
Proline 100
PROFINET
Transmitter with
Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Transmitter Brief Operating Instructions
Contain information about the transmitter.
Sensor Brief Operating Instructions →  2
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline 100 PROFINET and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Proline 100 PROFINET

  • Page 1 Products Solutions Services KA01336D/06/EN/02.24-00 71689989 2024-12-20 Brief Operating Instructions Proline 100 PROFINET Transmitter with Coriolis sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Transmitter Brief Operating Instructions Contain information about the transmitter. Sensor Brief Operating Instructions →...
  • Page 2 Proline 100 PROFINET Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Brief Operating Instructions for the device The device consists of a transmitter and a sensor. The process of commissioning these two components is described in two separate manuals: •...
  • Page 3 These Brief Operating Instructions are the Transmitter Brief Operating Instructions. The "Sensor Brief Operating Instructions" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer...
  • Page 4: Table Of Contents

    Table of contents Proline 100 PROFINET Table of contents Document information ............5 Symbols used .
  • Page 5: Document Information

    Proline 100 PROFINET Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 6: Basic Safety Instructions

    Basic safety instructions Proline 100 PROFINET Symbol Meaning Protective Earth (PE) A terminal which must be connected to ground prior to establishing any other connections. The ground terminals are situated inside and outside the device: • Inner ground terminal: Connects the protectiv earth to the mains supply.
  • Page 7: Designated Use

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.
  • Page 8: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions.
  • Page 9: Product Description

    Proline 100 PROFINET Product description IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Product description The device consists of a transmitter and a sensor.
  • Page 10 Installation Proline 100 PROFINET Aluminum housing version 3 mm A0023192 Compact and ultra-compact housing versions 8 mm A0023195 Endress+Hauser...
  • Page 11: Electrical Connection

    Proline 100 PROFINET Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage.
  • Page 12 Electrical connection Proline 100 PROFINET Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) • Spring terminals: Wire cross-sections 0.5 to 2.5 mm (20 to 14 AWG) 5.2.3 Terminal assignment The terminal assignment for the electrical connection of the device can be found on the connection nameplate of the electronics module.
  • Page 13 Proline 100 PROFINET Electrical connection 5.2.4 Pin assignment, device plug Supply voltage Assignment DC 24 V Not used Not used DC 24 V Grounding/shielding Coding Plug/socket Plug A0029042 Connection for protective ground and/or shielding from the supply voltage if present. Not for option C "Ultra- compact, hygienic, stainless".
  • Page 14: Connecting The Device

    Electrical connection Proline 100 PROFINET Connecting the device NOTICE An incorrect connection compromises electrical safety! ‣ Only properly trained specialist staff may perform electrical connection work. ‣ Observe applicable federal/national installation codes and regulations. ‣ Comply with local workplace safety regulations.
  • Page 15 Proline 100 PROFINET Electrical connection 8 mm 8 mm 3 mm 10 (0.4) mm (in) A0017844  3 Device versions with connection examples Cable Device plug for signal transmission Device plug for supply voltage Depending on the housing version, disconnect the local display from the main electronics module: Operating Instructions for the device .
  • Page 16: Ensuring Potential Equalization

    Electrical connection Proline 100 PROFINET 5.3.2 Ensuring potential equalization Promass, Cubemass Requirements Please consider the following to ensure correct measurement: • Same electrical potential for the fluid and sensor • Company-internal grounding concepts For devices intended for use in hazardous locations, please observe the guidelines in the Ex documentation (XA).
  • Page 17 Proline 100 PROFINET Electrical connection DIP switches Description – Enable hardware write protection – Default IP address: use 192.168.1.212 Example: set the device name EH-PROMASS100-065 DIP switches ON/OFF 2…6 – – Setting the device name Risk of electric shock when opening the transmitter housing.
  • Page 18: Ensuring The Degree Of Protection

    Electrical connection Proline 100 PROFINET Reconnect the device to the power supply. The configured device address is used once the device is restarted. If the device is reset via the PROFINET interface, it is not possible to reset the device name to the factory setting.
  • Page 19: Post-Connection Check

    Proline 100 PROFINET Operation options Post-connection check Are cables or the device undamaged (visual inspection)?  Do the cables used meet the requirements→  11?  Do the cables have adequate strain relief?  Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" →  18 ? ...
  • Page 20: Structure And Function Of The Operating Menu

    Operation options Proline 100 PROFINET Structure and function of the operating menu 6.2.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation task-oriented Setup Diagnostics Operating menu for experts Expert function-oriented A0014058-EN  4 Schematic structure of the operating menu 6.2.2...
  • Page 21: Computer Hardware

    Proline 100 PROFINET Operation options 6.3.2 Prerequisites Computer hardware Interface The computer must have an RJ45 interface. Connection Standard Ethernet cable with RJ45 connector. Screen Recommended size: ≥12" (depends on the screen resolution) Computer software Recommended operating systems Microsoft Windows 7 or higher.
  • Page 22 Operation options Proline 100 PROFINET 6.3.3 Establishing a connection Via service interface (CDI-RJ45) Preparing the measuring device Configuring the Internet protocol of the computer The IP address can be assigned to the measuring device in a variety of ways: • Dynamic Configuration Protocol (DCP), factory setting: The IP address is automatically assigned to the measuring device by the automation system (e.g.
  • Page 23: User Interface

    Proline 100 PROFINET Operation options Enter the IP address of the Web server in the address line of the Web browser: 192.168.1.212  The login page appears. If a login page does not appear, or if the page is incomplete, see the Special Documentation for the Web server 6.3.4...
  • Page 24: Navigation Area

    Operation options Proline 100 PROFINET Functions Meaning Data exchange between PC and measuring device: • Device configuration: • Load settings from the device (XML format, save configuration) • Save settings to the device (XML format, restore configuration) • Logbook - Export Event logbook (.csv file) Data •...
  • Page 25: Access To The Operating Menu Via The Operating Tool

    Proline 100 PROFINET Operation options Function scope of the "Web server functionality" parameter Option Description • The web server is completely disabled. • Port 80 is locked. HTML Off The HTML version of the web server is not available. • The complete functionality of the web server is available.
  • Page 26: System Integration

    System integration Proline 100 PROFINET System integration For detailed information on system integration, see the Operating Instructions for the device. • Overview of device description files: • Current version data for the device • Operating tools • Device master file (GSD) •...
  • Page 27: Commissioning

    Proline 100 PROFINET Commissioning Commissioning Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist • "Post-connection check" checklist →  19 Setting the operating language Factory setting: English or ordered local language The operating language can be set in FieldCare, DeviceCare or via the Web server: Operation →...
  • Page 28: Protecting Settings From Unauthorized Access

    Diagnostic information Proline 100 PROFINET Submenu Meaning Display Configure the measured value display Low flow cut off Set the low flow cut off Partially filled pipe detection Configure partial and empty pipe detection Protecting settings from unauthorized access The following write protection options exist in order to protect the configuration of the measuring device from unintentional modification: •...
  • Page 29 Proline 100 PROFINET Diagnostic information Xxxxxx/…/…/ Device name: Xxxxxxx Mass flow: kg/h 12.34 Device tag: Xxxxxxx Volume flow: 12.34 ³ m /h Status signal: Function check (C) Xxxxxx Diagnostics 1: C485 Simu... Remedy information: Deactivate... Failure (F) Access status tooling:...
  • Page 32 *71689989* 71689989 www.addresses.endress.com...
