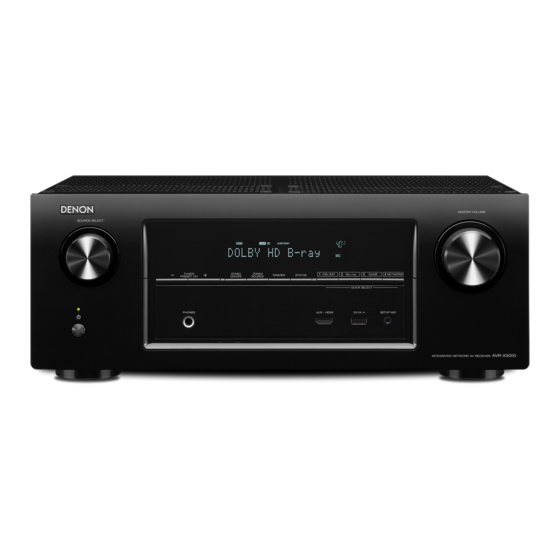

Denon AVR-X3000 Service Manual

Integrated network av receiver
Hide thumbs Also See for AVR-X3000:
Table of Contents

Advertisement

Quick Links

Download this manual
e
MODEL
AVR-X3000
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
SERVICE MANUAL
INTEGRATED NETWORK AV RECEIVER
e
D&M Holdings Inc.
JP
E3
E2
EK
P P
Ver. 1
EA
E1
E1K E1C
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR-X3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Denon AVR-X3000

Summary of Contents for Denon AVR-X3000

  • Page 1 Ver. 1 SERVICE MANUAL MODEL E1K E1C AVR-X3000 INTEGRATED NETWORK AV RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    CONTENTS ABOUT THIS MANUAL .............3 SCHEMATIC DIAGRAMS (1/30) ...........118 What you can do with this manual ..........3 SCH01_DIG_CONNECT............118 Using Adobe Reader (Windows version) ........4 SCH02_DIG_POWER ............119 SAFETY PRECAUTIONS ............6 SCH03_DIG_MAIN_CPU ............120 NOTE FOR SCHEMATIC DIAGRAM .........7 SCH04_DIG_SUB_CPU ............121 NOTE FOR PARTS LIST ............7 SCH05_DIG_CPU_LEVEL_CHG .........122 TECHNICAL SPECIFICATIONS ..........9 SCH06_DIG_DIR ..............123...

  • Page 3: About This Manual

    ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed wiring board diagrams - 1 The Sign function lets you add notes to the data in (Ctrl+Space, mouse operation) this manual. Save the file once you have finished adding notes. Press Ctrl+Space on the keyboard and drag the [Example using Adobe Reader X] mouse to select the area you want to view.
  • Page 5 Magnify schematic / printed wiring Magnify schematic / printed wiring board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) The Pan & Zoom function lets you see which part of The Loupe Tool function lets you magnify a specific a magnified diagram is being shown in a separate part of a diagram in a separate window.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 7: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.
  • Page 8 Personal notes:...

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS n Audio section n Tuner section –15 (Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10 • Power amplifier Receiving Range: FM 87.5 MHz – 107.9 MHz Rated output: AM 530 kHz – 1710 kHz Front: Usable Sensitivity: FM 1.2 μV (12.8 dBf) 105 W + 105 W (8 Ω/ohms, 20 Hz –...

  • Page 10: Caution In Servicing

    ZONE2 SOURCE DIMMER Service Jig When you repair the printing board, you can use the following JIG (Extension cable kit). Please order it from Denon Official Service Distributor in your region if necessary. 8U-110084S EXTENSION UNIT KIT 1 Set (Refer to...

  • Page 11: Disassembly

    DISASSEMBLY • Disassemble in order of the arrow in the following figure. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling". •...
  • Page 12 About the photos used for "descriptions of the DISASSEMBLY" section • The shooting direction of each photograph used herein is indicated on the left side of the respective photograph as "Shooting direction: ***". • Refer to the diagram below about the shooting direction of each photograph. •...

  • Page 13: Front Panel Assy

    1. FRONT PANEL ASSY Proceeding : CABINET TOP → FRONT PANEL ASSY (1) Remove the screws. View from the bottom (2) Disconnect the connector wires and FFC. Remove the Style pin and screws. STYLE PIN : Loosen CN602 FFC cable CN321...

  • Page 14: Heat Sink Assy

    2. HEAT SINK ASSY Proceeding : CABINET TOP → HEAT SINK ASSY (1) Remove the screws. View from the bottom (2) Cut the wire clamp band, then remove the screws. Disconnect the connector wires. Shooting direction: C Shooting direction: D CN602 (3) Cut the wire clamp band, then disconnect the connector wire and FFC cables .

  • Page 15: Digital Unit Assy

    3. DIGITAL UNIT ASSY Proceeding : CABINET TOP → DIGITAL UNIT ASSY (1) Remove the screws, then remove the BACK PANEL and the DIGITAL BRACKET. Shooting of photograph: A E3 ONLY E3 ONLY (2) Cut the wire clamp band, then remove the screws. Disconnect the connector wires and FFC cables. STYLE PIN : Loosen CN602 CN461...
  • Page 16 (4) Disconnect the connector board. Board to board SUPPORT PCB (5) Disconnect the connector board Board to board (6) Cut the wire clamp band, then remove the screws. Disconnect the connector wires and FFC cables. CN932 (7) Disconnect the connector wire. Shooting direction: C...

  • Page 17: Trans Main

    (8) Cut the wire clamp band, then remove the screws. Disconnect the connector wires. CN971 CN941 CN932 CN940 (9) Cut the wire clamp band, then disconnect the connector wires. CN701 CN703 CN702 (10) Remove the screw. View from the bottom Please refer to "EXPLODED VIEW"...

  • Page 18: Special Mode

    Service Related Selection mode DIMMER STATUS SOURCE protection history mode”. (Refer to page) When using multiple DENON AV receivers in the same room, make this setting so that only Remote ID Setup mode STATUS DIMMER the desired AV receiver operates. (Refer to...

  • Page 19: Μcom/Dsp Version Display Mode

    → Q1 Ethernet(DM860A) 1st Boot Loader, Hardware ID → Q2 Ethernet(DM860A) 2nd Boot Loader → Q3 Ethernet(DM860A) IMAGE → Q4 Ethernet(DM860A)MAC ADDRESS information q Model destination information : Model AVR-X3000 E3 model A V R - X 3 0 0 0 AVR-X3000 E2 model A V R - X 3 0 0 0...
  • Page 20 Q0 GUI SFLASH : Model AVR-X3000 E3 model G U I : 6 5 1 1 * * * * AVR-X3000 E2 model G U I : 6 5 1 2 * * * * AVR-X3000 E1C model G U I...
  • Page 21 1.3. Error display See the following table for each "Error information" display and its explanation (status). Display order is q , w , e , r , t , y , u Condition Status FL Display Trouble shooting • Please check the destination-resistors Compared with the destination setting on the (R2060/R2061,...
  • Page 22 1.4. Version display on the Setup Menu Use the following procedure to display the firmware version. (1) Press the "SETUP" button on the remote control. (2) Select "General-Information-Firmware". A version with 12 digits is displayed as shown in the following image. GUI Image 0200 - 8382 - 6145 The displayed 12 digits are derived from each device version as shown below...

  • Page 23: Panel/Remote Lock Selection Mode

    2. PANEL/REMOTE LOCK Selection mode 2.1. Behavior specifications In this mode, you can switch between the PANEL LOCK MODE and the Mode for preventing remote control acceptance. 2.2. Starting up Press the "Power operation ( X )" button to turn on power while pressing the "ZONE2 SOURCE" and "TUNER PRESET CH +"...

  • Page 24: Service Related Selection Mode

    3. Service Related Selection mode 3.1. Behavior specifications In this mode, you can switch between the Diagnostic mode (SERVICE CHECK), the Displaying the protection mode (PROTECTION) and the 232C clear mode (RS232C RESET). 3.2. Starting up Press the "Power operation ( X )" button to turn on power while pressing the "ZONE2 SOURCE" and "DIMMER" and "STATUS"...
  • Page 25 3.4. PROTECTION DIAGRAM PAMP UNIT DIGITAL UNIT TR_ THERMAL DC 113pin/ ASO 112 pin/ PROTECTION LOGIC DC ⇒ L_ active shutdown TR_ THERMAL uCOM ASO ⇒ L_ active shutdown THER PROTD ⇒ L_ active shutdown THER_ PROT_ C 123pin/ P97 THER PROTC ⇒...
  • Page 26 3.5. DIAGNOSTIC MODE (Video/Audio (signal) path confirmation mode 3.5.1. Specification This mode is used for confirming the Video and Audio (signal) paths. (Troubleshooting) Confirming the operation of unit can be easily done after repair. Backup data will not be lost. 3.5.2.
  • Page 27 3.5.6 Audio system confirmation items fig. XX: Refer to the block diagram of the fig.XXth. Confirmation item FL display settings Contents of confirmationRemarks Analog (signal) Path Input Source : CBL/SAT ·Analog input ⇒ Speaker output (FRONT L,R) A 0 1 : A N A L O G P A S S Input Mode : ANALOG(fixed) ·Analog input ⇒...
  • Page 28 AVR-X3000 ANALOG VIDEO BLOCK CBL/SAT CBL/SAT_V DVD_V CVBS IN MEDIA Player Blu-Ray_V V.AUX(FRONT) V.AUX_V not use not use CVBS MONITOR COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 V_AUX_V DVD_Y CBL/SAT_V COMPONENT IN...
  • Page 29 AVR-X3000 HDMI VIDEO BLOCK HDMI IN WAFER WAFER ADV7850 Port D ADV8003-3 AD8195 HDMI FRT IN (V.AUX) Buffer Port C HDMI TX with TMDS VIDEO Port B HDMI OUT1 PROCESSING SiI9575 Port A HDMI IN1 CCIR656 VD[0:7] (CBL/SAT) HDMI IN2...
  • Page 30 AVR-X3000 HDMI VIDEO BLOCK HDMI IN WAFER WAFER ADV7850 Port D ADV8003-3 AD8195 HDMI FRT IN (V.AUX) Buffer Port C HDMI TX with TMDS VIDEO Port B HDMI OUT1 PROCESSING SiI9575 Port A HDMI IN1 CCIR656 VD[0:7] (CBL/SAT) HDMI IN2...
  • Page 31 AVR-X3000 HDMI VIDEO BLOCK HDMI IN WAFER WAFER ADV7850 Port D ADV8003-3 AD8195 HDMI FRT IN (V.AUX) Buffer Port C μCOM HDMI TX with TMDS VIDEO Port B HDMI OUT1 PROCESSING SiI9575 Port A HDMI IN1 CCIR656 VD[0:7] (CBL/SAT)
  • Page 32 fig.04a AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 33 fig.04b AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 34 fig.05 AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 35 AVR-X3000 HDMI VIDEO BLOCK HDMI IN WAFER WAFER ADV7850 Port D ADV8003-3 AD8195 HDMI FRT IN (V.AUX) Buffer Port C HDMI TX with TMDS VIDEO Port B HDMI OUT1 PROCESSING SiI9575 Port A HDMI IN1 CCIR656 VD[0:7] (CBL/SAT) HDMI IN2...
  • Page 36 AVR-X3000 HDMI VIDEO BLOCK HDMI IN WAFER WAFER ADV7850 Port D ADV8003-3 AD8195 HDMI FRT IN (V.AUX) Buffer Port C HDMI TX with TMDS VIDEO Port B HDMI OUT1 PROCESSING SiI9575 Port A HDMI IN1 CCIR656 VD[0:7] (CBL/SAT) HDMI IN2...
  • Page 37 fig.08 AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 38 fig.09a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 39 fig.09b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 40 fig.10a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 41 fig.10b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 42 fig.11a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 43 fig.11b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 44 fig.12a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 45 fig.12b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 46 fig.13 AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 47 fig.14a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 48 fig.14b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 49 fig.15a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 50 fig.15b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 51 fig.16a AVRX3000 ANALOG AUDIO BLOCK (OPEN) EXTFL EXTFR ANA_FL AMPFL DAFL TONE EXTC EXTFL EXTSW AMPFR ANAFR ADINL/R EXTSL DAFR DAZ2 TONE EXTFR EXTSR EXTSBL Pull down assignable EXTSBR EXTC TUNER Pull down (OPEN) DASW1 (OPEN) CBL/SAT EXTSW CBL/SAT Blu-ray DASL CBL/SAT INA/REC1...
  • Page 52 fig.16b AVRX3000 DIGITAL AUDIO BLOCK ADINL ADINR DIGTAL IN OPT1(TV) DAFL 24.576MHz DAFR OPT2(CD) 256FSDIR1 64FSDIR1 DASW1 FSDIR1 DATADIR1 DAC input DATA COAX1(CBL/SAT) ADC+DIR1 DASL 860_SPDIF DACDATA PCM DATA only HDMISPDIF DATAF FL/FR DASR PCM9211 PCM1690 ARCSPDIF1 DIRAMCKI COAX2(DVD) DATAC C/SW1 9575_SPDIF DASBL...
  • Page 53 3.6. Errors checking mode (Displaying the protection history) 3.6.1. Operation specifications Error mode (Displaying the protection history): When the set is started up in this mode, the error information is displayed. 3.6.2. About the display on the FL display When the "STATUS" button is pressed after setting the error (protection history display) mode is set, a history like the one shown below is displayed, depending on the conditions.
  • Page 54 3.6.3. Clearing the protection history There are two ways to clear the protection history, as described below. (1) Start up the set in error (protection display) mode and display the error, then press and hold down the "DIMMER" button for 3 seconds. P R T : D C Press the "DIMMER"...
  • Page 55 3.8. Operation Info mode 3.8.1. Specifications This mode displays the accumulated operating time, power on count, counts for each protection on the set. 3.8.2. About the display on the FL display When the set has started in the Operation Info mode, press the "STATUS" button to display information in the following order.

  • Page 56: Protection Pass Mode

    4. Protection Pass mode 4.1. Specifications • Turn the power on with Protection disabled. Except for disabling the Protection detection, this operation is the same as the normal power on. 4.2. Operation Press the "Power Operation ( X )" button while pressing "ZONE2 SOURCE"...

  • Page 57: Remote Id Setup Mode

    6. Remote ID Setup mode 6.1. Specifications When using multiple DENON AV receivers in the same room, make this setting so that only the desired AV receiver operates. 6.2. Setting the AV receivers Starting up: Turn on the power, then press and hold down the "STATUS" and "DIMMER" buttons for over 3 seconds.

  • Page 58: Jig For Servicing

    When you repair the printing board, you can use the following JIG (Extension cable kit). Please order it from DENON Official Service. Distributor in your region if necessary. NOTE: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
  • Page 59 (2) Disconnect the connector board. Board to board PCB DIGITAL Board to board SUPPORT PCB PCB VIDEO Board to board PCB INPUT (3) Detach PCB HDMI from the chassis, and turn it over. Please put an insulation sheet that is larger than PCB HDMI under PCB. b Connect the ground point of PCB to the chassis with a ground lead or the like.
  • Page 60 (4) Connect the six extension jig cables. PCB DIGITAL CHASSIS-HDMI CONNECTOR Insulation sheet Insulation sheet PCB VIDEO Insulation sheet PCB INPUT Connection table of Board to Board Ref. No. Ref. No. 17pin CN27A SIDE CNT BN27A DIGTAL 27pin CN23A SIDE CNT BN23A DIGTAL 27pin...

  • Page 61: When The Microprocessor Is Replaced With A New One

    WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE When the U-PRO (Microprocessor) or the Flash ROM is replaced, confirm the following. After PWB Name Ref. No. Description Remark replaced DIGITAL IC201 R5F56108VNFP SOFTWARE: Main DIGITAL IC231 R5F3650KNFB SOFTWARE: Sub DIGITAL IC410 MX25L1606EM2I-12G...
  • Page 62 1.4. Run the DFW Run the "DFW_0065_AVRX3000_(Rev.X.X.X).exe" on desktop of PC. 1.5. Communication check (1) Select the serial port number of RS-232C in PC. (2) Click the "Check Comm." button. (3) When connection is good, then you can see the "Communication check OK." message. (4) If connection is not good, then you can see the "Communication check NG"...
  • Page 63 1.6. Download the firmware (1) Click the "Load" button. (2) Download the firmware from the specified download source to PC. XXX-XXXX XXX-XXXX_WWWXXXXYYYY-ZZZZ.bin XXX-XXXX_WWWXXXXYYYY-ZZZZ.bin...
  • Page 64 1.7. Complete the firmware updating (1) Click the "Update" button. XXXXXXXX XXXXXXX (2) When writing of the firmware is completed, the power of AV receiver turns on automatically and you can see the "Update completed" message. (3) If you can’t complete the firmware update, please retry the firmware update from "1.3. Turn on the AV receiver". 1.8.

  • Page 65: How To Update By Dpms

    2. How to update by DPMS You can update the firmware by downloading the latest version from the Internet. 2.1. Connecting to the Network (1) System requirements • Internet Connection by Broadband Circuit • Modem • Router • Ethernet cable (CAT-5 or greater recommended) (2) Setting Internet Modem...
  • Page 66 2.3. About the error code See the table below for error codes, details of faults, and coping strategies when the firmware is updated through DPMS (Denon Product Management Server). Error Details of Error code Display Coping strategies Code Reset and update again.
  • Page 67 Error Details of Error code Display Coping strategies Code Main CPU failed to receive Turn off and on the power. Updating starts firmware for rewriting sent from U p d a t i n g f a i l automatically. DM860A (when an error occurred) There was invalid data in the firmware for rewriting sent from...
  • Page 68 Error Details of Error code Display Coping strategies Code Connection to DPMS timed out Check the network connection. when firmware such as Sub Carry out the update in an environment that C o n n e c t i o n F a i l 3 9 CPU, DSP, FPGA, and PLD was has little network load.
  • Page 69 Error Details of Error code Display Coping strategies Code NACK was received when "L" Turn off and on the power. Updating starts command sent to Sub CPU, DSP, U p d a t i n g f a i l automatically.
  • Page 70 Error Details of Error code Display Coping strategies Code Acquisition of (Application Mode) Check the network connection. IP address failed before rewriting Carry out the update in an environment that C o n n e c t i o n F a i l A 1 DM860A was rewritten (when timed has little network load.
  • Page 71 Device display during firmware update Target of device when firmware updated. Target of device Display Error code when an error occurs 10~15 Main M a i n : * * % * * * m i n 36~3F 50~52 54~58 S u b : * * % * * * m i n...

  • Page 72: How To Update By Usb Memory

    3. How to update by USB Memory You can update the firmware by downloading the latest version with USB Memory. 3.1. Connecting to the USB Memory (1) Requirements • The USB memory device format should be set to FAT16 or FAT32. •...
  • Page 73 USB location is below USB memory root Model Name Model Area Product ID North America (E3) 000100650100 AVRX3000 Europe (E2) 000100650200 China (E1C) 000100650500 + firmwares + 000100650100 + APLD.bin + DSP.bin + enc_update.xml + GUI.bin + IMG.bcd + MAIN.bin + SBL.bcd ►...
  • Page 74 3.4. Start update Turn on the power of this unit in the "STATUS" + "TUNER PRESET CH -" button. 3.5. "USB Update Start" on FL Display After arround half minutes, FL display shows the following message. FL Display U S B U p d a t e S t a r t 3.6.
  • Page 75 3.8. About the error code See the table below for error codes and details of faults when the firmware is updated through USB memory. Error Details of Error code Display Coping strategies Code Unable to detect USB. Disconnect and connect the USB memory. C o n n e c t i o n F a i l 0 1 Make sure that the FirmwareFile is in the No FirmwareFile in USB.
  • Page 76 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. BlockErase failed before rewriting If the FL display stops at the Error display, E r a s e f a i l Main.
  • Page 77 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. No FirmwareFile for If the FL display stops at the Error display, F i l e s N o t F o u n d FirmwareDownload.
  • Page 78 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Mismatched CheckSum in Wait until the FL display stops. response or no response from Sub If the FL display stops at the Error display, U p d a t e C h e c k N G press and hold the "Power operation ( X )"...
  • Page 79 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. Unable to detect USB for If the FL display stops at the Error display, C o n n e c t i o n F a i l A E FirmwareDownload.
  • Page 80 3.9. Device display during firmware update Display of target device during firmware update. Target of device Display Error code when an error occurs 10~15 Main M a i n : * * % * * * m i n 36~3F 50~52 54~58 S u b...

  • Page 81: Adjustment

    ADJUSTMENT Audio Section Adjusting Idling Current Required measurement equipment: DC Voltmeter 1. Preparation (1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature 15 °C ~ 30 °C (59 °F ~ 86 °F). (2) Presetting •...

  • Page 82: Sound Modes And Channel Output

    SOUND MODES AND CHANNEL OUTPUT This indicates the audio output channels or surround parameters that can be set. This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.” . Channel output Sound mode Front L/R Center Surround L/R Surround back L/R...
  • Page 83 Surround Parameter Audyssey NEO:X PRO LOGIC g / g x Music mode only Tone Restorer mode only Sound mode z 12 MultEQ® Dynamic Dynamic Center Center Audyssey Panorama Dimension Volume Width Gain DSX® z 10 z 11 z 11 DIRECT/PURE DIRECT (2-channel) z 1 DIRECT/PURE DIRECT (Multi-channel) z 1 DSD DIRECT (2-channel) z 1 DSD DIRECT (Multi-channel) z 1...
  • Page 84 Types of input signals, and corresponding sound modes This indicates the default sound mode. This indicates the selectable sound mode. 2-channel signal Multi-channel signal Dolby Digital DTS ES DTS ES DOLBY DOLBY Sound mode NOTE Analog (+/HD) (Super DOLBY DOLBY (Super DTS-HD DSCRT...

  • Page 85: Trouble Shooting

    TROUBLE SHOOTING 1. POWER 1.1. Power not turn on Power not turn on. When the power turned on, When the power turned on, does the ON/STANDBY does the ON/STANDBY indicator on the front panel indicator on the front panel flashing green? flashing red? Is the fuse blown? Refer to 1.2.Fuse is blown.

  • Page 86: Analog Video

    2. Analog video Perform the operation below beforehand. b Check that the connection cable and the Monitor are normal. b Set VIDEO CONVERT ON. b Set Function to the CBL/SAT MONITOR OUT (HDMI) output NG Input Input CVBS COMPONENT To A Input CVBS,COMPONENT Check power supply voltage.
  • Page 87 VIDEO B'D flaw. Extend DIGITAL B'D using a jig. Check power supply voltage and control signal of video selector IC (IC511 , IC516). (VIDEO B'D) V +5V : J5019 V +5V : J5040 Defective connection of SIDE CNT B'D (BN28B). V select : J5007 = H (3.3V) Video selector IC (IC511 or IC516 ) flaw.
  • Page 88 DIGITAL test point DATA DATA JK401 T192 JK402 JK403 JK151 T193 JK505 JK504 JK503 JK502 JK501 J3200 D1603 JK507 D1601 JK506 D4001 D1604 D5015 T501 R4008 D1602 R5004 D1605 D5082 D5080 D5078 D5076 D5070 D5068 D5066 D5064 D5058 D5056 D5054 D5052 D5032 D5030...

  • Page 89: Hdmi/Dvi

    Check the HDMI output setting, referring to the BD/DVD (6) Is the BD/DVD player's HDMI output setting correct? player's operating instructions. (7) When you use a DENON BD/DVD player's, is the fluorescent display tube's "HDMI" indicator lit? If you use a non-DENON BD/DVD player's, proceed to "YES".
  • Page 90 Check TV (11)Is the TV HDCP-compatible? Use an HDCP-compatible TV. PC TVs cannot be used. If the TV is not compatible with resolutions of 1080P, no picture (12) Is the TV compatible with resolutions of 1080P? will be output, even if the BD/DVD player's resolution is set to 1080P.

  • Page 91: Audio

    4. AUDIO 4.1. AUDIO CHECK Audio output NG. Refer to "Audio Check PATH" page). CHECK1 INPUT SURROND MODE SOURCE Check ANALOG audio BLOCK. Audio output OK? ANALOG 2CH DIRECT ANALOG CHECK2 INPUT SURROND MODE SOURCE Check Digital audio BLOCK. Legacy Audio output OK? COAX or OPT Don't care...
  • Page 92 4.2. Power AMP No sound is output. The protector operates. Is the power transistor open or short- circuited? Replace the power transistor. 2SB1647/2SD2560 Is the emitter resistance of the power transistor open? Replace the emitter resistance. 0.47Ω Is the base resistance of the power transistor open? Replace the base resistance.
  • Page 93 4.3. Analog audio No sound is output Is the voltage of ±7V supplied to The power supply of ±7V is repaired. SIDE CNT B'D BN64B 4-7pin? Is the audio signal transmitted to The power amplifier is repaired. INPUT B'D CN461? Connect the connectors properly.

  • Page 94: Network/Usb

    5. Network/USB 5.1. Cannot connect to network Checking the environment Turn off the power and check the LAN cable Is the LAN cable properly connected? properly, and then turn the power back on. Checking the settings Set the IP address and other parameters properly.
  • Page 95 5.2. USB device is not recognized Checking the USB device Are you using a USB hub? Don't use the USB hub. Only mass storage devices in FAT16 or FAT32 formats or MTPcompatible devices Is the USB device compatible with the set? and iPod (Remove some models) are supported.
  • Page 96 DIGITAL test point DATA DATA JK401 T192 JK402 T193 JK403 JK151 JK505 JK504 JK503 JK502 JK501 J3200 D1603 JK507 D4001 D1601 JK506 D1604 D5015 T501 R4008 D1602 R5004 D1605 D5082 D5080 D5078 D5076 D5070 D5068 D5066 D5064 D5058 D5056 D5054 D5052 D5032 D5030...

  • Page 97: Smps

    6. SMPS DC 5V is not output. Is there damage in IC901 Replace the IC901(TOP258MG) and (TOP258MG)? D9001/D9002/D9003/D9004. Is there the damage in D9001/D9002/ Is the fuse (F9001) blown? Replace the parts of damage. D9003/D9004/IC9004? Is there solder short circuit in the PWB The solder short part of the PWB board board? is repaired.
  • Page 98 Operation waveform for each part After primary side rectification (Caution: High voltage, electric shock) Primary drain (Caution: High voltage, electric shock) C9002 0.01uF 250V 1N4007 D9001 1N4007 D9002 After secondary rectifications D9003 1N4007 LF902 1N4007 D9004 LF-4ZB-E273H D9005 1N4007 D9014 D9006 1N4007 R9002...

  • Page 99: Audio Check Pass

    AUDIO CHECK PASS Refer to troubleshooting "4.1. AUDIO CHECK"(91 page). HDMI CHECK6 TRANSMITTER ADV8003 CHECK5 with scaler video encoder etc... Sil9575 ADV7850 FRONT TMDS BUFFER AD8195 CHECK4 DIR/ADC PCM9211PTR PCM1690DCAR CHECK2 　DIGITAL AUDIO INTERFACE RECEIVER LAN8720A EMP240T100C5N SELECTOR CHECK3 CHECK1 R2A15218...

  • Page 100: Clock Flow & Wave Form In Digital Block

    CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK WAVE FORM MCKO Z2DIRMCK Z2DACMCK IC404 IC421 BCKO Z2DIRBCK Z2DACBCKO LC89091JA PCM5100 RXIN LRCKO Z2DIRLRCK Z2DACLRCKO LRCK DATAO Z2DIRDATA Z2DACDATAO ③ CH1: C1 DAC256FS MCLK IC501 SiI9575 DAC64FS BICK HA_MCLKOUT RXMCK HDMI DACFS LRCK IC441...

  • Page 101: Level Diagram

    LEVEL DIAGRAM AVR-X3000 LEVEL DIAGRAM FRONT ch R2A15218FP ANALOG H/P OUT ＋ LINE IN SPEAKER GAIN MUTE PRE OUT ＋ (E2 Only) PCM1690 ＋ ＋ PCM9211 － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX.
  • Page 102 AVR-X3000 LEVEL DIAGRAM CENTER ch R2A15218FP ＋ SPEAKER GAIN MUTE PRE OUT (E2 Only) PCM1690 ＋ ＋ － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS)
  • Page 103 AVR-X3000 LEVEL DIAGRAM SUBWOOFER ch R2A15218FP MUTE PRE OUT GAIN PCM1690 ＋ ＋ － － +30dB MAX. SIGNAL LEVEL R2A15218FP MAX. OUTPUT 3.8Vrms Differential Out PCM1690 DOLBY LIMIT LEVEL (ALLch-3dBFS) 2.83Vrms=0dBFS +20dB +20dB -10dBFS +10dB +10dB PREOUT 310mVrms -20dBFS 200mVrms...
  • Page 104 AVR-X3000 LEVEL DIAGRAM SURROUND ch R2A15218FP ＋ SPEAKER GAIN MUTE PRE OUT (E2 Only) PCM1690 ＋ ＋ － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS)
  • Page 105 AVR-X3000 LEVEL DIAGRAM SURR.BACK ch R2A15218FP ＋ SPEAKER GAIN MUTE PRE OUT (E2 Only) PCM1690 ＋ ＋ － － +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS)
  • Page 106 AVR-X3000 LEVEL DIAGRAM ZONE2 R2A15218FP from F-ch from D/A ＋ LINE IN To MAIN SPEAKER GAIN NJW1194 MONO TONE MUTE PRE OUT PCM5100 MONO +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω PCM5100 MAX. SIGNAL LEVEL +20dB 2.0Vrms=0dBFS +20dB +29dB...

  • Page 107: Power Diagram

    POWER DIAGRAM HI+B AVRX3000:180mA S1(AMP+B,-B) +12V(RELAY) HI-B OPEN 45mA AVRX3000 NJM2845DL133 +3.3V (Z2 DAC) AVRX3000 : 344mA S2 + 344mA IC422 102mA S2 - 147mA KIA7808API KIA7805BPI A+5V (DAC,DIR/ADC) AVRX3000 : 147mA IC936 IC931 A+7V (A. AUDIO PART) S2(+8V,-8V) AVRX3000 : 147mA AVRX3000 : 147mA A-7V (A.

  • Page 108: Wiring Diagram

    WIRING DIAGRAM CN321 INLET 20022WS-05C (USB) DIGITAL B'D CUP12535Z CN902 WAFER/YW396-03B AC IN CN704 CN69B CN121 20022WS-05C CN203 CN903 FFC WAFER/40P 10022H-23C (PROT.LINE) 20022WS-03C 10022H-40C WAFER/SMW250-05P (FRONT HDMI) (THERMAL DET) (DIGITAL POWER) BN903 WIRE/5P/2.5mm 400mm,UL1569#22,105 VIDEO B'D (CWB7D0054003D) FRONT CNT. B'D CUP12534Z CUP12522Z-1 BN461...

  • Page 109: Printed Wiring Boards

    PRINTED WIRING BOARDS Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). DIGITAL (A SIDE) F-HDMI (A SIDE) DATA CN101 C1028 DATA C1017 JK401 T192 C1014 Q1002 C1018 JK402 JK403 JK151 JK505 JK504 JK503 JK502 JK501 T193 C1019 JK507 J3200 Q1001 D1601 D1603...
  • Page 110 FRONT (A SIDE) FRONT HDMI FFC CABLE (A SIDE) C6007 C6008 C6010 CUP12532Z-4 JW601 JW602 R6011 C6020 C6021 R6010 CUP12532Z-6 C6022 LUG11 BK603 C6018 C6017 CN69A JIG HOLE FL601 J6102 VSELB R6009 R6006 D6002 R6008 LUG13 C6403 R6007 J6101 SWM3.3V Q6001 LD621 C6005...
  • Page 111 F-HDMI F-HDMI (A SIDE) (B SIDE) INPUT (A SIDE) INPUT (B SIDE) Q8585 Q8587 C8577 C8579 R8573 R8575 C1114 R8581 R1110 Q8586 Q8588 C8578 C1121 C8580 R1111 R1112 R8574 R8576 R8582 Q8565 Q8567 C8557 C8559 R8553 R8555 R8561 Q8566 Q8568 C8558 C8560 R1102...
  • Page 112 VIDEO (A SIDE) JK521 JK532 JK531 JK513 JK511-AVRX3000 JK511 J5141 JK523 JK512 J5140 C5236 J5112 J5139 J5124 C5336 C5334 J5114 C5160 C5162 C5156 C5158 C5152 C5154 C5113 C5111 C5112 J5113 BAR CODE LABEL R5359 J5116 J5118 C5333 C5335 J5115 J5119 J5106 BN27B Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb Pb...
  • Page 113 AMP(A SIDE) SBL-CH CUP12385 JW771 WIRE CLAMP 4 CN461 BAR C ODE LABEL JW701 SL-CH BK701 WIRE CLAMP 3 WIRE CLAMP 2 C-CH SR-CH FR-CH JW701 WIRE CLAMP 1 R0.5mm JW772 JW702 R7604 SBR-CH R0.5mm FL-CH R7601 JW703 R7201 C7201 C7601 C7701 C7101...
  • Page 114 SPK (A SIDE) C9536 JK926 C9537 JK928 JK929 JK927 JK921 J9008 C9534 C9538 C9532 J9000 RY924 C9215 R9203 C9217 C9216 J9089 L9206 J9090 L9205 J9005 RY925 L9202 C9212 RY926 J9153 L9822 L9821 J9003 RY922 R9216 L9204 R9205 R9217 L9201 R9215 RY923 RY921 J9004...
  • Page 115 SPK (B SIDE) RUBBER RUBBER C9811 C9809 C9810 C9806 R9806 C9631 C9613 C9804 C9611 C9633 R9804 C9519 C9515 C9803 R9803 C9612 C9634 C9635 C9638 C9518 C9639 C9636 C9617 C9802 C9614 C9514 R9802 C9632 C9615 C9618 C9619 C9616 C9637 C9801 R9801 C9513 C9512 BD981...
  • Page 116 FRONT_CNT (A SIDE) FRONT_CNT (B SIDE) CN27A C9617 CN23A C9618 J9625 IC961 J9630 J9655 J9631 J9629 J9632 J9627 J9628 J9633 J9656 CN28B J9634 CN27B J9635 DIP-IN CN961 C9645 C9644 J9639 CN64B CN23B R9646 J9643 J9644 R9645 R9608 C9619 J9645 R9644 J9646 C9610 J9647...
  • Page 117 SMPS (A SIDE) CMD1A629 BK903 5600uF/6.3V 5600uF/6.3V IC903 C9023 C9021 D9012 R9019 SMPS B'D IC ICT ADJ1 ADJ2 RP R9018 RY901 J9011 C9028 BONDING IC902 CUP12526Z D9014 BN903 Q9003 T9001 ZD919 ZD920 Pri. Sec. BONDING BONDING CY901 BONDING Sec. C9020 5600uF/6.3V C9022 5600uF/6.3V...

  • Page 118: Schematic Diagrams (1/30)

    TO 6A L2903 A+5V A+7V BN24A C2941.C2908.C2943,C2916 A-7V BN24A CJP27HJ282Z OPEN C125Z2-27 DAGND A-7V A+7V BN27A DAFL BN27A DAFL DAGND C125Z2-17 DAFR CJP17HJ282Z DAFR DAGND SWM5V DAGND DASW M3.3V DASW DAGND DGND DASL RC_IN DASL DAGND KILLIR_MZ DASR RC_OUT_MZ DASR DAGND BTLINK_MZ DASBL...

  • Page 119: Sch02_Dig_Power

    L3019 DGND BLM21PG221SN1 L3020 BLM21PG221SN1 L3021 D5.2V BLM21PG221SN1 D5.2V DGND DGND L3022 MAINPOWER BLM21AG121SN1 CN903 R3002 TST0 CJP05GI289ZY R3006 100K ENABLE TST1 DV_POWER2 SMW250-05 PVIN TST2 DV1.8V CN903 L3003 L3001 PVIN PGND IC301 D3.3V-2 IC309 SCPU3.3V CB05YTYH221 CB05YTYH221 2.49A NC(SW) PGND NJM2845DL133 L3002...

  • Page 120: Sch03_Dig_Main_Cpu

    TO 9B TO A3 TO A5 R2042 4.7K 4.7K R2043 R2044 4.7K R2055 OPEN R2045 OPEN R2046 OPEN R2047 AVR ONLY R2050 OPEN R2051 OPEN R2053 OPEN M3.3V SWM3.3V DGND MAINPOWER MAINPOWER M_RESET M_RESET BDOWN BDOWN REMOTEPOWER REMOTEPOWER CPUPOWER C2023 R2147 ACK_SIMO CPUPOWER...

  • Page 121: Sch04_Dig_Sub_Cpu

    SCPU5V DGND R2335 OPEN SCPU3.3V R2337 OPEN SUBBDOWN R2336 OPEN SUBBDOWN CEC_POWER R2340 4.7K CEC_POWER DV_POWER2 R2341 4.7K DV_POWER2 DV_POWER1 R2342 4.7K DV_POWER1 DA_POWER DA_POWER T242 T241 T240 Z2PLDAERR Z2PLDAERR PLDAERR MPLDCLK MPLDCLK MPLDDATA MPLDDATA MPLDCSMAIN MPLDCSMAIN SUBTCK SUBTCK SUBTMS SUBTMS SUBTDI SUBTDI...

  • Page 122: Sch05_Dig_Cpu_Level_Chg

    TO A4 TO A10 DETECT CN203 CJP03GA208ZY 20022WS-03C R2402 R2443 4.7K DGND T186 T185 T187 Q2403 Q2406 Q2401 2SC3052 2SC3052 RT1N141C Q2415 Q2418 Q2402 Q2408 Q2411 Q2414 Q2407 T188 T189 2SC3052 2SC3052 ISA1530AC1 2SC3052 2SC3052 2SC3052 2SC3052 Q2405 ISA1530AC1 SCPUTXD SCPURXD DETECT(MCU) TO B9...

  • Page 123: Sch06_Dig_Dir

    256FSDIR1 64FSDIR1 FSDIR1 DATADIR1 ZONE1 RXO1 R4211 DIRDOUT R4212 DIRDIN DIRCLK MPIO_B1 R4234 DIRCE MPIO_B0 R4233 R4213 MPIO_C3 MODE DIRADATAI 9575_SPDIF MPIO_C2 DIRALRCKI RXIN7 ARCSPDIF1 IC403 MPIO_C1 RXIN6 DIRABCKI HDMISPDIF MPIO_C0 RXIN5 DIRAMCKI PCM9211PTR 860SPDIF MPIO_A3 R4232 RXIN4 R4228 MPIO_A2 RXIN3 DIR1/ADC 256_1...

  • Page 124: Sch07_Dig_Audio_Pld

    TO 3E TO C0 ADV7850_INT2 ADV7850_INT2 RXMCK RXMCK RX64FS RX64FS RXFS RXFS RXI2S0 RXI2S0 RXI2S1 RXI2S1 RXI2S2 RXI2S2 RXI2S3 RXI2S3 RXSPDIF RXSPDIF 5 6 7 8 5 6 7 8 TXMCK TXMCK TX64FS TX64FS TXFS 1 2 3 4 1 2 3 4 TXFS TXI2S0 TXI2S0...

  • Page 125: Sch08_Dig_Dsp1

    TO E1 TO D9 TO E0 TO C1 DSP_CONT 5 6 7 8 5 6 7 8 1 2 3 4 1 2 3 4 R4153 OPEN R4152 DSP_FLAG0 R4159 IC409 C4161 R4151 W9864G6JH-6 64M BIT SDRAM 1000P C4097 R4099 C4106 VDD_INT DAI_P09...

  • Page 126: Sch9_Dig_Main_Dac1

    TO E2 TO C3 A+5V A-7V A+7V D_AUDIO R4517 open open R4518 DAGND C4594 100/16V C4595 C4491 100/16V C4492 C4493 1000P C4494 1000P C4495 OPEN R4417 150K C4496 OPEN R4421 C4497 1000P C4498 1000P R4427 C4425 C4499 1000P R4413 R4425 C4581 1000P 270pF...

  • Page 127: Sch10_Dig_Dm860

    MP:open CN390 CJP07GA193ZY 10022H-07C R3900 open DGND DEBUG_RX DEBUG_RX R3902 33X4 DEBUG_TX DEBUG_TX ETDO NET3.3V 3.3V ETDI ETCK ETMS R3961 DM_D0 33X4 DM_D1 DEBUG_TX DM_D2 DGND DEBUG_RX DM_D3 ETMS E_TXDMOEI ETMS R3962 DM_D4 E_RXDMIEO NC_01 ETCK NC_02 33X4 ETCK DM_D5 IC392 NC_03 NC_04...

  • Page 128: Sch11_Dig_Ethernet_Phy

    TO E6 TO E5 R3246 OPEN L3209 R3244 R3247 OPEN OPEN 1.2K L3212 IC320 BD82065FVJ-E2 DLW21SN181SQ2L L3210 DV3.3V OPEN CN321 DGND CN321 CJP05GA208ZY 20022WS-05C L3211 NET1.2V VBUS CB05YTYH221 NET3.3V USBD+ USBD- DGND T222 VDDCR1.2 DNGD T223 T90 T91 R3230 4.7K ESDA R3229 4.7K...

  • Page 129: Sch12_Dig_Hdmi_Rx

    TO D0 TO B4 CN121 CN121 LAND1 CJP23GA193ZY 10022H-23C R1260 CEC_COM1 DDCD_SDA DDCD_SDA DDCD_SCL DDCD_SCL TXEN HPA_D HPA_D CEC_COM1 R1207 R1208 RXD_5V RXD_5V CEC5V CEC3.3V CEC3.3V CEC3.3V L1208 L1209 L1205 DGND T239 BLM21PG221SN1 BLM21PG221SN1 BLM21PG221SN1 DGND R1301 RXD_C- RXD_C- R1302 RXD_C+ RXD_C+ DGND...

  • Page 130: Sch13_Dig_Sii9575

    R5073 Q5001 OPEN Q5002 OPEN R5007 R5002 JK501 19.HP DET CJJ9H014Z OPEN 18.+5V AD3PBI19G0 C5001 R5003 17.GND HPD0 16.DDC DATA OPEN OPEN CEC3.3V R0PWR5V 15.DDC CLK 14.NC L5009 L5010 L5001 DSCL0 13.CEC CEC1.3V DSDA0 CB03YTYH600 CB03YTYH600 CB03YTYH600 12.CK- 11.D1 SHIELD R0XC- 10.CK+ R0X0-...

  • Page 131: Sch14_Dig_Front_Hdmi

    FRONT HDMI PART ALL OPEN R1002 Q1001 OPEN Q1002 OPEN R1003 OPEN JK101 AD3PBJI19G0 C1001 19.HP DET R1004 OPEN OPEN 18.+5V 17.GND 16.DDC DATA 15.DDC CLK CEC5V 14.NC L1001 13.CEC 12.CK- CN101 11.D1 SHIELD CJP23GA193ZY 10.CK+ 9.D0- 10022H-23C 8.D1 SHIELD 7.D0+ 6.D1- CEC3.3V...

  • Page 132: Sch15_Dig_Hdmi Tx

    TO B2 CB03YTYH600 L1521 L1522 CB03YTYH600 L1506 L1510 CB03YTYH600 L1501 CB03YTYH600 CB03YTYH600 L1519 OPEN L1507 CB03YTYH600 L1502 CB03YTYH600 IC156 L1514 L1520 NJM2846DL3-18 CB03YTYH600 OPEN L1508 L1503 L1512 CB03YTYH600 CB03YTYH600 CB03YTYH600 IC153 IC152 K4T51163QJ-BCE7 L1504 K4T51163QJ-BCE7 512Mbit DDR2 SDRAM L1518 512Mbit DDR2 SDRAM CB03YTYH600 CB03YTYH600 R1564...

  • Page 133: Sch16_Front

    TO CN69B AVRX3000 FRONT PART CN69A FL601 CFL18BT021GINK CN69A FPC 1.0-11S-40PW LUG11 CUP12532Z-4 WIRE CHASSIS OPEN C6101 D6001 R6003 F6001 OPEN C6102 1N4007ST R6101 4.7(1W) T 100mA L 250V C6103 OPEN J6101 C6104 OPEN SWM3.3V R6102 D6002 Q6001 1N4007ST KTC1027YT C6105 OPEN J6102...

  • Page 134: Sch17_Input

    TO CN24B TO CN64B TO CN23B BN64B BN24B BN23B BN23B BN64B BN24B C125Z2 C125Z2 C125Z2 INPUT PART OPEN CUP12533Z-1 AVRX3000 ONLY R4761 R4765 R4773 100K R4762 R4766 R4774 100K JK461 R4763 R4767 R4775 100K CJJ4P048U R4601 R4764 R4776 R4768 100K CBL/SAT_L L CH CBL/SAT...

  • Page 135: Sch18_Input

    (ALL OPEN) CUP12533-1 R8146 R8145 R8143 R8246 R8245 R8243 R8144 R8244 Q8225 Q8125 KTC3875S KTC3875S Q8129 Q8229 R8141 KTC3875S KTC3875S R8241 R8221 R8121 Q8221 Q8121 KTC3875S KTC3875S PREC C8201 PREFL C8101 R8203 Q8223 R8103 Q8123 R8240 R8140 KTA1504S KTA1504S 10/50V 10/50V OPEN OPEN...

  • Page 136: Sch19_Input_Preout

    PREOUT JACK INFORMATION PREOUT PART DGND D8831 1N4007SR JK851 JK852 JK853 JK854 JK855 D8832 1N4007SR R8833 CUP12533-1 AVRX3000E2/E1C CJJ4P077Z CJJ4P048U NOT USE R8835 D8833 1N4007SR (SILVER PLATE, 7.2CH) CJJ4N034U (RCA-405B-55) (RCA-405B-00-04) CJJ4M046U C8831 AVRX3000E3 (RCA-207AE-02) CJJ4M046U (RCA-107B-04) NOT USE NOT USE 10/50V (SILVER PLATE, 0.2CH) (RCA-107B-04)

  • Page 137: Sch20_Input_F-Hdmi

    FRONT HDMI PART CUP12533Z-3 R1101 Q1101 OPEN Q1102 OPEN R1103 JK111 OPEN AD3PBJI19G0 C1101 R1104 19.HP DET OPEN OPEN 18.+5V 17.GND 16.DDC DATA 15.DDC CLK CEC5V 14.NC L1101 13.CEC CN111 12.CK- CN111 11.D1 SHIELD CJP23GA193ZY 10.CK+ 9.D0- 10022H-23C 8.D1 SHIELD 7.D0+ 6.D1- CEC3.3V...

  • Page 138: Sch21_Video

    ANALOG VDIEO PART AVRX3000 ONLY MEDIA PLAYER CBL/SAT IC511 NJM2595MTE1 MONITOR_OUT VIDEO+5V R5113 75(1%) VGND R5114 JK511 BLU-RAY_CVBS_IN OPEN C5111 VIDEO-5V CBL/SAT 10/50V C5112 DVD_CVBS_IN 10/50V R5119 Q5117 OPEN R5116 75(1%) CVTRT1N141C MONITOR OUT CBL/SAT_CVBS_IN OPEN R5115 R5117 75(1%) AUX_CVBS_IN C5121 V.AUX_V_IN C5113...

  • Page 139: Sch22_Video_Rc5_Mxport

    RC-5 / MX-PORT RC-5/MX-PORT (OPEN) R5311 R5312 Q5313 RT1P141C SWM5V Q5312 M3.3V RT1N141C DGND D5311 A+7V A-7V OPEN RC_IN R5313 KILLIR_MZ RC_OUT_MZ BTLINK_MZ FRONT_IRIN JK531 FLASHER_IN_MZ RCA-207AE-07 REMOTE3.3V 232O_MI R5314 232I_MO TRIGGER_1 TRIGGER_2 Q5315 B/P_IRIN_DE 2SC3052 +5VL Q5316 RT1N141C RC5_GND IC531 NJM2845DL133 1.+5VL...

  • Page 140: Sch23_Video_Rs232C_Trigger

    IR / FLASHER RS232C/TRIGGER # Model Options IC521 AVRX3000 ILX3232D C5237 C5236 MOUNT 0.1uF 10/50V PJ-308-02 C5231 C5235 OPEN 0.1uF 0.1uF REMOTE IN(AVR ONLY) DGND D5231 OPEN T1_O R5234 Q5251 RT1P141C RS-232C R1_I R5233 PJ-308-02 C5233 R1_O D5232 OPEN "F" OPTION Q5252 0.1uF JK521...

  • Page 141: Sch24_Amp_Amp1

    J7014 J7018 J7010 OPEN OPEN OPEN R7117 R7138 C7103 1.2K R7118 ZD714 R7115 R7116 1W 270 PTC 115'C 470 ohm 5.1V 100/10V(OPEN) OPEN R7119 1.2K 1W 270 CN715 R7137 Q7138 MMBT5401 D7118 Q7114 680K 1SS133M KTA1024Y Q7118 R7143 KTA1024Y D7139 R7139 Q7001 R7144...

  • Page 142: Sch25_Amp_Amp2

    TO J2 TO J1 R7417 C7403 1.2K R7438 ZD744 R7415 R7418 R7416 100/10V(OPEN) 5.1V OPEN 1W 270 PTC 115'C 470 ohm R7419 1.2K 1W 270 CN745 R7437 Q7438 D7418 Q7414 680K MMBT5401 KTA1024Y 1SS133M R7443 D7439 R7439 22K(3126) Q7418 R7444 R7429 KTA1024Y 1SS133...

  • Page 143: Sch26_Spk

    OPTION C R9201~R9207 R9211 2W 10 AVRX3000/X4000 : 1/5W 10ohm R9221 C9531 L9201 C9511 0.01uF/250V(2012) 0(3216) OPEN 0.5uH JK921 JYEC_NEW ITEM R9201 1W 10 BN701 R9212 BN701 R9202 1W 10 2W 10 C9532 C9512 0.01uF/250V(2012) WIRE/09P/2.5mm OPEN C9212 JK922 L9202 0.047uF(M) JYEC_NEW ITEM 0.5uH...

  • Page 144: Sch27_Spk_Regulator_Tuner

    R9821 OPTION E MODEL AVRX4000 AVRX3000 AREA OTHERS OPTION A TUNER PART C9827 R9825 OPEN OPEN C9821 C9825 OPEN L9821 OPEN OPEN R9823 R9827 OPEN C9809 OPEN OPEN C9810 CHASSIS R9826 C9828 OPTION A OPEN OPEN C9826 C9811 L9822 OPEN OPEN 0.1uF R9824...

  • Page 145: Sch28_Cnt_Connect_A

    SIDE CNT_CUP12522Z(CONNECT A) TO BN23A TO BN27A AVRX3000:N.C AVRX3000:N.C CN23A CN27A CN23A CN27A C125Z1-27 C125Z1-17 AVRX4000 USA VER. ONLY IC961 PQ033DNA1ZPH R9621 C9602 Specific IC C9615 10/50V R9601 OPEN R9607 10/50V R9622 C9603 R9602 OPEN C9609 10/50V C9619 OPEN TO HD RADIO M_XL C9620 MX_GND...

  • Page 146: Sch29_Cnt_Connect_B

    FRT CNT_CUP12522Z(CONNECT B) TO BN25A TO BN26A TO BN21A OPTION ALL MODEL OPTION ALL MODEL CN25A C125Z1-19(19P) CN26A C125Z1-13(13P) AVRX3000:N.C AVRX4000 ONLY TO BN24A CN25A CN26A CN24A CN21A CN25A CN24A CN21A CN26A C125Z1-19 C125Z1-27 C125Z1-19 C125Z1-13 C9701 100/16V C9702 100/16V CN21B CN21B C125Z1-19...

  • Page 147: Sch30_Smps

    SMPS B'D C9002 BK901 CMD1A188 AC100 ~ 120V : T 2A L 250V 0.01uF 250V AC220 ~ 240V : T 1.6A L 250V F9001 J9002 JUMPER D9001 1N4007 INLET R9033 D9002 1N4007 AC IN 2.2M LF901 D9003 1N4007 OPEN LF902 BK902 D9004 1N4007...

  • Page 148: Exploded View

    EXPLODED VIEW Please refer to the last chapter for the part list. S1 X2 S10 x2 S13 x3 SPE1 ONLY S5 x21 P17 x3 S7 x2 S2 X2 E3 ONLY S2 x4 S1 X6 WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.

  • Page 149: Packing View

    PACKING VIEW Please refer to the last chapter for the part list. UK plug (UK Only) 'H' TAPPING 14-1 'I' TAPPING 14-2...
  • Page 150 Personal notes: Personal notes:...

  • Page 151: Semiconductors

    SEMICONDUCTORS Only major semiconductors are shown. General semiconductors etc. are omitted from list. The semiconductors which have a detailed drawing in a schematic diagram are omitted from list. 1. IC's R5F56108VNFP (DIGITAL:IC201) PE0/D8 PC4/A20 PD7/D7 PC5/A21/SCK5/CS5#-D PD6/D6 PC6/A22/RxD5/CS6#-D PD5/D5 PC7/A23/TxD5/CS4#-D/CS7#-D PD4/D4 P64/CS4#-B P76/IRQ14-A...
  • Page 152 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY P02/IRQ10-A/TMO2/ SCK6/TRST# D a t a r e c e i v e d f r o m t h e e x t e r n a l P01/IRQ9-A/TMCI2/ RXD MI232O M3VPu...
  • Page 153 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY O S D c o n t r o l p i n ( A D V 8 0 0 2 o r 45 P12/IRQ2-B/RxD2 ADV8003 SPI MI ADV8003) O S D c o n t r o l p i n ( A D V 8 0 0 2 o r 46 P11/IRQ1-B/SCK2 ADV8003 SPI CLK...
  • Page 154 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY P 7 1 / C S 4 # - C / C S 5 # - C / C S 6 # - C / DIR CLK DIR control pin (LC89058W-E) CS7#-C P 7 0 / C S 3 # - B / DIR RST...
  • Page 155 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY D i g i t a l V I D E O P O W E R S U P P LY 126 P94/AN12 DV POWER2 (DV1.8V) control pin. *CEC STANDBY : MODE1=H , MODE2=L , MODE3=L 127 P93/AN11 MAIN POWER...
  • Page 156 R5F3650KNFB (DIGITAL : IC231)
  • Page 157 Power failure detect(Power failure:L) 19 P81 20 P80/(RXD5) 21 P77/(CLK5) SUB TDO PLD rewriting control (JTAG) A PLD control pin/ DENON WRITTER/ MITSUBISHI 22 P76/(TXD5) A PLD CS /"D/M" rewritten for determining (DW :L) 23 P75 A PLD DATA A PLD control pin...
  • Page 158 Pu/Pd Pin Pin Name Synbol I/O Type P.OFF Function (Ext.) STBY 54 P36 ADV8003 RST SCPU3VPu Reset for HDMI(ADV8003) 55 P35 56 P34 S signal presence detection input (Connected: H) 57 P33 58 P32 DAC MDI DAC control pin(ASK4358) 59 P31 DAC MC DAC control pin(ASK4358) 60 VCC...
  • Page 159 www.ti.com SBAS495 – JUNE 2010 PIN CONFIGURATIONS PT PACKAGE PCM9211 (DIGITAL : IC403) LQFP-48 (TOP VIEW) ERROR/INT0 VDDRX NPCM/INT1 RXIN1 MPIO_A0 MPIO_A1 RXIN2 MPIO_A2 RXIN3 MPIO_A3 RXIN4/ASCKIO PCM9211 MPIO_C0 RXIN5/ABCKIO MPIO_C1 RXIN6/ALRCKIO MPIO_C2 RXIN7/ADIN0 MPIO_C3 MODE MS/ADR1 MPIO_B0 MPIO_B1 MC/SCL PIN FUNCTIONS PIN Functions NAME...
  • Page 160 DESCRIPTION NAME TOLERANT Reset Input, active low(2) (4) RXIN1 Biphase signal, input 1, built-in coaxial amplifier VDDRX – – Power supply, 3.3 V (typ.), for RXIN0 and RXIN1. RXIN0 Biphase signal, input 0, built-in coaxial amplifier GNDRX Ground, for RXIN Oscillation circuit input for crystal resonator or external XTI clock source input(5) Oscillation circuit output for crystal resonator AGND...
  • Page 161 LC89091JA (DIGITAL : IC404) LC89091JA SDIN XOUT...
  • Page 162 ADSP21487KSWZ4B (DIGITAL:IC408) PIN 1 GND PAD (PIN 177) at BOTTOM TOP VIEW (PINS DOWN) ADSP21487KSWZ3B Terminal Function Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. SDDQM DAI_P10 DPI_P08 FLAG0 SDCKE DPI_P07 FLAG1 DAI_P20 FLAG2 CLK_CFG1...
  • Page 163 W9864G2IH W9864G6JH-6 (DIGITAL:IC409) 4. PIN CONFIGURATION                                   ...
  • Page 164 W9864G2IH W9864G6JH-6 Pin description 5. PIN DESCRIPTION PIN NUMBER PIN NAME FUNCTION DESCRIPTION Multiplexed pins for row and column address. Row address: A0−A10. Column address: A0−A7. 24, 25, 26, 27, 60, 61, 62, Address A0−A10 A10 is sampled during a precharge command to 63, 64, 65, 66 determine if all banks are to be precharged or bank selected by BS0, BS1.
  • Page 165 W9864G6JH-6 Block diagram CLOCK BUFFER CONTROL SIGNAL GENERATOR COMMAND DECODER COLUMN DECODER COLUMN DECODER CELL ARRAY CELL ARRAY BANK #0 BANK #1 MODE REGISTER SENSE AMPLIFIER SENSE AMPLIFIER ADDRESS BUFFER DATA CONTROL CIRCUIT BUFFER DQ31 COLUMN REFRESH COUNTER COUNTER DQM0~3 COLUMN DECODER COLUMN DECODER CELL ARRAY...
  • Page 166 MX29LV160DBTI-70G (DIGITAL : IC410) BYTE# DQ15/A-1 DQ14 DQ13 Standa rd DQ12 TSOP RESET# DQ11 RY/BY# DQ10 MX29LV160DBTI-70G Block Diagram Block Diagram RY/BY# DQ0-DQ15 (A-1) Block Protect Switches Erase V oltage Generato r Input/Output Buffers State Control Program Voltage Generato r Command Chip Enable Regi s ter...
  • Page 167 SLAS764 – MAY 2011 www.ti.com DEVICE INFORMATION TERMINAL FUNCTIONS, PCM510x PCM5100 (DIGITAL:IC421) PCM510X (top view) Table 2. TERMINAL FUNCTIONS, PCM510x TERMINAL DESCRIPTION NAME CPVDD Charge pump power supply, 3.3V CAPP Charge pump flying capacitor terminal for positive rail CPGND Charge pump ground CAPM Charge pump flying capacitor terminal for negative rail VNEG...
  • Page 168 PCM1690(DIGITAL:IC441) PCM1690 Pin Function TERMINAL PULL- DESCRIPTION DOWN TOLERANT NAME RSV2 — — — Reserved, tied to analog ground RSV1 — — — Reserved, left open RSV2 — — — Reserved, tied to analog ground RSV1 — — — Reserved, left open RSV2 —...
  • Page 169 TERMINAL PULL- DESCRIPTION DOWN TOLERANT NAME VOUT1+ Positive analog output from DAC1 VOUT1- Negative analog output from DAC1 RSV2 — — — Reserved, tied to analog ground PCM1690 AGND2 — — — Analog ground 2 VCC2 — — — Analog power supply 2, +5 V RSV2 —...
  • Page 170 No Connection Figure 1 : Logic Diagram Table 1 : Signal Names H27U1G8F2BTR-BC (DIGITAL:IC394) I/O5 I/O7 I/O8 I/O1 I/O10 I/O12 I/O14 I/O9 I/O3 I/O6 I/O15 I/O0 I/O2 I/O11 I/O4 I/O13 H27U1G8F2B Series 1 Gbit (128 M x 8 bit) NAND Flash Figure 2 : 48-TSOP1 / 63-FBGA Contact, x8 Device 1.2 PIN DESCRIPTION H27U1G8F2BTR-BC Pin Function...
  • Page 171 H27U1G8F2B Series 1 Gbit (128 M x 8 bit) NAND Flash H27U1G8F2BTR-BC Block Diagram A27 ~ A0 ADDRESS REGISTER/ COUNTER PROGRAM ERASE CONTROLLER 1024 Mbit + 32 Mbit HV GENERATION NAND Flash MEMORY ARRAY COMMAND INTERFACE LOGIC PAGE BUFFER COMMAND REGISTER Y DECODER DATA...
  • Page 172 A3V56S30FTP-G6 (DIGITAL:IC392, 393) PIN CONFIGURATION (TOP VIEW) PIN CONFIGURATION (TOP VIEW) DQ15 VddQ VddQ VssQ VssQ DQ14 DQ13 VssQ VssQ VddQ VddQ DQ12 DQ11 VddQ VddQ VssQ VssQ DQ10 VssQ VssQ VddQ VddQ DQML DQMU /CAS /CAS /RAS /RAS A10(AP) A10(AP)
  • Page 173 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V56S30FTP-G6 Pin Function Pin Descriptions SYMBOL TYPE DESCRIPTION Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers. Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CLK signal.
  • Page 174 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V56S30FTP-G6 Block Diagram Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support Datasheet Chapter 2 Pin Description and Configuration Note:This figure shows the A3V56S30FTP The A3V56S40FTP configuration is 8192x512x16 of cell array and DQ0-15 LAN8720A (HDMI:U2802) Type Designation Code A 3Ｖ...
  • Page 175 Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support Datasheet Pin Assignments LAN8720A Pin Function Table 2.8 24-QFN Package Pin Assignments PIN NUM PIN NAME PIN NUM PIN NAME VDD2A LED2/nINTSEL nINT/REFCLKO Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support LED1/REGOFF nRST Datasheet...
  • Page 176 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) R2A15218FP (INPUT : IC471) AVCC MUTE AVCC N.C. AVEE AVEE N.C. TREL 0/-6/-12/-18dB ADCL BASSL2 ADCR BASSL1 N.C. AGND Bass/ Treble 0~-95dB, -14~+14dB -∞...
  • Page 177 R2A15218FP R2A15218FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control PIN DESCRIPTION R2A15218FP Pin Function PIN No. Function Name 23,21, FROUT,FLOUT, 17,15, COUT,SWOUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel 11,9, SROUT, SLOUT, SBROUT,SBLOUT 24,20, FRC,FLC, 18,14, CC,SWC, Connects capacitor for reducing click noise of 12,8, SRC,SLC, L/R/C/SW/SL/SR/SBL/SBR channel volume...
  • Page 178 G   G    I I I I BLOCK DIAGRAM NJW1194A (INPUT : IC484)                        ...

  • Page 179: Fl Display

    2. FL DISPLAY FLD (018BT021GINK) (FRONT : FL601) PIN CONNECTION...
  • Page 180 GRID ASSIGNMENT...
  • Page 181 ANODE CONNECTION...
  • Page 182 FRONT FRONT PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 183 FRONT REF No. Part No. Part Name Remarks Q'ty New C6503,6504 CAP, CHIP(1608, 50V/0.1uF) CCUS1H104KC C6506 CAP, CHIP(1608, 50V/0.1uF) CCUS1H104KC C6507 CAP, ELECT(50V/1uF)-S CCEA1HKS1R0T C6508,6509 CAP, CHIP(1608, 50V/0.1uF) CCUS1H104KC C6802 CAP, CHIP(1608, 50V/0.1uF) CCUS1H104KC C6803 CAP, ELECT(10V/220uF)-S KC3-10V221MA5(8*5L) CCEA1AKS221T OTHER PARTS GROUP BK601,602 BRACKET , FIP CMD1A572-V1...
  • Page 184 AMP PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 185 REF No. Part No. Part Name Remarks Q'ty New Ver ZD774 943202010080S DIODE , ZENER ,1/2W, 5.1V ZJ5.1B/HOMI(H.K) COMPANY LTD CVDZJ5.1BT RESISTOR GROUP R7001 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R7002 00MGD05333160 RES, CARBON(1/5W,33Kohm,J) CRD20TJ333T R7011 RES, CHIP(1608/5%/330Kohm) CRJ10DJ334T ! R7012 252310006520S PTC THEMISTORS, CHIP(95'C) PRF18BD471QB5RB CRTPRF18BD471QB5RB R7013 RES, CHIP(1608/5%/330Kohm)
  • Page 186 REF No. Part No. Part Name Remarks Q'ty New Ver R7401 00MGD05122160 RES, CARBON(1/5W,1.2Kohm,J) CRD20TJ122T R7402 00MGD05474160 RES, CARBON(1/5W,470Kohm,J) CRD20TJ474T R7403 00MGD05333160 RES, CARBON(1/5W,33Kohm,J) CRD20TJ333T R7404 00D9430101101 WIRE, COPPER(D0.6) CU97.8/SN2.1, D0.6 C3A206 0.02 R7405 RES, M-OXIDE FILM(1W/1Kohm) CRG1SANJ102RT R7406 RES, CARBON(1/5W,470ohm,J) CRD20TJ471T R7407 00D9430101101...
  • Page 187 REF No. Part No. Part Name Remarks Q'ty New Ver R7716,7717 00MGD05122160 RES, CARBON(1/5W,1.2Kohm,J) CRD20TJ122T R7718,7719 RES, M-OXIDE FILM(1W/270ohm) CRG1SANJ271RT R7720 RES, M-OXIDE FILM(2W/15Kohm) CRG2SANJ153RT R7721 RES, M-OXIDE FILM(1W/270ohm) CRG1SANJ271RT R7724 00MGD05272160 RES, CARBON(1/5W,2.7Kohm,J) CRD20TJ272T R7725 RES, CARBON(1/5W,470ohm,J) CRD20TJ471T R7726 00MGD05561160 RES, CARBON(1/5W,560ohm,J) CRD20TJ561T R7729,7730...
  • Page 188 REF No. Part No. Part Name Remarks Q'ty New Ver CN725 WAFER (3PIN, AN, 2MM, JWT) GIL-S-03P-S2L2-EF, JWT CJP03GB48ZW CN735 WAFER (3PIN, AN, 2MM, JWT) GIL-S-03P-S2L2-EF, JWT CJP03GB48ZW CN745 WAFER (3PIN, AN, 2MM, JWT) GIL-S-03P-S2L2-EF, JWT CJP03GB48ZW CN755 WAFER (3PIN, AN, 2MM, JWT) GIL-S-03P-S2L2-EF, JWT CJP03GB48ZW CN765 WAFER (3PIN, AN, 2MM, JWT) GIL-S-03P-S2L2-EF, JWT...
  • Page 189 SPK PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 190 CNT PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 191 INPUT INPUT PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 192 INPUT REF No. Part No. Part Name Remarks Q'ty New R8563 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R8567,8568 RES, CHIP(1608/5%/10Kohm) E2/E1C CRJ10DJ103T R8569 RES, CHIP(1608/5%/470Kohm) CRJ10DJ474T R8570 RES, CHIP(1608/5%/1Kohm) CRJ10DJ102T R8571,8572 RES, CHIP(1608/5%/470Kohm) E2/E1C CRJ10DJ474T R8573-8576 RES, CHIP(1608/5%/470ohm) E2/E1C CRJ10DJ471T R8577-8580 RES, CHIP(1608/5%/100Kohm) E2/E1C CRJ10DJ104T R8581,8582...
  • Page 193 INPUT REF No. Part No. Part Name Remarks Q'ty New JK461,462 943643101570S JACK, 4P(W/R,W/R),SEPA-GND RCA-405B-00-04 CJJ4P048U JK466 943643010150S JACK, 2P(W/R),SEPA-GND, SILVER RCA-207AE-02/YUQIU CJJ4N034U JK851 943643010150S JACK, 2P(W/R),SEPA-GND, SILVER RCA-207AE-02/YUQIU CJJ4N034U JK852 643010079004S JACK, 4P(W/R,W/B),SEPA-GND, SILVER RCA-405B-55/YUQIU E2/E1C CJJ4P077Z JK853 943643101570S JACK, 4P(W/R,W/R),SEPA-GND RCA-405B-00-04 E2/E1C CJJ4P048U...
  • Page 194 VIDEO VIDEO PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 195 DIGITAL DIGITAL PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 196 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R1243-1246 RES, CHIP(1608/5%/51ohm) CRJ10DJ510T R1248 RES, CHIP(1005/5%/0ohm) CRJ06IJ0R0T R1250 RES, CHIP(1005/5%/47Kohm) CRJ06IJ473T R1251 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R1254 RES, CHIP(1005/5%/1Kohm) CRJ06IJ102T R1255,1256 RES, CHIP(1005/5%/10ohm) CRJ06IJ100T R1258,1259 RES, CHIP(1005/5%/2.2Kohm) CRJ06IJ222T R1260 RES, CHIP(1608/5%/0ohm) . CRJ10DJ0R0T R1261-1268 RES, CHIP(1005/5%/33ohm)
  • Page 197 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R2346 RES, CHIP(1005/5%/100Kohm) CRJ06IJ104T R2347 RES, CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R2348 RES, CHIP(1005/5%/2.2Mohm) CRJ06IJ225T R2349 RES, CHIP(1005/5%/47Kohm) CRJ06IJ473T R2350 RES, CHIP(1005/5%/100Kohm) CRJ06IJ104T R2351 RES, CHIP(1005/5%/220Kohm) CRJ06IJ224T R2352 RES, CHIP(1005/5%/27Kohm) CRJ06IJ273T R2353 RES, CHIP(1005/5%/3.3Kohm) CRJ06IJ332T R2354 RES, CHIP(1005/5%/1.2Kohm)
  • Page 198 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R3101-3103 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3202-3204 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3205 RES, CHIP(1005/5%/10ohm) CRJ06IJ100T R3211 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R3212 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3216-3218 RES, CHIP(1005/5%/33ohm*4) CRJ064IJ330T R3229,3230 RES, CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R3242,3243 RES, CHIP(1608/5%/3.3ohm) CRJ10DJ3R3T R3244 RES, CHIP(1005/5%/1.2Kohm)
  • Page 199 DIGITAL REF No. Part No. Part Name Remarks Q'ty New R4232-4234 RES, CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R4235 RES, CHIP(1005/5%/100ohm) CRJ06IJ101T R4401 RES, CHIP(1608/5%/33ohm) CRJ10DJ330T R4402 RES, CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R4403 RES, CHIP(1005/5%/1Kohm) CRJ06IJ102T R4404 RES, CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R4411-4414 RES, CHIP(1608/5%/15Kohm) CRJ10DJ153T R4415-4418 RES, CHIP(1608/5%/150Kohm) CRJ10DJ154T R4419-4422 RES, CHIP(1608/5%/12Kohm)
  • Page 200 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C1244 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1245 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC C1246,1247 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1249 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1250 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC C1251 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1252 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC...
  • Page 201 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C1413 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC C1414 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1416 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1417 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC C1418 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1419 CAP, CHIP(1005, 25V/0.01uF) CCUI1E103KC C1420 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC...
  • Page 202 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C1578 CAP, CHIP(1608, 16V/0.15uF) CCUS1C154KC C1579 CAP, CHIP(1005, 25V/0.012uF) CCUI1E123KC C1580 CAP, CHIP(1608, 16V/0.15uF) CCUS1C154KC C1581 CAP, CHIP(1005, 25V/0.012uF) CCUI1E123KC C1586,1587 CAP, CHIP(1608, 10V/1uF) CCUS1A105KC C1590,1591 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C1592,1593 CAP, CHIP(1608, 50V/12pF) CCUS1H120JA...
  • Page 203 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C3077 CAP, SMD ELECT(16V/10uF) LELON HCEC1CRV2100T C3078,3079 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C3080 CAP, CHIP(1608, 10V/1uF) CCUS1A105KC C3081 CAP, CHIP(2012, 6.3V/10uF, X7R) CCUC0J106KC C3082 CAP, CHIP(1608, 10V/1uF) CCUS1A105KC C3083 CAP, CHIP(2012, 6.3V/10uF, X7R) CCUC0J106KC C3086 943134500030S...
  • Page 204 DIGITAL REF No. Part No. Part Name Remarks Q'ty New C4491,4492 CAP, CHIP(1005, 16V/0.1uF) CCUI1C104KC C4493,4494 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC C4497-4499 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC C4537,4538 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC C4540-4542 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC C4544 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC C4581 CAP, CHIP(1005, 50V/1000pF) CCUI1H102KC...
  • Page 205 DIGITAL REF No. Part No. Part Name Remarks Q'ty New X2301 943141100730S X-TAL, SMD 3.2X2.5, 16.000MHz, 9PF 7V16000001 COX16000I090ST X3900 943141100640S X-TAL, SMD 3.2X2.5, 24.000MHz, 8PF 7V24000002 COX24000I080ST X4001 943141100620S X-TAL, SMD 3.2X2.5, 24.576MHz, 12PF 7V24500006 COX24576I120ST X4002 943141100740S X-TAL, SMD 3.2X2.5, 25.000MHz, 12PF 7V25000009 COX25000I120ST X5001 943141100720S...
  • Page 206 SMPS SMPS PCB ASS'Y ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
  • Page 207 9U6391011100D DIGITAL PCB MANUAL ASS'Y COP12535J 9U6391011200D DIGITAL PCB MANUAL ASS'Y COP12535K 9U6391011300D DIGITAL PCB MANUAL ASS'Y COP12535L 42141002400AD BADGE , DENON CGB1A254Z-V1 42141002401AD BADGE , DENON CGB1A254Y-V1 42141002600AD BADGE , IN COMMAND CGB1A268Z EARTH , USB CMD1A843 00M07BW257010 CABINET , TOP...
  • Page 208 EXPLODED SCREW , DOT CTBD3+8JFN ★ 943606501600S CARD CABLE(1mm/23P/300mm/B) CWC4F2A23A300B10 ★ 943606502040D CARD CABLE(1mm/40P/250mm/B/sheild) CWC4F2A40A250B08001 ★ 2P WIRE ASS'Y(100MM) CWZPM5003TW91 ★ 2P WIRE ASS'Y(100MM) CWZPM5003TW91A ★ ORNAMENT , REAR PANEL CGX1A487Z ★ CUSHION , SUPPORT CHG1A305 ★ LOCKER SH08M790BO E2/E1C CRE1A037 ★...
  • Page 209 PACKING PACKING ※Parts indicated by "nsp" on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.

Table of Contents

Save PDF
