Table of Contents

Quick Links

AVR-X3200W

• For purposes of improvement, specifications and design are subject to change without notice.

• Please use this service manual with referring to the operating instructions without fail.

• Some illustrations using in this service manual are slightly different from the actual set.

S1097V02DM/DG1509

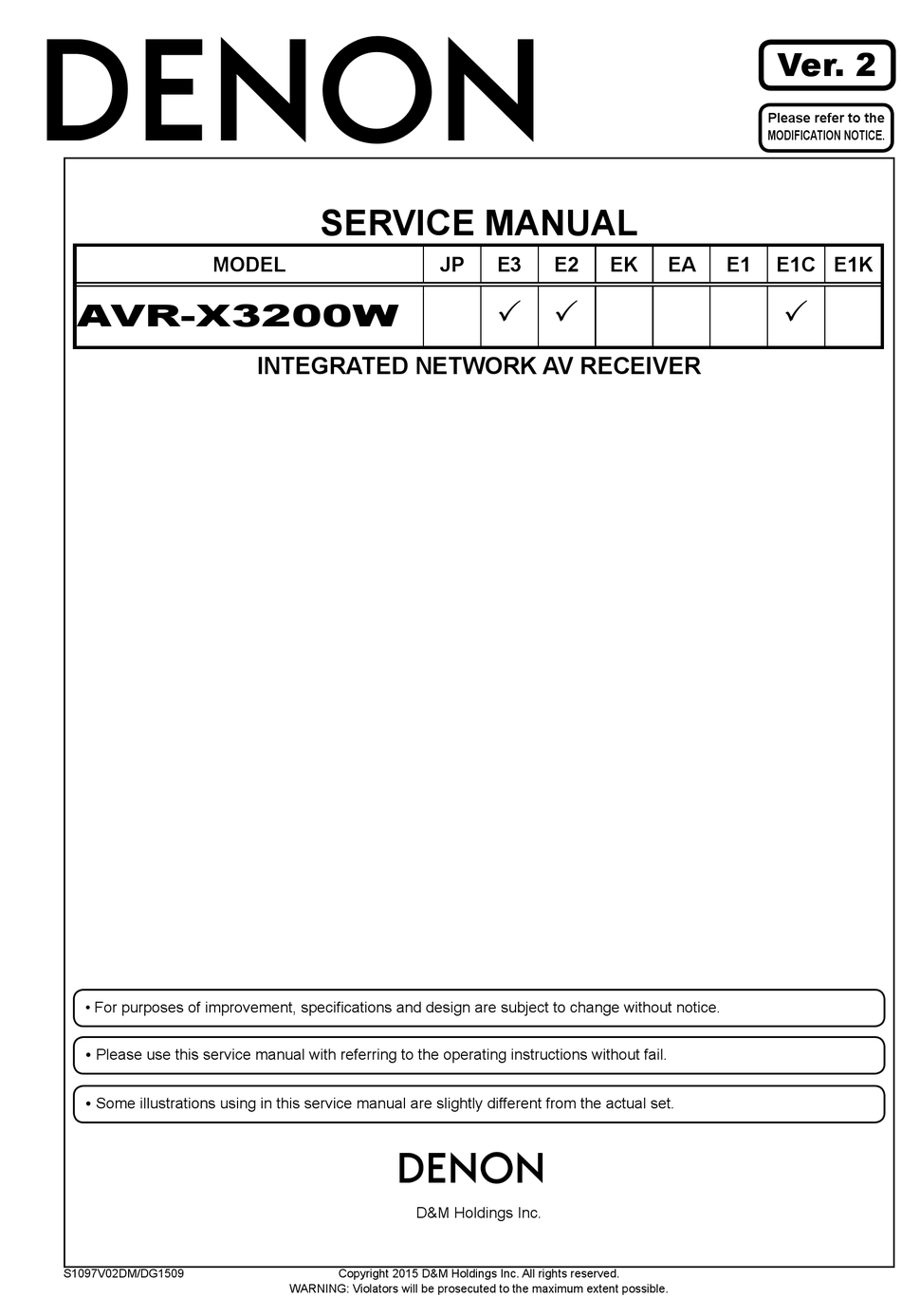

SERVICE MANUAL

MODEL

INTEGRATED NETWORK AV RECEIVER

WARNING: Violators will be prosecuted to the maximum extent possible.

P P

D&M Holdings Inc.

Ver. 2

Please refer to the

MODIFICATION NOTICE.

E1C E1K

Table of Contents

Need help?

Do you have a question about the AVR-X3200W and is the answer not in the manual?

Questions and answers

Summary of Contents for Denon AVR-X3200W

Page 1 MODIFICATION NOTICE. SERVICE MANUAL MODEL E1C E1K AVR-X3200W INTEGRATED NETWORK AV RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.
Page 2: Table Of Contents
CONTENTS ABOUT THIS MANUAL ..............3 Audio Check PASS ..............105 What you can do with this manual ...........3 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK ....106 Using Adobe Reader (Windows version) ........4 LEVEL DIAGRAM ..............107 SAFETY PRECAUTIONS ...............6 BLOCK DIAGRAM ..............113 NOTE FOR SCHEMATIC DIAGRAM ..........7 POWER DIAGRAM ..............117 NOTE FOR PARTS LIST ..............7...
Page 3: About This Manual
ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.
Page 4: Using Adobe Reader (Windows Version)
Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed circuit board diagrams - 1 TheSignfunctionletsyouaddnotestothedatain (Ctrl+Space, mouse operation) this manual. Savethefileonceyouhavefinishedaddingnotes. Press Ctrl+Spaceonthekeyboardanddragthe [Example using Adobe Reader X] mousetoselecttheareayouwanttoview. On the "View" menu, click "Sign". • Theselectedareaismagnified.
Page 5 Magnify schematic / printed circuit Magnify schematic / printed circuit board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) ThePan&Zoomfunctionletsyouseewhichpartof TheLoupeToolfunctionletsyoumagnifyaspecific amagnifieddiagramisbeingshowninaseparate part of a diagram in a separate window. window. [Example using Adobe Reader X] On the "View"...
Page 6: Safety Precautions
SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.
Page 7: Note For Schematic Diagram
NOTE FOR SCHEMATIC DIAGRAM WARNING: Partsindicatedbythe z markhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer. CAUTION: Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. WARNING: DONOTreturnthesettothecustomerunlesstheproblemisidentifiedandremedied.
Page 8 Personal notes:...
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS n Audio section Distortion : MONO ― 0.7 % (for E3) MONO ― 0.7 % (1 kHz) (for E2, E1C) • Power amplifier SRETEO ― 1.0 % (for E3) Rated output : SRETEO ― 1.0 % (1 kHz) (for E2, E1C) Front : n Wireless LAN section 105W+105W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
Page 10: Dimension
DIMENSION Unit : in. (mm) Weight : 24 lbs 15 oz (11.3 kg) 17 1/8 (434) 2 3/8 (60) 13 1/2 (340)
Page 11: Caution In Servicing
CAUTION IN SERVICING Initializing This Unit Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB. Press the power button to turn off the power. While holding down buttons "ZONE2 SOURCE" and "DIMMER" simultaneously, press the power button to turn on the power.
Page 12: Disassembly
DISASSEMBLY • Remove each part following the flow below. • Reassemble the removed parts in the reverse order. Read "Precautions During Work" before reassembling the removed parts. • • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work.
Page 13 • The photographs with no shooting direction indicated were taken from the top of the unit. • Photos of AVR-X3200W E3 are used in this manual. The viewpoint of each photograph (Shooting direction : X) [View from the top] ↓Shooting direction: B↓...
Page 14: Front Panel Assy
1. FRONT PANEL ASSY Proceeding : TOP COVER FRONT PANEL ASSY → (1) Remove the screws. View from the bottom (2) Remove the screws. Remove the STYLE PIN and connector wire. Remove the FFC. CN602 STYLE PIN CN321 2. RADIATOR ASSY Proceeding : TOP COVER FRONT PANEL ASSY RADIATOR ASSY...
Page 15: Digital Pcb
3. DIGITAL PCB Proceeding : TOP COVER BACK CHASSIS DIGITAL PCB → → (1) Remove the screws. Shooting direction: A (2) Cut the wire clamp, then remove the STYLE PIN, FFC and connector wire. CN903 CN704 STYLE PIN x5 CN321 (3) Remove the connector.
Page 16: Video Pcb
4. VIDEO PCB Proceeding : TOP COVER BACK CHASSIS DIGITAL PCB VIDEO PCB → → → (1) Cut the wire clamp, then remove the connector. BN21B BN28B CUT x4 BN27B 5. INPUT PCB Proceeding : TOP COVER → BACK CHASSIS →...
Page 17: Spk Pcb
6. SPK PCB Proceeding : TOP COVER BACK CHASSIS DIGITAL PCB VIDEO PCB INPUT PCB → → → → SPK PCB → (1) Remove the screws. View from the bottom (2) Cut the wire clamp, then remove the connector wire. CN461 CN704 CN702...
Page 18: Special Mode
Check the Video/Audio path Mode ↑ video channel. (See page If there are multiple DENON AV receivers in the same area, this mode prevents other AV receivers from being operated concur- Remote ID Setup Mode ↑ rently with this device.
Page 19: Version Display Mode
1. Version Display Mode 1.1. Actions Version information is displayed when the device is started in this mode. 1.2. Starting up While holding down buttons "DIMMER" and "STATUS" simultaneously, press the power button to turn on the power. then press the "STATUS" button to display the information in section 1.3 on the display. The version list is also displayed on GUI while the version is displayed on the display.
Page 20 Q0 Ethernet 1st Boot Loader, Hardware ID : E t h e r n e t F B L Press "STATUS" button. * * * * * * - b d Q1 Ethernet 2nd Boot Loader, Rhapsody Flag : E t h e r n e t S B L Press "STATUS"...
Page 21 1.4. Error display See the table below for descriptions of the displayed errors and countermeasures for these. If multiple errors occur, only one item is displayed. Item is displayed. The priority order is w , e , r , t , y , q . Condition States Display...
Page 22 1.5. Version Display in the Setup Menu Follow the steps below to display the firmware information. (1) Press the "SETUP" button on the remote control. (2) Select "General - Information - Firmware". The version information is displayed as a 12-digit number as shown in the screenshot below. General/Firmware Version XXXX - XXXX - XXXX...
Page 23: Panel / Remote Lock Selection Mode
2. PANEL / REMOTE LOCK Selection Mode 2.1. Actions Switch the PANEL LOCK and REMOTE LOCK modes between on and off. 2.2. Starting up While holding down buttons "TUNER PRESET CH+" and "ZONE2 SOURCE" simultaneously, press the power button to turn on the power.
Page 24: Selecting The Mode For Service-Related Operations
3. Selecting the Mode for Service-related Operations 3.1. Actions Select diagnostic mode (service path check mode), protection history display mode, or 232C standby clear mode. 3.2. Starting up While holding down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" simultaneously, press the power button to turn on the power.
Page 25 3.4 PROTECTION DIAGRAM PAMP PCB DIGITAL PCB TR_THERMAL uCOM DC/ASO PROT 125pin/AN105 PROTECTION LOGIC ⇒ L_activeshutdown ⇒ L_activeshutdown THER PROTF ⇒ L_activeshutdown TR_THERMAL THER_PROT_E 161pin/P91 THER PROTA ⇒ L_activeshutdown THER_PROT_F 163pin/P90 THER_PROT_A 159pin/P93 TR_THERMAL CURRENT (After 90sec ) CURRENT_DET 166pin/AN006 Over 1.0V &...
Page 26 3.5. DIAGNOSTIC MODE (Service Path Check Mode) 3.5.1. Actions This function is convenient for confirming problem paths in the product and executing a path check after repair. The Video and Audio paths can be checked. The backup data is not rewritten. 3.5.2. Starting up Hold down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" at the same time and press the power button to turn on the power. Select the mode using the button "TUNER PRESET CH+", and press the button "STATUS"...
Page 27 3.5.6. Audio system confirmation items fig. XX: See the block diagram of the fig.XXth. Paths confirmation item Display Settings Contents of confirmation Remarks Analog Input Source : CBL/SAT ・Analog input ⇒ Speaker output (FRONT L,R) A 0 1 : A N A L O G P A S S Input Mode : ANALOG(fixed) ・Analog input ⇒...
Page 28: Diagnostic Path Diagram
DIAGNOSTIC PATH DIAGRAM AVR-X3200W ANALOG VIDEO BLOCK fig.01 CBL/SAT CBL/SAT_V DVD_V CVBS IN GAME Blu-Ray_V V.AUX(FRONT) V.AUX_V NOT USED NOT USED CVBS MONITOR COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 AVR-X3200WBKE3 ONLY V_AUX_V DVD_Y CBL/SAT_V...
Page 29 AVR-X3200W ANALOG VIDEO BLOCK fig.02a CBL/SAT CBL/SAT_V DVD_V CVBS IN GAME Blu-Ray_V V.AUX(FRONT) V.AUX_V NOT USED NOT USED CVBS MONITOR COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 AVR-X3200WBKE3 ONLY V_AUX_V DVD_Y CBL/SAT_V COMPONENT IN...
Page 30 AVR-X3200W HDMI VIDEO BLOCK fig.02b HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 31 AVR-X3200W HDMI VIDEO BLOCK fig.03 HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 32 AVR-X3200W HDMI VIDEO BLOCK fig.04 HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) uCOM (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx...
Page 33 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.05a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 34 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.05b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ADINL ZONE3 DIR ZONE2 DIR OPT.0 DIR + ADC DIRADLRCK DIGTAL IN OPT.1 LC89091JA-H LC89091JA-H...
Page 35 AVR-X3200W HDMI VIDEO BLOCK fig.05c HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 36 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.06a AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ADINL ZONE3 DIR ZONE2 DIR OPT.0 DIR + ADC DIRADLRCK DIGTAL IN OPT.1 LC89091JA-H LC89091JA-H...
Page 37 AVR-X3200W HDMI VIDEO BLOCK fig.06b HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 38 AVR-X3200W HDMI VIDEO BLOCK fig.07 HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 39 AVR-X3200W HDMI VIDEO BLOCK fig.08 HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 40 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.09 Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 41 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.10a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 42 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.10b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ADINL ZONE3 DIR ZONE2 DIR OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 43 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.11a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 44 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.11b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ADINL ZONE3 DIR ZONE2 DIR OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 45 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.12a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 46 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.12b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 47 AVR-X3200W HDMI VIDEO BLOCK fig.12c HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 4K/2K...
Page 48 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.13a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 49 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.13b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 50 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.14 Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 51 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.15a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 52 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.15b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 53 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.16a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 54 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.16b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 55 AVR-X3200W ANALOG AUDIO BLOCK ﬁg.17a Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69...
Page 56 AVR-X3200W DIGITAL AUDIO BLOCK ﬁg.17b AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H...
Page 57 3.6. Protection History Display Mode 3.6.1. Actions This mode enables the unit to record and display the event when the THERMAL, CURRENT, ASO or DC protection is activated. If protections have been activated multiple times, the latest protection operation is recorded. 3.6.2.
Page 58 3.6.4. Clearing the Protection History There are two ways to clear the protection history. (a) Activate Protection History Display Mode. Press the "STATUS" button to display the protection history. Press and hold the "DIMMER" button for 3 seconds. P R T : D C Press and hold the "DIMMER"...
Page 59 3.8. Operation Info Mode 3.8.1. Actions This mode enables the unit to display the accumulated operating time, power on count and each protection count. 3.8.2. Starting up While holding down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" simultaneously, press the power button to turn on the power.
Page 60 3.9. TUNER STEP mode (E2 / E3 only) 3.9.1. Actions This is a special mode for enabling reception STEP of the ANALOG TUNER to be changed. 3.9.2. Starting up While holding down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" simultaneously, press the power button to turn on the power.
Page 61: Remote Id Setup Mode
4. Remote ID Setup Mode 4.1. Actions This function allows only the desired AV receiver to be operated if multiple DENON AV receivers are used in the same room. 4.2. Starting up While holding down buttons "ZONE2 SOURCE", "DIMMER" and "STATUS" simultaneously, press the power button to turn on the power.
Page 62: Protection Pass Mode
5. Protection Pass Mode 5.1. Actions • This mode allows the power to be turned on without activating protections. • This mode functions in the same way as normal power-on, except that protections are not activated. 5.2. Operations While holding down buttons "TUNER PRESET CH -", "ZONE2 SOURCE" and "STATUS" simultaneously, press the pow- er button to turn on the power.
Page 63: Cy920 Initialization Mode
7. CY920 Initialization Mode 7.1. Actions The following items are initialized. (1) Favorites (2) Quick Select (3) Presets (4) Internet Radio Recently Played (5) Flickr contacts (6) User ID (7) Resume Playback station 7.2. Operations While the power is on, hold down buttons "ZONE2 SOURCE" and "DIMMER" for at least 3 seconds. Initializing Display I n i t i a l i z i n g I n i t i a l i z i n g .
Page 64: Jig For Servicing
JIG FOR SERVICING Use the following jigs (extension cable kit) when repairing the PCBs. Order with your dealer for the jigs your dealer if necessary. CAUTION : Incorrect connections may cause malfunction. • Connection of Jig for DIGITAL PCB ---Items to Be Prepared--- 8U-110084S EXTENSION UNIT KIT 1 set...
Page 65 BN21B BN28B CUT x4 BN27B From AMP PCB BN24C BN26C BN64C CN706 BN23C (3) Remove the DIGITAL PCB from the chassis and turn it over. Place an insulation sheet larger than the PCB underneath the DIGITAL PCB. Connect the earth of the PCB to the chassis using an earth wire, etc. PCB INPUT PCB VIDEO PCB DIGITAL...
Page 66 (4) Connect the expansion cables. PCB FRONT CNT PCB DIGITAL PCB SIDE CNT PCB FRONT CNT PCB VIDEO PCB SIDE CNT PCB FRONT CNT PCB INPUT PCB SIDE CNT Board-to-Board Connections Ref. No. Ref. No. 15pin CN27A SIDE CNT BN27A DIGITAL 27pin CN23A...
Page 67: Procedure After Replacing The Printed Circuit Boards
DIGITAL PCB Model Name Model Area R1589 R1590 North America (E3) OPEN Europe (E2) OPEN AVR-X3200W China (E1C) Japan (JP) See the PCB below. (2) Be sure to rewrite with the latest software for your service region. TP39 D4332 D4312 D3962...
Page 68: Firmware Update Procedure
FIRMWARE UPDATE PROCEDURE 1. Updating via USB The latest firmware can be downloaded to a USB memory for updates. 1.1. Connecting to the USB Memory (1) Preparation • Use a memory that supports USB2.0. • USB format : Prepare a USB memory formatted in FAT16 or FAT32. •...
Page 69 1.3. File structure on USB Memory Copy the update files to the USB memory with the following structure. USB memory root Model Name Model Area Product ID AVR-X3200WE3 North America (E3) 000100840100 AVR-X3200WE2 Europe (E2) 000100840200 AVR-X3200WE1C China (E1C) 000100840500 + firmwares + 000100XXXXXX + APLD.bin...
Page 70 1.8. The firmware update finishes. When the update is completed, the following message appears on the display, then the unit returns to the normal status. Display U p d a t i n g C o m p l e t e ---Cautions on Firmware Update--- •...
Page 71 1.10. About the error codes See the table below for error codes and details of faults when the firmware is updated through USB memory. Error USB Update Error Display Details of Error code Remedies Code Disconnect and reconnect the USB Unable to detect USB.
Page 72 Error USB Update Error Display Details of Error code Remedies Code This unit automatically retries the request several times. Wait until the Error in Verify after rewriting Main Display stops. If the Display stops at the U p d a t e C h e c k N G (Check Sum Error).
Page 73 Error USB Update Error Display Details of Error code Remedies Code This unit automatically retries the request several times. Wait until the Error notification received while Display stops. If the Display stops at the U p d a t i n g f a i l requesting the Firmware Info.
Page 74 Error USB Update Error Display Details of Error code Remedies Code This unit automatically retries the request several times. Wait until the Setup failure of the XModem Display stops. If the Display stops at the U p d a t i n g f a i l transfer method.
Page 75 Error USB Update Error Display Details of Error code Remedies Code This unit automatically retries the request several times. Wait until the No Firmware File in USB. Display stops. If the Display stops at the F i l e s N o t F o u n d Error display, press and hold the "Power operation"...
Page 76 1.11. Device display during the firmware update Display the device being updated and the update progress. Target device USB Update Display Error code when an error occurs 10 - 16 Main CPU 36 - 3D M a i n : * * % * * * m i n 50 - 52 Audio PLD...
Page 77: Updating Via Dpms
2. Updating via DPMS Download the latest firmware from our website and update the firmware. 2.1. Network Connection (1) System Requirements • Internet Connection by Broadband Circuit • Modem • Router • Ethernet cable (CAT-5 or greater is recommended) (2) Setting Internet Computer Modem...
Page 78 2.3. About the error codes See the following table for details on the error code display, details of the error code, remedies when updating the firm- ware via DPMS. (DPMS : D&M Product Management Server) Error DPMS Update Error Display Details of Error code Remedies Code...
Page 79 Error DPMS Update Error Display Details of Error code Remedies Code Abnormal data in Update Packet Turn off and on the power. Updating received from CY920 (Packet No U p d a t i n g f a i l starts automatically.
Page 80 Error DPMS Update Error Display Details of Error code Remedies Code Check the network connection. Carry DPMS connection Time Out Error. out the update in an environment that C o n n e c t i o n F a i l 3 9 has little network load.
Page 81 Error DPMS Update Error Display Details of Error code Remedies Code NACK received in response or Turn off and on the power. Updating no response from Sub for the "L" U p d a t i n g f a i l starts automatically.
Page 82 Error DPMS Update Error Display Details of Error code Remedies Code Check the network connection. Carry IP Address acquisition failure out the update in an environment that C o n n e c t i o n F a i l A 1 (Time Out).
Page 83 Device display during the firmware update Display the device being updated and the update progress. Target device DPMS Update Display Error code when an error occurs 10 - 16 Main CPU M a i n : * * % * * * m i n 36 - 3F 50 - 52 Audio PLD...
Page 84: Adjustment
ADJUSTMENT Adjusting Idling Current 1. Preparation (1) Prepare a DC voltmeter. (2) Place the unit under normal usage conditions, away from highly ventilated areas such as next to an air conditioning machine or electric fan. The set requires an ambient temperature of 15℃ to 30℃ and standard humidity. (3) Settings of This Unit •...
Page 85: Surround Modes And Parameters
SURROUND MODES AND PARAMETERS Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. Channel output Front Dolby Surround Dolby...
Page 86 Surround Parameter Audyssey Tone Restorer Sound mode MultEQ® XT Dynamic EQ Dynamic Volume Center Spread DTS Neural:X Direct/Pure Direct (2-channel) z5 Direct/Pure Direct (Multi-channel) z5 DSD Direct (2-channel) DSD Direct (Multi-channel) z5 Stereo Multi Ch In Dolby Surround DTS Neural:X Dolby Digital Dolby Digital Plus Dolby TrueHD...
Page 87 c - i Dolby Dolby Dolby Sound mode NOTE Analog / (Super DTS- DTS ES DTS ES Dolby Dolby (Super Digital DTS:X Digital Digital (-HD) Audio Multi Express Dscrt6.1 Mtrx6.1 Atmos TrueHD Audio (+/HD) Plus (EX) Multi Ch In Multi Ch In Multi Ch In + Dolby Surround Multi Ch In 7.1 Multi Ch In + Neural:X...
Page 88: Trouble Shooting
TROUBLE SHOOTING 1. POWER 1.1. The unit does not power on The unit does not power on Does the power indicator on Does the power indicator on the the front panel flash in green front panel flash in red when the or white when the power is power is turned on? turned on?
Page 89 2. Analog video COMPONENT/HDMI OUT NG Input CVBS Input COMPONENT Input Function ： CBL / SAT Function ： CBL / SAT HDMI TO "3 HDMI/DVI" To A <DIGITAL PCB> test point D3962 D3804 TP39 D4332 D4312 TP36 R3844 T296 T279 T281 T274 T275...
Page 90 Input CVBS / COMPONENT Check the input signal to the VIDEO DECODER. Can a signal be confirmed at the following points? DIGITAL PCB Check the connection between Input CVBS：Check B : R3527 the PCBs. Input COPONENT：Check C COMPONENT-Y : R3530 COMPONENT-Cb : R3528 COMPONENT-Cr : R3529...
Page 91 Input CVBS Check the set value of each IC. Are the voltage values as follows? DIGITAL PCB The DIGITAL PCB is faulty. BN21A - 3pin : Hi(3.3V) BN21A - 4pin : Hi(3.3V) BN21A - 5pin : Lo(0V) Use the jigs to extend the DIGITAL PCB.
Page 92 Input COMPONENT Check the set value of each IC. Are the voltage values as follows? The DIGITAL PCB is faulty. DIGITAL PCB BN21A - 2pin : Lo(0V) BN21A - 1pin : Hi(3.3V) Use the jigs to extend the DIGITAL PCB. Is the power supply voltage Check the connection between the being output correctly?
Page 93: Hdmi/Dvi
(7) Are the HDMI output settings of the Blu-ray/DVD player correct? and set the HDMI output correctly. (8) If using a DENON Blu-ray/DVD player, is the "HDMI" indicator of the fluorescent display lit? Proceed to YES if using a Blu-ray/DVD player from another com- pany.
Page 94 (11) Are a picture and sound output when a different Blu-ray/DVD The Blu-ray/DVD player is faulty. player is used? Check the TV. Use a TV that supports HDCP. Computer monitors can- (12) Does the TV support HDCP? not be used. If the TV does not support 1080P/4K, a picture cannot be (13) Does the TV support 1080P/4K? output even if the Blu-ray/DVD player is set to 1080P/4K.
Page 95: Audio
4. AUDIO 4.1. AUDIO CHECK No audio output Refer to "Audio Check PATH" (105 page). CHECK1 INPUT SURROND MODE SOURCE Check the ANALOG AUDIO BLOCK Audio output OK? ANALOG 2CH DIRECT ANALOG CHECK2 INPUT SURROND MODE SOURCE Check the DIGITAL AUDIO Legacy BLOCK Audio output OK? COAX or OPT Don't care (PCM or DolbyDigital or dts…) CHECK3...
Page 96 4.2. Power AMP (AMP PCB) No audio output. Protection is activated. Is the power transistor open or short circuit- Replace the power transistor. 2SB1647/2SD2560 s Is the emitter resistor of the power transistor open? Replace the emitter resistor. 0.47Ω Is the base resistor of the power transistor open? Replace the base resistor.
Page 97 4.3. Analog audio No audio output. Is a voltage of ±7V supplied to SIDE Repair the ±7V power supply. CNT PCB CN64C 4-7pin? Is there an audio signal in INPUT Repair the power amplifier. PCB CN461? Connect the connectors correctly. Is electron volume serial data being Is the connector correctly connected sent to SIDE CNT PCB CN23C...
Page 98: Network/Bluetooth/Usb
5. Network/Bluetooth/USB 5.1. Cannot connect to the network Check the connection environment Insert the LAN cable correctly and then turn Is the LAN cable correctly inserted? on the power again. Check the connection environment Set the IP address, etc. correctly. If the IP settings are fixed, check that no Are the network settings of this unit correct? other devices have the same IP address and...
Page 99 Can an output voltage (3.3V) to Q1107 Is E_POWER1 (IC151 uCOM 132pin) The circuit of E_POWER1 between (FET_SW) be confirmed? "Hi" ? IC151 and Q1107 are faulty. The circuit around Q1107 (FET_SW) is faulty. Can an output voltage (1.2V) to IC115 Is E_POWER4 (IC151 uCOM 135pin) The circuit of E_POWER4 between be confirmed?
Page 100 5.2. Cannot connect to the Bluetooth Check the Bluetooth Is the Bluetooth device compatible with the A2DP profile? Use a device that is A2DP profile compatible. Enable the Bluetooth function and try connecting Is the Bluetooth function enabled on the Bluetooth device? again.
Page 101 5.3. A connected USB device is not recognized. Check the USB device being used Is a USB hub being used? Do not use a USB hub. Is the USB device supported by this unit? This unit supports devices in the FAT16 and FAT32- formatted mass storage class, MTP-compatible devices and iPods (with the exception of some models).
Page 102 DIGITAL test point TP39 D4332 D4312 D3962 D3804 TP36 R3844 T296 T275 T269 T214 T126 T279 T281 T274 T270 T220 T297 R3848 R3847 T298 R4364 R3843 JK432 D3974 D3803 R3979 R3978 D3802 T299 T191 JK394 JK393 T277 JK392 JK391 T267 JK384 T227 C3841...
Page 103: Smps
6. SMPS DC 5V is not output. Replace the IC901 (TOP268EG) and Is IC901 (TOP268EG) damaged? D9001 / D9002 / D9003 / D9004. Are there the damage in IC901 and Has a fuse (F9001) broken? Replace the damaged part(s). D9001 / D9002 / D9003 / D9004 / C9004? Are there any short circuits caused by Repair the short circuited area(s) by the...
Page 104 Operation waveform for each part OPTION After primary side rectiﬁcation Primary drain AC100 ~ 120V CCQF2E104KZE-T (Caution: High voltage, electric shock) (Caution: High voltage, electric shock) AC220 ~ 240V OPEN C9002 0.01uF 250V OPTION OPTION After secondary rectiﬁcations D9001 1N4007 D9002 1N4007 HEATSINK CMY3A238...
Page 105: Audio Check Pass
AUDIO CHECK PASS Refer to troubleshooting "4.1. AUDIO CHECK"(95 page). HDMI BLOCK CHECK6 HDMI HDMI OUTPUT INPUT CHECK5 HDMI INPUT CHECK4 HDMI Tranceiver HDMI Tranceiver MN864788 MN864787 TMDS FRONT BUFFER HDMI AD8195 INPUT Digital audio BLOCK DIR/ADC SPDIF COAXIAL PCM9211PTR DIGITAL INPUT OPTICAL...
Page 106: Clock Flow & Wave Form In Digital Block
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK WAVE FORM MCKO Z2DIRMCK Z2DACMCK IC202 IC321 BCKO Z2DIRBCK Z2DACBCKO LC89091JA RXIN PCM5100 LRCKO Z2DIRLRCK Z2DACLRCKO LRCK DATAO Z2DIRDATA Z2DACDATAO ③ CH1:RXIN0 DAC256FS MCLK DAC64FS BICK CH0AMCLK RXMCK/DSDMCK DACFS LRCK IC301 CH0ABCLK RXBCK/DSDSCK PCM1690 DATAF...
Page 107: Level Diagram
LEVEL DIAGRAM AVR-X3200 LEVEL DIAGRAM FRONT ch R2A15220F ANALOG H/P OUT SPEAKER LINE IN ＋ GAIN MUTE PRE OUT ＋ ADJ. PCM1690 ＋＋ PCM9211 (E2 Only) －－ +30dB 4.22Vrms:A/D FULL SCALE SP OUT R2A15220F MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS...
Page 108 AVR-X3200 LEVEL DIAGRAM CENTER ch R2A15220F SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋＋ (E2 Only) －－ +30dB SP OUT R2A15220FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
Page 109 AVR-X3200 LEVEL DIAGRAM SUBWOOFER ch R2A15218FP MUTE PRE OUT GAIN ADJ. PCM1690 ＋＋－－ +30dB MAX. SIGNAL LEVEL R2A15218FP MAX. OUTPUT 3.8Vrms Differential Out PCM1690 DOLBY LIMIT LEVEL (ALLch-3dBFS) 2.83Vrms=0dBFS +20dB +20dB -10dBFS +10dB +10dB PREOUT -20dBFS 310mVrms 200mVrms PRE OUT 159mVrms...
Page 110 AVR-X3200 LEVEL DIAGRAM SURROUND ch R2A15218FP SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋＋ (E2 Only) －－ +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
Page 111 AVR-X3200 LEVEL DIAGRAM SURR.BACK ch R2A15218FP SPEAKER ＋ GAIN MUTE PRE OUT ADJ. PCM1690 ＋＋ (E2 Only) －－ +30dB SP OUT R2A15218FP MAX. OUTPUT 3.8Vrms 4.48Vrms/8Ω Differential Out PCM1690 2.83Vrms=0dBFS MAX. SIGNAL LEVEL +20dB +20dB DOLBY LIMIT LEVEL (ALLch-3dBFS) +29dB -10dBFS +10dB...
Page 112 AVR-X3200 LEVEL DIAGRAM ZONE2 To MAIN LINE IN ZONE PCM5100 MUTE TONE PRE OUT GAIN PCM5100 MONO ADJ. R2A15220FP MONO BD3841FS MONO SPEAKER ＋ MONO R2A15218FP AVR-X4200W only TONE MUTE Z2/3MONO PRE OUT from D/A F-ch GAIN from D/A SB-ch ADJ.
Page 113: Block Diagram
BLOCK DIAGRAM ANALOG AUDIO BLOCK Z2L_VOL_OUT Z2R_VOL_OUT R2A15220 70,71 CBL/SAT FL_VOL_OUT PREOUT_FL 72.73 74,75 19,20 Z2 IN1 FR_VOL_OUT PREOUT_FR 76,77 TONE Blu-Ray Z2 IN2(HPF/MONO) 78,79 C_VOL_OUT PREOUT_C Media 82,83 64,65 SW1_VOL_OUT PREOUT_SW1 66,67 22,23 PHONO 62,63 TONE SW2_VOL_OUT PREOUT_SW2 V.AUX 68.69 (FRONT) 60,61...
Page 114 DIGITAL AUDIO BLOCK AVR-X4200W DIRRST #146 DIRCE #143 DIRDIN #141 DIRDOUT #144 Z3DIRSPDIF DIRCLK #145 Z2DIRSPDIF ADCRST 24.576MHz (From MAINCPU) COAX.0 COAX.1 DATAAD ZONE3 DIR ZONE2 DIR ADINL OPT.0 DIR + ADC DIGTAL IN DIRADLRCK OPT.1 LC89091JA-H LC89091JA-H DIRADBCK PCM9211PTR BCOSPDIF ADINR AK5358BET...
Page 115 ANALOG VIDEO BLOCK CBL/SAT CBL/SAT_V DVD_V CVBS IN Blu-Ray Blu-Ray_V GAME(AVRX3200W) V.AUX(FRONT) V.AUX_V OPEN OPEN CVBS OUT CVBS MONITOR COMPONENT OUT COMPONENT OUT Y CBL/SAT_Y COMPONENT OUT PB CBL/SAT CBL/SAT_PB COMPONENT OUT PR CBL/SAT_PR NJM2595MTE1 AVR-X3200WBKE3 ONLY V_AUX_V DVD_Y CBL/SAT_V COMPONENT IN DVD_V DVD_PB...
Page 116 HDMI BLOCK HDMI SW2(MN864788) HDMI ZONE2 P3 RX HDMI IN1 (CBL/SAT) MAIN P0 TX P2 RX HDMI IN2 HDMI TX(MN864787) (DVD) P1 RX P1 RX P1 TX HDMI IN3 (BLU-RAY) P0 RX P0 RX HDMI Rx 600MHz 4K/2K 600MHz HDMI IN4 HDMI SW1(MN864788) P1 TX (GAME)
Page 117: Power Diagram
AVR-X3200W:178mA OPAMP 11EA+VOL IC 2EA+BD3841 1EA S1(AMP+B,-B) +12V(RELAY) 99 + 120 + 10 = 229 LOW-B HI-B 45mA BU33TD3WG +3.3V (Z2 DAC) AVR-X3200W : 556mA IC323 Max.327mA 277mA 232mA S2 + 556mA S2 - 229mA KIA7807BPI KIA7805BPI A+5V (DAC/DIR/ADC) AVR-X3200W : 229mA...
Page 118: Wiring Diagram
WIRING DIAGRAM WIRING DIAGRAM (AVRX3200W) W iFi Ante nna W iFi Ante nna D IGIT AL PCB CN321 INLET W AFER/5P/2m m CJP05GI288ZY CUP12764Z CN901 W AFER/2P/3.96m m CJP02KA060ZY Ne tw ork PCB CN704 W AFER/7P/2m m CN902 CJP07GA208ZY (7CH AMP) W AFER/2P/7.92m m CON1 CON2...
Page 119: Printed Wiring Boards
PRINTED WIRING BOARDS Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu). DIGITAL (A SIDE) TP39 D4332 D4312 D3962 D3804 TP36 R3844 T296 T279 T281 T274 T275 T269 T270 T214 T220 T126 T297 R3848 R3847 T298 R4364 R3843 JK432 D3974 D3803 R3979 R3978...
Page 120 INPUT (A SIDE) FRT HDMI (A SIDE) JK101 T105 R1005 D1001 T104 R1004 C1001 R1007 D1002 BK101 CUP12771Z_A-3 T103 Q1001 Q1002 T115 T101 T117 T113 BK469 FCT1 FCT2 JK874 R1008 L1001 T111 T118 JK464 JK463 C4662 JK462 JK461 C1016 C1015 C4661 C1018 L1002...
Page 121 VIDEO (A SIDE) VIDEO (B SIDE) SIDE CONT (A SIDE) CN23A JW961 C5214 CN27A R5231 C5234 C5233 J9651 C5231 AVR-X3200 SR6010 AVR-X3200 CN28C SR6010 J9642 J9633 J9645 CN28C CN27C CN27C J9631 C5232 J9632 C5237 R5311 D5232 C5235 J9631 J9632 J9662 J9663 CN28B C5238...
Page 122 SPK (A SIDE) SPK (B SIDE) R9828 C9828 R9824 R9822 R9820 C9826 C9824 R9826 R9823 R9821 D9302 C9825 R9306 R9825 C9307 D9306 R9819 R9827 C9823 C9827 D9914 R9914 R9915 D9913 R9913 C9918 C9917 D9230 R9908 C9920 R9907 C9512 C9907 R9905 R9910 C9314 R9906...
Page 123 7CH AMP (A SIDE) CUP12779 Z A SBL-CH WIRE CLAMP 4 BAR CODE LABEL JW771 SBR-CH WIRE CLAMP 3 SL-CH FL-CH BK701 C-CH CN461 SR-CH FR-CH WIRE CLAMP 2 J7013 WIRE CLAMP 1 JW772 R7601 R7201 C7306 C7104 C7304 C7504 C7204 C7604 C7704...
Page 124 FRONT (A SIDE) CUP12774Z-4 FRONT HDMI FFC CABLE (A SIDE) CUP12774Z-1 JW603 CN69A LUG11 C6010 C6008 C6018 36.ISELA 40.DGND J6980 J6981 35.KEY3 35.KEY3 35.KEY3 35.KEY3 39.DGND CN69A JIG HOLE 34.KEY2 34.KEY2 34.KEY2 34.KEY2 38.SWM5V J6944 33.KEY1 33.KEY1 33.KEY1 33.KEY1 37.ISELB 32.H/PDET 32.H/PDET 32.H/PDET...
Page 125 FRT CNT (A SIDE) SMPS (A SIDE) SMPS (B SIDE) JW9602 C3071 CN24A CN26A CN25A CN21A JW9603 CN26A C3055 1.DAC-AS1 C3057 2.DAC-AS2 3.DAC-AS3 C3059 IC301 4.DGND IC311 BAR CODE LABEL C3061 5.MUTE_3.3V 6.AEXP_OE 7.AEXP_CLK 8.AEXP_DATA 9.AEXP_STB C3006 C3004 C3104 C3105 CN21B C3012 C3013 C3024...
Page 126: Schematic Diagrams (01/33)
TO 5B (PAGE 2_B1) TO DIGITAL SUPPLY BN27A BN27A CJP15HJ282Z L1001 C125Z2-15 CPUPOWER BN24A BN24A M3.3V C1051 CJP27HJ282Z DGND C125Z2-27 RC_IN C1052 OPEN KILLIR_MZ A-7V C1053 RC_OUT_MZ A+7V FRONT_IRIN A+5V R1051 OPEN A+5V FLASHER_IN_MZ A+5V R1052 OPEN REMOTE3.3V DAGND T242 232O_MI R1053 OPEN...
Page 127: Sch02_Digital Power
CN903 PJ03 PJ02 PJ01 TO BN901 L1211 BLM21PG221SN1 L1212 D5.2V DGND C1113 1/10V BLM21PG221SN1 L1213 D5.2V C1193 1/10V BLM21PG221SN1 DV1.8V M_RESET CEC1.1V-2 R1113 TST0 1.83A DGND 100K R1111 ENABLE TST1 R1193 TST0 1.62A DV_POWER2 R1191 100K DGND PVIN TST2 CEC_POWER ENABLE TST1 IC111...
Page 128: Sch03_Main Cpu
TO A9 TO 7C TO 9H TO B2 TO B1 TO A6 TO B0 TO DIGITAL CNT (PAGE 1) TO LEVEL CHG. (PAGE 5) A3,4 R1577 4.7K R1578 OPEN R1585 4.7K R1579 OPEN R1580 OPEN R1581 OPEN DSP_ROM_WRITE DSP_ROM_WRITE DSP_BSY DSP_BSY DSP_ICS DSP_ICS...
Page 129: Sch04_Expander
TO 0E TO 1E TO 2E TO 3E TO A3 TO A5 DIGITAL CNT (PAGE 16_C6) (PAGE 13_A4) (PAGE 17_D6) (PAGE 14_A3) PAGE 1 VIDEO PLD HDMI SW2 HDMI TX HDMI SW1 TO A8 R1702 OPEN R1703 OPEN R1704 OPEN M3.3V AEXP_OE AEXP_CLK...
Page 130: Sch05_Cpu Level Chg
TO C7 TO A7 TO B8 (PAGE 3_D5) FROM MAIN CPU TO DIGITAL CONNECT (PAGE 1_A4) TO DIGITAL SUPPLY POWER (PAGE 2_B1) MIC/HP DETECT PARTS R1953 Q1918 4.7K RT1N141C C1915 IC191 SN74LVC244APWR R1954 T185 T206 T186 R1955 R1967 R1963 R1964 3.9K 3.3K 3.3K...
Page 131: Sch06_Dir
Z2DIRLRCK DIRSLRCK C2011 LRCKO R2024 DIRSLRCK Z2DIRBCK DIRSBCK COAX OUT Z2DIRMCK DIRSBCK 1/10V DEMZ2 Q2002 DIRPERR BCKO RT1N144C DIRPERR (DENON LINK HD) DIRNPCM DIRNPCM MCKO HDMISPDIF HDMISPDIF DENONLINKHD DENONLINKHD ZONE3 IC204 Z2DIRPERR LC89091JA-H Z2DIRPERR DEMZ2 DEMZ2 Z2DIRNPCM Z2DIRNPCM Z3DIRPERR Z3DIRPERR...
Page 132: Sch07_Audio Pld
DSP1_FLAG3 IC222 TO D7 PLDAERR1 OPEN PLDAERR1 Z2PLDAERR Z2PLDAERR Z3PLDAERR Z3PLDAERR JTAG_TMS JTAG_TDI JTAG_TCK JTAG_TDOO JTAG_TDOO R2249 TDO1_TDI2 JTAG_TDI JTAG_TDI JTAG_TMS JTAG_TMS JTAG_TCK JTAG_TCK APLD_CS TO E4 R2279 APLD_CS RXMCK/DSDMCK BCOBCK_SCK IO-001 IO-081 APLD_DI APLD_DI R2278 RXBCK/DSDSCK IO-002 IO-082 APLD_CK APLD_CK DSP1_FLAG3 IO-003...
Page 133: Sch08_Dsp
TO F2 TO F3 FROM/TO PLD PART FROM AUDIO PLD (PAGE 7_A4) (PAGE 7_A5) DSP_SDRAM R2508 R2509 R2510 CN251 MP:OPEN R2511 CJP07GA193ZY T253 T254 10022H-07C R2512 C2506 47/6.3V 100/16V C2507 MISO C2508 10/16V C2509 47/16V RN261 33X4 MOSI SD_A4 SCP2_MISO_SDA R2513 DSP_SDRAM SD_A5...
Page 134: Sch09_Adc
TO F4 TO D0 TO E7 (PAGE 7_A3) (PAGE 3_C6) (PAGE 6_C5) TO AUDIO PLD TO MAIN CPU TO DIR A+5V ADINL ADINR OPEN DAGND TO B4 C3055 C3056 C3057 1000P C3058 1000P C3061 1000P C3062 1000P C3063 1000P C3064 1000P C3066 1000P...
Page 135: Sch10_Zone Dac
(PAGE 7_A2,A3) TO F5 TO AUDIO PLD IC323 BU33TD3WG VOUT ZONE_DAC STBY ZONE2 DAC IC321 PCM5100PWR DVDD CPVDD C3201 C3203 DGND CAPP C3202 2.2/6.3V LDOO CPGND XSMT CAPM VNEG Z2DACMUTE LRCK OUTL R3203 Z2DACLRCK DAZONE2L OUTR R3204 Z2DACDATA TO DIGITAL CONNECT DAZONE2R AVDD Z2DACBCK...
Page 136: Sch11_Cy920
BASIC CONNECTOR EXTENDED CONNECTOR CN501 CN502 CJP64GA321ZP CJP64GA321ZP CN511 CJP07GA193ZY 10022H-07C R5081 OPEN DGND DEBUG_RX DEBUG_TX NET3.3V 3.3V T161 TP76 TP75 R5057 open R5058 open R5059 open ST01ST02ST03 ST04 ST05ST06ST07 ST08 R5060 open R5063 IC501 MX25L25635FMI-10G 256Mbit Serial Flash MP : OPEN CN512 NET1.2V CJP07GA193ZY...
Page 137: Sch12_Video Decoder
(PAGE 2_B3) FROM DIGITAL SUPPLY POWER TO C1 L3506 BLM21PG221SN1 L3501 L3509 BLM21PG221SN1 BLM21PG221SN1 L3507 L3502 BLM21PG221SN1 L3510 BLM21PG221SN1 BLM21PG221SN1 L3503 L3511 BLM21PG221SN1 BLM21PG221SN1 L3508 BLM21PG221SN1 L3504 BLM21PG221SN1 L3512 BLM21PG221SN1 L3513 L3505 BLM21PG221SN1 BLM21PG221SN1 C3502 OPEN C3503 OPEN C3504 REFP REFN XTALN RN351...
Page 138: Sch13_Hdmi Sw2
CEC5V CEC3.3V L3801 VDD33 BLM21PG221SN1 CEC1.1V-2 Q3841 HDMI_SW2 Q3842 DGND HPD1 RT1N141C L3802 JK381 AVDD33TX RX1_C- BLM21PG221SN1 R3845 A0D7ABAR1990 RT1N141C RX1_5V RX1_C+ TO C5 RX1_0- 19.HP DET RX1_0+ 18.+5V 17.GND RX1_1- L3809 R3847 16.DDC DATA RX1_1+ RX1_DDCDA AVDD33RX FBMJ3216HL160NT 15.DDC CLK R3848 RX1_2- RX1_DDCCL...
Page 139: Sch14_Hdmi Sw1
CEC_STBY_5V CEC5V HDMI_SW2 P2_C- CEC3.3V L3901 P2_C+ VDD33 BLM21PG221SN1 CEC1.1V-1 P2_D0- P2_D0+ P2_D1- DGND P2_C- P2_D1+ P2_C- L3902 P2_C+ P2_C+ P2_D2- TO C4 AVDD33TX BLM21PG221SN1 P2_D0- P2_D0- P2_D2+ P2_D0+ P2_D0+ P2_D1- RX5_C- P2_D1- P2_D1+ RX5_C+ P2_D1+ P2_D2- P2_D2- RX5_0- L3910 P2_D2+ AVDD33RX P2_D2+...
Page 140: Sch15_Vsp & Ip & Osd
FROM DIGITAL POWER SUPPLY (PAGE 2_B3) CB03YTYH600 L4001 L4002 CB03YTYH600 TO C2 L4008 L4003 CB03YTYH600 L4013 CB03YTYH600 CB03YTYH600 L4010 CB03YTYH600 L4004 CB03YTYH600 L4016 CB03YTYH600 L4005 L4012 L4014 CB03YTYH600 CB03YTYH600 CB03YTYH600 IC403 IC402 A3R12E40CBF-8E L4006 A3R12E40CBF-8E 512Mbit DDR2 SDRAM L4015 512Mbit DDR2 SDRAM CB03YTYH600 CB03YTYH600 R4083...
Page 141: Sch16_Video Pld
TO C3 TO F6 (PAGE 2_B3) (PAGE 7_D1) FROM DIGITAL POWER TO AUDIO PLD IC422 OPEN MCU&CY920 FROM EXPANDER VPLD_TRANS2 VPLD_TRANS2 VPLD_TRANS1 (PAGE 4_C3) VPLD_TRANS1 VPLD_TRANS0 ADV8003 VPLD_TRANS0 TO E3 PO8KI_C9/G1_PLD PO8KI_Y4/R0_PLD IO-001 IO-081 PO8KI_C5/B5_PLD PO8KI_C5/B5 PO8KI_HSYNC_PLD IO-002 IO-082 TO MAIN CPU RN422 PO8KI_C4/B4_PLD PO8KI_C4/B4...
Page 142: Sch17_Hdmi Tx & Scaler
CEC5V CEC3.3V L4308 AVDD11TX CEC1.1V-3 L4301 VDD33 C4403 OPEN BLM21PG221SN1 DGND L4305 BLM21PG221SN1 C4402 OPEN VDD11 C4401 OPEN BLM21PG221SN1 C4400 OPEN JK432 HDMI_OUT L4321 A0D7ABAR1990 PTX0_2+ 1.D2+ AVDD11RX L4310 L4309 AVDD33RX C4409 OPEN PTX0_2- 2.D2 SHIELD FBMJ3216HL160NT OPEN FBMJ3216HL160NT C4408 L4322 3.D2- C4427...
Page 143: Sch18_Input
BN64C BN24C BN23C TO CN64C TO CN24C TO CN23C FROM SIDE CONNECT PART FROM SIDE CONNECT PART FROM FRONT CONNECT PART (PAEG 27_B2) (PAEG 27_B4) (PAEG 24_B2) BN64C BN24C BN23C C125Z2 C125Z2 C125Z2 R4773 R4761 100K R4774 R4762 R4771 R4763 R4770 100K R4764...
Page 144: Sch19_Preout
PREOUT PART AVRX3200W ONLY C8849 R8849 CJJ4N034U JK876 TO H3 D8845 1N4007SR 10/50V C8913 R8921 R8846 22/50V R8915 C8917 FROM INPUT D8846 1N4007SR R8913 P_PREZ2L (PAEG 28_C1) C8991 D8847 1N4007SR 22/50V P_PRESW1MUTE R8925 R8927 0.1uF P_PRECMUTE ADIN_R OPEN P_PRESMUTE Q8925 Q8927 AGND P_PREFMUTE...
Page 145: Sch20_F-Hdmi
FRONT HDMI PART CUP12771Z-3 Q1001 TRT1P141C Q1002 RT1N241C R1002 C1001 R1003 0.1uF JK101 A0D7ABAR19N0 (W/O FLANGE) 19.HP DET 18.+5V 17.GND 16.DDC DATA 15.DDC CLK 14.NC CN101 13.CEC CEC5V L1001 12.CK- CB03YTYH600 11.D1 SHIELD CN101 10.CK+ CJP23GA193ZY 9.D0- 10022H-23C 8.D1 SHIELD 7.D0+ CEC3.3V 6.D1-...
Page 146: Sch21_A-Video
ANALOG VDIEO PART CVBS IN / OUT OPEN IC511 NJM2595MTE1 JK512 R5116 OPEN MONITOR_OUT MONITOR OUT VIDEO+5V R5113 75(1%) R5115 75(1%) VGND R5114 BLU-RAY_CVBS_IN OPEN VIDEO-5V TO 7G JK511 C5111 CBL/SAT DVD_CVBS_IN 10/50V R5119 C5112 BN21B Q5117 75(1%) 10/50V CVTRT1N141C CBL/SAT_CVBS_IN R5117 GAME...
Page 147: Sch22_Rc-5
RC-5 OPEN R5311 BN27B R5312 BN27B Q5313 RT1P141C SWM5V Q5312 M3.3V RT1N141C DGND D5311 OPEN RC_IN R5313 KILLIR_MZ RC_OUT_MZ FRONT_IRIN FLASHER_IN_MZ JK531 REMOTE3.3V 232O_MI R5314 232I_MO TRIGGER_1 Q5315 B/P_IRIN_AVR 2SC3052 TO CN27C RC_IN M3.3V DGND REMOTE3.3V FROM/TO RS232_TRIG_IR PART (PAGE 21_B6) 232O_MI BN28B 232I_MO...
Page 148: Sch23_Rs232C & Trigger
IR / FLASHER RS232C/TRIGGER IC521 C5237 C5236 ILX3232D 0.1uF 10/16V C5231 C5235 0.1uF 0.1uF DGND D5231 OPEN T1_O R5234 Q5251 RT1P141C RS-232C R1_I R5233 PJ-308-02 C5233 R1_O D5232 OPEN Q5252 0.1uF JK521 2SC3052 C5234 T1_I D227FD009S100BY/YUQIU DGND 0.1uF T2_I R5232 T2_O R5231 R2_O...
Page 149: Sch24_Connect_A
CN23A CN27A TO BN23A TO BN27A FROM DIGITAL CON.PART FROM DIGITAL CON.PART PAGE 1_C1 PAGE 1_D1 SIDE CNT_CUP12770Z(CONNECT A) AVR-X3200W AVR-X3200W AVR-X4200W AVR-X4200W CN23A CN27A C125Z1-27 C125Z1-15 TU_RXMO/SCL TU_TXMI/SDA CN27C TU_SEN TU_RST CN28C TU_INT AVR-X3200W TO BN28B CN28C J9631 AVR-X3200W...
Page 150: Sch25_Connect_B
FRT CNT CONNECT B CN25A DIGITAL CNT PART CN21A PAGE 1_B3 CN24A TO BN21A OPEN DIGITAL CNT PART CN26A DIGITAL CNT PART TO BN24A DIGITAL CNT PART PAGE 1_D3 TO BN25A PAGE 1_D5 PAGE 1_B5 FROM/TO DIGITAL CON. PART CN26A CN21A CN25A CN24A...
Page 151: Sch26_Main Dac1
TO G9 A+5V C3055 0.1uF A-7V C3056 0.1uF C3057 1000pF A+7V C3058 1000pF DAGND C3059 OPEN C3060 OPEN C3061 1000pF C3062 1000pF C3063 1000pF R3017 150K C3064 0.1uF R3021 C3065 0.1uF C3066 0.1uF C3017 R3013 R3025 R3027 C3067 1000pF 270P C3068 1000pF R3023...
Page 152: Sch27_Main Dac2
A+5V TO H8 C3147 0.1uF A-7V C3148 0.1uF C3149 1000pF A+7V C3150 1000pF DAGND C3151 OPEN C3152 OPEN C3153 0.1uF R3125 C3154 0.1uF 150K C3155 1000pF R3123 C3156 1000pF ASSIGNL1 C3125 R3127 R3113 R3121 270P R3119 R3111 (GRM21) C3129 (GRM21) 470/16V R3115 150K...
Page 153: Sch28_Spk
BN701 TO CN701 BN701 R9211 WIRE/04P/2.5mm 2W 10 JK921 SJ2003S +HIGHB C9211 L9201 0.047uF(M) +HIGHB 0.5uH C9531 0.01uF/100V C9511 OPEN BN702 -HIGHB BN702 R9201 JK922 TO CN702 WIRE/05P/2.5mm SJ2003S 1W 10 R9212 2W 10 R9202 C9532 0.01uF/100V C9512 OPEN HIGH_GND F_RLY 1W 10 C9212...
Page 154: Sch29_Regulator & Tuner
R9821 TUNER PART C9827 R9825 OPEN OPEN C9821 C9825 OPEN L9821 OPEN OPEN R9823 R9827 OPEN C9809 OPEN C9810 OPEN CHASSIS C9828 R9826 OPEN OPEN C9826 C9811 L9822 OPEN OPEN 0.1uF R9824 CHASSIS R9828 OPEN C9822 OPEN TU901 TUNER_L L-OUT R9822 TUNER_R * TUNER MODULE(TU901) OPTION...
Page 155: Sch30_7Ch Amp 1
R7138 R7118 C7103 ZD714 R7115 R7116 1W 270 PTC 115'C 470 ohm 100/10V(OPEN) 5.1V OPEN R7119 1.2K(1608) 1W 270 CN715 R7137 Q7138 Q7114 MMBT5401 D7118 MMBT5401 680K 1SS133M Q7118 R7143 C7108 OPEN(1608) KTA1024Y D7139 R7139 Q7001 C7111 R7144 22k(3216) R7129 C7104 100K MMBT5401...
Page 156: Sch31_7Ch Amp 2
FROM AMP 1 PART (PAGE 31_33_B1) FROM AMP 1 PART C7403 R7438 ZD744 R7415 R7418 (PAGE 31_33_A6) R7416 100/10V(OPEN) 5.1V OPEN 1W 270 PTC 115'C 470 ohm R7419 1.2K(1608) 1W 270 CN745 R7437 Q7414 Q7438 D7418 MMBT5401 680K MMBT5401 1SS133M R7443 Q7418 C7408...
Page 157: Sch32_Front
CN69A FROM DIGITAL CONNECT (PAGE 1_B1) AVRX3200W FRONT PART FL601 CFL18BT021GINK CN69A CUP12774Z-4 FPC 1.0-11S-40PW LUG11 OPEN WIRE 53 52 51 50 49 48 47 46 45 44 43 CHASSIS C6101 OPEN C6102 R6104 R6102 OPEN 4.7K C6103 OPEN GND ISLAND C6104 OPEN SWM3.3V...
Page 158: Sch33_Smps
SMPS PART OPTION AC100 ~ 120V CCQF2E104KZE-T AC220 ~ 240V OPEN OPTION BK902 AC100 ~ 120V : T 2A L 250V C9002 0.01uF 250V CMD1A834 OPTION OPTION AC220 ~ 240V : T 1.6A L 250V OPTION F9001 D9001 1N4007 LF901 D9002 1N4007 HEATSINK CMY3A238...
Page 159: Exploded View
EXPLODED VIEW Please see the last chapter for the part list. S1 X2 P22 X2 S10 x2 S5 x21 E3 only S2 X2 E2, E1C only S1 X6 E3 only WARNING: Parts marked with this symbol z have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
Page 160: Packing View
PACKING VIEW Please see the last chapter for the part list. 'H' TAPPING 17-3 17-1 'I' TAPPING 17-2...
Page 161: Semiconductors
SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. The semiconductor which described a detailed drawing in a schematic diagram are omitted to list. 1. IC's R5F56108VNFP (DIGITAL : IC151) Terminal Functions Pin Name Symbol Function Pu/Pd STBY STOP...
Page 162 Pin Name Symbol Function Pu/Pd STBY STOP STBY XCIN XCIN NC(Pull down) XCOUT XCOUT NC(open) RES# RESET Reset input XTAL/P37 XTAL Oscillator connection(12MHz) EXTAL/P36 EXTAL Oscillator connection(12MHz) POWER pin UPSEL/P35(IN)/NMI DSP FLAG3 DSP control pin P34/SCK6/SCK0/IRQ4 BDOWN Power failure detection pin P33/TIOCD0/RXD6/ RC IN Remote control signal input pin...
Page 163 Pin Name Symbol Function Pu/Pd STBY STOP STBY PC3/TXD5 DSP FLAG0 DSP control pin P77/TXD11 DSP RST DSP reset output pin (Reset : L) P76/RXD11 DSP BUSY DSP control pin DIGITAL AUDIO POWER SUPPLY (DA3.3V) control PC2/RXD5 DA_POWER pin.(ON:H) P75/SCK11 CEC POWER2 CEC STANDBY SUPPLY control pin(CEC STANDBY) DSP ROM rewrite path switching...
Page 164 Pin Name Symbol Function Pu/Pd STBY STOP STBY DIR DIN DIR control pin(PCM9211) POWER pin PD7/IRQ7/AN107 DIR CE DIR control pin(PCM9211) DIR DOUT DIR control pin(PCM9211) DA3.3Pu PD6/IRQ6/AN106 DIR CLK DIR control pin(PCM9211) DIR RST DIR control pin(PCM9211) PD5/IRQ5/AN113 788_2_HAINT HDMI MN864788(RX) Audio INT input pin PD4/IRQ4/AN112 Unused...
Page 165 MC74HC4094A MC74HC4094ADR2G (DIGITAL : IC171, IC172, IC173, IC174, IC175) (INPUT : IC898, IC899) Pin assignment SRG8 Logic Diagram MC74HC4094A Figure 1. Pin Assignment STAGE 0 STAGES 1 TO 6 STAGE 7 Figure 2. Logic Symbol Figure 3. IEC Lo latch latch latch 8 –...
Page 166 www.ti.com SBAS495 – JUNE 2010 PIN CONFIGURATIONS PT PACKAGE PCM9211 (DIGITAL : IC201) LQFP-48 (TOP VIEW) ERROR/INT0 VDDRX NPCM/INT1 RXIN1 MPIO_A0 MPIO_A1 RXIN2 MPIO_A2 RXIN3 MPIO_A3 RXIN4/ASCKIO PCM9211 MPIO_C0 RXIN5/ABCKIO MPIO_C1 RXIN6/ALRCKIO MPIO_C2 RXIN7/ADIN0 MPIO_C3 MODE MPIO_B0 MS/ADR1 MPIO_B1 MC/SCL PIN FUNCTIONS PIN Functions NAME...
Page 167 DESCRIPTION NAME TOLERANT RXIN1 Biphase signal, input 1, built-in coaxial amplifier VDDRX – – Power supply, 3.3 V (typ.), for RXIN0 and RXIN1. RXIN0 Biphase signal, input 0, built-in coaxial amplifier GNDRX Ground, for RXIN Oscillation circuit input for crystal resonator or external XTI clock source input(5) Oscillation circuit output for crystal resonator AGND –...
Page 168 LC89091JA (DIGITAL : IC202) LC89091JA SDIN XOUT...
Page 169 CS49844A (DIGITAL:IC251) SD_A3, EXT_A3, DAO3_D3, XMTA, GPIO113 SD_A2, EXT_A2 SD_D11, EXT_D3 SD_A1, EXT_A1 SD_D12, EXT_D4 SD_A0, EXT_A0 SD_D13, EXT_D5 SD_A10, EXT_A12 GNDIO4 SD_BA0, EXT_A13 VDDIO4 SD_BA1, EXT_A14 SD_D14, EXT_D6 SD_CS, EXT_OE SD_D15, EXT_D7 SD_RAS, EXT_CS1 SD_D0, EXT_D8 SD_CAS, EXT_CS2 SD_D1, EXT_D9 TEST_EN SD_D2, EXT_D10 VDD1...
Page 170 PIN CONFIGURATION M12L64164A-5TG2Y (DIGITAL : IC252) (TOP VIEW) DQ15 VddQ VssQ DQ14 DQ13 VssQ VddQ DQ12 DQ11 VddQ VssQ DQ10 VssQ VddQ LDQM UDQM /CAS /RAS A10(AP) : Master Clock U,LDQM : Output Disable / Write Mask : Clock Enable A0-11 : Address Input : Chip Select...
Page 171 MX25L6406EM2I-12G (DIGITAL:IC253) Block Diagram...
Page 172 SLAS764 – MAY 2011 www.ti.com DEVICE INFORMATION TERMINAL FUNCTIONS, PCM510x PCM5100 (DIGITAL : IC321) PCM510X (top view) Table 2. TERMINAL FUNCTIONS, PCM510x TERMINAL DESCRIPTION NAME CPVDD Charge pump power supply, 3.3V CAPP Charge pump flying capacitor terminal for positive rail CPGND Charge pump ground CAPM...
Page 173 PCM1690 (FRONT CNT : IC301) Pin Function TERMINAL PULL- DESCRIPTION NAME DOWN TOLERANT RSV2 — — — Reserved, tied to analog ground RSV1 — — — Reserved, left open RSV2 — — — Reserved, tied to analog ground RSV1 — —...
Page 174 TERMINAL PULL- DESCRIPTION DOWN TOLERANT NAME VOUT1+ Positive analog output from DAC1 VOUT1- Negative analog output from DAC1 RSV2 — — — Reserved, tied to analog ground PCM1690 AGND2 — — — Analog ground 2 VCC2 — — — Analog power supply 2, +5 V RSV2 —...
Page 175 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control R2A15220FP (INPUT : IC471) BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) TRER MUTE AVEE AVCC BASSR2 AVEE BASSR1 ADCL 0/-6/-12/-18dB TREL ADCR SUB2 AGND BASSL2 MAIN INR1 BASSL1 Bass/ Treble 0~-95dB, +42~0dB -14~+14dB...
Page 176 Notice ; This is not a final specification. Some parametric limits are subject to change. R2A15220FP R2A15220FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control PIN DESCRIPTION Pin Assignment PIN No. Function Name FROUT,FLOUT, 22,20, COUT,SWOUT, 16,14, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel SROUT, SLOUT, 10, 8, SBROUT,SBLOUT...
Page 177 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) R2A15218FP (INPUT : IC491) AVCC MUTE AVCC N.C. AVEE AVEE N.C. TREL 0/-6/-12/-18dB ADCL BASSL2 BASSL1 ADCR N.C. AGND Bass/ Treble 0~-95dB, -14~+14dB -∞...
Page 178 R2A15218FP R2A15218FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 11-Input selector And Tone control PIN DESCRIPTION Pin Function PIN No. Function Name 23,21, FROUT,FLOUT, 17,15, COUT,SWOUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel 11,9, SROUT, SLOUT, SBROUT,SBLOUT 24,20, FRC,FLC, 18,14, CC,SWC, Connects capacitor for reducing click noise of 12,8, SRC,SLC, L/R/C/SW/SL/SR/SBL/SBR channel volume...
Page 179 1pin 0.38 0.1 Reel (Unit : mm) Order quantity needs to b SSOP-A32 BD3841FS (INPUT : IC484) <Tape and Reel information> 13.6 0.2 Tape Embossed carrier tape (MAX 13.95 include BURR) Quantity 2000pcs Direction The direction is the 1pin of product is at t of feed reel on the left hand and you pull out the 0.15 0.1...
Page 180 The NJU72751 is a 4-input / 4-output dual analog switch. NJU72751 Functions are controlled via two-wired serial bus. A-channel switches and B-channel switches are controlled independently. The NJU72751 is well-suited for multi-channel audio systems such as AV amplifiers, DVD receivers and others. NJU72751V NJU72751V (INPUT : IC871) PIN CONFIGURATION...
Page 181: Fl Display
2. FL DISPLAY FLD (018BT021GINK) (FRONT : FL601) PIN CONNECTION GRID ASSIGNMENT...
Page 182 ANODE CONNECTION...
Page 183 FRONT FRONT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 184 FRONT REF No. Part No. Part Name Remarks Q'ty New Ver SW641 00D9430004402 SW , TACT SKHV10910G CST1A012ZT SW661-670 00D9430004402 SW , TACT SKHV10910G CST1A012ZT CN602 WAFER/ANGLE/2.5mm/07P YMAW025-07R/YEONHO CJP07GB03ZY CN69A WAFER, FFC(40P-1mm,ANGLE) FPC 1.0-11S-40PW/ JCS CJP40GB284ZN FL601 943172100150S V.F.D (FUTABA, 18-BT-02GINK) FUTABA CFL18BT021GINK JK608 943643101590S...
Page 185 SPK PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 186 REF No. Part No. Part Name Remarks Q'ty New Ver ! F9703 943652500530D FUSE(215 Series, 250V/12A) 0215012.MXP CBA2C1202TLHEY ! F9704 943652500530D FUSE(215 Series, 250V/12A) 0215012.MXP CBA2C1202TLHEY F9331-9335 HOLDER , FUSE KJCFC5S F9703,9704 HOLDER , FUSE KJCFC5S GND92 PLATE , EARTH(TRONIC ELECTRONICS) CJT1A026 JK921-927 943643102420S...
Page 187 DIGITAL DIGITAL PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 188 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver R1147 RES, CHIP(1608/5%/10ohm) CRJ10DJ100T R1151 RES, CHIP(1608/5%/10ohm) CRJ10DJ100T R1152 RES, CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R1153 RES, CHIP(1608/5%/100Kohm) CRJ10DJ104T R1154 RES, CHIP(1608/1%/348Kohm) CRJ10DF3483T R1155 943129501050S RES, CHIP(1608 size / 0.1% / 316 Kohm) RM06BB316K CRJ10DB3163T R1161 RES, CHIP(1608/5%/10ohm)
Page 189 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver R1942 RES, CHIP(1005/5%/100ohm) CRJ06IJ101T R1943 RES, CHIP(1005/5%/470Kohm) CRJ06IJ474T R1944 RES, CHIP(1005/5%/22Kohm) CRJ06IJ223T R1953 RES, CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R1954-1957 RES, CHIP(1608/5%/100ohm) CRJ10DJ101T R1958-1960 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R1961 RES, CHIP(1005/5%/4.7Kohm) CRJ06IJ472T R1963 RES, CHIP(1005/5%/3.9Kohm) CRJ06IJ392T R1964...
Page 190 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver R3548 RES, CHIP(1608/1%/470ohm) CRJ10DF4700T R3801 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3804 RES, CHIP(1005/5%/47ohm) CRJ06IJ470T R3805 RES, CHIP(1608/5%/1Mohm) CRJ10DJ105T R3806 RES, CHIP(1608/5%/1Kohm) CRJ10DJ102T R3807 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3808,3809 RES, CHIP(1005/5%/47Kohm) CRJ06IJ473T R3810,3811 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R3812...
Page 191 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver R4301 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R4303 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R4308 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R4310,4311 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R4312 RES, CHIP(1005/5%/33ohm) CRJ06IJ330T R4313-4315 RES, CHIP(1005/5%/47Kohm) CRJ06IJ473T R4316-4321 RES, CHIP(1005/5%/10Kohm) CRJ06IJ103T R4322 RES, CHIP(1005/5%/47Kohm) CRJ06IJ473T R4323...
Page 192 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C1155 CAP, CHIP(2012, 6.3V/22uF, X5R)_SAMSUNG CL21A226KQFNNNC CCUC0J226KCS C1156 CAP, CHIP(2012, 6.3V/10uF, X5R)_SAMSUNG CL21A106KQFNNNC CCUC0J106KCS C1159 CAP, CHIP(2012, 50V/0.1uF, X7R)_SAMSUNG CL21B104KBFNNNC CCUC1H104KCS C1161 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C1162 CAP, CHIP(2012, 6.3V/10uF, X5R)_SAMSUNG CL21A106KQFNNNC CCUC0J106KCS C1163...
Page 193 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C2543 CAP, CHIP(1005, 50V/1000pF, X7R)_SAMSUNG CL05B102KB5NNNC CCUI1H102KCS C2544-2546 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C3049,3050 CAP,ALUMINUM ELECTROLYTIC (16V/10uF) MVG SERIES CCEC1CMVG100T C3051 CAP, CHIP(1608, 50V/4700pF, X7R)_SAMSUNG CL10B472KB8NNNC CCUS1H472KCS C3053 CAP, CHIP(1608, 50V/4700pF, X7R)_SAMSUNG CL10B472KB8NNNC CCUS1H472KCS C3201,3202...
Page 194 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C3639 CAP, CHIP(1005, 25V/0.01uF, X7R)_SAMSUNG CL05B103KA5NNNC CCUI1E103KCS C3640 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C3641 CAP, CHIP(1005, 25V/0.01uF, X7R)_SAMSUNG CL05B103KA5NNNC CCUI1E103KCS C3642 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C3643 CAP, CHIP(1005, 25V/0.01uF, X7R)_SAMSUNG CL05B103KA5NNNC CCUI1E103KCS C3644...
Page 195 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C3987 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C3988,3989 CAP, CHIP(1608, 6.3V/4.7uF, X5R)_SAMSUNG CL10A475KQ8NNNC CCUS0J475KCS C3990 CAP,ALUMINUM ELECTROLYTIC CAPACITORS(16V/100uF) MVG SERIES CCEC1CMVG101T C4001 CAP, CHIP(1608, 50V/18pF, C0G)_SAMSUNG CL10C180JB8NNNC CCUS1H180JAS C4002 CAP, CHIP(1608, 50V/15pF, C0G)_SAMSUNG CL10C150JB8NNNC CCUS1H150JAS C4005...
Page 196 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver C4219 CAP, CHIP(1608, 6.3V/4.7uF, X5R)_SAMSUNG CL10A475KQ8NNNC CCUS0J475KCS C4220-4223 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C4301-4335 CAP, CHIP(1005, 16V/0.1uF, X7R)_SAMSUNG CL05B104KO5NNNC CCUI1C104KCS C4336,4337 CAP, CHIP(1608, 50V/9pF, C0G)_SAMSUNG CL10C090CB8ANNC CCUS1H090DAS C4338 CAP, CHIP(1005, 50V/1000pF, X7R)_SAMSUNG CL05B102KB5NNNC CCUI1H102KCS C4339-4349...
Page 197 DIGITAL REF No. Part No. Part Name Remarks Q'ty New Ver X1501 943141101260S X-TAL, SMD(12MHz/8pF, FA-238V, 3.2X2.5) Q22FA23V0021500 COX12000I080SP X2001 943141101310S X-TAL, SMD(24.576MHz/10pF, FA-238, 3.2X2.5) Q22FA2380117400 COX24576I100SP X2501 943141101310S X-TAL, SMD(24.576MHz/10pF, FA-238, 3.2X2.5) Q22FA2380117400 COX24576I100SP X3501 943141101300S X-TAL, SMD(27MHz/12pF, FA-238, 3.2X2.5) Q22FA2380020800 COX27000I120SP X3801 943141101290S...
Page 198 SMPS SMPS PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 199 VIDEO VIDEO PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 200 FRONT CNT FRONT CNT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 201 SIDE CNT SIDE CNT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 202 INPUT INPUT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 203 INPUT REF No. Part No. Part Name Remarks Q'ty New Ver R8740 RES, CHIP(1608/5%/1Kohm) CRJ10DJ102T R8741,8742 RES, CHIP(1608/5%/470Kohm) CRJ10DJ474T R8743-8746 RES, CHIP(1608/5%/470ohm) CRJ10DJ471T R8747-8750 RES, CHIP(1608/5%/100Kohm) CRJ10DJ104T R8751,8752 RES, CHIP(1608/5%/220ohm) CRJ10DJ221T R8753 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R8757,8758 RES, CHIP(1608/5%/10Kohm) CRJ10DJ103T R8759 RES, CHIP(1608/5%/470Kohm) CRJ10DJ474T R8760...
Page 204 INPUT REF No. Part No. Part Name Remarks Q'ty New Ver C8803 CAP, ELECT(50V/22uF) CCEA1HH220T C8807 CAP, ELECT(50V/22uF) CCEA1HH220T C8809 CAP, CHIP(1608, 50V/330pF, C0G)_SAMSUNG CL10C331JB8NNNC CCUS1H331JAS C8819 CAP, ELECT(50V/0.1uF) CCEA1HH0R1T C8820 CAP, CHIP(1608, 50V/0.01uF, X7R)_SAMSUNG CL10B103KB8NNNC CCUS1H103KCS C8849 CAP, ELECT(50V/10uF) CCEA1HH100T C8869 CAP, ELECT(50V/0.1uF)
Page 205 7CH AMP 7CH AMP PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.
Page 206 7CH AMP REF No. Part No. Part Name Remarks Q'ty New Ver R7106 RES, CHIP(1608/5%/470ohm) CRJ10DJ471T R7107 RES, CHIP(1608/5%/0ohm) . CRJ10DJ0R0T R7108 RES, M-OXIDE FILM(1W/1Kohm) CRG1SANJ102RT R7110 RES, CARBON(1/5W,110ohm,J) CRD20TJ111T R7111 RES, M-OXIDE FILM(1W/3.3Kohm) CRG1SANJ332RT R7112 RES, CARBON(1/5W,33Kohm,J) CRD20TJ333T R7114 RES , METAL(1/2W, 27k OHM) RS1/2FS-27KOHM-T26 CRG12SANJ273T R7116,7117...
Page 207 7CH AMP REF No. Part No. Part Name Remarks Q'ty New Ver R7444 RES, CHIP(3216/5%/22Kohm) CRJ14CJ223T R7445 RES, CARBON(1/5W,22Kohm,J) CRD20TJ223T R7501 RES, CARBON(1/5W,1.2Kohm,J) CRD20TJ122T R7502 RES, CARBON(1/5W,470Kohm,J) CRD20TJ474T R7503 RES, CARBON(1/5W,33Kohm,J) CRD20TJ333T R7504 WIRE, COPPER(D0.6) CU97.8/SN2.1, D0.6 20050901 C3A206 0.02 R7505 RES, M-OXIDE FILM(1W/1Kohm) CRG1SANJ102RT...
Page 208 7CH AMP REF No. Part No. Part Name Remarks Q'ty New Ver C7220,7221 CAP, PE-FILM(100V/470pF/J) PEFA471J100/S & A ENTERPRISES CCME2A471JR11T C7225 CAP, ELECT(25V/220uF) CCEA1EH221T C7231,7232 CAP, ELECT(100V/10uF) CCEA2AH100T C7238 CAP, CHIP(1608, 50V/0.1uF, X7R)_SAMSUNG CL10B104KB8NNNC CCUS1H104KCS C7301 00D2544583971 CAP , ELEC(ELNA ROB SERIES, 47uF/50V) ROB-50V470MG3#9-T2 CCEA1HROB470T C7302 CAP, PE-FILM(100V/470pF/J) PEFA471J100/S &...
Page 209 TO SPK-BN703 CWB7E0071803D WIRE ASS'Y TO SPK-BN701 CWB7E0042203D WIRE ASS'Y TO SPK-BN702 CWB7E0052203D WIRE ASS'Y TO SPK-BN932 CWB1B009220HC 42141003400AD BADGE , DENON CGB1A275Z 42141002400AD BADGE , DENON E2/E1C CGB1A254Z-V1 42131003300AD BADGE , INCOMEND CGB1A276Z 943403101120D CABINET , TOP CKC3A155K117 EARTH , PHONE...
Page 210 EXPLODED REF No. Part No. Part Name Remarks Q'ty New Ver SCREW CTW3+8JR SCREW CTB3+10JR SCREW CTB3+8JR SCREW , SPECIAL CHD3A012R SCREW CTW3+12JR SCREW CTB3+6JR SCREW CTB3+20JR CTB3+6FR SCREW CTBD3+8JFZR SCREW CTBD3+6FFZR SCREW CTBD4+8JFZR SCREW , TRANS CHDR1A023R...
Page 211 PACKING PACKING ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A.

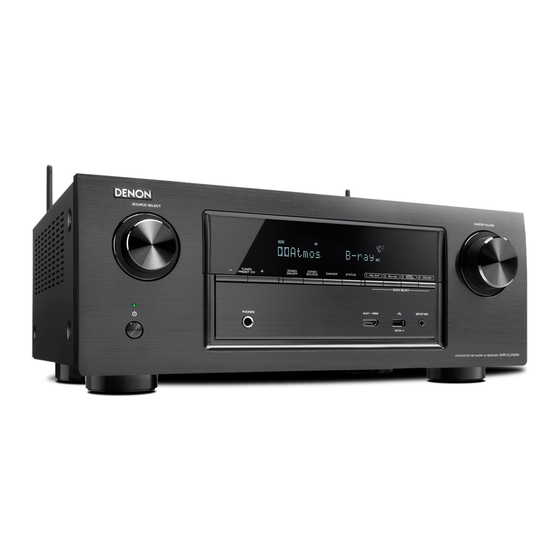

Denon AVR-X3200W Service Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denon AVR-X3200W

Summary of Contents for Denon AVR-X3200W

Table of Contents
