4. POWER TRANS

Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY → SMPS ASSY → POWER TRANS

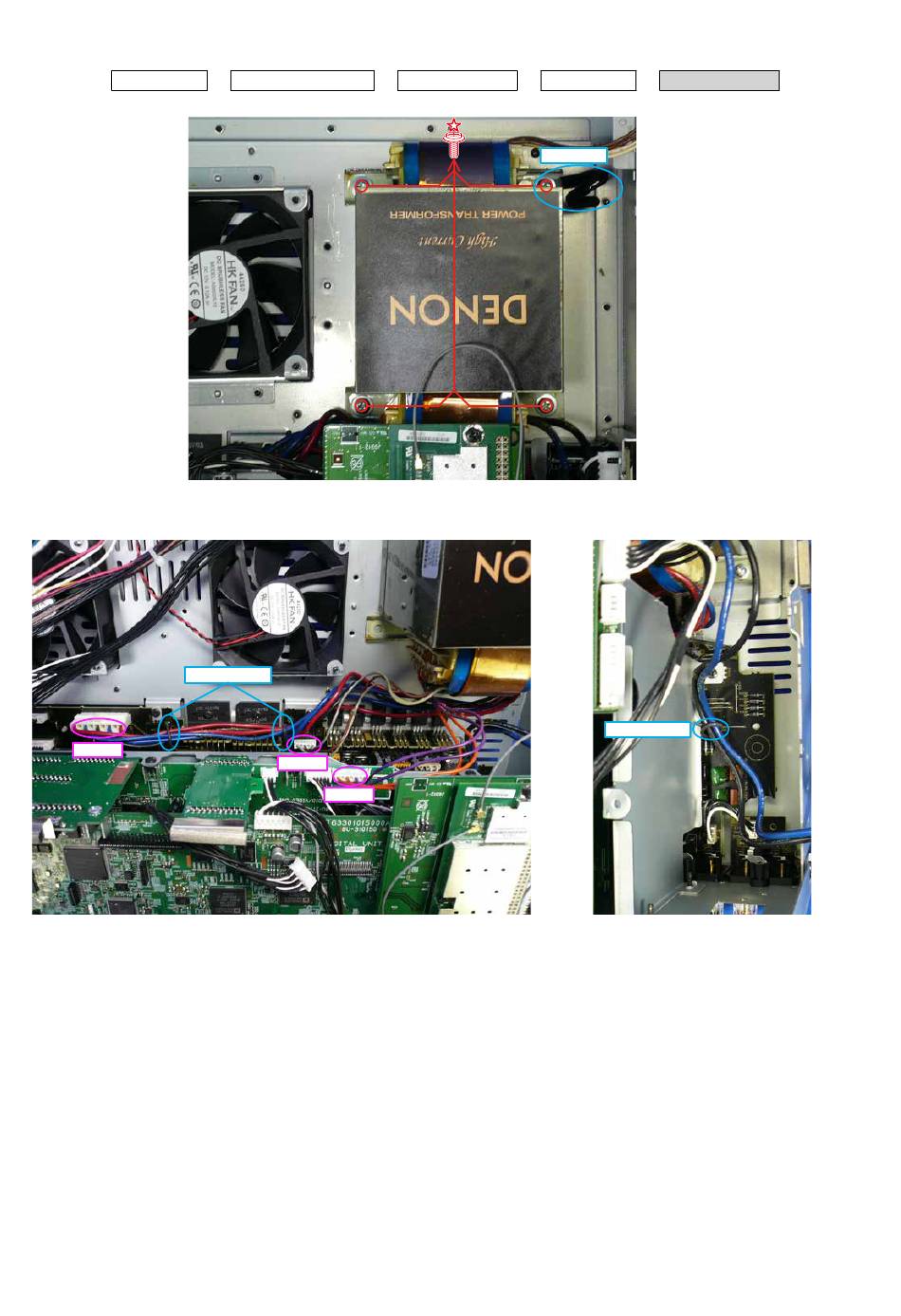

(1) Remove the screws. Remove the HOLDER.
HOLDER
(2) Remove the STYLE PIN and connector wire.
STYLE PIN
STYLE PIN
N6012
N6201
N9022
