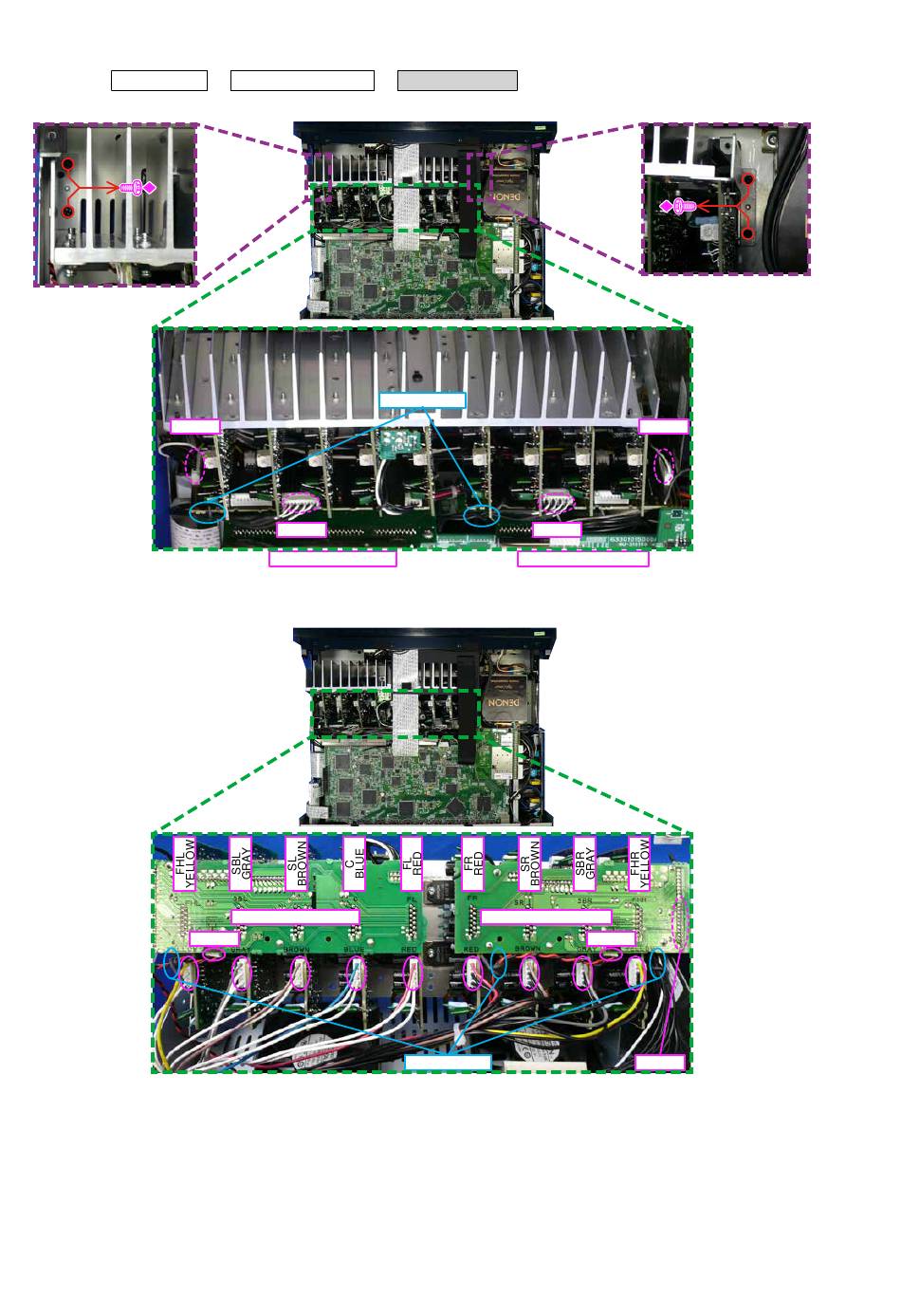

2. RADIATOR ASSY

Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the STYLE PIN and connector wire. Remove the screws.
STYLE PIN
N5812
N5842
N5832
N5831
L-AMP CONNECT
R-AMP CONNECT
(2) Remove the connector wire.
L-AMP CONNECT
R-AMP CONNECT
N5814
N5824
STYLE PIN
N5842
14
