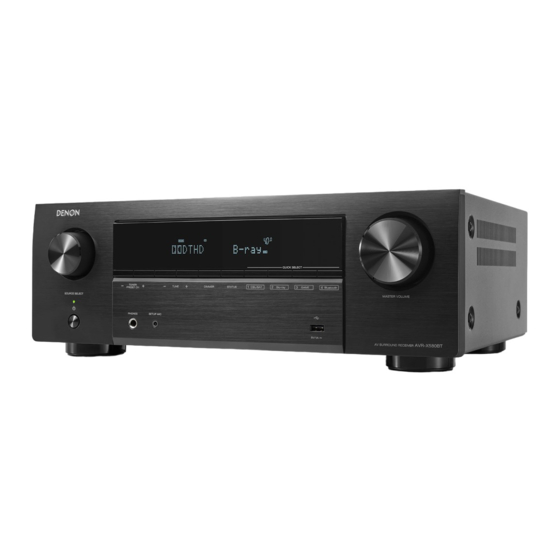

- Page 1 AVR-X580BT AV SURROUND RECEIVER Quick start guide...
- Page 2 This manual describes the procedure up until starting the Setup Assistant. Please do not return this unit to the store – call for assistance. If you need help… : If you need additional help in solving problems, contact Denon customer service in your area. www.denon.com...
-
Page 3: Before You Begin
Before you begin Required for setup Speaker cables Speakers HDMI® cable Subwoofer cable • When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo. - Page 4 What’s in the box Quick start guide Cable labels AM loop antenna Sound calibration Safety instructions microphone Remote control Cautions on using Power cord (RC-1254) batteries Notes on radio FM indoor antenna 2× R03/AAA batteries • Using your own tripod enables settings to be automatically configured to the optimum listening environment, providing exceptionally high performance.
-
Page 5: Connect The Power Cord
Setup Attach the included cable labels The supplied cable labels include labels for the speaker and HDMI cables. Connect the power cord Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below. Place the AVR near your TV and connect the power cord. - Page 6 Connect the AVR to your TV Using a high quality HDMI cable*, connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other HDMI IN end to the HDMI OUT MONITOR port on your AVR. (ARC/eARC) What is ARC and eARC? Audio Return Channel or “ARC”...
- Page 7 Select the appropriate HDMI Turn on the TV input on your TV HDMI INPUT VIDEO TV remote control TV remote control...
- Page 8 Install batteries in the AVR Turn on the AVR remote control • Press X on the remote control. • Batteries can be taken out in reversed order.
-
Page 9: Verify The Connection
• Verify that you can see this screen on your TV. The TV is now connected to the AVR. The Setup Assistant will walk you through connecting and configuring your speakers and components to your Denon Language Select AVR. Use the remote control and follow the instructions on the TV screen to complete the AVR settings using the Please select a language... - Page 10 Playing music - Bluetooth Press and hold the Bluetooth button on the Select “Denon AVR-X580BT” from the Bluetooth remote control for at least 3 seconds to go into device list on your mobile device. pairing mode. Bluetooth Denon AVR-X580BT When a number appears on the display of this...
- Page 11 Refer to the online manual for other functions information and operation procedure details. manuals.denon.com/AVRX580BT/EU/EN/ The “Denon 500 Series Remote” app allows you to remotely control the AVR-X580BT from your mobile device when connected via Bluetooth. It is available for free in the Apple App Online manual Store, Google Play or the Amazon Appstore.
-
Page 12: Trademark Information
Trademark information The Bluetooth® word mark and logos are registered trademarks owned The terms HDMI and HDMI High-Definition Multimedia Interface, and the by the Bluetooth SIG, Inc. and any use of such marks by D&M Holdings HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC Inc. - Page 14 Printed in Vietnam 5411 11996 00AD © 2022 Sound United. All Rights Reserved.
