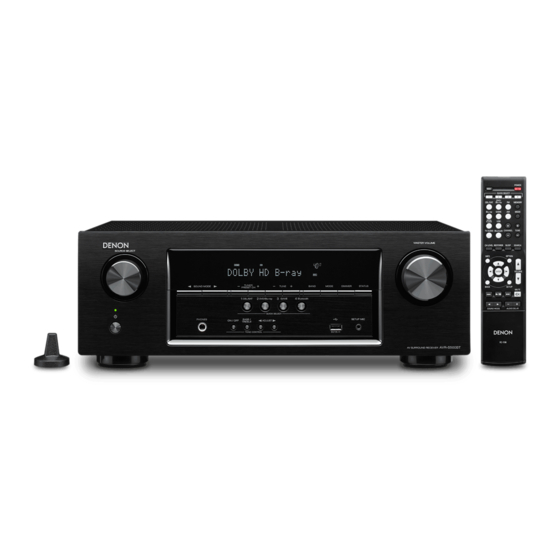

Denon AVR-S500BT Service Manual
  1. Manuals
  2. Brands
  3. Denon Manuals
  4. Stereo Receiver
  5. AVR-S500BT
  6. Service manual

Denon AVR-S500BT Service Manual

Hide thumbs Also See for AVR-S500BT:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
e
AVR-S500BT
AVR-X510BT
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0862-0V03DM/DG1406

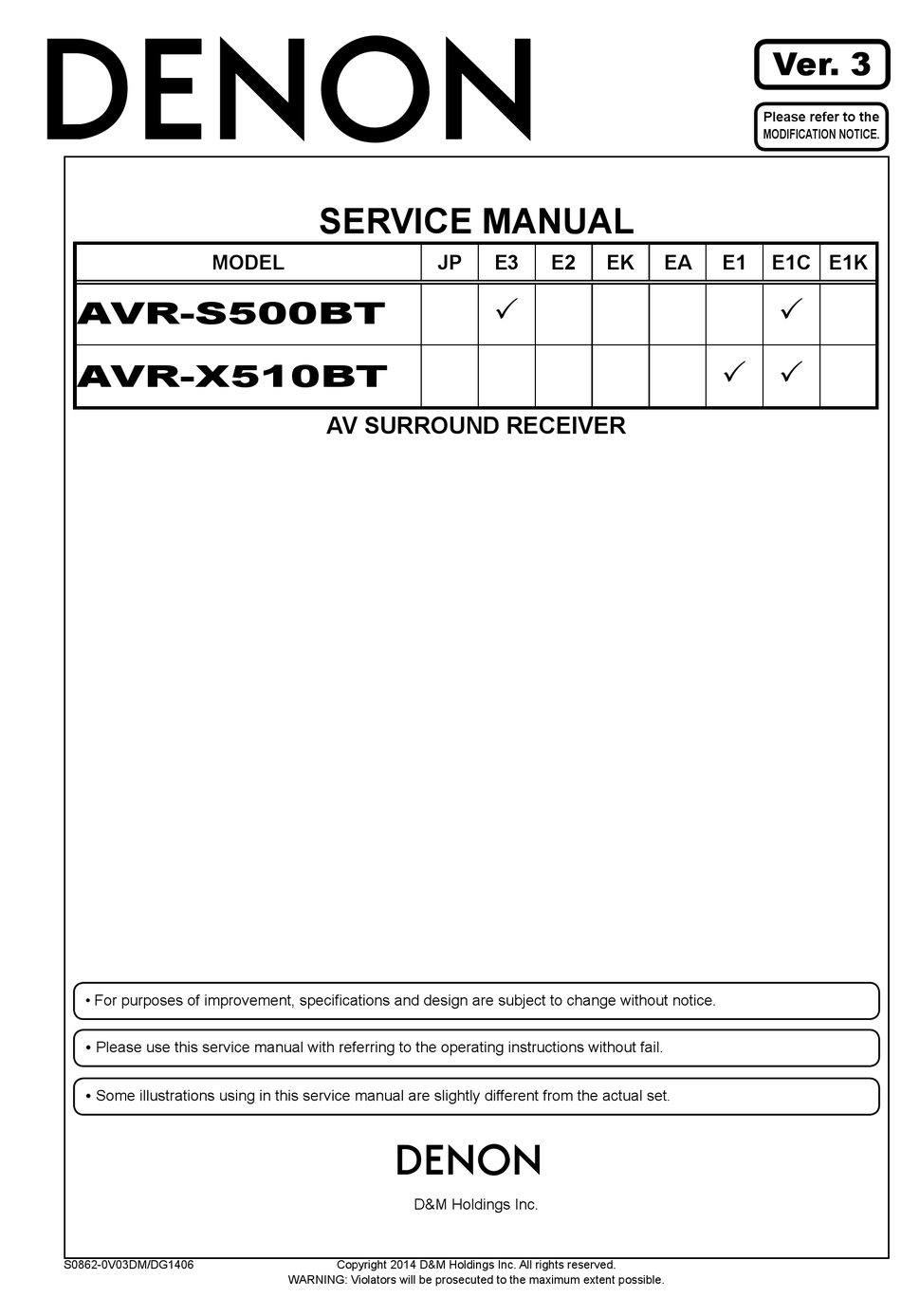

SERVICE MANUAL
MODEL
AV SURROUND RECEIVER
Copyright 2014 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
JP
E3
E2
P
e
D&M Holdings Inc.
Ver. 3
Please refer to the
MODIFICATION NOTICE.
EK
EA
E1
E1C E1K
P P
P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR-S500BT and is the answer not in the manual?

Questions and answers

Related Manuals for Denon AVR-S500BT

Summary of Contents for Denon AVR-S500BT

  • Page 1 MODIFICATION NOTICE. SERVICE MANUAL MODEL E1C E1K AVR-S500BT AVR-X510BT AV SURROUND RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    SAFETY PRECAUTIONS ............6 WIRING DIAGRAM ..............55 NOTE FOR SCHEMATIC DIAGRAM .........7 PRINTED WIRING BOARDS ...........56 NOTE FOR PARTS LIST ............7 FRONT ..................56 TECHNICAL SPECIFICATIONS for AVR-S500BT ....9 DIGITAL ...................59 FRONT CABLE GUIDE ............61 DIMENSION ................9 SMPS ..................61 TECHNICAL SPECIFICATIONS for AVR-X510BT ....10 REGULATOR ................63...

  • Page 3: About This Manual

    ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram connector (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed circuit board diagrams - 1 TheSignfunctionletsyouaddnotestothedatain (Ctrl+Space, mouse operation) this manual. Savethefileonceyouhavefinishedaddingnotes. Press Ctrl+Spaceonthekeyboardanddragthe [Example using Adobe Reader X] mousetoselecttheareayouwanttoview. On the "View" menu, click "Sign". • Theselectedareaismagnified.
  • Page 5 Magnify schematic / printed circuit Magnify schematic / printed circuit board diagrams - 2 board diagrams - 3 (Pan & Zoom function) (Loupe Tool function) ThePan&Zoomfunctionletsyouseewhichpartof TheLoupeToolfunctionletsyoumagnifyaspecific amagnifieddiagramisbeingshowninaseparate part of a diagram in a separate window. window. [Example using Adobe Reader X] On the "View"...

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.

  • Page 7: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Partsindicatedbythe z markhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer. CAUTION: Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. WARNING: DONOTreturnthesettothecustomerunlesstheproblemisidentifiedandremedied.
  • Page 8 Personal notes:...

  • Page 9: Technical Specifications For Avr-S500Bt

    TECHNICAL SPECIFICATIONS FOR AVR-S500BT n Audio Section n Bluetooth Section • Power amplifier Communications system : Bluetooth Version 2.1 + EDR (Enhanced Data Rate) Rated output : Transmission power : Maximum 2.5 mW (Class 2) Front : Maximum communication range : Approx. 32.8 ft/10m 2 in line of 70 W + 70 W (8 Ω/ohms, 20 Hz –...

  • Page 10: Technical Specifications For Avr-X510Bt

    TECHNICAL SPECIFICATIONS FOR AVR-X510BT n Audio Section n Bluetooth Section • Power amplifier Communications system : Bluetooth Version 2.1 + EDR (Enhanced Data Rate) Rated output : Transmission power : Maximum 2.5 mW (Class 2) Front : Maximum communication range : Approx. 10m 2 in line of sight 70 W + 70 W (8 Ω/ohms, 20 Hz –...

  • Page 11: Precautions During Service

    Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB. Press the power button ( X ) to turn off the power. AVR-S500BT: Hold down buttons "SOUND MODE 1 " and "PRESET +" at the same time and press the power button to turn on the power.

  • Page 12: Disassembly

    DISASSEMBLY • Remove each part in the order of the arrows below. • Reassemble removed parts in the reverse order. • Read“ SAFETY PRECAUTION” before reassembling removed parts. • If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the work.
  • Page 13 See the diagram below about the shooting direction of each photograph. • Photographs with no shooting direction indicated were taken from the top of the set. • The photograph is AVR-S500BT E3 model. The viewpoint of each photograph (Shooting direction)

  • Page 14: Front Panel Assy

    1. FRONT PANEL ASSY Proceeding : CABINET TOP → FRONT PANEL ASSY (1) Remove the screws. View from the bottom (2) Remove the screws and disconnect the FFC. FRONT PANEL ASSY CN713 CN752 (3) Disconnect the connector wires. CN102 CN104 See "EXPLODED VIEW"...

  • Page 15: Digital Pcb

    2. DIGITAL PCB → Proceeding : CABINET TOP DIGITAL PCB (1) Remove the screws. Shooting direction: A (2) Remove the screws. Disconnect the connector wires and FFC. CN751 CN712 CN772 CN713 CN752 DIGITAL PCB VIDEO/OPT PCB CN771...

  • Page 16: Radiator Assy

    3. RADIATOR ASSY Proceeding : TOP COVER → → DIGITAL PCB RADIATOR ASSY (1) Remove the screws. Shooting direction: A (2) Remove the screws then disconnect the connector wire. Remove the RADIATOR ASSY from the CHASSIS BOTTOM. MAIN PCB CN503...

  • Page 17: Smps Pcb

    4. SMPS PCB → Proceeding : CABINET TOP SMPS PCB See "EXPLODED VIEW" for the disassembly method of SMPS PCB. 5. REGULATOR PCB → Proceeding : CABINET TOP REGULATOR PCB See "EXPLODED VIEW" for the disassembly method of REGULATOR PCB. 6.

  • Page 18: Special Mode

    No. 1, 2 : Hold down buttons A and B at the same time and press the power button ( X ) to turn on the power. No. 3, 4 : Hold down buttons A, B and C for at least 3 seconds while the power is on. AVR-S500BT Mode...
  • Page 19 No. 1, 2 : Hold down buttons A and B at the same time and press the power button ( X ) to turn on the power. No. 3, 4 : Hold down buttons A, B and C for at least 3 seconds while the power is on. AVR-X510BT Mode Button A...

  • Page 20: Initialization Mode

    1.1. Operations Hold down buttons below at the same time and press the power button to turn on the power. "SOUND MODE 1 ", "PRESET +" (AVR-S500BT) "PRESET +", "TUNE +" (AVR-X510BT) Release the buttons after confirming that the display flashes in intervals of approximately 1 second.

  • Page 21: Change Video Format And Display Language Mode

    3.1. Operations Hold down buttons below for at least 3 seconds while the power is on. "PRESET -", "PRESET +", "TUNE -" (AVR-S500BT) "TUNE -", "TUNE +", "DIMMER" (AVR-X510BT) Note: Do not start in this mode when displaying the OSD MENU using the MENU button.

  • Page 22: Product Mode

    Select "Remote Lock", "Tuner Step", "OSD update", "Protection History Display" or "Mic Mode" . 4.1. Operations Hold down buttons below for at least 3 seconds while the power is on. "SOUND MODE 1 ", "PRESET -", "PRESET +" (AVR-S500BT) "PRESET +", "TUNE -", "TUNE +" (AVR-X510BT) Each mode shown on the display changes each time the button below is pressed.
  • Page 23 4.4.1. Remote Lock Mode To enter the Product Mode, to display the Remote Lock Mode. Press the button below to switch between On and Off. "PRESET +" / "TUNE -" (AVR-S500BT) "PRESET +" / "DIMMER" (AVR-X510BT) R E M O T E L O C K : O f f ↓↑...
  • Page 24 Additional causes of protection can be due to loose connections, associated components, Microprocessor, etc. Press the button below to set On/Off. The display then return to the normal mode. "PRESET -" (AVR-S500BT) "TUNE -" (AVR-X510BT) Clearing the protection history There are two ways to clear the protection history, as described below.
  • Page 25 4.4.5. Mic Mode Not for service. Do not operate. Cancellation of the mode Press the power button to turn off the power or disconnect the AC plug of this unit to turn the power off.

  • Page 26: Procedure After Replacing The Microprocessor, Etc

    PROCEDURE AFTER REPLACING THE MICROPROCESSOR, ETC The procedure after replacing the u-COM (Microprocessor), flash ROM, etc. is as follows. After PCB Name Ref. No. Description Remark replaced Digital IC711 STM32F101ZG SOFTWARE: Main Digital IC722 MX25L3206EM2I-12G SOFTWARE: GUI ROM Digital IC742 MX25L8006EM2I-12G SOFTWARE: DSP ROM After replacing...
  • Page 27 QUICK SELECT MEMORY CBL /SAT MODE Blu-ray GAME 1.5. Start the update Turn on the power of this unit. Then, push "SETUP" and select. TUNE CHANNEL TV AUDIO Bluetooth CH LEVEL RESTORER SLEEP SEARCH PUSH "SETUP" INFO OPTION VOLUME ENTER BACK SETUP MUTE...
  • Page 28 (3) Push "ENTER" F i r m w a r e : S t a r t (4) Select "Yes", then, Push "ENTER" F i r m w a r e : • Y e s – U p d a t e T i m e * * : * * --- Precautions for Updates --- •...
  • Page 29 1.6. About the error code No FirmwareFile in USB. FirmwareFile in USB for unsupported Model name/area...

  • Page 30: Adjustment

    ADJUSTMENT Audio Section Adjusting Idling Current Required measurement equipment: DC Voltmeter 1. Preparation (1) Avoid direct blow from an air conditioner or an electric fan and humidity should be moderate, and place the set at normal usage environment. Temperature should be at 15 °C ~ 30 °C (59 °F ~ 86 °F). (2) Presetting •...
  • Page 31 SURROUND MODES AND PARAMETERS Contents Connections Playback Settings Tips Appendix Sound modes and channel output SThis indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. (v p. 82) Channel output Sound mode (v p.
  • Page 32 Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. Type and format of input signals DTS-HD Dolby Dolby Digital Sound mode DTS-HD Dolby (v p.

  • Page 33: Trouble Shooting

    TROUBLE SHOOTING 1. POWER 1.1. The unit does not power on The unit does not power on Does the power indicator Does the power indicator on on the front panel flash in the front panel flash in red green when the power is when the power is turned on? turned on? Has a fuse broken?

  • Page 34: Analog Video

    2. Analog video MONITOR OUT(CVBS) Output NG Check ±5VV The power supply circuitry is +5VV : C7810 defective. -5VV : C7811 Check input Check pattern from JK781 to IC781 and Check output (When the SAT/CBL function) check cable between AMP and player or Output V : IC781-1pin Vin3 : IC781-7pin...

  • Page 35: Hdmi/Dvi

    (6) Is the BD/DVD player's HDMI output setting correct? the BD/DVD player's operating instructions. (7) When you use a DENON BD/DVD player's, is the fluorescent display tube's "HDMI" indicator lit? If you use a non-DENON BD/ DVD player's, proceed to "YES".
  • Page 36 Is communication waveform confirmed in Test display's "HDMI" indicator lit? IC721,IC731 are defective. point (DDC_CLK/DDC_DATA)? If using a non-DENON BD/ Replace the IC721,IC731. Is terminate the TMDS signal is 3.3V confirmed of DVD player, proceed to "NO". each HDMI connector?
  • Page 37 (19) Check power supply. q Are 1.8V or 3.3V supplied to IC721 (each power supply pin)? The power supply circuitry is defective. w Are 1.1V or 3.3V supplied to IC731 (each power supply pin)? q The X721 or IC721 is defective. (20) Check xtal oscillator.
  • Page 38 3.2. HDMI test point and waveforms HDMI test point and waveforms DIPPING MEDIA PLAYER CBL/SAT COAX IN MEDIA PLAYER DVD/Blu-ray CBL/SAT GAME(4K) BD(4K) MONITOR JK771 R7627 C7702 C7703 R7738 R7655 T7325 R7765 C7621 D7321 D7322 JK724 R7764 C7622 D7323 D7324 JK725 JK723 JK722...
  • Page 39 DDC_CLK/DDC_DATA/TMDS : Check items (16),(18) 0.9V DDC_CLK 2.48V TMDS SIGNAL DDC_DATA DVDD/XTAL/RESET/SCL : Check items (19),(20),(21) P-ON HDMI_SDA/SCL(I2C) : Check item (22) HDMI_SDA HDMI_SCL...

  • Page 40: Audio

    4. AUDIO 4.1. AUDIO CHECK AUDIO OUTPUT : NG INPUT SURROND MODE SOURCE CHECK1 Check ANALOG AUDIO BLOCK. ANALOG 2CH DIRECT ANALOG INPUT SURROND MODE SOURCE CHECK2 Check Digital AUDIO BLOCK. COAX or OPT Legacy(PCM or DolbyDigital or dts…) INPUT SURROND MODE SOURCE CHECK3 Check via AD.
  • Page 41 4.2. Power AMP (MAIN UNIT) No sound is output. The protector operates. Is the power transistor open or short- circuited? Replace the power transistor. 2SB1560/2SD2390 Is the emitter resistance of the power transistor open? Replace the emitter resistance. 0.47Ω Is the base resistance of the power transistor open? Replace the base resistance.

  • Page 42: Bluetooth

    5. Bluetooth 5.1. A connected Bluetooth device is not recognized. Check the Bluetooth device being used Are there other Bluetooth devices on close by? Turn off other Bluetooth devices. This unit supports devices with A2DP sup- Is the Bluetooth device supported by this unit? port.

  • Page 43: Smps

    5.2. A connected USB device is not recognized. Check the USB device being used Is a USB hub being used? Do not use a USB hub. This unit supports devices in the FAT16 and FAT32-formatted mass storage class, MTP- Is the USB device supported by this unit? compatible devices and iPods (with the exception of some models).
  • Page 44 Operation waveform for each part SMPS Primary drain After primary side rectification (Caution: High voltage, electric shock) (Caution: High voltage, electric shock) D6013 OPTION RBQ30T65A C6002 0.01uF 250V OPTION D6001 1N4007 After secondary rectifications D6002 1N4007 D6011 OPEN D6003 1N4007 D6004 1N4007 LF602 3,JP:LF-4ZB-E273H...
  • Page 45 Personal notes:...

  • Page 46: Clock Flow & Wave Form In Digital Block

    CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK IC721 ADV7623BSDZ HDMI Transceiver (W/GUI) IC731 Wave form MN8647781 HDMI 1 - 3 CH1: RXP2 HDMI 4 - 5 IC744 CS42528 (DIR+CODEC) RMCK(55) Coaxial1 (47)RXP2/GPO2 Optical1 (49)RXP0 SAI_SCLK(61) (32)DAI2_LRCK IC741 (33)DAI2_SCLK CS497024CVZ SAI_LRCK(60) (34)DAI2_DATA,DSD5 (AUDIO DSP)

  • Page 47: Analog Audio Block Diagram

    ANALOG AUDIO BLOCK DIAGRAM AVR-S500BT/X510BT ANALOG AUDIO BLOCK H/P OUT H/P L H/P R MAIN AMP 2SD2390/2SB1560 SPK OUT ANA_FL DA_FL ANA_FR DA_FR MAIN AUDIO IN DA_CEN SAT/CBL DA_SW SETUP MIC DA_SL TUNER DA_SR TUNER FM/AM DA_SBL DA_SBR VOL IC...

  • Page 48: Digital Audio/Hdmi Block Diagram

    DIGITAL AUDIO/HDMI BLOCK DIAGRAM AVR-S500BT/X510BT DIGITAL AUDIO/HDMI BLOCK DA_FL DIR/CODEC CS42528 DA_FR LRCK DA_CEN SCLK DA_SW CODEC VOLUME DIGITAL SERIAL CONTROL FILTER DIGTAL IN ANALOG DA_SL PORT FILTER OPTICAL IN1 DA_SR OPTICAL IN2 COAXIAL IN1 GAIN DIGITAL & FILTER CLIP...

  • Page 49: Video Block Diagram

    VIDEO BLOCK DIAGRAM AVR-S500BT/X510BT VIDEO BLOCK HDMI IN HDMI IN1 (CBL/SAT) ADV7623 HDMI IN2 TRANSCEIVER (BLU-RAY) OSD Block HDMI IN3 (AUX) X7201 28.6363MHz S.FLASH For GUI HDMI TX(MN864778) P3 RX MAIN P0 TX HDMI IN HDMI OUT P1 RX P1 RX...

  • Page 50: Power Block Diagram

    POWER BLOCK DIAGRAM AVR-S500BT/X510BT VCC DIAGRAM HI+B MAIN+B LOW+B MAIN-B S1(AMP+B,-B) 185.1mA RELAY*5 HI-B 25mA VOLUME IC LOW-B (NJU72340A) MM1Z7V5 32mA A+12V (NJM8080 X 4) 45mA DA+3.3V (USB DAC:PCM5100) NJM2845DL133 14mA +5VA (NJM2115MDTE1 X 2) KIA7805BPI S2(+12V,-12V) 50mA TUNER+5V 37.5mA...

  • Page 51: Level Diagram

    LEVEL DIAGRAM AVR-S500BT/X510BT LEVEL1 DIAGRAM FRONT ch A/D IN A/D IN D/A OUT ELECTRIC PRE AMP1 POWER AMP REV AMP REV AMP VOLUME AUDIO IN SPK OUT FRONT NJU72340AFH3 DIGITAL H/P OUT CS42528 FRONT 40dB 40dB 30dB 30dB CS42528 SPK OUT DIFF.
  • Page 52 AVR-S500BT/X510BT LEVEL2 DIAGRAM CENTER ch D/A OUT ELECTRIC PRE AMP1 POWER AMP VOLUME SPK OUT DSP OUT CENTER NJU72340AFH3 CENTER 40dB 40dB 30dB 30dB SPK OUT CS42528 FRONT DIFF. OUT 4.47Vrms/8ohm 0dBFS=5Vpp FULL SCALE LEVEL=2Vrms 20dB =1.77Vrms 20dB DOLBY LIMIT LEVEL (ALL ch-3dBFS)
  • Page 53 AVR-S500BT/X510BT LEVEL3 DIAGRAM SURROUND ch D/A OUT ELECTRIC PRE AMP1 POWER AMP VOLUME SPK OUT DSP OUT SURROUND NJU72340AFH3 SURROUND 40dB 40dB 30dB 30dB SPK OUT CS42528 FRONT DIFF. OUT 4.47Vrms/8ohm 0dBFS=5Vpp FULL SCALE LEVEL=2Vrms 20dB =1.77Vrms 20dB DOLBY LIMIT LEVEL (ALL ch-3dBFS)
  • Page 54 AVR-S500BT/X510BT LEVEL4 DIAGRAM SUBWOOFER ch D/A OUT SW SUM ELECTRIC REV AMP PRE AMP1 REV AMP VOLUME DSP OUT SW WOOFER PREOUT NJU72340AFH3 MUTE SUBWOOFER 40dB 40dB 30dB 30dB CS42528 DIFF. OUT 0dBFS=5Vpp FULL SCALE LEVEL=2Vrms 20dB =1.77Vrms 20dB DOLBY LIMIT LEVEL (ALL ch-3dBFS)

  • Page 55: Wiring Diagram

    WIRING DIAGRAM AVR-S500BT/X510BT WIRING DIAGRAM AC CORD TUNER DIGITAL PCB CN781 VIDEO PCB BN508 9P/9P TU771 SMPS<-AC IN CN741 CN771 CN752 CN711 CN751 CN602 SMPS<-DIGITAL CN772 CN712 CN713 CN601 REGUL.<- DIGITAL REGULATOR PCB SMPS PCB CN503 BN501 BN502 MAIN PCB BN505 TRANS->MAIN...

  • Page 56: Printed Wiring Boards

    PRINTED WIRING BOARDS FRONT (A SIDE) T 100mA L 250V C1004 LUG11 BN12B1 FL101 F1001 C1007 C1075 C1008 J1019 J1033 J1036 J1042 J1020 J1050 CN102 C1006 J1043 LD101 J1005 J1021 1.VDISP R1001 C1005 2.NC J1022 R1002 3.GND J1003 J1044 C1019 4.NC J1051 5.FL AC...
  • Page 57 PRINTED WIRING BOARDS MAIN CMD1A569 (A SIDE) J5601 D5704 C5708 D5703 BK501 R5714 J5628 C5706 JK503 JK504 J5656 J5677 J5655 C5717 J5629 J5630 C5711 C5713 J5657 J5658 R5706 R5708 R5715 J5631 R5718 J5632 C5609 C5612 C5610 C5613 R5725 C5614 C5611 R5716 R5723 J5633...
  • Page 58 MAIN (B SIDE) C5617 C5616 C5620 C5619 Q5706 Q5703 Q5707 Q5704 Q5708 Q5705 R5814 Q5602 D5810 Q5701 Q5806 Q5508 Q5507 Q5408 Q5407 Q5308 Q5307 Q5208 Q5207 Q5108 Q5107 R5526 R5426 R5326 R5226 R5126 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 59: Digital

    DIGITAL (A SIDE) DIPPING MEDIA PLAYER COAX IN CBL/SAT MEDIA PLAYER DVD/Blu-ray CBL/SAT GAME(4K) BD(4K) MONITOR JK771 R7627 C7702 R7738 C7703 R7765 R7655 T7325 C7621 D7321 D7322 JK724 R7764 C7622 JK725 JK723 JK722 T7208 JK721 JK784 D7323 D7324 R7659 D7326 D7314 D7304 D7303 D7234...
  • Page 60 DIGITAL (B SIDE) CHGND R7231 Q7202 Q7201 Q7206 Q7205 Q7302 Q7301 AGND Q7304 C7739 D7217 Q7303 Q7203 R7271 D7203 R7284 R7323 R7265 R7278 R7279 R7263 R7324 R7266 D7216 R7264 R7276 R7277 C7208 D7202 R7274 R7275 DA+5V R7609 R7309 C7332 C7333 R7262 C7330 R7343 R7310...

  • Page 61: Front Cable Guide

    AVR-S700W/X1100W C6001 ZD618 D6008 T 3.15A L 250V (220V~240V AREA) Pri. T 6.3A L 250V (100V~120V AREA) CUP12649Z-4 MP 2014.03.17 Sec. AVR-S500BT/X510BT IC602 R6016 T6001 (220V~240V AREA) T 2.5A L 250V T 4A L 250V (100V~120V AREA) J6013 C6023 C6018...
  • Page 62 SMPS (B SIDE) R6031 R6032 R6033 R6011 Sec. Pri. C6026 R6012 Pri. Sec. C6024 R6022 C6025 R6023 C6022 R6026 C6020 C6021 Q6003 R6025 MAIN_POWER TP 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).

  • Page 63: Regulator

    REGULATOR REGULATOR (B SIDE) (A SIDE) CUP12615Z-2 BK301 REGULATOR PART 1A569 J3007 MP_STAGE CN302 AVR-S700W/X1100W C3024 F3001/F3002 USE AVR-S500BT/X510BT BN301 BN302 F3003/F3004 USE C3006 JK301 Q3002 Q3001 J3023 ADJ1 ADJ2 RP BONDING J3025 J3015 J3004 C3005 C3012 J3006 D3001 D3003...

  • Page 64: Tuner

    STANDBY STANDBY TUNER TUNER (B SIDE) (A SIDE) (B SIDE) (A SIDE) CUP12649Z-2 TUNER MP 2014.03.17 +12V J1063 Q1009 Q1008 AVR-X1100BKE3 CIP12619C ﾐ ? ｱ簀ｸ Q1012 Q1011 J5927 J5928 BN508 VIDEO (A SIDE) PHONE PHONE (B SIDE) (A SIDE) OPT2 OPT1 CVBS JK782...

  • Page 65: Schematic Diagrams (1/12)

    TO FRONT B'D CN711 FFC WAFER/27P/1.25mm FOR UPDATE TO BN1281 MCU PART CN711 CN714 OPEN FFC 27P *EMI Coutermeasure. *EMI Coutermeasure.(C7124/C7125/C7144) MCU+3V3 AGND SUB_MUTE *EMI Coutermeasure. L7103~L7105, L7119: 0 ohm-->600 ohm Bead DGND DAC_MUTE MAIN_VOL_CLK TO A4 MAIN_VOL_DATA TUNER_INT TUNER_RST TUNER_CE TUNER_SDIO TUNER_SCLK...

  • Page 66: Hdmi Osd

    0.01uF OPEN(ADI RECOMMENDATION) HDMI2_MCLK HDMI OSD PART HDMI2_SCLK CVDD DVDD DVDDIO PVDD TVDD TXPLVDD TXAVDD TXPVDD HDMI2_LRCLK TO 1B TO A6 HDMI2_SDATA3 HDMI2_SDATA2 HDMI2_SDATA1 HDMI2_SDATA0 * HDMI ATC_CEC Connectivity TEST COUNTERMEASURE R7231: OPEN-->0 ohm Change R7231 CEC_COM CEC_5V ADV7623_RST INT_TX INT2_RX INT_RX HDMI_SCL...

  • Page 67: Hdmi 4K

    CEC5V L7301 CB05YTYH221 VDD33 CEC3V3 TO A9 CEC1V1 DGND HDMI 4K PART L7302 AVDD33 CB05YTYH221 L7303 CB05YTYH221 AVDDH33 L7304 CB05YTYH221 PVDD33 TX2+ L7305 VDD33IO CB05YTYH221 TX2- TX1+ TX1- TX0+ TO 7A L7306 TX0- CB05YTYH221 VDD11 TXC+ TXC- TXDDC_SDA TXDDC_SCL L7307 CB05YTYH221 * HDMI operation Countermeasure AVDD11...

  • Page 68: Dsp

    DSP PART DIR_INT CODEC_MUTE DSP_MODE_SEL TO B3 TO B4 DIR_CE DIR_RST DIR_MOSI FROM/TO INPUT/VOLUME PART TO DIGITAL POWER PART DIR_CLK DIR_MISO TO 2A HDMI_SW DSP_CS DSP_SPC1_IRQ DSP_PCP_BSY DSP_RST DSP_MOSI * Cirrus Recommend DSP_MISO DSP_CLK R7424, R7425: 10K-->3.3K Change. HDMI2_SW *SOUND QUALITY Coutermeasure. C7442 100/50V +3V3D...

  • Page 69: Digital Power

    DIGITAL POWER PART TO 9A TO 8A TO HDMI 4K PART TO HDMI OSD PART CN751 CJP05GI289ZY L7501 5.D5.2V CB03YTYH600 CN751 L7502 4.D5.2V CB03YTYH600 L7508 TO BN601 3.D_GND L7527 CB03YTYH600 L7503 2.D_GND CB03YTYH600 CB03YTYH600 L7429 1.MAIN_POWER CB03YTYH600 R7558 DA_POWER DSP_POWER Q7521 MAIN_POWER *EMI Coutermeasure.

  • Page 70: Input Volume

    INPUT/VOLUME PART MCU+3V3 AGND SUB_MUTE DGND DAC_MUTE MAIN_VOL_CLK TO 4A MAIN_VOL_DATA R7637 TUNER_INT R7651 TU771 TU771 TUNER_RST R7653 TUNER_CE 1.CH_GND R7656 TUNER_SDIO 2.INT R7657 TUNER_SCLK 3./RST 4./CE +12V 5.SDIO 6.SCLK -12V 7.VCC 8.R-OUT L7601 9.L-OUT CB03YTYH600 *SOUND QUALITY Coutermeasure. R7639 -12V R7640 R7601...

  • Page 71: Usb Bt

    USB / BT PART ( SETUP MIC ) D9014 CDS3C05HDMI1 C9107 OPEN C9029 0.1uF D9010 1SS355T L9022 OPEN JK91 D9011 1SS355T CJJ9X010Z 4.DGND 3.USBD+ C9037 OPEN 2.USBD- C9030 0.1uF 1.VBUS RN909 0 X 2 C9010 220/6.3V OPTION IC905 IC909 USE : L9017 OPEN R9012 2.2K IC909 NOT USE : R9089 OPEN...

  • Page 72: Video Optical

    VIDEO/OPTICAL PART NLM2595 S/W TABLE(SW2,5 CONTROL) FUNC.IN (14) (10) MUTE X (L) R7807 270(1W) SAT/CBL R7808 270(1W) 10/50V C7805 CJJ4S010Z JK781 1.+12V CBL/SAT IN J7806 OPEN 2.VGND 3.-12V CN781 4.CVBS_SW2 DVD IN 10/50V 5.CVBS_SW5 TO CN741 C7804 6.+5VD 1.8K 7.OPT1_IN MONITOR OUT R7801 8.DGND...

  • Page 73: Main

    INPUT/VOLUME PART OPEN OPEN OPEN DC PROTECTION MCU PART 2.0mm 13PIN WIRE OPT. 2.0mm 9PIN WIRE *TUNER MODULE OPTION PTC Thermistors AVR-S500BT E3 CNVYST990-A9U1 THERMALDET_A FL-CH, SL-CH, CEN_CH AVR-X510BT E1 CNVYST990-D8E1 BN508 TO TU771 BN508 THERMALDET_B FR-CH, SR-CH AVR-X510BT E1C...

  • Page 74: Front

    AVR-S500BT/X510BT/S700W/X1100W FRONT PART BN1281 TO CN711 BN12B1 FL101 AVR-X1100W E3 ONLY CJP27GB286ZN CFL18BT021GINK RC101 F1001 T 100mA L 250V (37.9kHz) Q1001 D1001 R1061 1N4007ST KTC1027YT AVR-S500BT/X510BT VOUT GND Q1007 OPEN R1060 R1022 OPEN C1012 OPEN R1023 OPEN R1059 C1013 100P...

  • Page 75: Regulator

    REGULATOR PART D3101 FUSE OPTION OPEN F3001 F3002 F3003 F3004 IC305 CVIKIA7805BPI S700W/X1100W 218Series 218Series OPEN OPEN S500BT/X510BT OPEN OPEN 932Series 932Series J3001 OPEN FUSE OPTION F3004 IC301 T 1.25A L 250V CVIKIA7812BPI 932 TYPE D3001 1N4007 F3002 D3002 1N4007 T 1.25A L 250V 1.DA+5V 1.AC_S2...

  • Page 76: Smps

    BK603 CMD1A629 BN601 OPEN(1608) WIRE/5P/2.5mm CN602 C6025 OPEN(1608) YW396-NNB AVR-S700W/X1100W E3,K T 6.3A L 250V E2,E1,E1C T 3.15A L 250V AVR-S500BT/X510BT E3 T 4A L 250V R6025 E2,E1,E1C T 2.5A L 250V 4.7K(1608) OPTION C6022 OPEN *OPTION ZD621 ZD608 ZD609...
  • Page 77 Personal notes: Personal notes:...

  • Page 78: Exploded View Avr-S500Bt

    EXPLODED VIEW AVR-S500BT See the last chapter the part list. AVR-S500BTBKE3 EXPLODED VIEW S3 x2 S6 x1 S3 x2 S6 x3 S3 x6 S3 x1 S9 x3 S6 x7 S6 x4 S3 x2 S6 x3 S6 x1 S7 x2 S9 x3...

  • Page 79: Exploded View Avr-X510Bt

    EXPLODED VIEW AVR-X510BT See the last chapter the part list. AVR-X510BT EXPLODED VIEW S6 x2 S3 x2 S6 x1 S3 x2 S6 x3 S3 x6 S3 x1 S9 x3 S6 x7 S6 x4 S3 x2 S6 x3 S6 x1 S7 x2 S9 x3 S4 x1 S1 x1...

  • Page 80: Packing View Avr-S500Bt

    PACKING VIEW AVR-S500BT See the last chapter part numbers. 5-7 5-8 5-10 5-11 5-12 5-13...

  • Page 81: Packing View Avr-X510Bt

    PACKING VIEW AVR-X510BT See the last chapter part numbers. 5-7 5-8 5-10 5-11 5-12 UK plug Adaptor...

  • Page 82: Semiconductors

    SEMICONDUCTORS Only major semiconductors are shown. General semiconductors etc. are omitted from list. STM32F101xC, STM32F101xD, STM32F101xE Pinouts and pin descriptions The semiconductors which have a detailed drawing in a schematic diagram are omitted from list. Pinouts and pin descriptions 1. IC's STM32F101ZE (DIGITAL MCU: IC711) Figure 3.
  • Page 83 Pin Name Symbol Pullup STBY stop Function 29 PC3 OPTION M3VPu MODEL OPTION 30 VSSA GND fixed 31 VREF- GND fixed 32 VREF+ 3.3V 33 VDDA 3.3V 34 PA0 / WKUP AUDIO LEVEL DET O/L AUDIO LEVEL DETECT 35 PA1 USB_RESET O/L BX8804(USB DECORDER) RESET control 36 PA2...
  • Page 84 Pin Name Symbol Pullup STBY stop Function 95 VDD_9 3.3V 96 PC6 CEC_POWER2 O/L CEC_POWER2 TIMING control 97 PC7 VFD_CE O/L VFD_CE 98 PC8 VFD_CLK O/L VFD_CLK 99 PC9 DSP POWER O(L) DSP power cotrol 100 PA8 VFD_DATA O/L VFD_DATA 101 PA9 UPDATE_TX O/L UPDATE TX...
  • Page 85 M24128, M24C64, M24C32 Description M24C32WMN6TP (DIGITAL : IC712) Table 2. Signal names Signal name Function Direction E0, E1, E2 Chip Enable Input Serial Data Serial Clock Input Write Control Input Supply voltage Ground Figure 2. DIP, SO, TSSOP and UFDFPN connections M24128 M24C64 M24C32...
  • Page 86 ADV7623 Hardware Manual ADV7623 Terminal Functions Table 6. Function Descriptions Location Mnemonic Type Description DDCC_SCL Digital Input HDCP slave serial clock port C. DDCC_SCL is a 3.3 V input that is 5 V tolerant. CVDD Power Receiver comparator supply voltage (1.8V) CGND Ground TVDD and CVDD Ground...
  • Page 87 ADV7623 Hardware Manual Location Mnemonic Type Description D in the HDMI interface. RXD_0+ HDMI Input Digital input channel 0 True of port D in the HDMI interface. CGND Ground TVDD and CVDD Ground RXD_1- HDMI Input Digital input channel 1 complement of port D in the HDMI interface.
  • Page 88 ADV7623 Hardware Manual Location Mnemonic Type Description TXGND Ground TXAVDD Ground TX0- HDMI Output Differential Output Channel 0 Complement. Differential output of the red data at 10× the pixel clock rate; supports TMDS logic level. TX0+ HDMI Output Differential Output Channel 0 True. Differential output of the red data at 10×...
  • Page 89 ADV7623 Hardware Manual Location Mnemonic Type Description MCLK_IN Digital Input Audio Reference Clock. 128 × N × fs with N = 1, 2, 3, or 4. Set to 128 × sampling frequency (fs), 256 × fs, 384 × fs, or 512 × fs.
  • Page 90 ADV7623 Hardware Manual Location Mnemonic Type Description AP0_OUT Digital Output Audio output port 0. AP1_OUT Digital Output Audio output port 1. AP2_OUT Digital Output Audio output port 2. AP3_OUT Digital Output Audio output port 3. AP4_OUT Digital Output Audio output port 4. DGND Ground Ground for DVDD...
  • Page 91 ADV7623 Hardware Manual Location Mnemonic Type Description CGND Ground TVDD and CVDD Ground RXA_C- HDMI Input Digital input clock Complement of port A in the HDMI interface. RXA_C+ HDMI Input Digital input clock True of port A in the HDMI interface. TVDD Power Receiver terminator supply voltage (3.3 V)
  • Page 92 ADV7623 Hardware Manual Location Mnemonic Type Description B in the HDMI interface. RXB_1+ HDMI Input Digital input channel 1 true of port B in the HDMI interface. TVDD Power Receiver terminator supply voltage (3.3 V) RXB_2- HDMI Input Digital input channel 2 complement of port B in the HDMI interface.
  • Page 93 CS497024CVZ (DIGITAL : IC741)
  • Page 94 CS497024CVZ Block diagram MX25L8006EM2I-12G (DIGITAL : IC742) PIN DESCRIPTION SYMBOL DESCRIPTION SO/SIO1 HOLD# Chip Select Serial Data Input (for 1 x I/O)/ Serial Data SCLK SI/SIO0 Input & Output (for Dual Output mode) SI/SIO0 Serial Data Output (for 1 x I/O)/ Serial Data SO/SIO1 Output (for Dual Output mode) Clock Input...
  • Page 95 M12L16161A5TG (DIGITAL : IC743) M12L16161A5TG Terminal Functions Name Input Function System Clock Active on the positive going edge to sample all inputs. Disables or enables device operation by masking or enabling all inputs except CLK, CKE Chip Select and L(U)DQM. Masks system clock to freeze operation from the next clock cycle.
  • Page 96 CS42528-CQ (DIGITAL : IC744) CS42528 Block diagram...
  • Page 97 CS42528 Terminal Functions...
  • Page 98 TC74VHC157F/FN/FT/FK TC74VHC157FT (DIGITAL : IC745-747) Pin Assignment IEC Logic Symbol (15) SELECT SELECT A S G 1 MUX (11) (10) (14) (12) (13) (top view) Truth Table Inputs Output SELECT EN5339QI  t Number Package Markings Temp Rating (° C) Package Description N5339QI EN5339...
  • Page 99 NJU72340A (DIGITAL :IC761) NJU72340A Terminal Functions...
  • Page 100 BX8804(USB : IC901) TDO / GP44 GP05 / SPI0 CK TMS / GP45 GP04 / SPI0 CS GP03 / EXT Clock GP29 / CDDSP SCOR0 ECSN GP30 / CDDSP BCLK0 EOEN / GP42 GP31 / CDDSP DATA0 EWEN / GP41 GP32 / CDDSP LRCK0 EAD20 / GP40 / Boot Mode GP33 / SBDT0...
  • Page 101 BX8804 Terminal Functions Name Type Description Alternative Function ADIN1 ADC analog input[1] ADIN0 ADC analog input[0] AVDD33 ADC Analog Power supply (3.3V) AVSS33 ADC Analog Ground GP00 General Purpose IO 00 External Interrupt 0 GP01 General Purpose IO 01 External Interrupt 1 External SDRAM data bus [0] External program data bus [0] External SDRAM data bus [8]...
  • Page 102 External SDRAM Bank selector 1 External program address bus [14] LDQM SDRAM Lower byte data mask External program address bus [15] UDQM SDRAM Upper byte data mask External program address bus [16] SDCSN SDRAM Chip select VDD12 Digital power supply (1.2V) VSS12 Digital Ground SDRAM clock enable...
  • Page 103 GP19 General Purpose IO 19 SPI1 MISO GP20 General Purpose IO 20 SPI1 MOSI External Interrupt 3 GP21 General Purpose IO 21 SPI2 CS DDATA Audio serial data for external DAC IOVDD33 I/O Power supply (3.3V) IOVSS33 I/O Ground DMCK Master clock for external DAC DBCK Audio serial data Bit clock...
  • Page 104 GP30 General Purpose IO 30 CDDSP BCLK0 GP31 General Purpose IO 31 CDDSP DATA0 GP32 General Purpose IO 32 CDDSP LRCK0 GP33 General Purpose IO 33 SBDT0 GP34 General Purpose IO 34 SBCK Timer0 Output GP35 General Purpose IO 35 External Interrupt 10 GP36 General Purpose IO 36...
  • Page 105 W9864G6JH-6 (USB : IC902) W9864G6JH-6 Terminal Functions...
  • Page 106 MX25L1606EM2I-12G (USB : IC904) MX25L1606EM2I-12G Terminal Functions BD82065FVJ (USB : IC905)
  • Page 107 TOP258MG (SMPS : IC601) × R M Package × R For R = 4 M = 102.8 VDC = 451 VDC @100 VDC = 76% Input C = 41% @375 VD Voltage CONTROL For R = 12 k = 61% LIMIT See Figure 55b for other resistor values...

  • Page 108: Fl Display

    2. FL DISPLAY FLD (018BT021GINK) (FRONT : FL101) PIN CONNECTION GRID ASSIGNMENT...
  • Page 109 ANODE CONNECTION...
  • Page 110 FRONT FRONT PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 111 FRONT REF No. Part No. Part Name Remarks Q'ty New Ver C1081 CAP,CHIP(1608,50V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H104KCS C1424 CAP,CHIP(1608,50V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H104KCS C1425,1426 CAP,CHIP(1608,50V/0.01uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H103KCS OTHER PARTS GROUP CN102 WAFER/ANGLE/2.5mm/07P CJP07GB03ZY CN103 LOCK-WAFER/ANGLE/2MMPITCH/3PIN CJP03GJ288ZY CN104 LOCK-WAFER/STRAIGHT/2MMPITCH/3PIN CJP03GI288ZY BK101,102 BRACKET,FIP CMD1A572-V1 BN101 WIREASS'YB'D-B'DIN(9P,2MM,80MM,#28) 80'C1007#28BLK/(RED)Borad_in-Borad_in CWB1A009080CC BN12B1 WAFER,FFC1.25mm,ANGLE...
  • Page 112 USB PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 113 MAIN MAIN PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 114 MAIN REF No. Part No. Part Name Remarks Q'ty New R5306 RES,M-OXIDEFILM(1W/1.2Kohm) CRG1SANJ122RT R5307 RES,CARBON(1/5W,220ohm,J) CRD20TJ221T R5308 RES,CARBON(1/5W,470Kohm,J) CRD20TJ474T R5309 RES,CARBON(1/5W,33Kohm,J) CRD20TJ333T R5310 RES,M-OXIDEFILM(1W/47ohm) CRG1SANJ470RT R5313 RES,CARBON(1/5W,2.7Kohm,J) CRD20TJ272T R5314 RES,CARBON(1/5W,560ohm,J) CRD20TJ561T R5315,5316 RES,M-OXIDEFILM(1W/5.6Kohm) CRG1SANJ562RT R5317,5318 RES,M-OXIDEFILM(1W/4.7ohm) CRG1SANJ4R7RT R5319-5322 943124500050S RES,M-OXIDEFILM(2W/0.47ohm) CRG2SANJR47RT R5323 RES,CARBON(1/5W,470Kohm,J)
  • Page 115 MAIN REF No. Part No. Part Name Remarks Q'ty New C5407 943134500070S CAP,ELECT(100V/10uF) CCEA2AH100T C5408 13405014940AS CAP,ELECT(63V/100uF) 85'C10X12.5KOSHIN CCEA1JH101T C5409 CAP,MYLAR(50V/0.1uF/J) HCQI1H104JZT C5501 943134500070S CAP,ELECT(100V/10uF) CCEA2AH100T C5502 CAP,MYLAR(100V/470pF/J) HCQI2A471JZT C5503 CAP,CERAMIC(50V/82pF/J) CCCT1H820JC C5504 CAP,MYLAR(50V/2200pF/J) HCQI1H222JZT C5505 943134501770S CAP,ELECT(50V/220uF) CCEA1HH221T C5506 CAP,CERAMIC(50V/33pF/J) CCCT1H330JC C5507...
  • Page 116 POWER POWER PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 117 DIGTAL DIGTAL PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 118 DIGTAL REF No. Part No. Part Name Remarks Q'ty New Ver R7254 RES,CHIP(1005/5%/1Kohm) CRJ06IJ102T R7255 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R7256,7257 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R7258 RES,CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R7259 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R7260-7266 RES,CHIP(1005/5%/0ohm) CRJ06IJ0R0T R7267 RES,CHIP(1005/5%/1Kohm) CRJ06IJ102T R7268 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R7269,7270 RES,CHIP(1005/5%/47Kohm) CRJ06IJ473T R7271 RES,CHIP(1608/5%/4.7Kohm) CRJ10DJ472T R7272 RES,CHIP(1005/5%/0ohm)
  • Page 119 DIGTAL REF No. Part No. Part Name Remarks Q'ty New Ver R7637 RES,CHIP(1005/5%/100ohm) CRJ06IJ101T R7638 RES,CHIP(1608/5%/470ohm) CRJ10DJ471T R7639,7640 RES,CHIP(1005/5%/100ohm) CRJ06IJ101T R7647 RES,CHIP(1608/5%/470Kohm) CRJ10DJ474T R7648 RES,CHIP(1608/5%/1Kohm) CRJ10DJ102T R7649 RES,CHIP(1005/5%/10Kohm) CRJ06IJ103T R7650 RES,CHIP(1608/5%/10Kohm) CRJ10DJ103T R7651 RES,CHIP(1005/5%/100ohm) CRJ06IJ101T R7652 RES,CHIP(1608/5%/820ohm) CRJ10DJ821T R7653 RES,CHIP(1005/5%/100ohm) CRJ06IJ101T R7655 RES,CHIP(1608/5%/0ohm)
  • Page 120 DIGTAL REF No. Part No. Part Name Remarks Q'ty New Ver C7380,7381 CAP,CHIP(1608,6.3V/4.7uF,X5R)_SAMSUNG HighCapacitance-X5R CCUS0J475KCS C7386 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1C104KCS C7401,7402 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1C104KCS C7403,7404 CAP,CHIP(1608,50V/10pF,C0G)_SAMSUNG GeneralCapacitors-C0G CCUS1H100JAS C7405 CAP,ELECT(10V/220uF) CCEA1AH221T C7406 CAP,CHIP(1608,10V/1uF,X7R,X7S)_SAMSUNG HighCapacitance-X7R,X7S CCUS1A105KCS C7407 CAP,CHIP(1005,25V/0.01uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1E103KCS C7408-7410 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1C104KCS C7412 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R...
  • Page 121 DIGTAL REF No. Part No. Part Name Remarks Q'ty New Ver C7656,7657 CAP,CHIP(1608,50V/330pF,C0G)_SAMSUNG GeneralCapacitors-C0G CCUS1H331JAS C7658,7659 CAP,CHIP(1608,50V/1500pF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H152KCS C7660 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1C104KCS C7661,7662 CAP,CHIP(1608,50V/330pF,C0G)_SAMSUNG GeneralCapacitors-C0G CCUS1H331JAS C7663,7664 CAP,ELECT(100V/10uF) CCEA2AH100T C7665 CAP,CHIP(1005,16V/0.1uF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUI1C104KCS C7668-7670 CAP,CHIP(1608,50V/1500pF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H152KCS C7671 CAP,CHIP(1608,50V/4700pF,X7R)_SAMSUNG GeneralCapacitors-X7R CCUS1H472KCS C7672 CAP,CHIP(1608,50V/330pF,C0G)_SAMSUNG GeneralCapacitors-C0G...
  • Page 122 VIDEO VIDEO PCB ASS'Y ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 123 CGX1A469 943412101070D KNOB, SELECT CBN1A274 943446100760D PLATE, VOLUME KNOB CGX1A481 943419100860D PANEL, SUB CGR1A570R12ZH70 943416101310D WINDOW, FL CGU1A462P 42141002400AD BADGE, DENON CGB1A275Y 943402104580D PANEL, FRONT CGW1A553RHWH70 943411101750D BUTTON, POWER CBT1A1167 943423100510D INDICATOR, POWER CGL1A299A36 943411103220D BUTTON , SOURCE CBT1A1195 943411103210D...
  • Page 124 KNOB, SELECT　(SP) CBN1A274C73 943446100760D PLATE, VOLUME KNOB CGX1A481 943419100870D PANEL, SUB CGR1A570R12ZH70 943419100880D PANEL, SUB CGR1A569R12Y 943416101320D WINDOW, FL CGU1A462N 42141002400AD BADGE, DENON CGB1A275Y 42141002401AD BADGE, DENON CGB1A275X 943402104590D PANEL, FRONT CGW1A553RHUH70 943402104600D PANEL, FRONT CGW1A553RGYG45 943411101750D BUTTON, POWER CBT1A1167 943411101760D...
  • Page 125 PACKING_S500BT PACKING_S500BT ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.
  • Page 126 PACKING_X510BT PACKING_X510BT ※Parts indicated by "nsp"on this table cannot be supplied. ※The parts listed b NOTE:The symbols in the column Remarks indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model E1C : China model E1 : Asia model JP : Japan model BK : Black model SP : Premium Silver model REF No.

This manual is also suitable for:

Avr-x510bt

Table of Contents

Save PDF
